Pre-order
In stock (3)

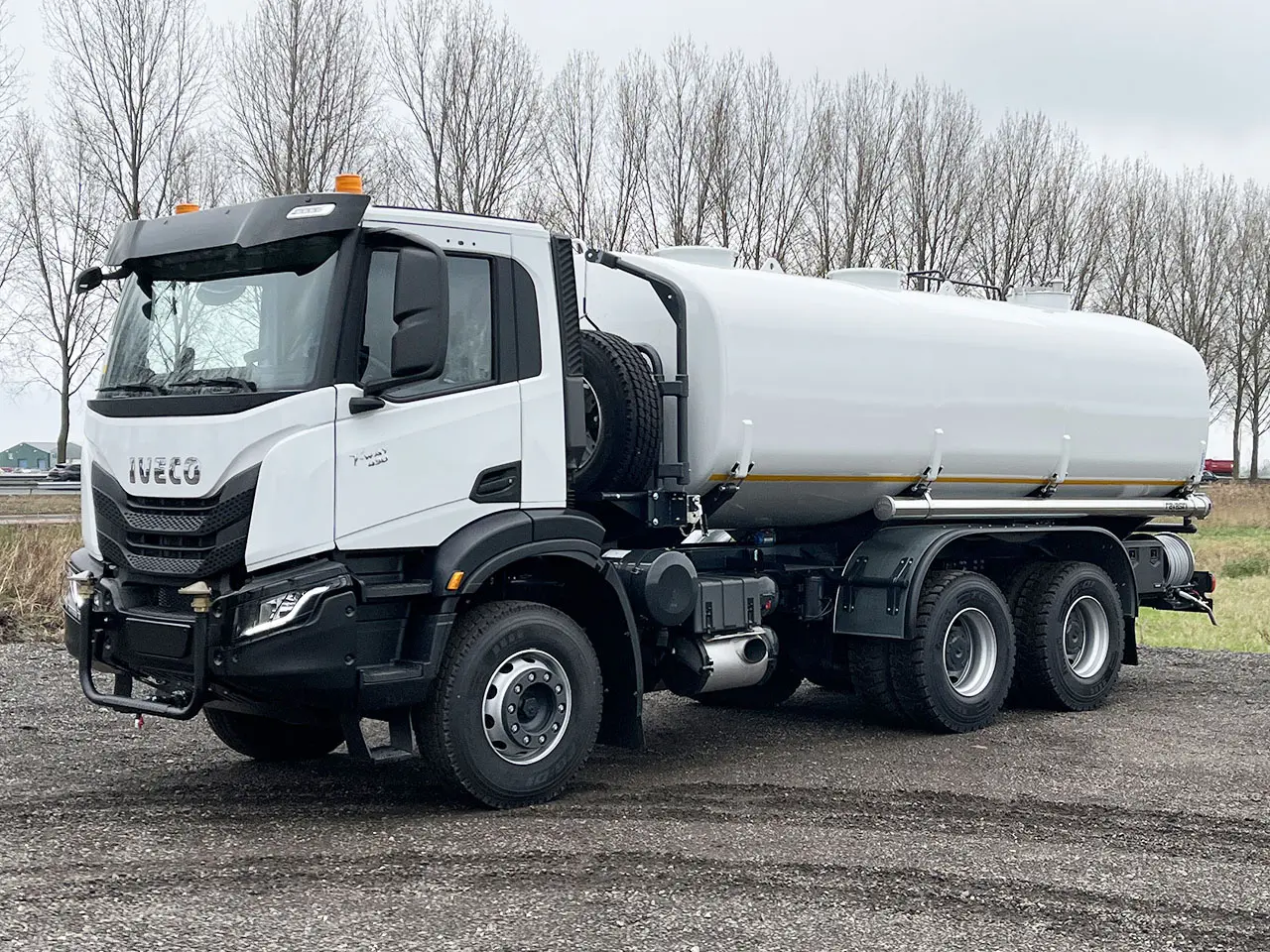

Iveco T-Way AD380T43 AT 6x4 Water Tank Truck
6x4
Diesel
Left hand drive
€ 149.500
Net unit price EXW
Specifications
General
- ID
- IV5205
- Brand
- Iveco
- Construction
- Water Tank Truck
- Construction brand
- Ravasini
- Model year
- 2026
- Vehicle status
- New / Unused
Engine
- Engine type
- F3HGE611Y
- Emission code
- EURO-3
- Engine power
- 430hp/316kW
Cabin
- Cabin
- Day
- Steering
- Left hand drive
Gearbox
- Transmission
- Automatic
- Gearbox
- ZF16TX2240TO
- PTO
- NH/4C
Chassis
- Wheel base
- 3.800 mm
- GVW
- 33.500 kg
- Axle configuration
- 6x4
- Suspension
- Spring
Dimensions
- External dimension
- 9.000 x 2.500 x 3.500 mm
- Empty weight
- 12.700 kg
Axles
Axle 1
- Steering
- Yes
- Tires
- Single
- Brakes
- Drum
- Suspension
- Spring
- Driven
- No
- Tire size
- 315/80R22.5
Axle 2
- Steering
- No
- Tires
- Double
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 315/80R22.5
Axle 3
- Steering
- No
- Tires
- Double
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 315/80R22.5
Remarks
Fuel tank: 290 ltr.Air conditioning
Equipped with 20.000 ltr. Ravasini drinking water tank:
One compartment tank Double-D section
Internal anti-sloshing baffles
Pumping system for loading and unloading with self-priming centrifugal pump
Hose reel in stainless steel with automatic winding, 20 mtr. of hose 1 inch and a shut off valve.
Box with taps for drinking water delivery.
Sprinkling units front and rear spray bars.
Sprinklers with flat spraying nozzles mounted on front and rear end of the vehicle, the bars function separately or at the same time.
Complete specification in PDF.
Pre-Order Status:
Trucks are not yet in stock, they are in production and delivery to us will take place from 12/2025 - 01/2026. Please contact us for further information. Pictures do not represent the exact final product and will be updated when the trucks arrive.
