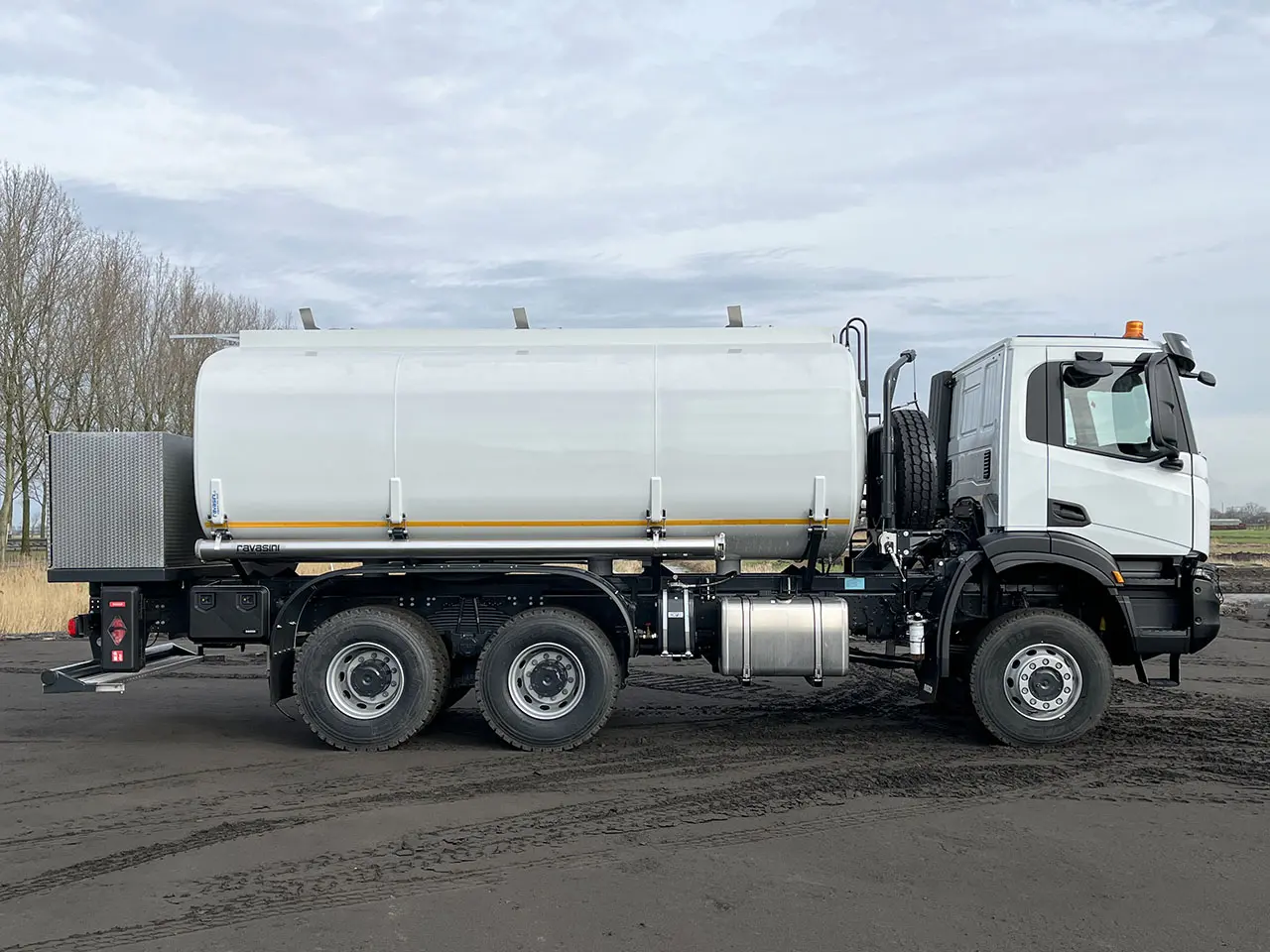

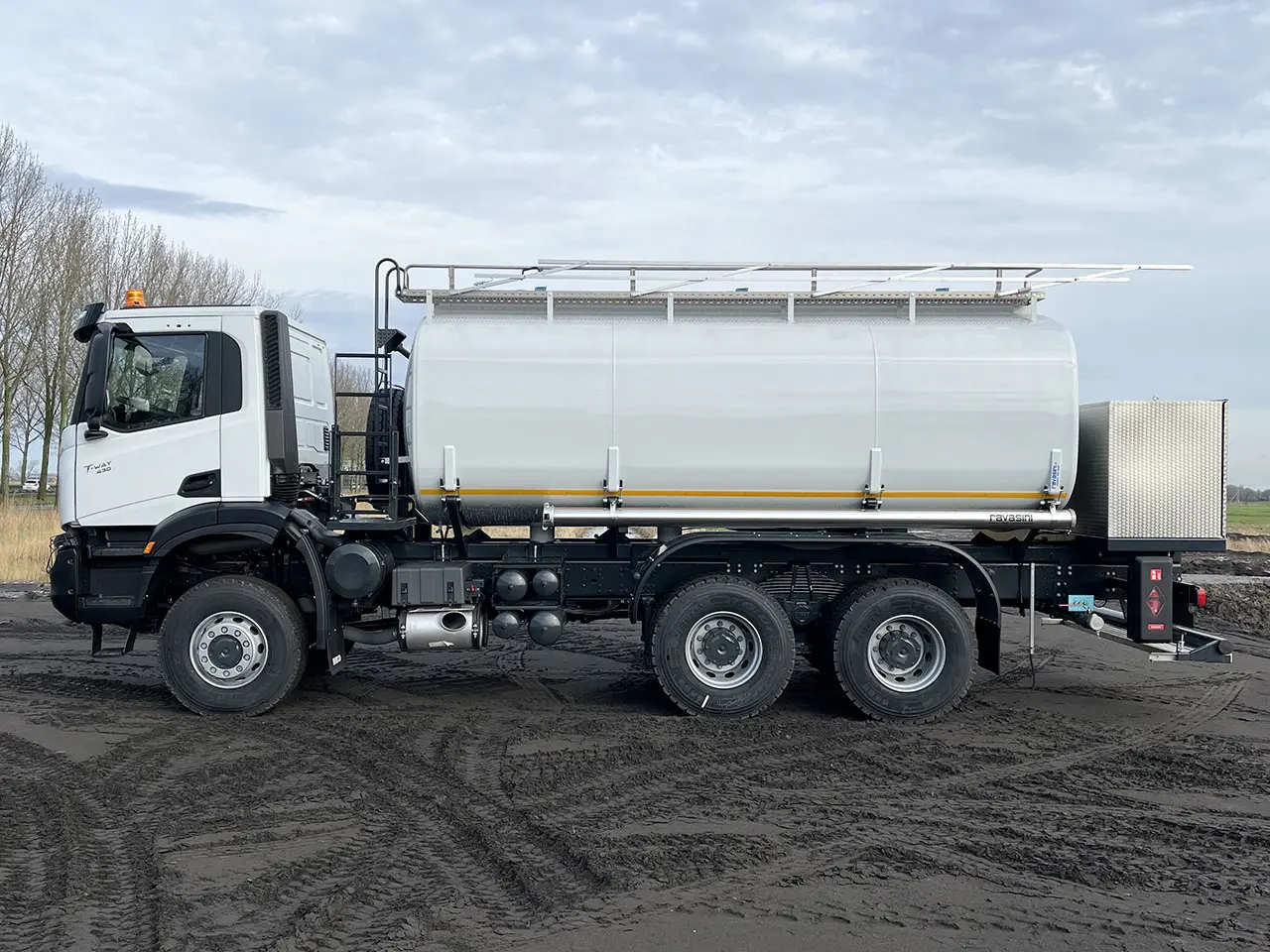

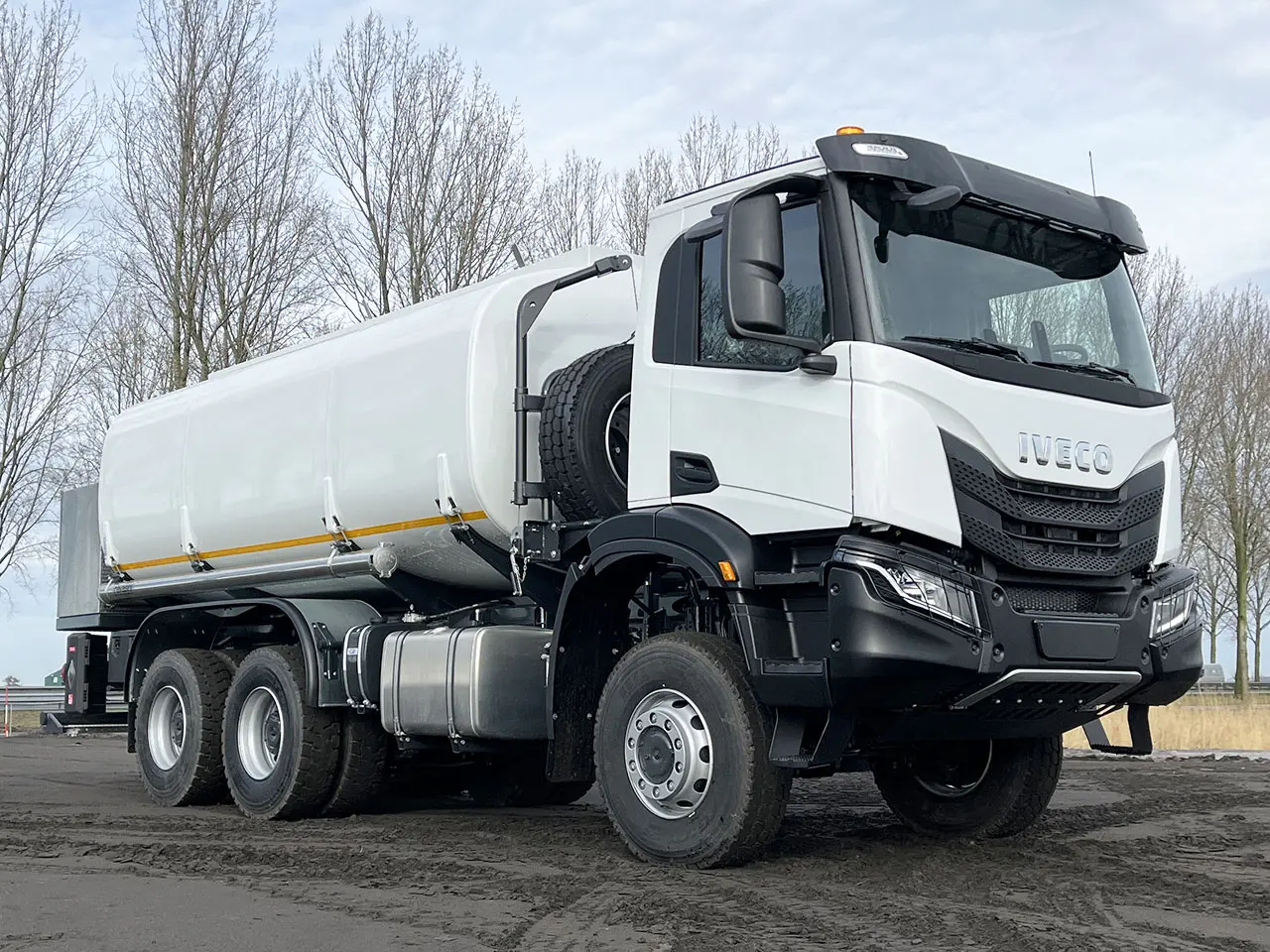

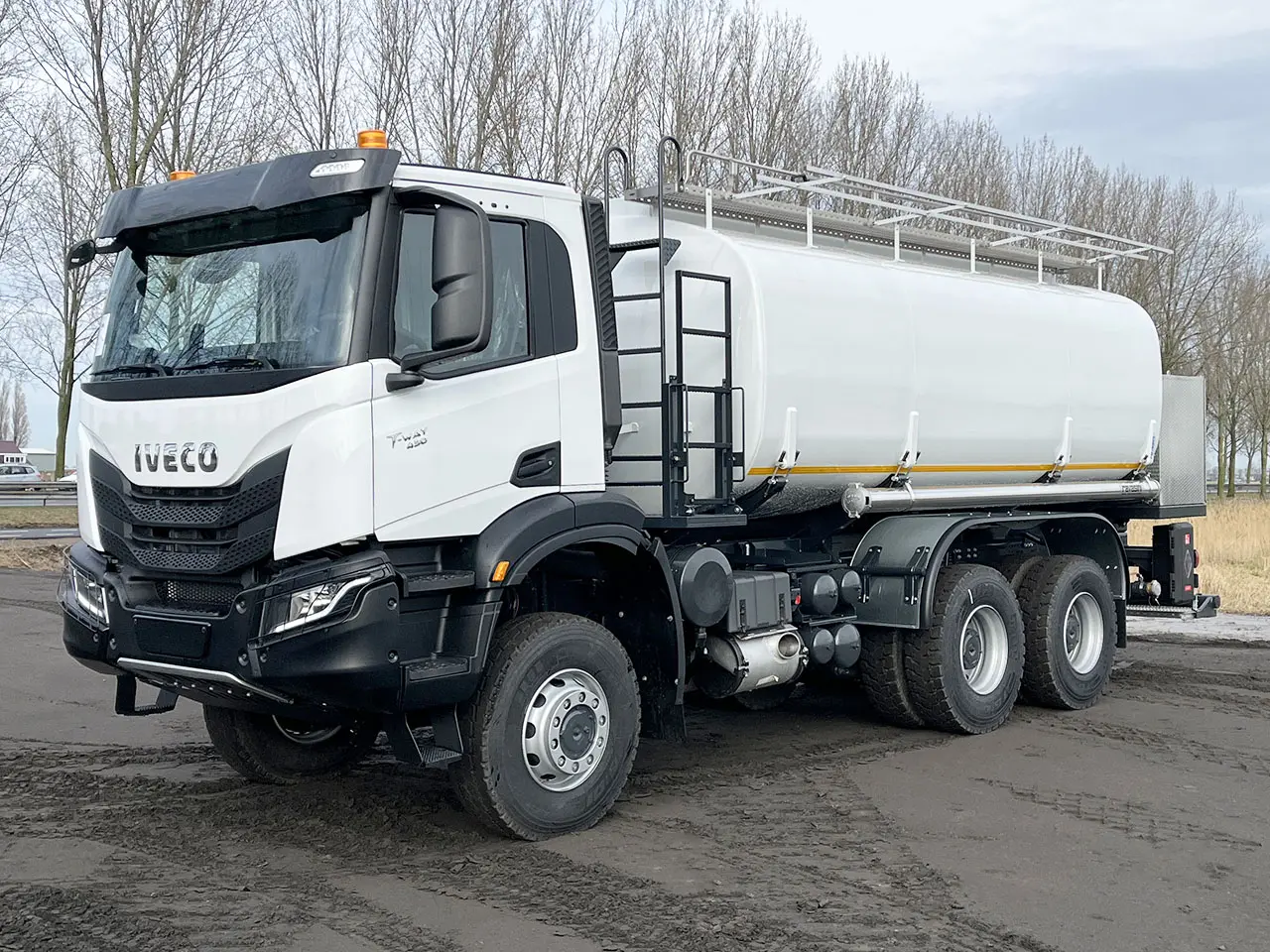

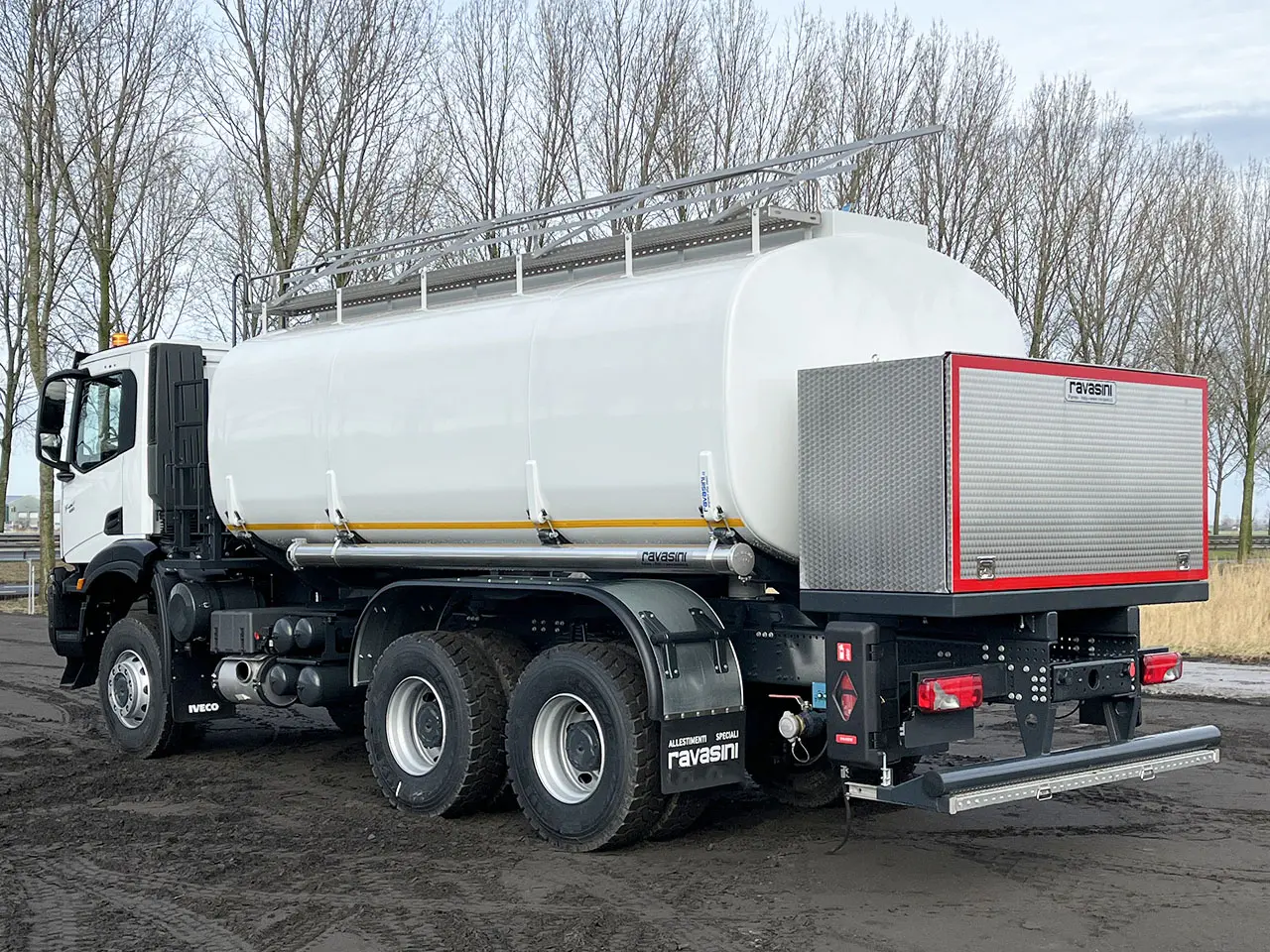

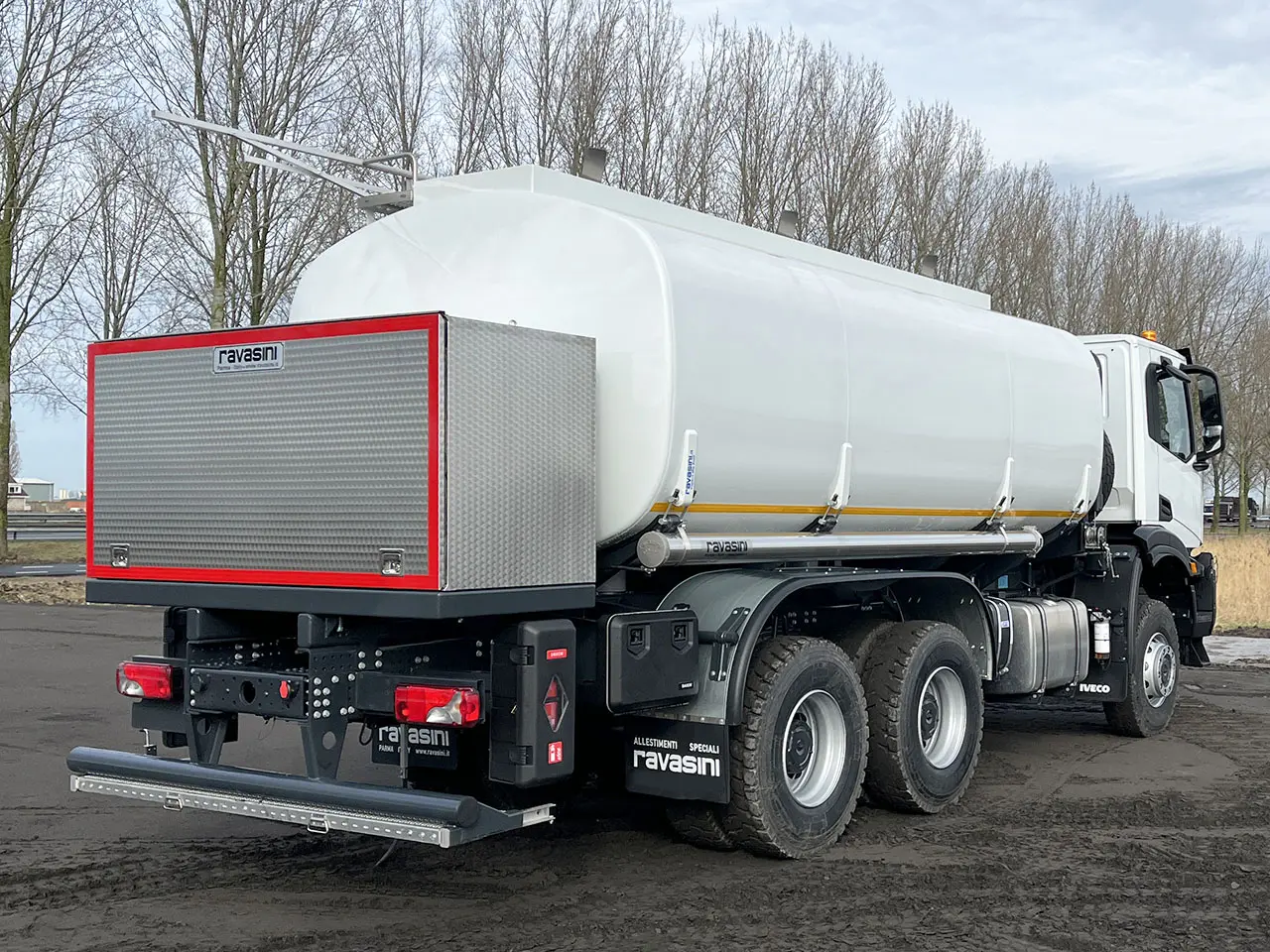

Iveco T-Way AD380T43WH AT 6x6 Fuel Tank Truck
6x6
Diesel
Left hand drive
€ 172.500
Net unit price EXW
Specifications
General
- ID
- IV4900
- Brand
- Iveco
- Construction
- Fuel Tank Truck
- Construction brand
- Ravasini
- Production year
- 2023
- Model year
- 2024
- Vehicle status
- New / Unused
Engine
- Engine type
- F3HGE611Y
- Emission code
- EURO-3
- Engine power
- 430hp/316kW

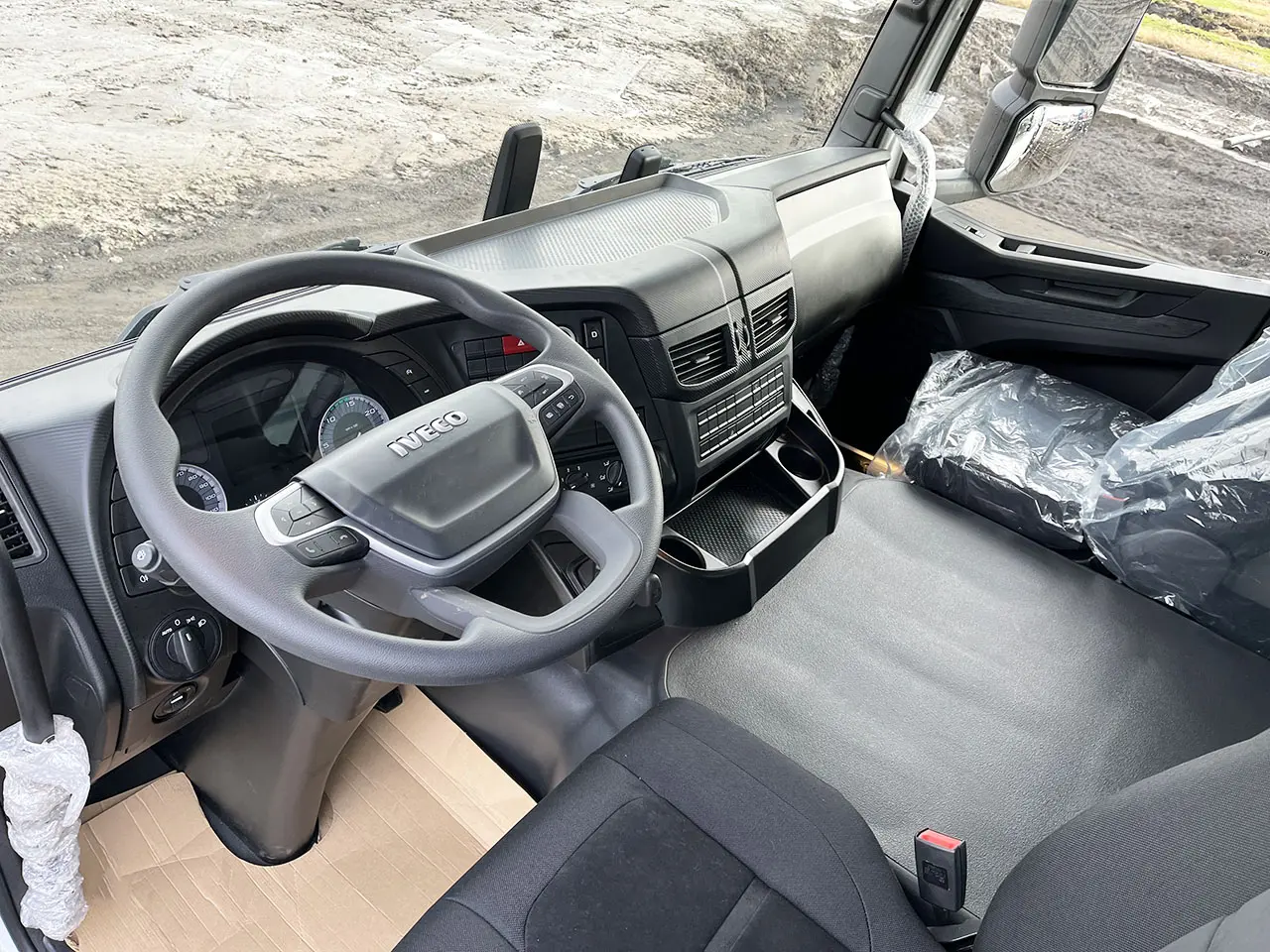

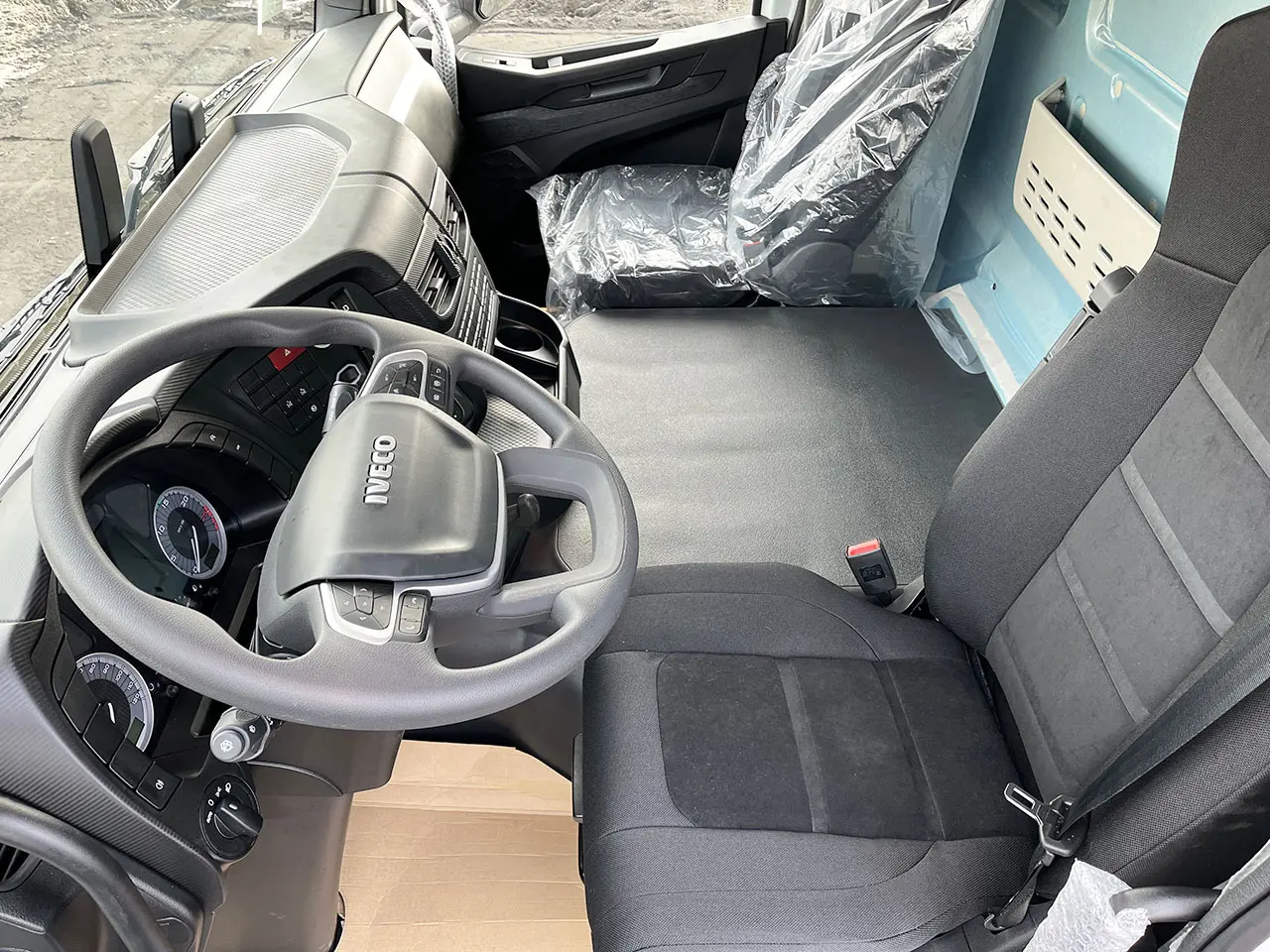

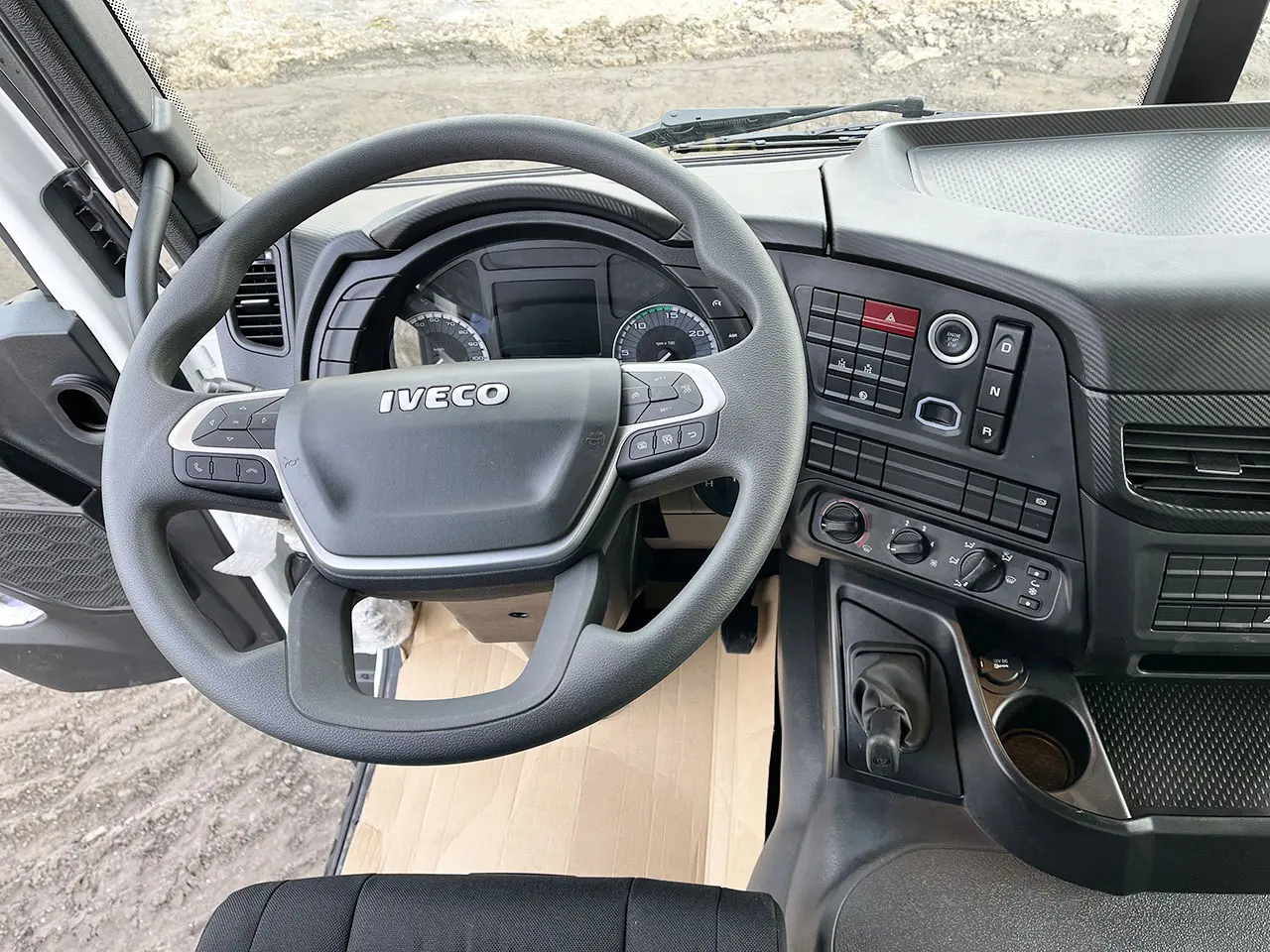

Cabin
- Cabin
- Day
- Steering
- Left hand drive
Gearbox
- Transmission
- Automatic
- Gearbox
- ZF16TX2240TO
Chassis
- Wheel base
- 3.800 mm
- GVW
- 33.500 kg
- Axle configuration
- 6x6
- Suspension
- Spring
Dimensions
- External dimension
- 9.200 x 2.500 x 3.650 mm
- Empty weight
- 13.600 kg

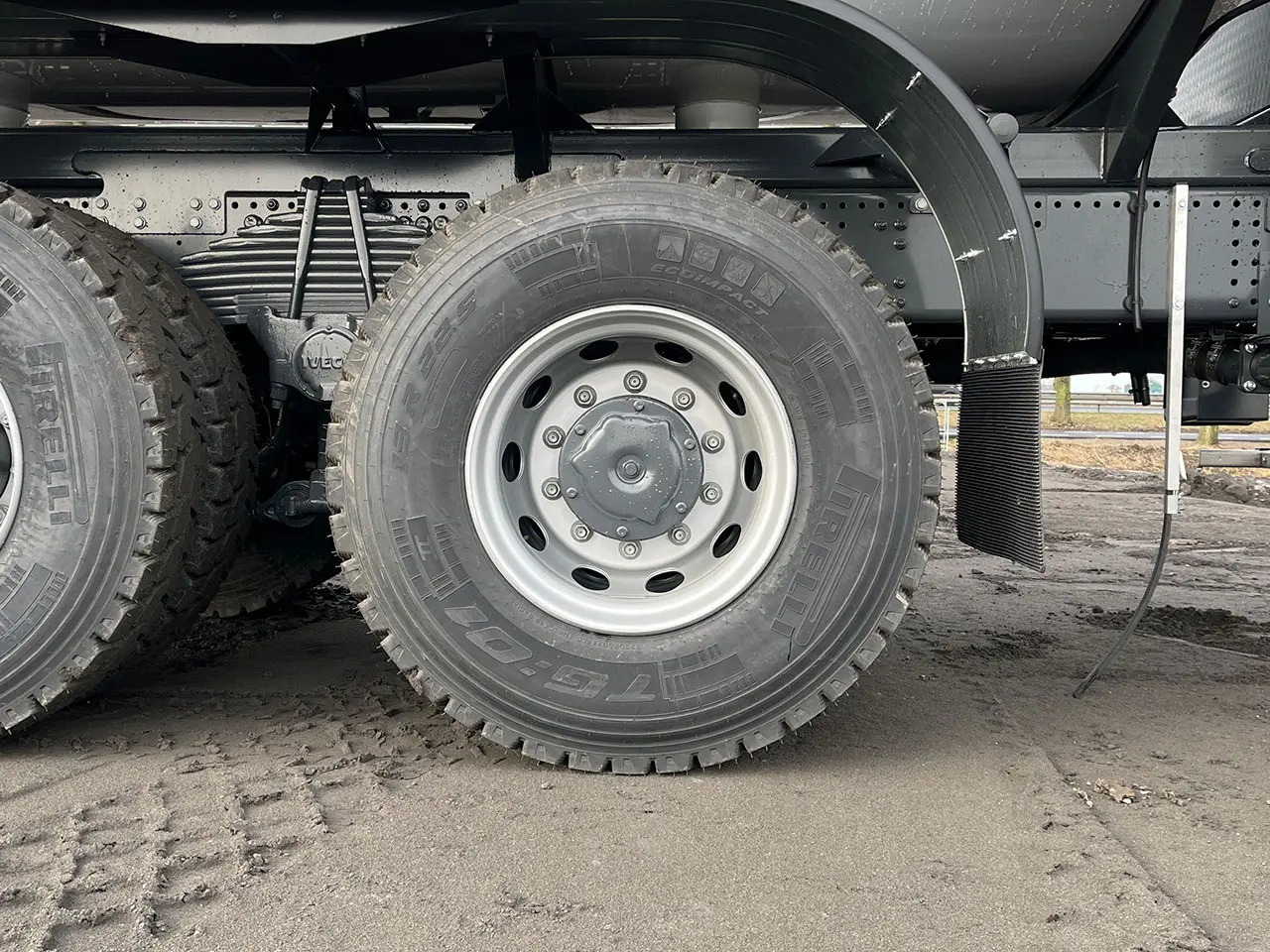

Axles
Axle 1
- Steering
- Yes
- Tires
- Single
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 13R22.5
Axle 2
- Steering
- No
- Tires
- Double
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 13R22.5
Axle 3
- Steering
- No
- Tires
- Double
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 13R22.5
Remarks

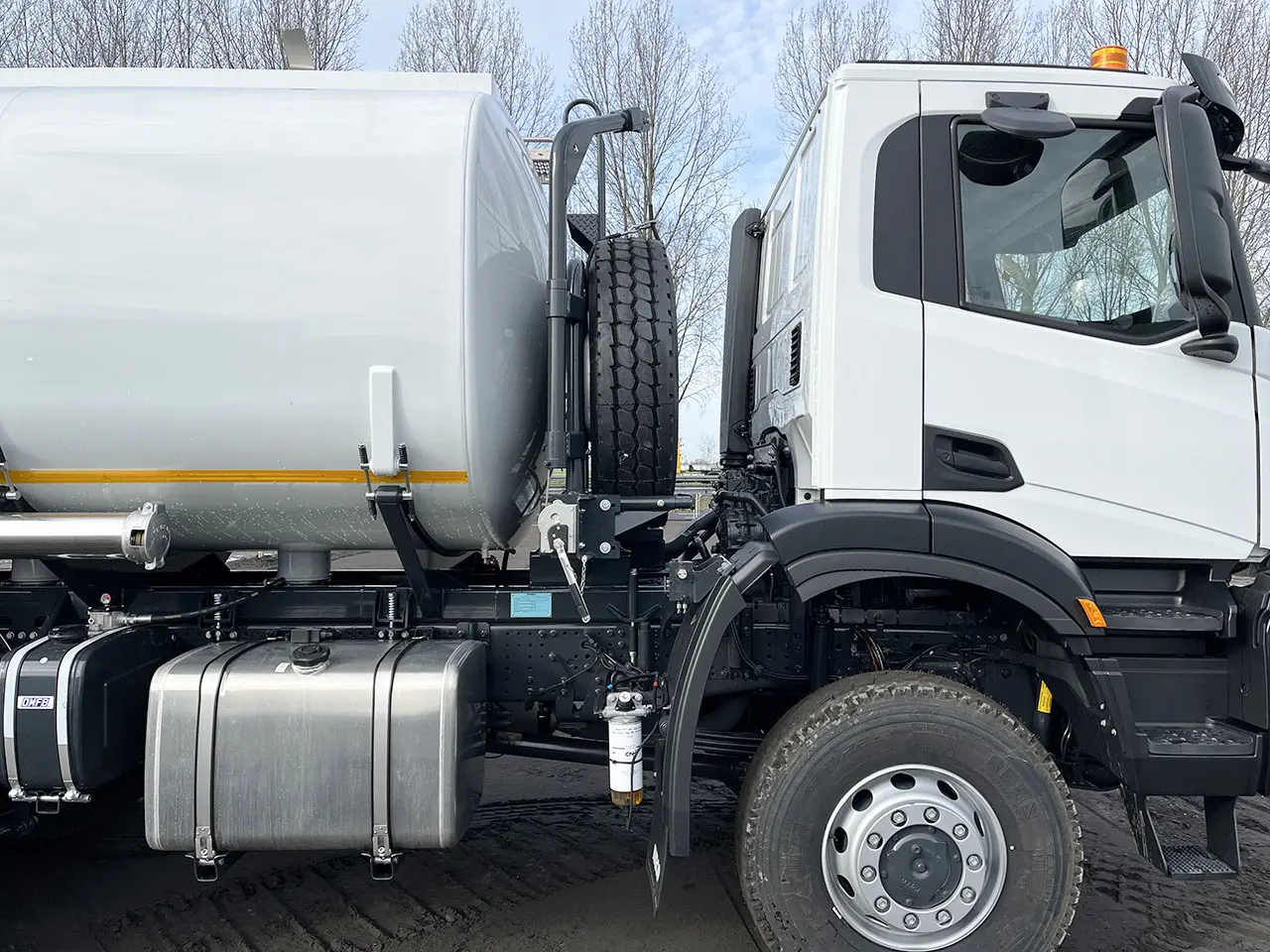

Fuel tank: 390 ltr.Air conditioning
Equipped with Ravasini fueltank 20.000 ltr.
Three compartments (6.800l+6.500l+6.800l+expansion volume)

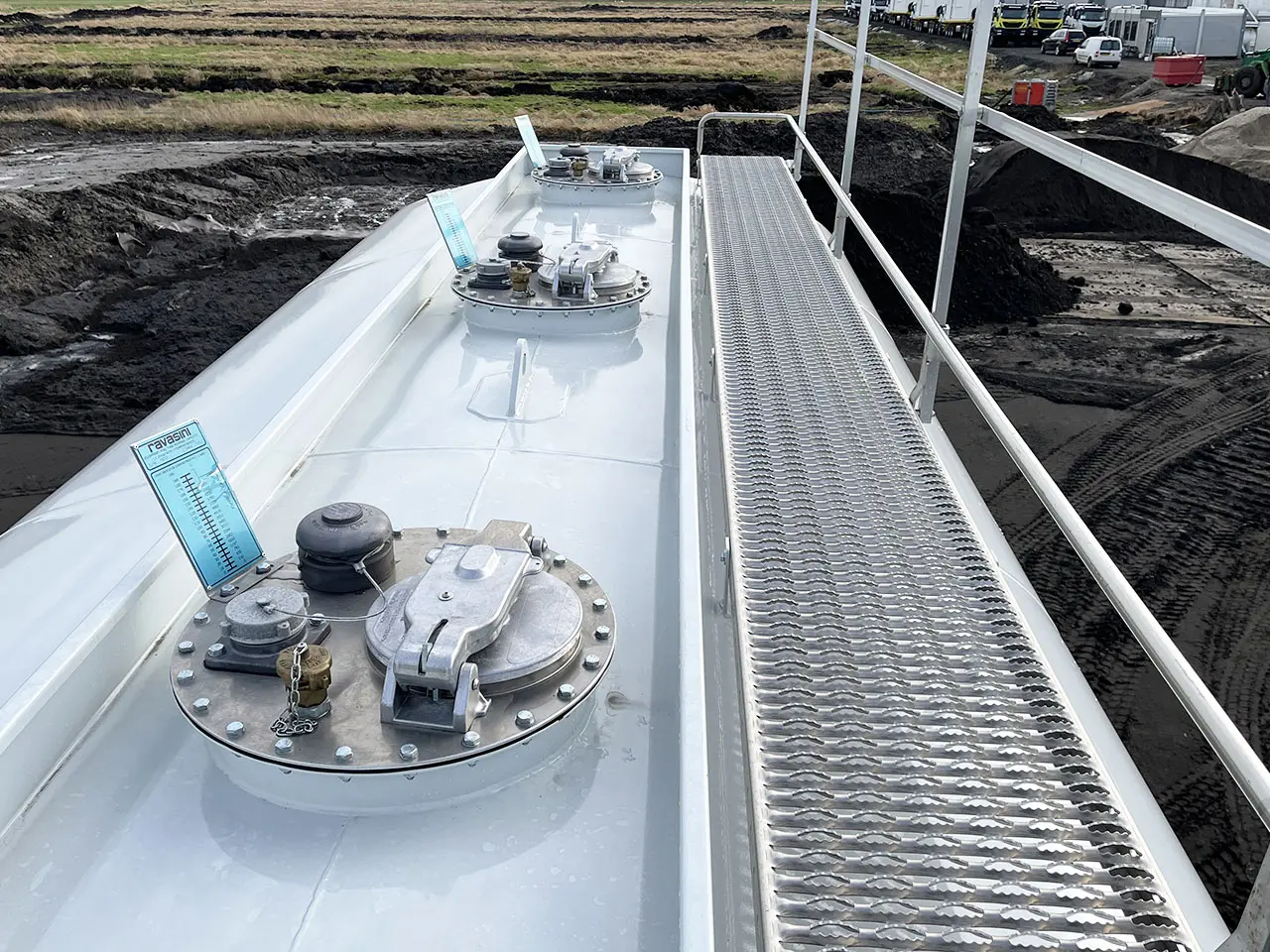

Manhole with cover diam. 500 complete with inlet and breathing valve and containing basin in case of liquid pouring out from the manhole.

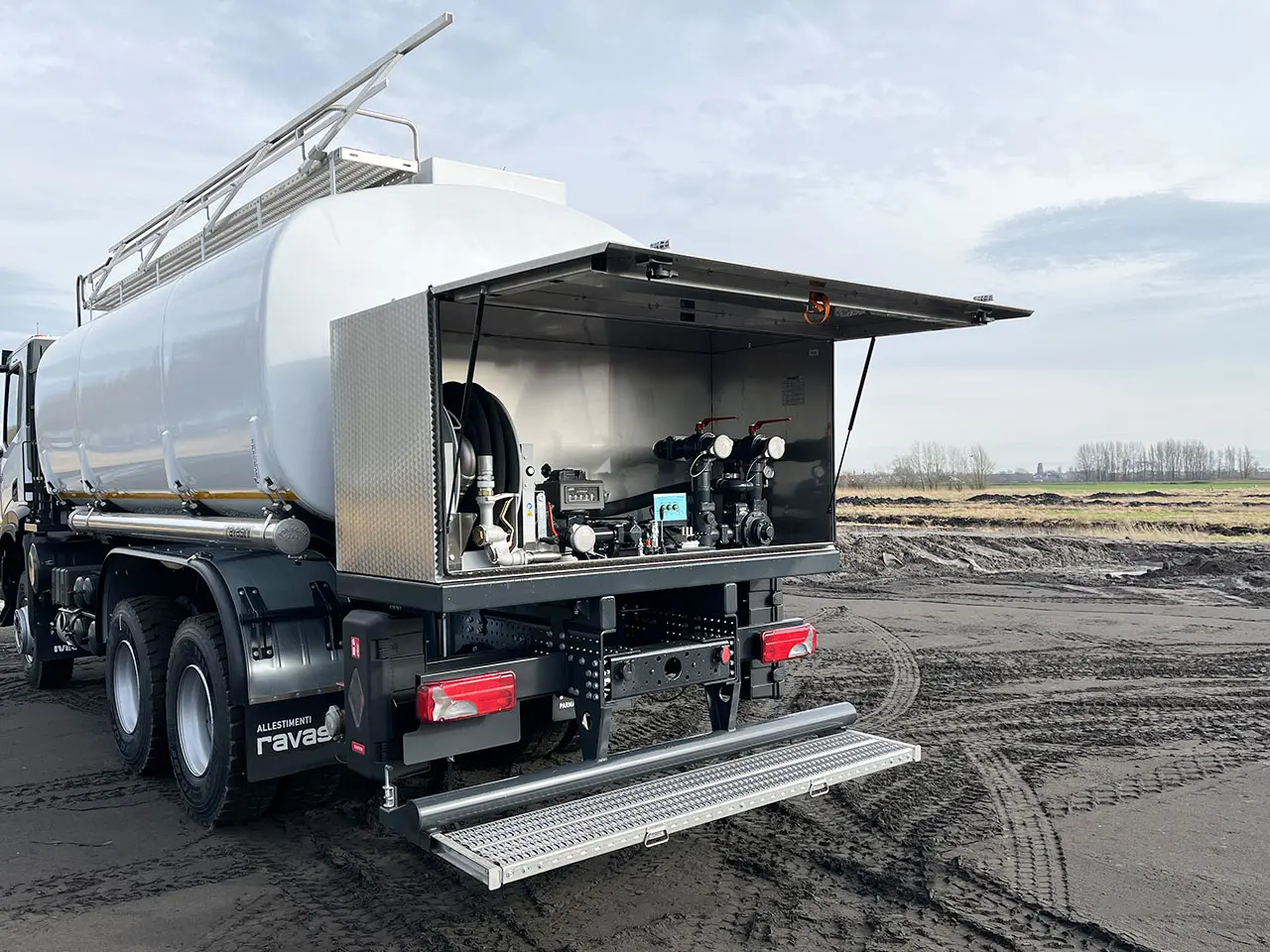

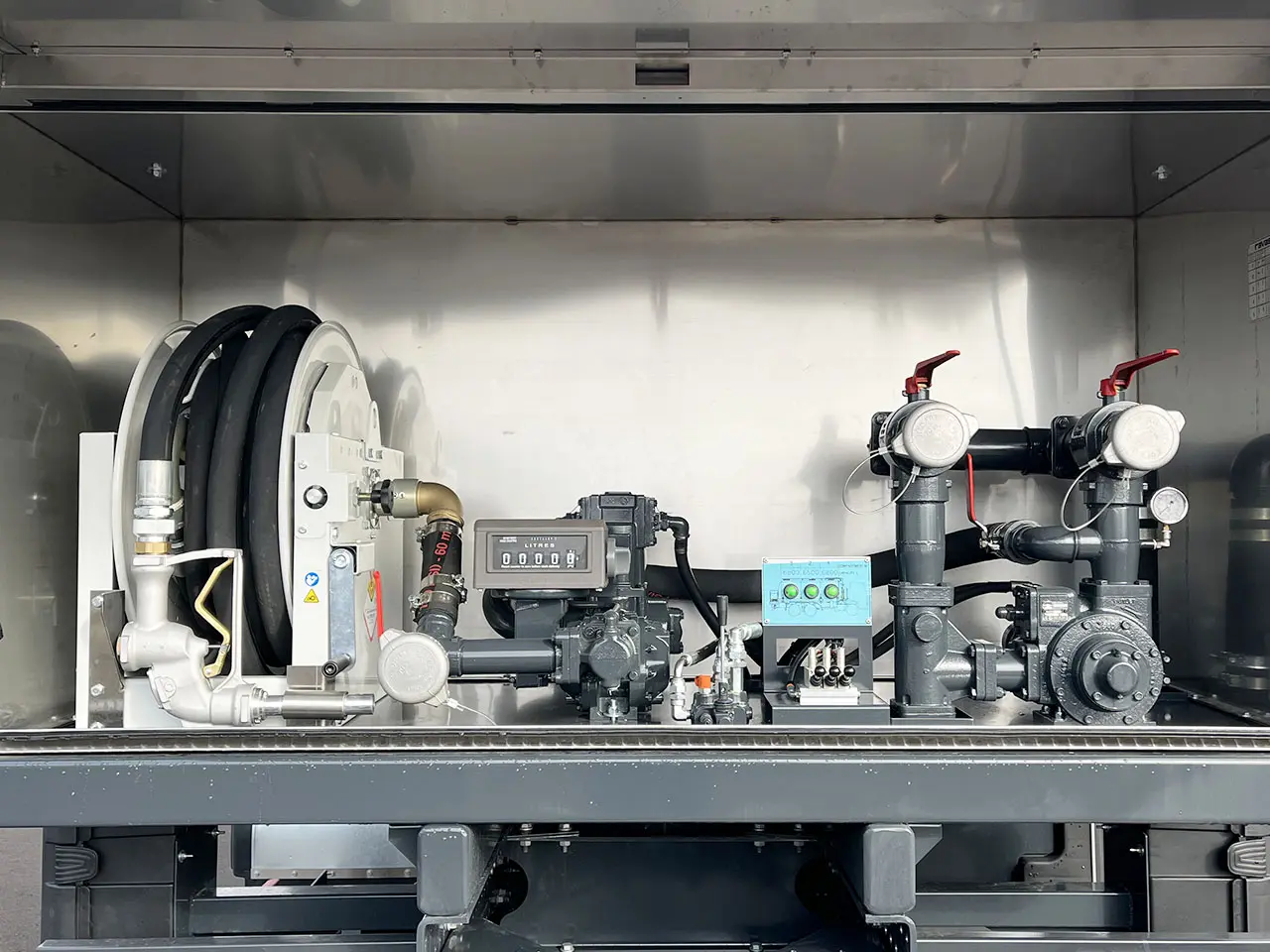

Pumping unit placed in a suitable stainless steel box, positioned on the rear side.
Positive displacement pump 500 l/1 min.
Liter counter with a flow rate of 550 l/1, complete with filter, degasser, aircheck valve, with positive displacement head having partial measuring at 5 resettable digits, and total measuring with 7 non resettable digits.
Manual winding hose reel with 20 m of 1,5 hose and delivery gun.
Complete specification in PDF.
