Sold out

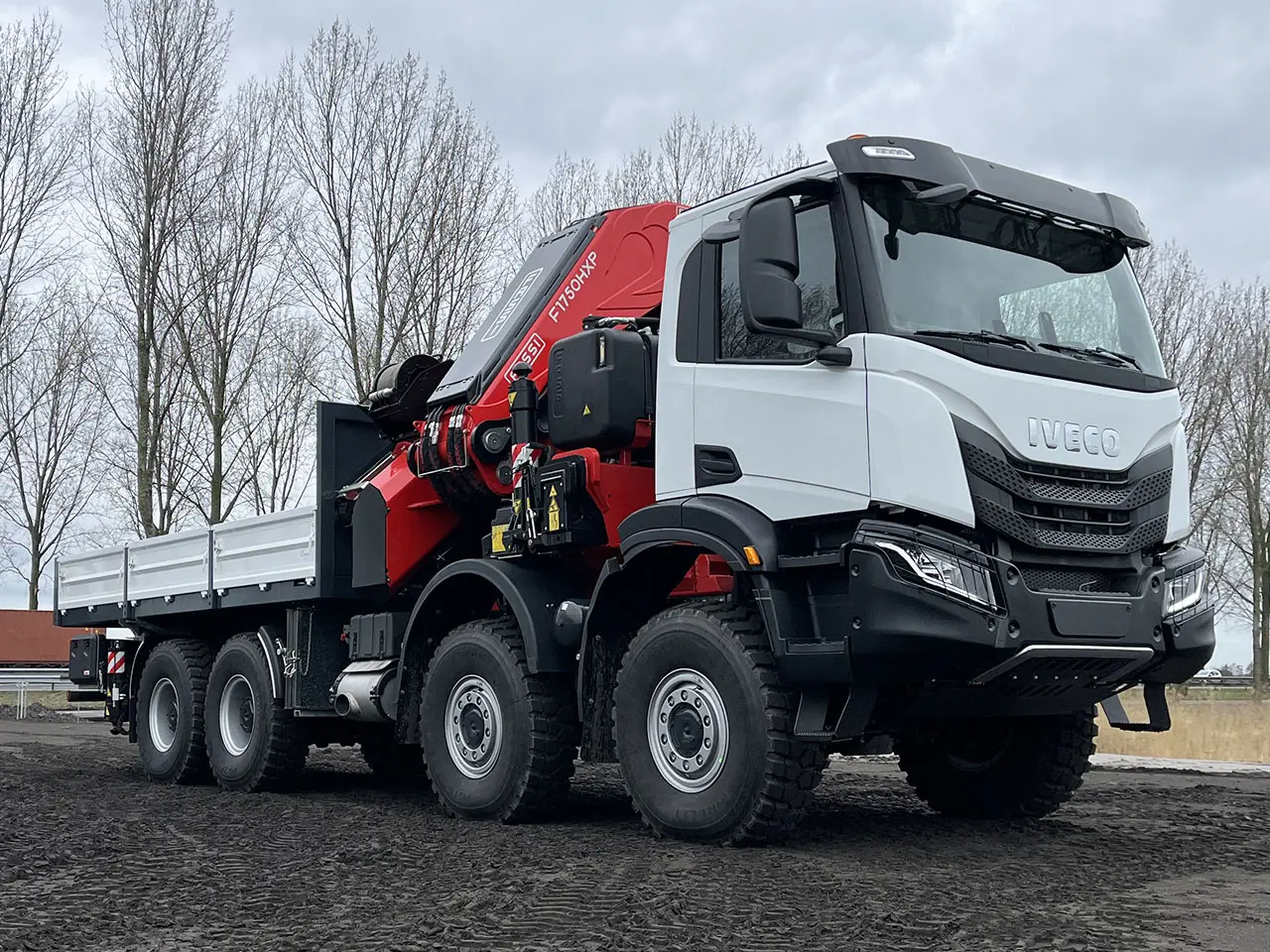

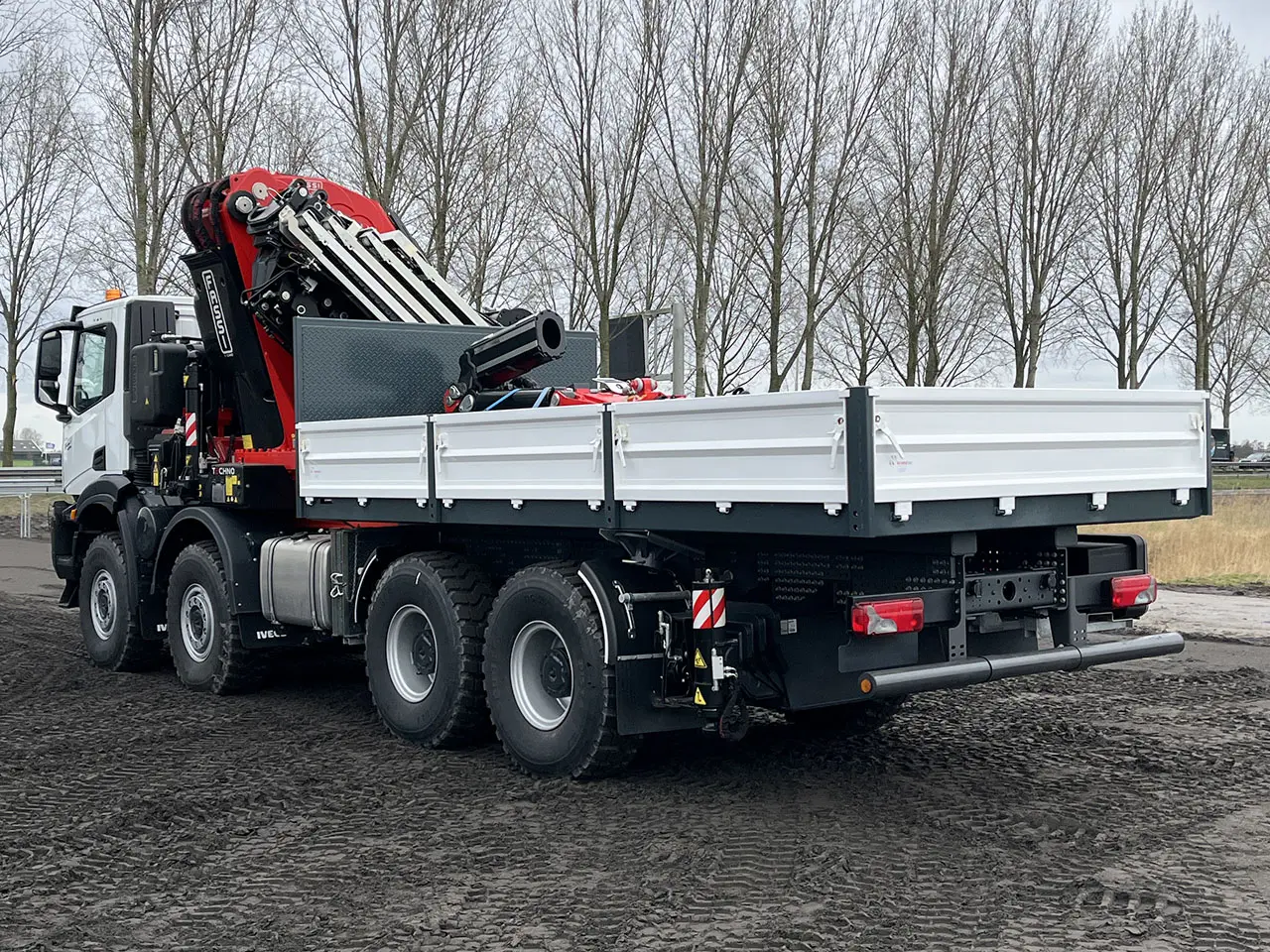

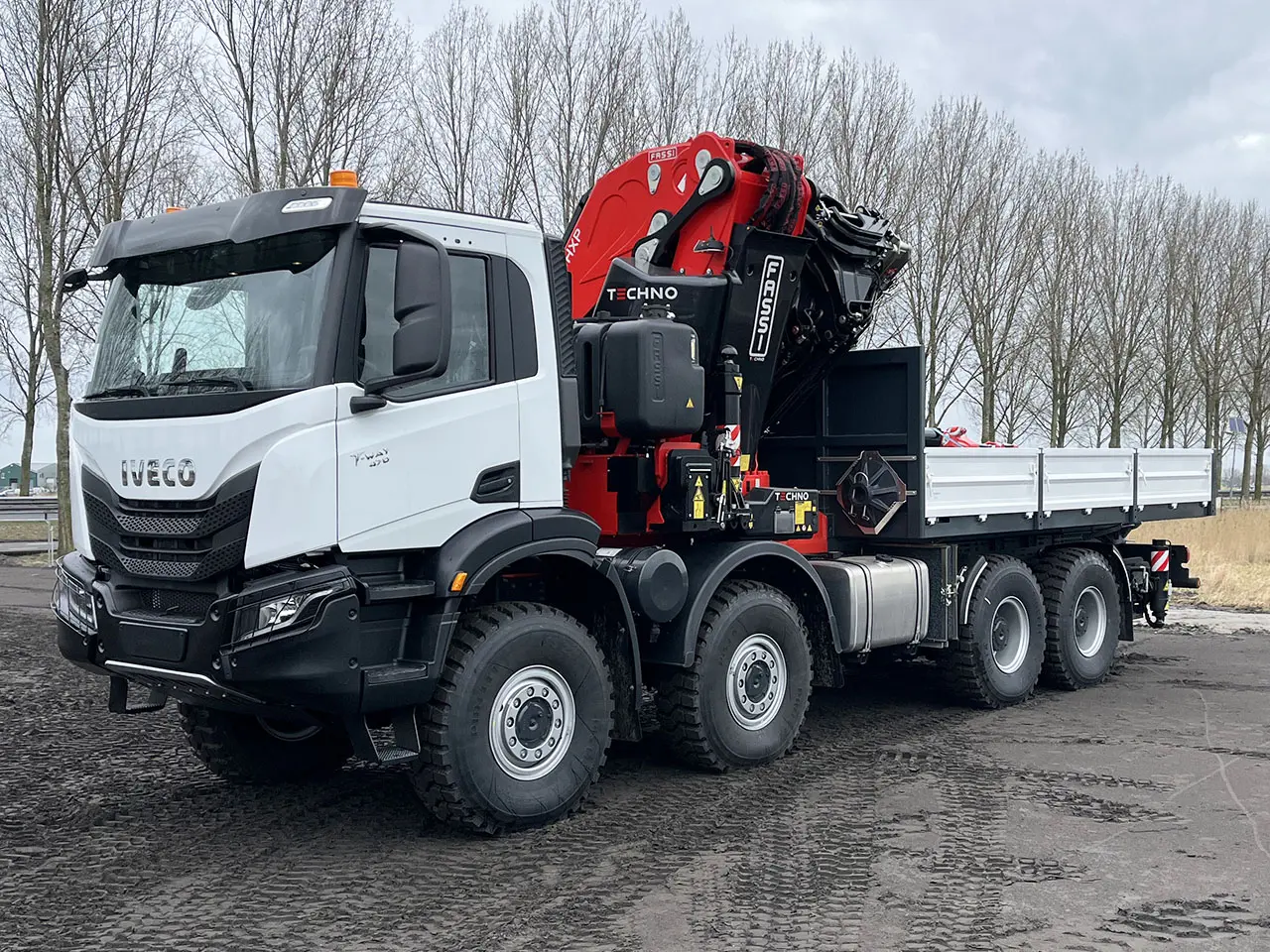

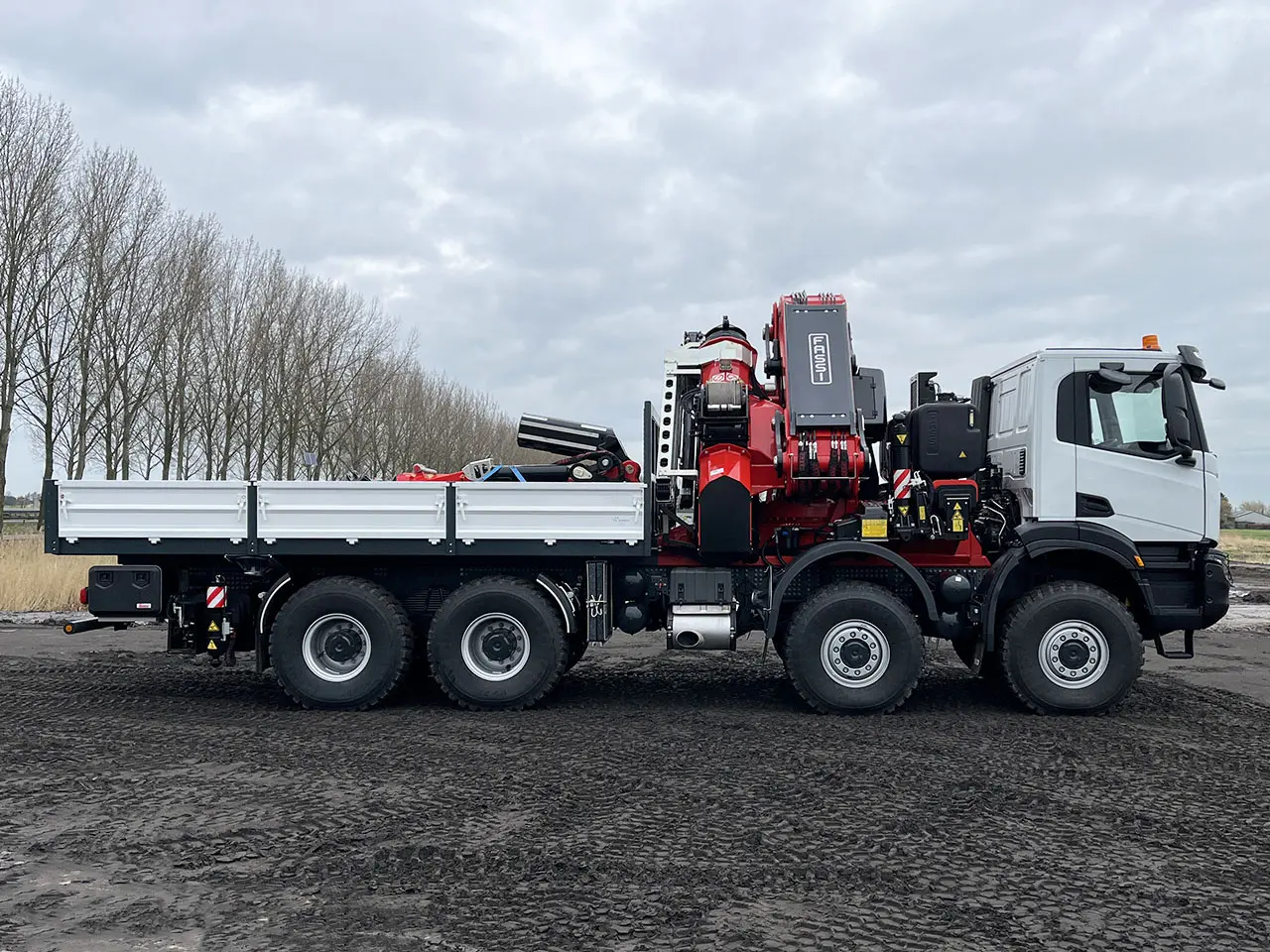

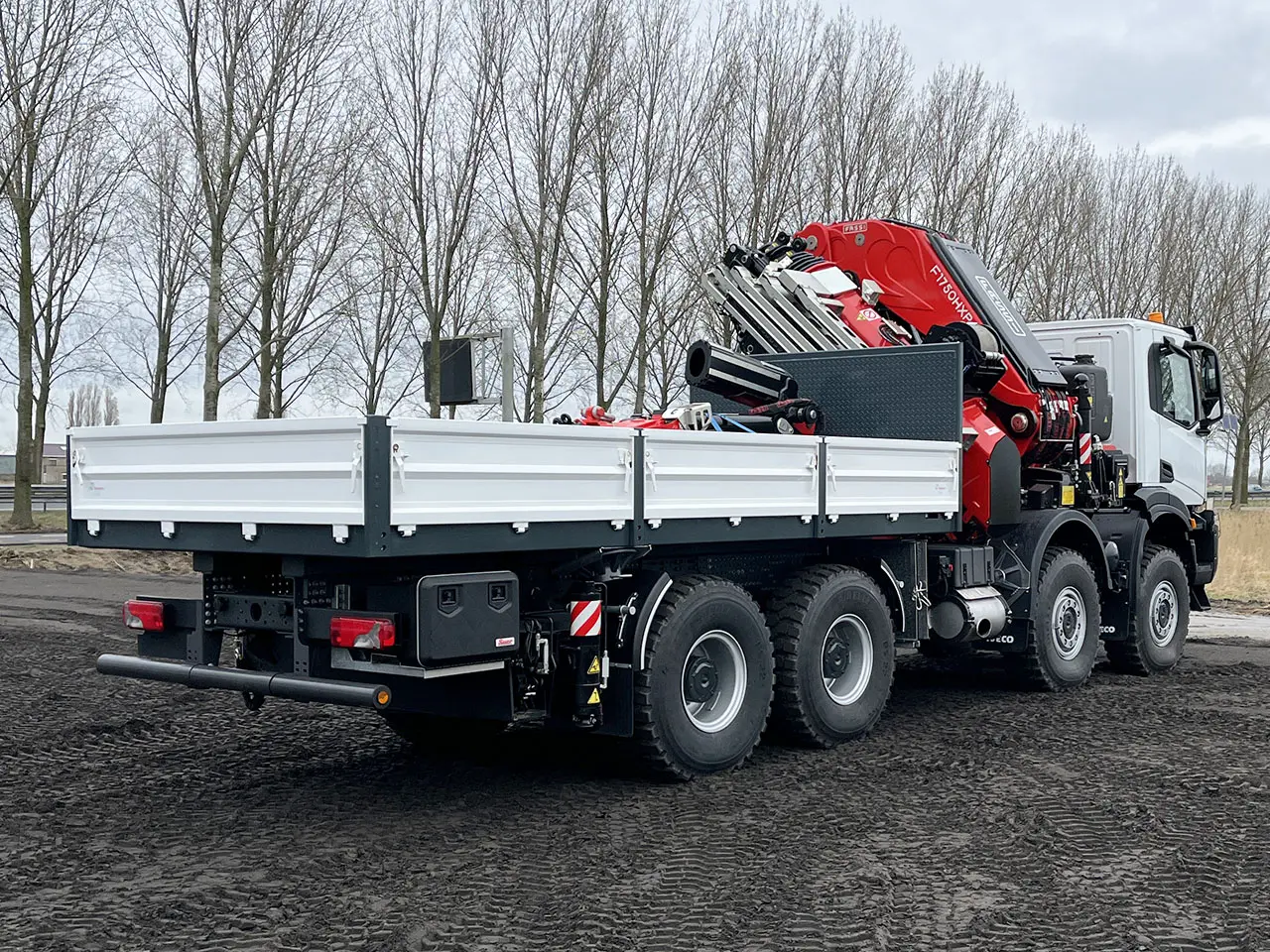

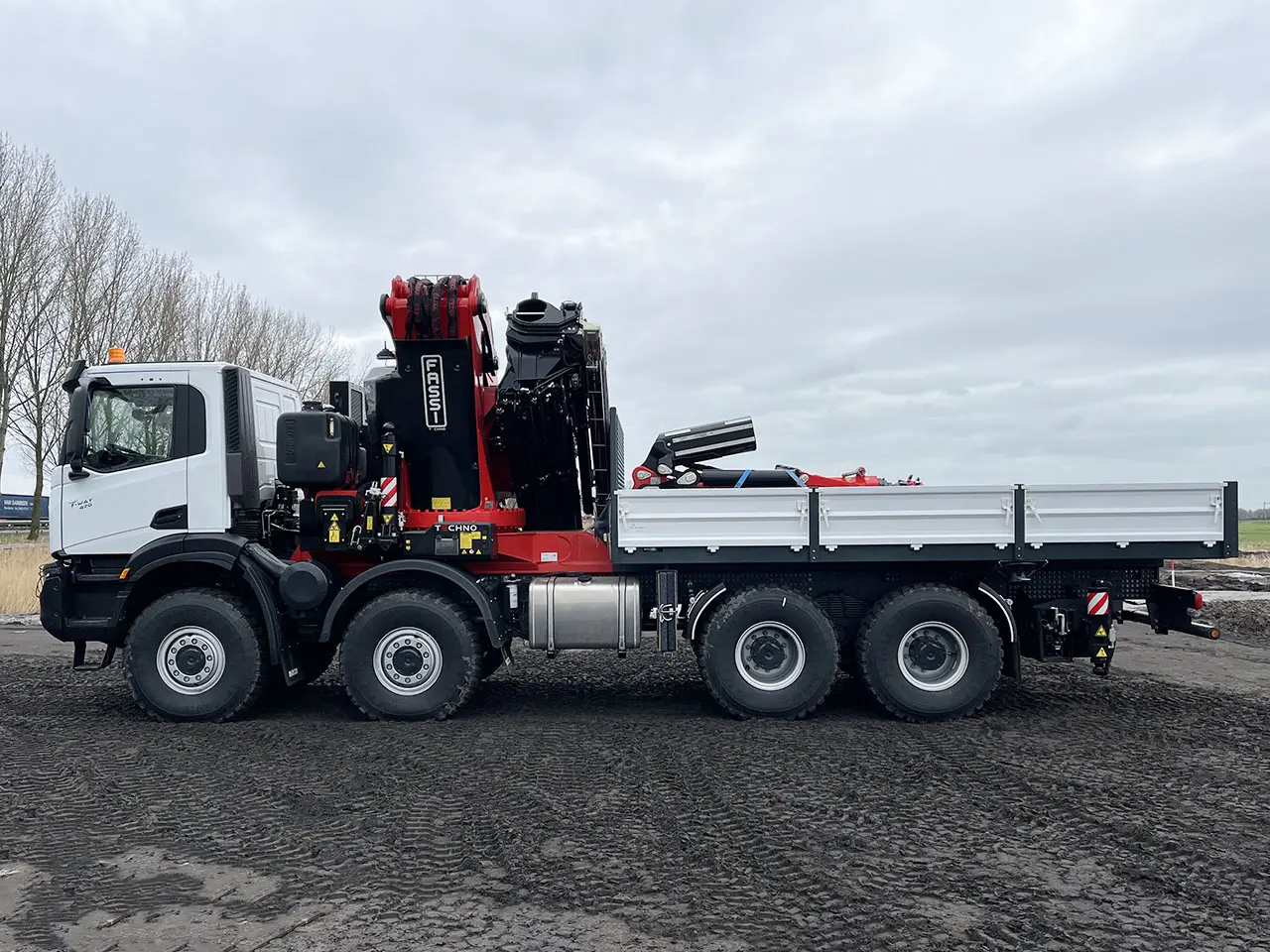

Iveco T-Way AD410T47WH AT Fassi F1750R.2.8 with JIB 8x8 Crane Truck
8x8
Diesel
Left hand drive
Specifications
General
- ID
- IV4895
- Brand
- Iveco
- Construction
- Crane Truck
- Construction brand
- Fassi
Engine
- Engine type
- F3HGE611
- Engine power
- 475hp/349kW

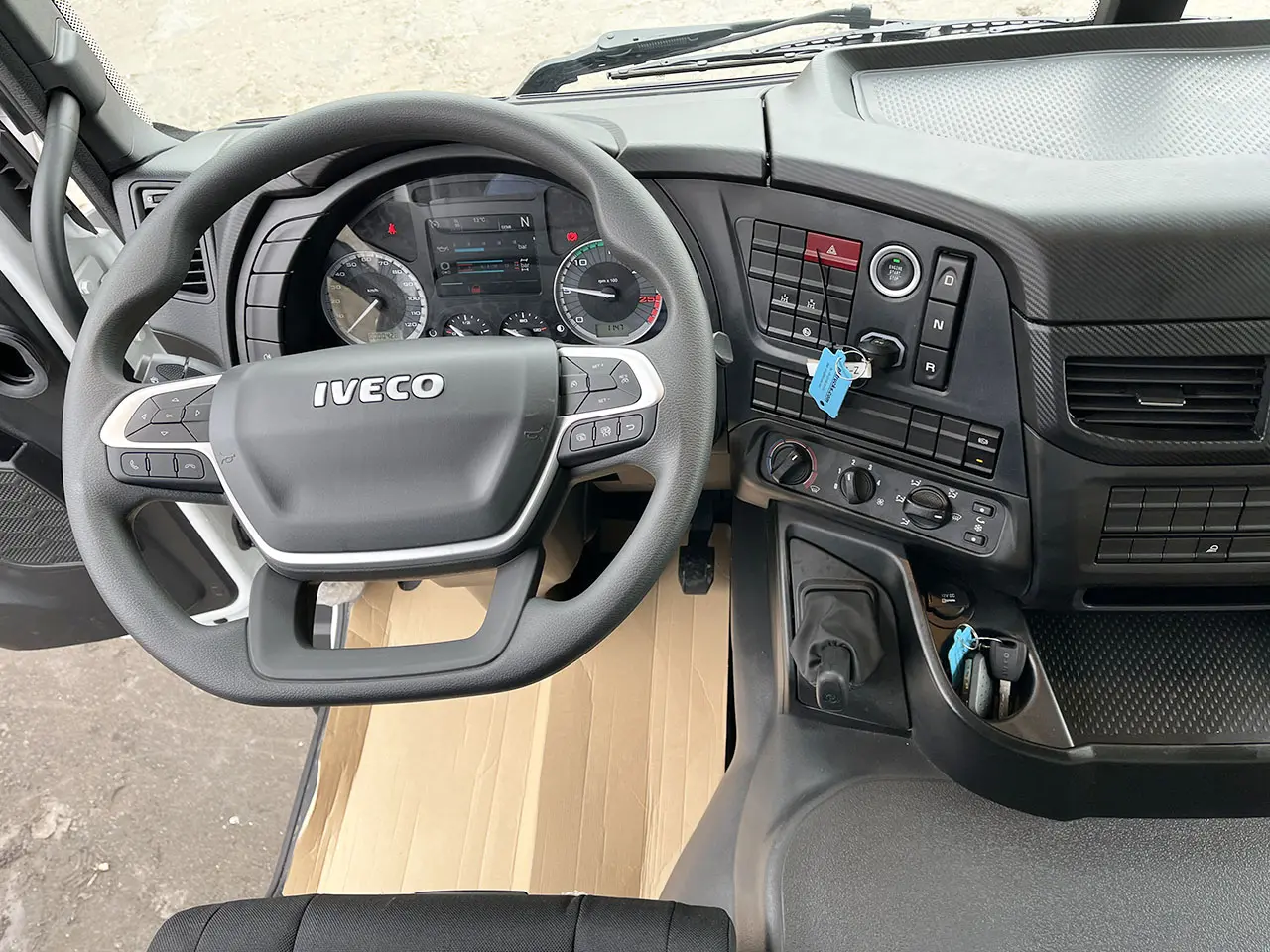

Cabin

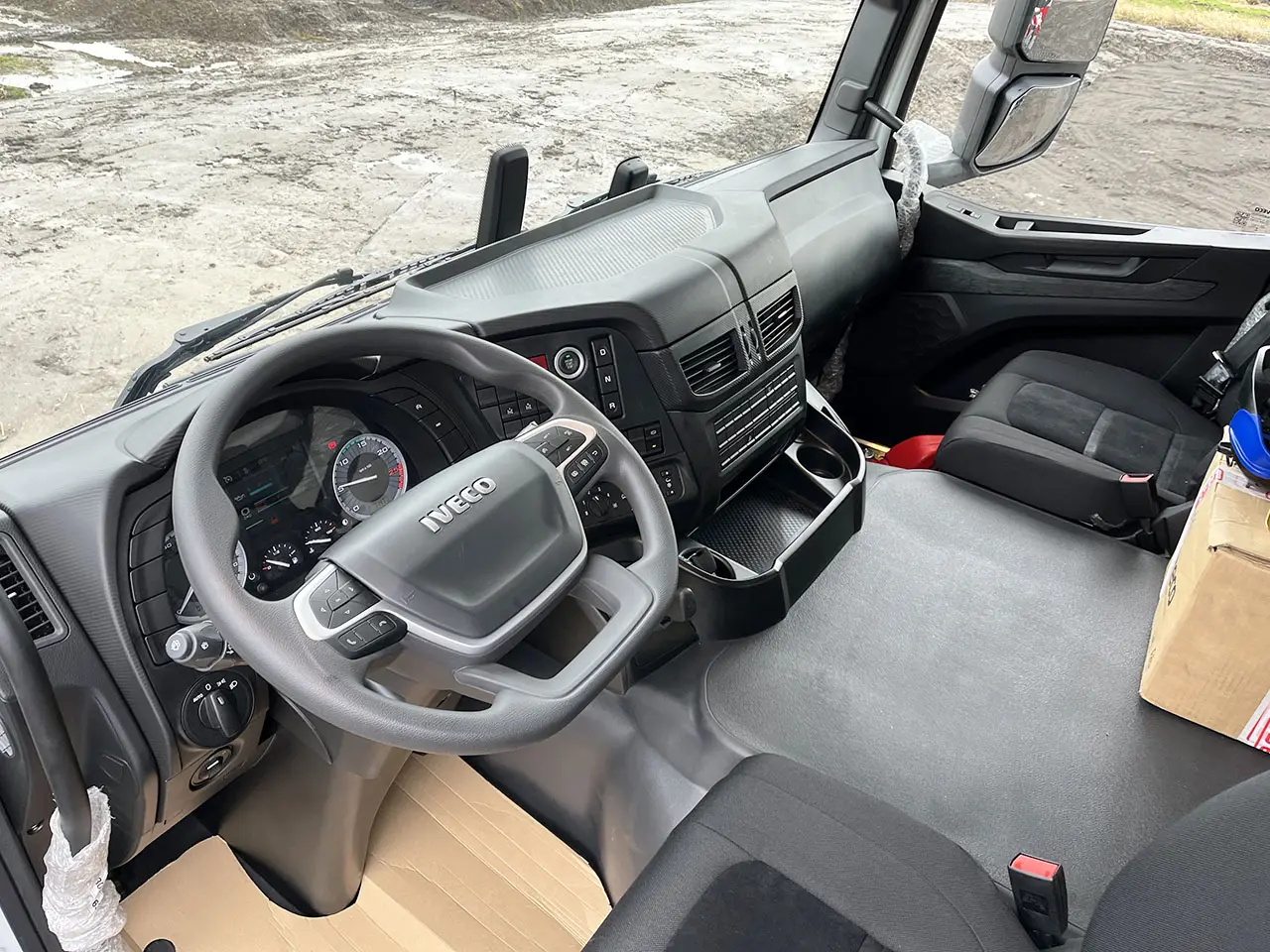

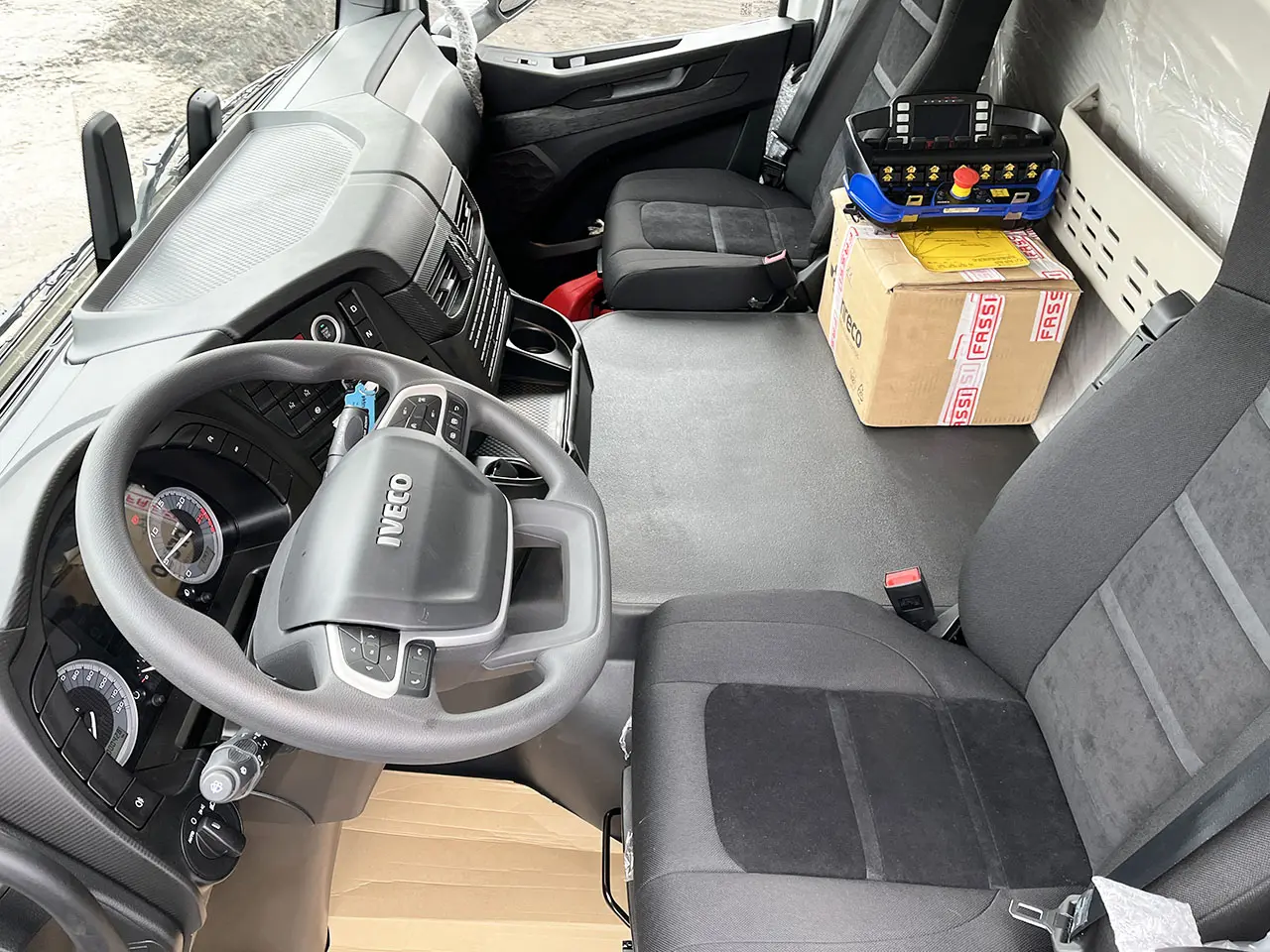

- Cabin
- Day
- Steering
- Left hand drive
Gearbox
- Transmission
- Automatic
- Gearbox
- ZF16TX2240TO

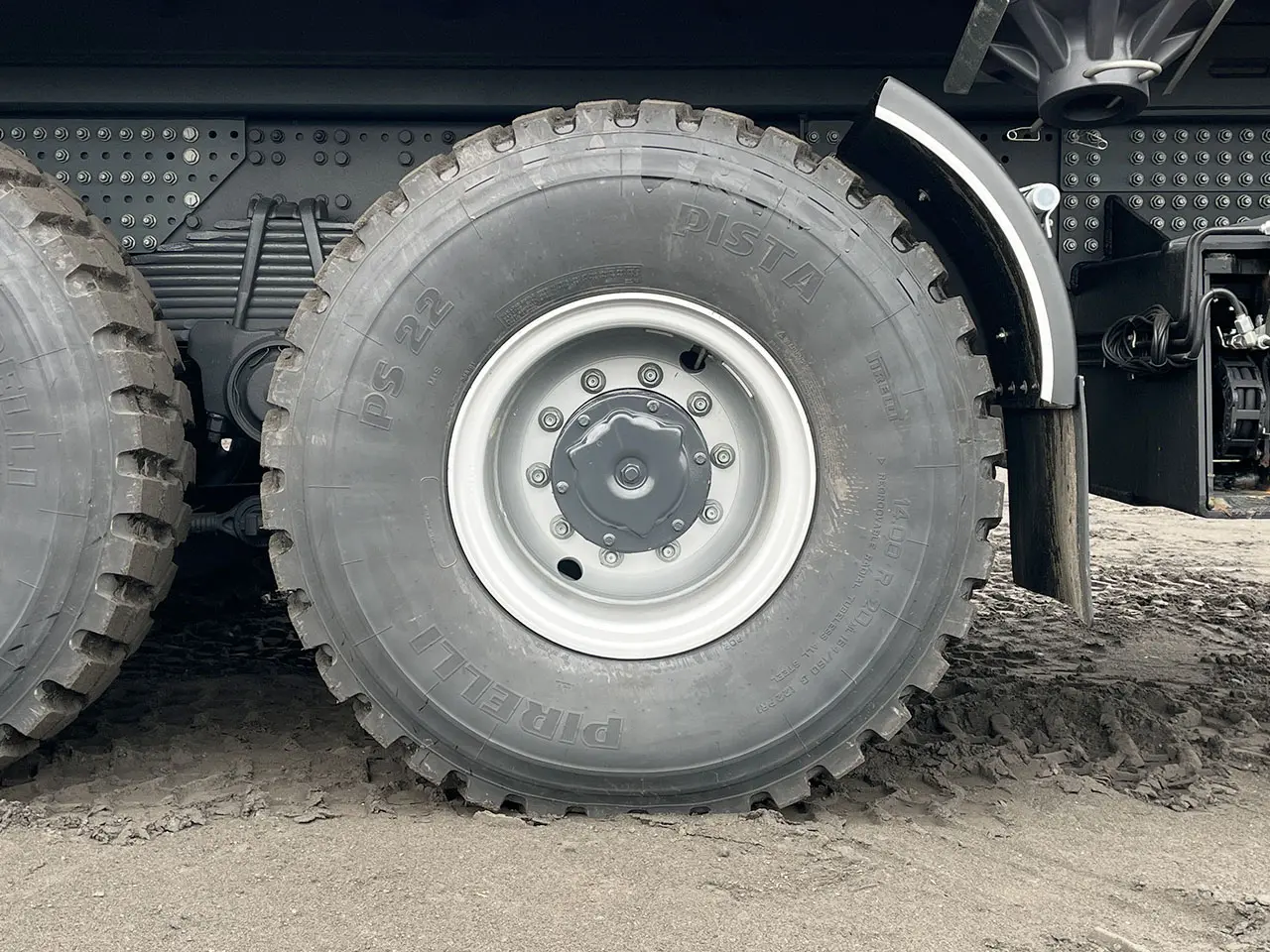

Chassis
- Wheel base
- 5.020 mm
- Axle configuration
- 8x8
- Suspension
- Spring
Remarks
Fuel tank: 400 ltr.Air conditioning

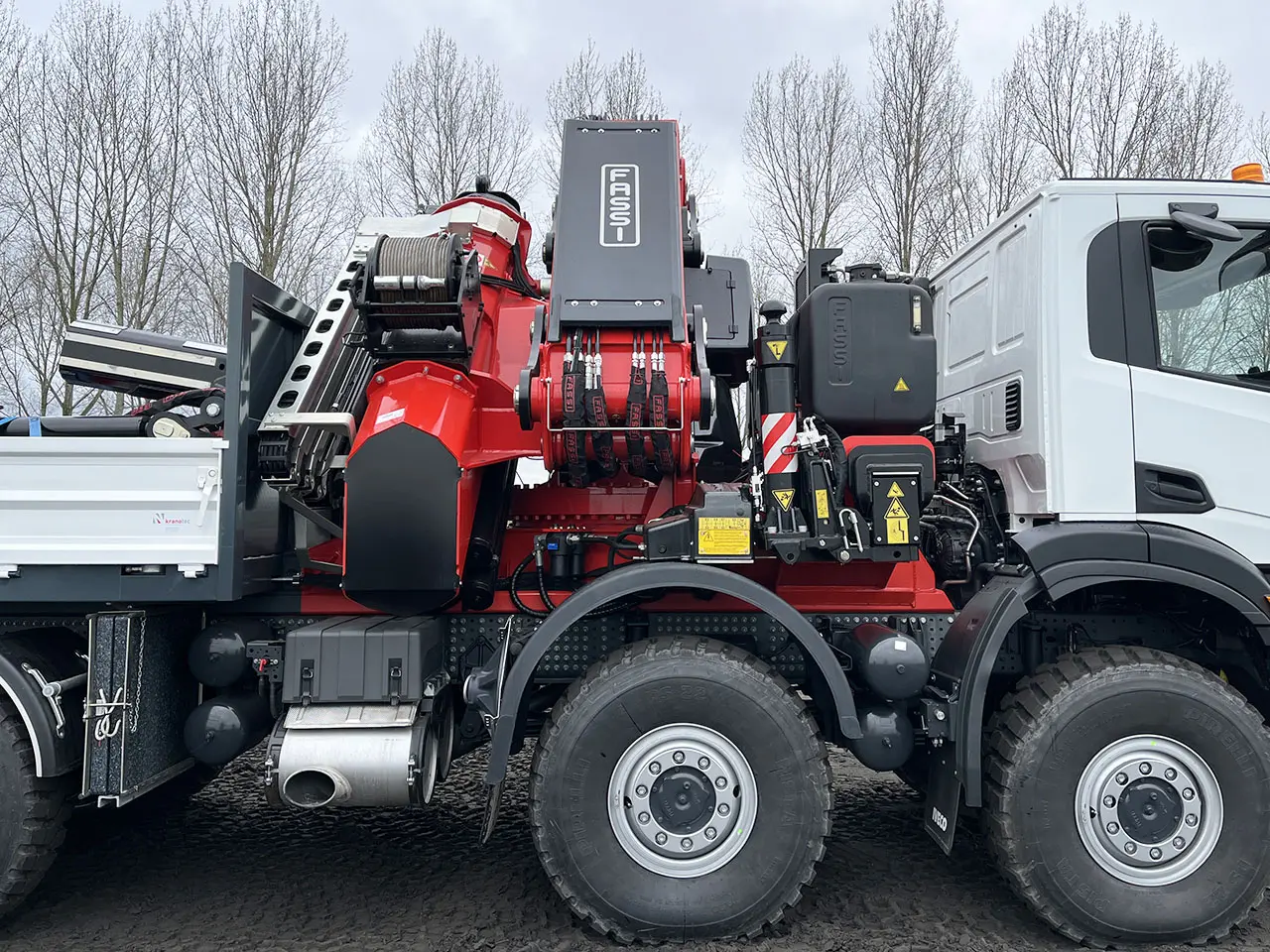

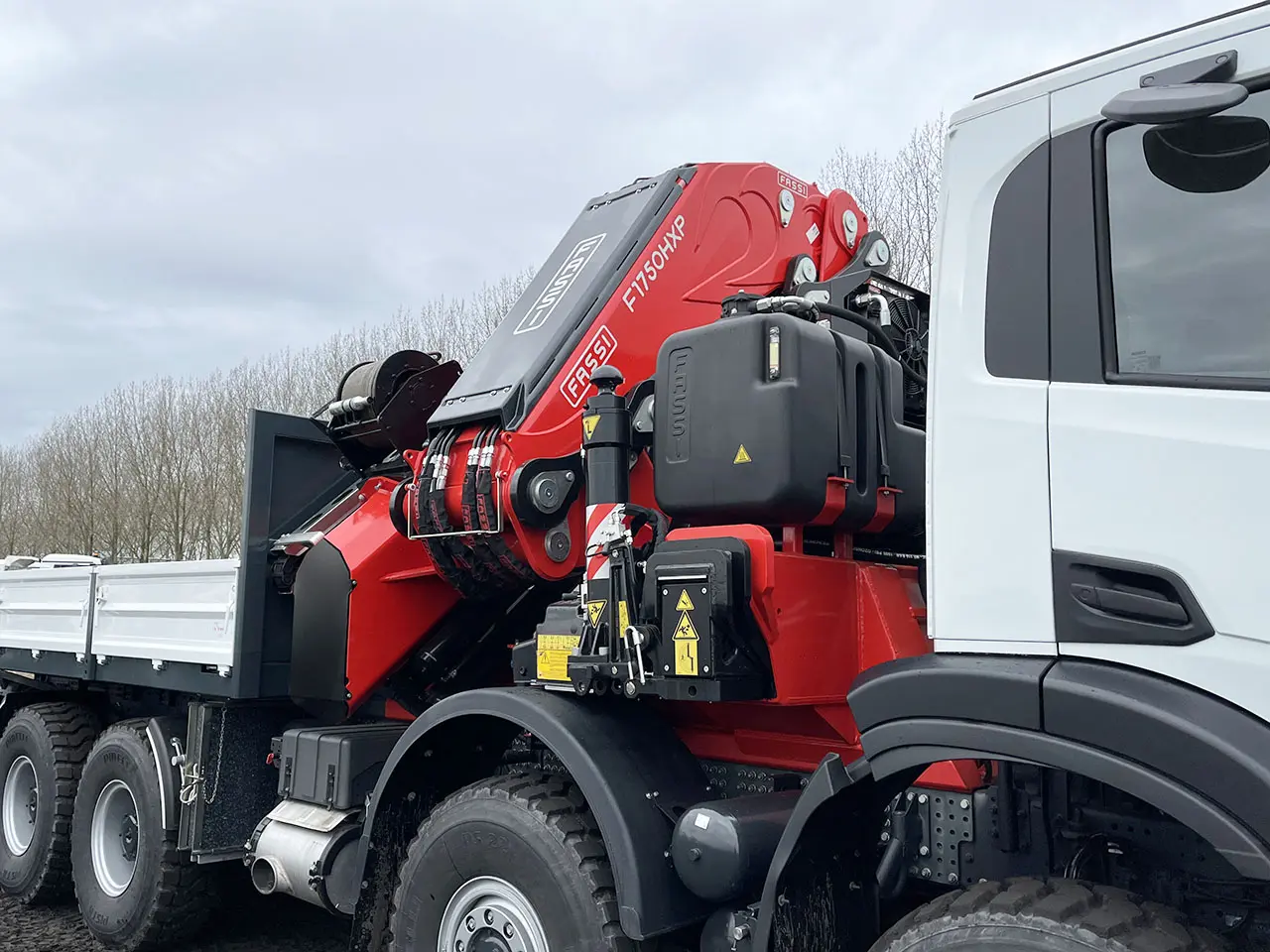

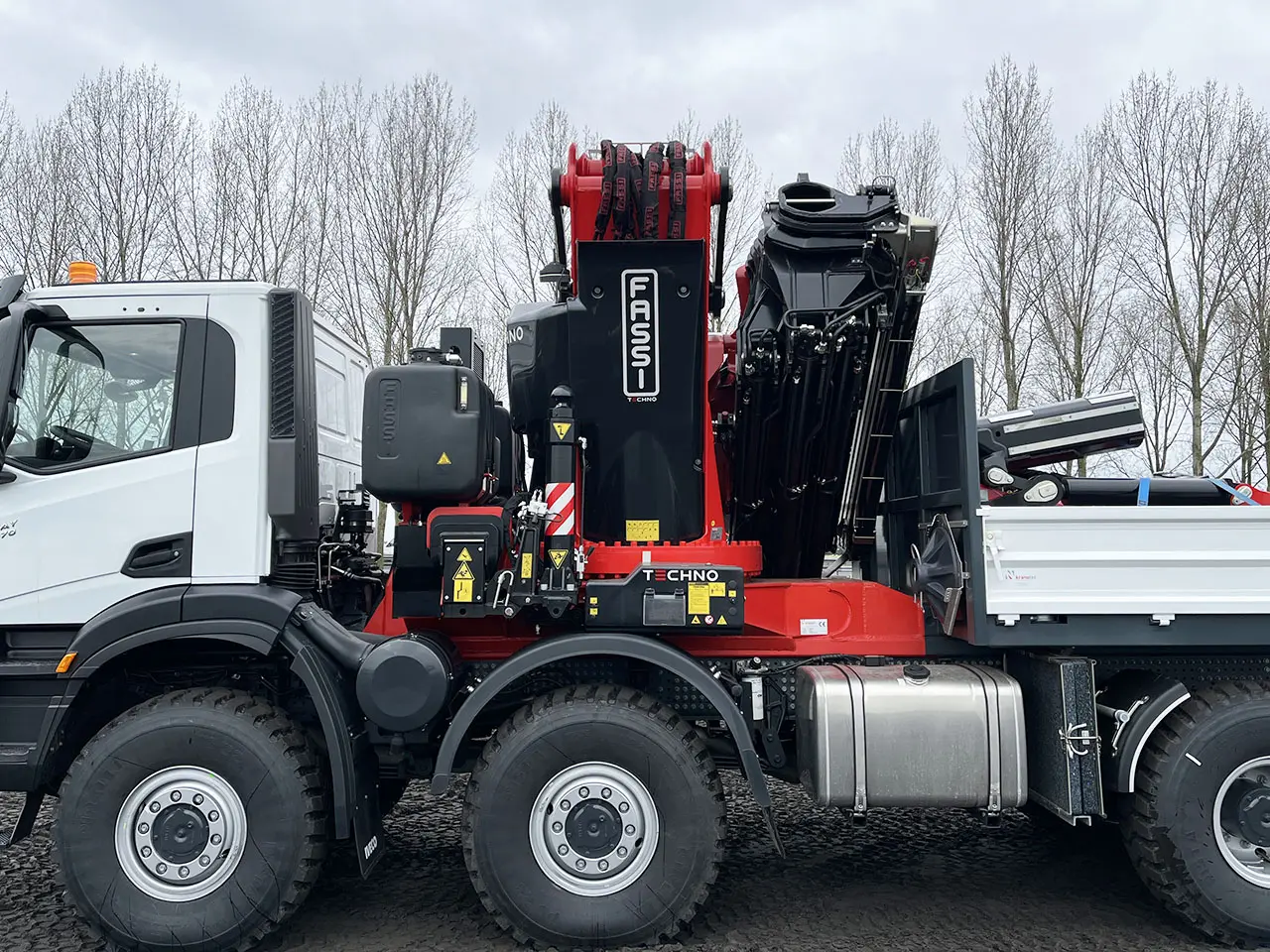

Equipped with Fassi crane:
Type: F1750R.2.8 HXP-Techno L826 JDP
Hydraulic extension type L826

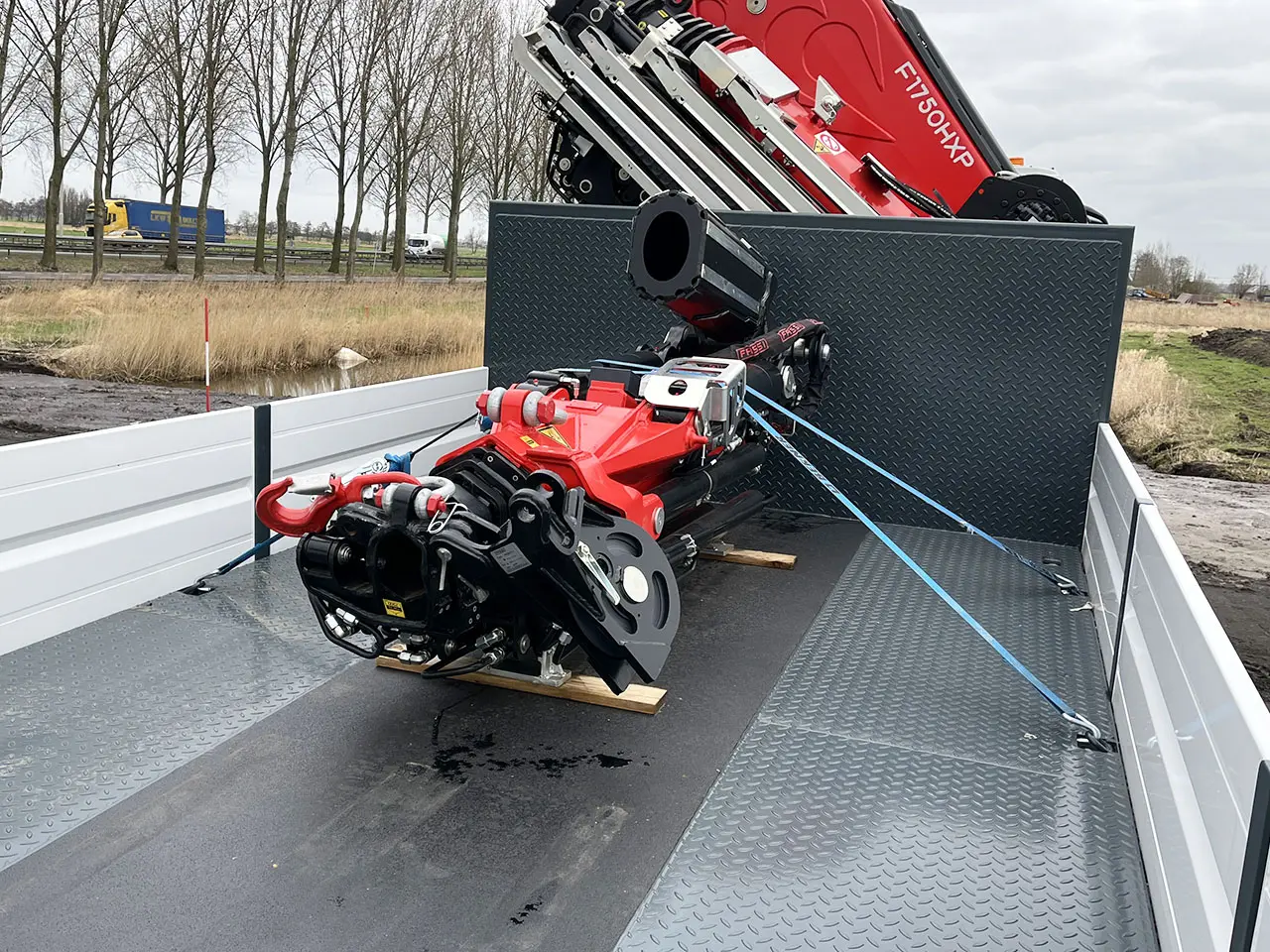

JDP Jib dual power device activation
Max. lifting moment 132 tm / 1295 kNm
Max. hydraulic outreach 31.80 m

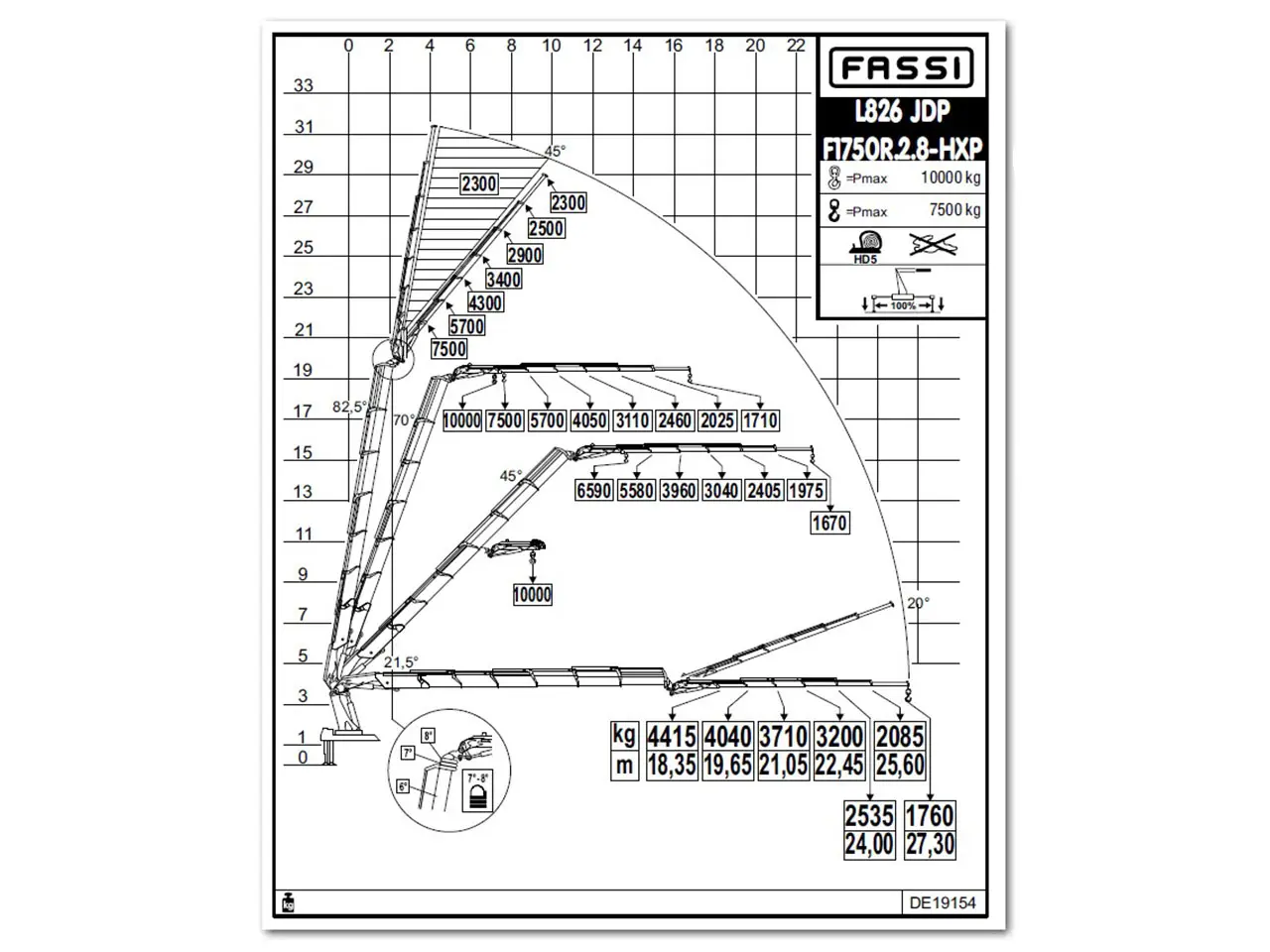

Lifting capacity:
30.000 kg / 4.05 m
21.460 kg / 5.65 m
16.225 kg / 7.40 m
12.720 kg / 9.25 m
10.285 kg / 11.25 m
8.550 kg / 13.25 m
7.080 kg / 15.35 m
6.100 kg / 17.35 m
5.380 kg / 19.35 m
Lifting capacity including Jib:
4.415 kg / 18.35 m
4.040 kg / 19.65 m
3.710 kg / 21.05 m
3.200 kg / 22.45 m
2.535 kg / 24.00 m
2.085 kg / 25.60 m
1.760 kg / 27.30 m
Electronic/Hydraulic Equipment:
IMC integral machine control
FX990 control unit
D900 digital distributor bank

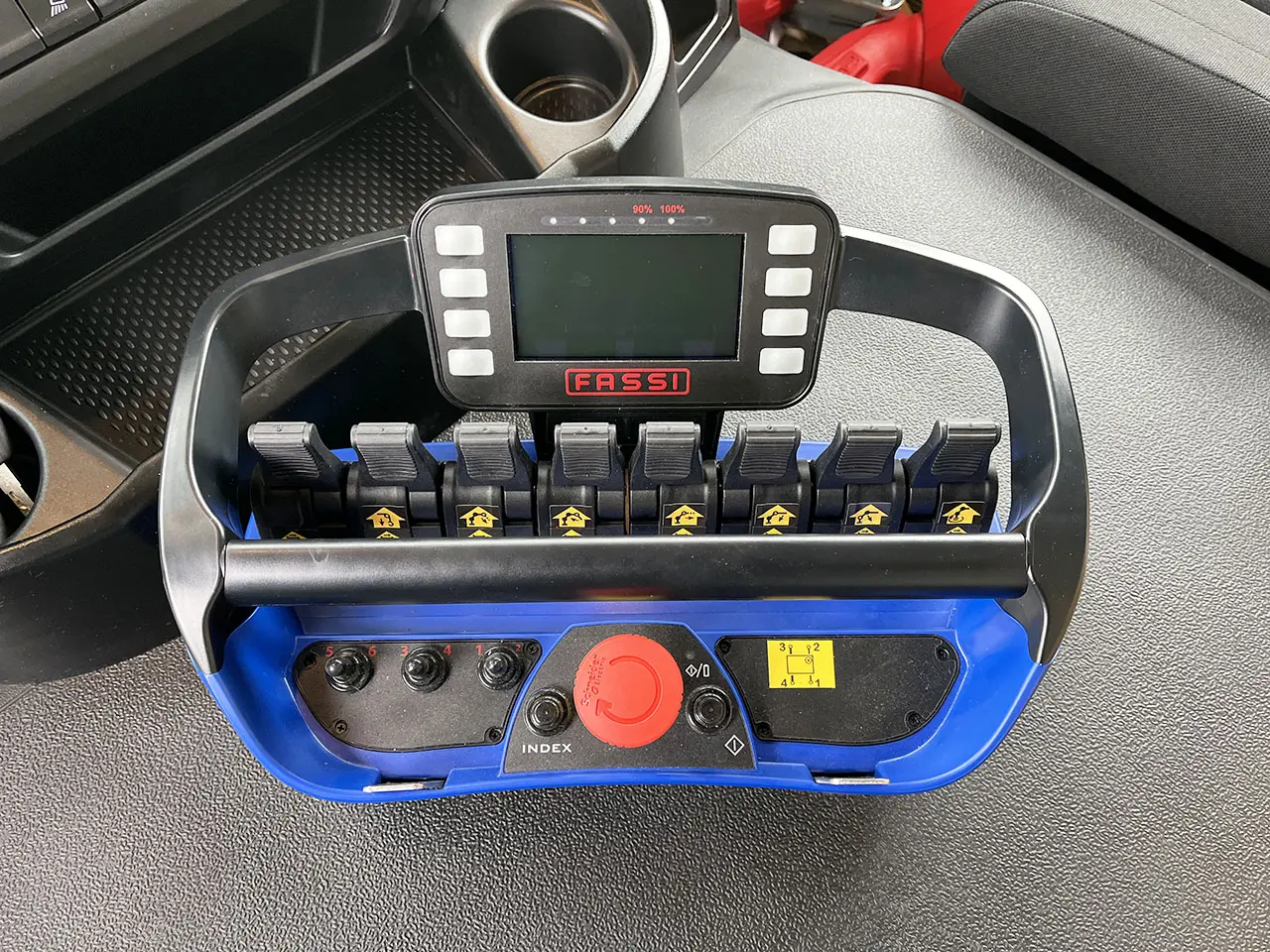

V7S 8 functions radio remote control
ADC automatic dynamic control
FX991 - Touch screen display
Electronic flow sharing
Double linkage
Prolink system
Continuous rotation on a slew ring
Foldable pulley L91
Hydraulic winch V30
Flat-bed lashing rings

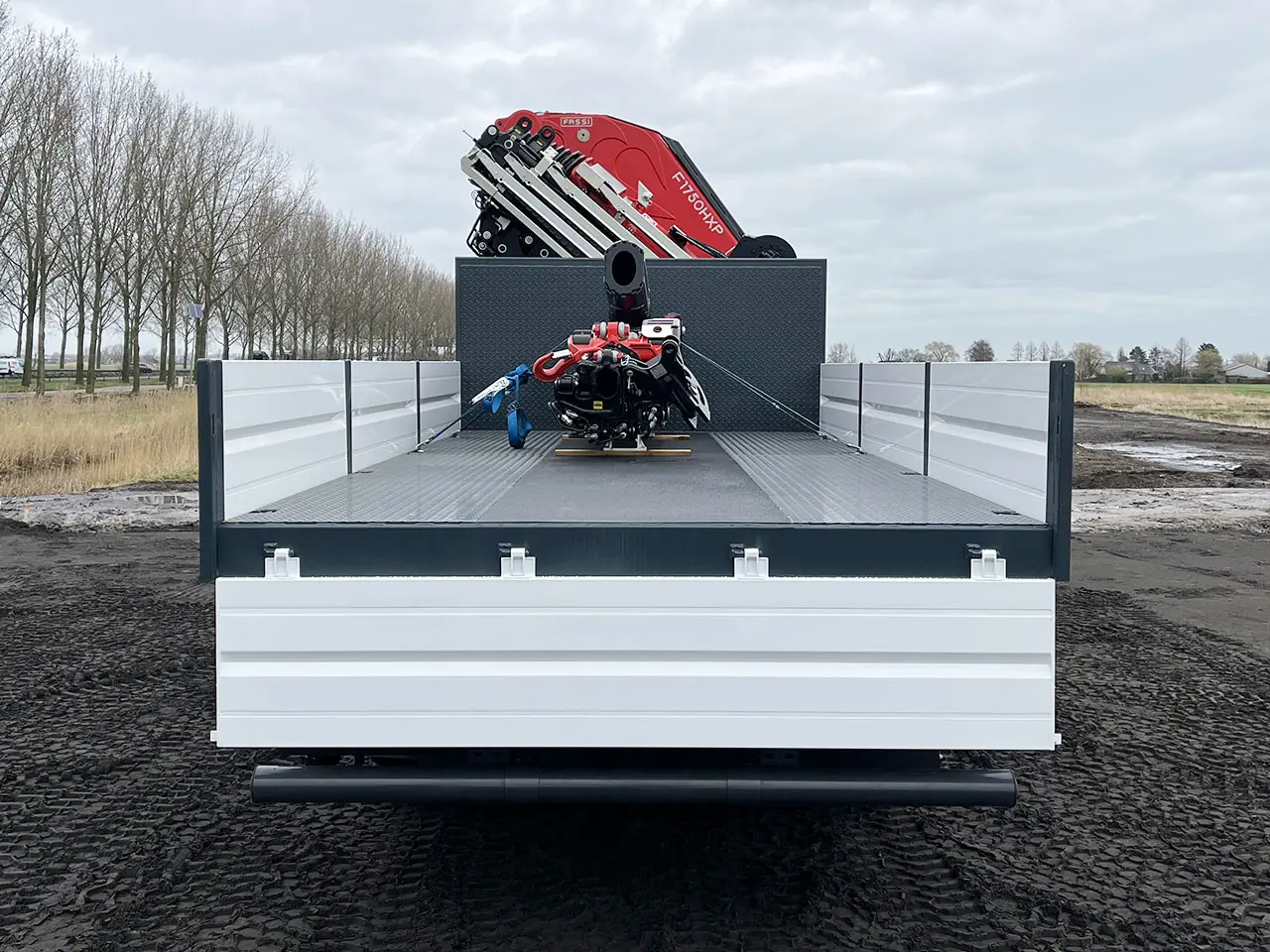

Flat-bed dimensions 530 x 250 x 0.50 cm
Complete specification in PDF.
