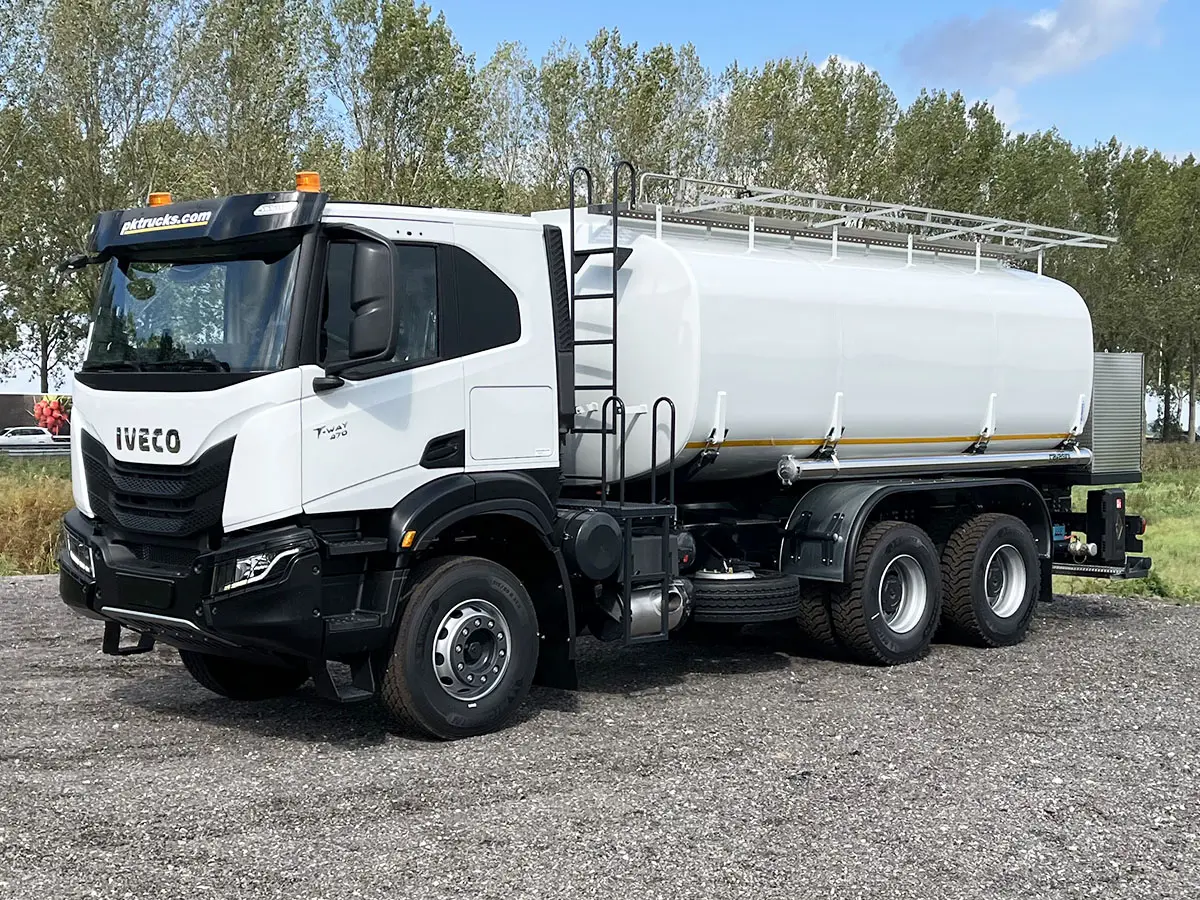

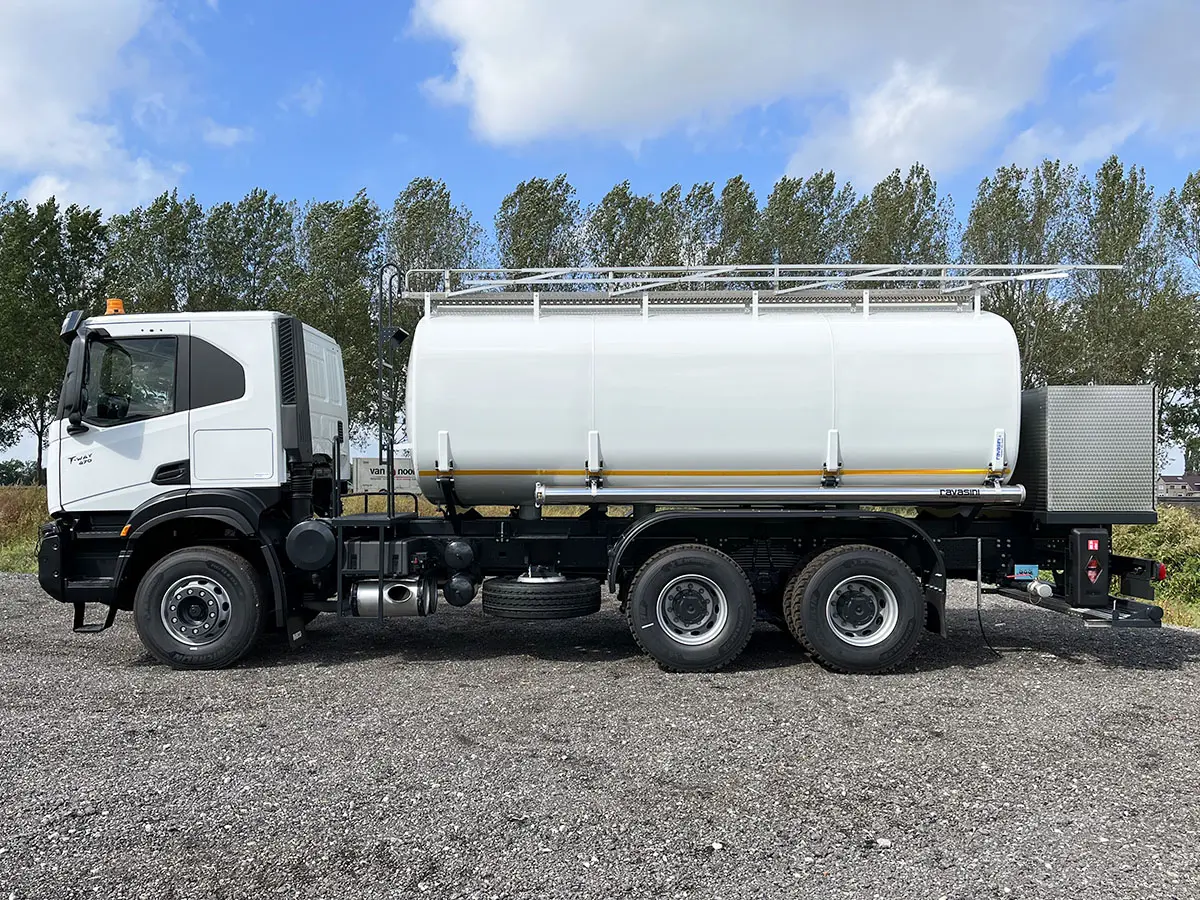

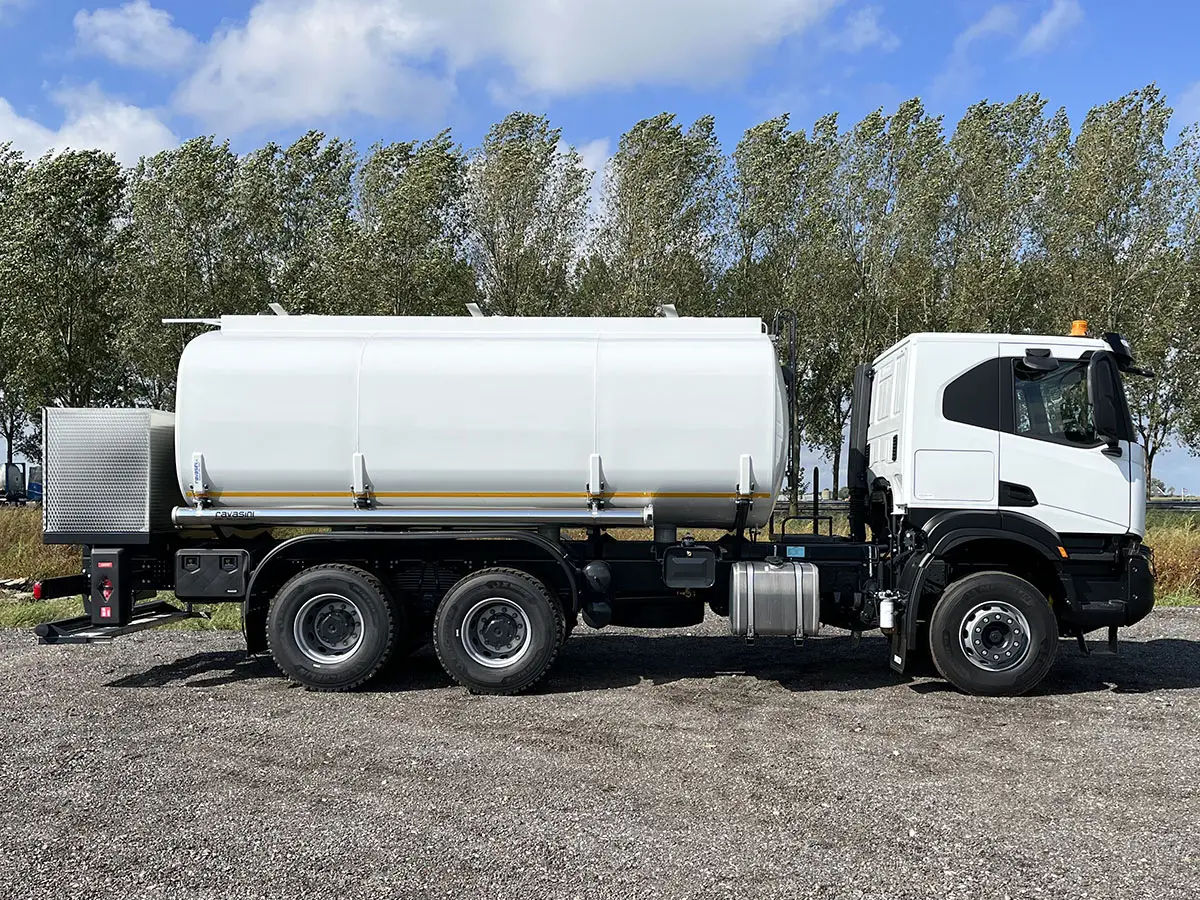

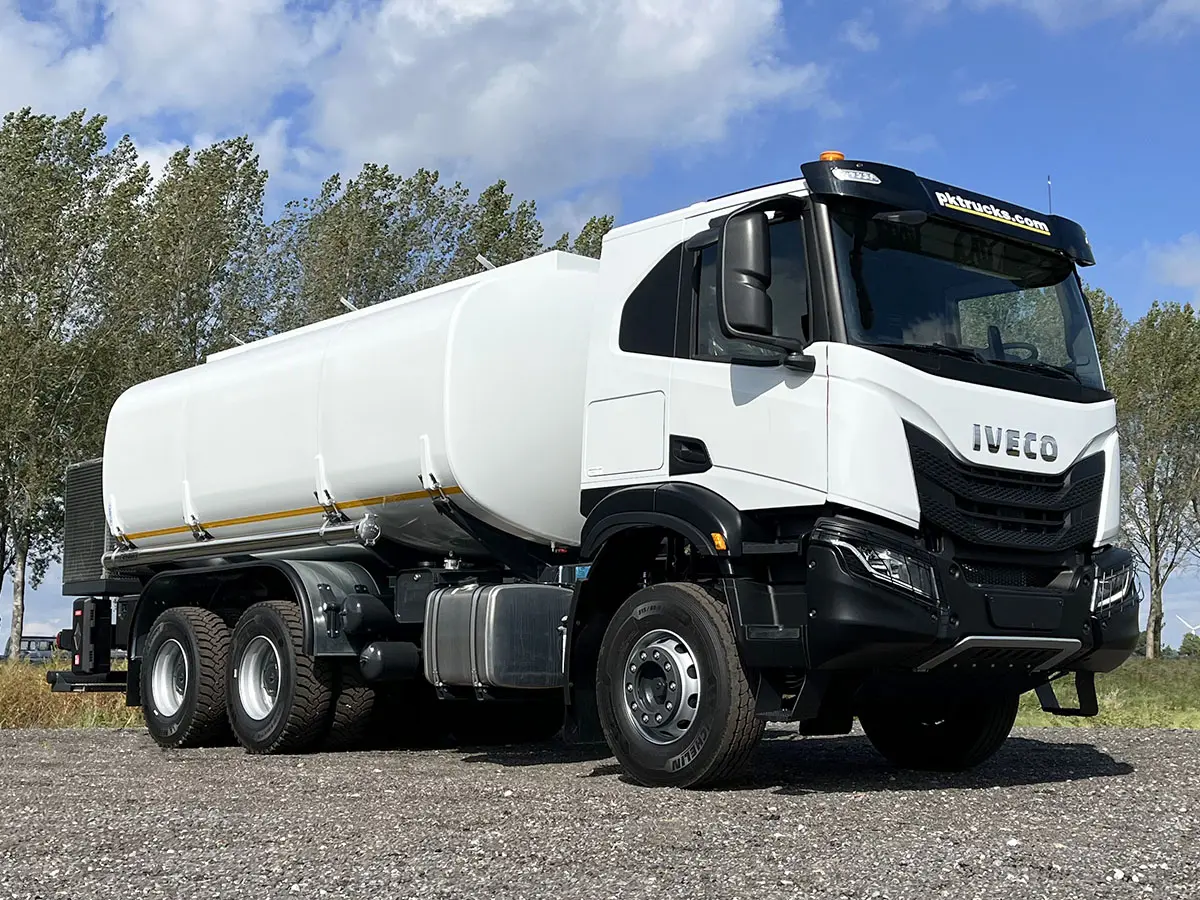

Iveco T-Way AT380T47H 6x4 Fuel Tank Truck
6x4
Diesel
Left hand drive
€ 157.500
Net unit price EXW
Specifications
General
- ID
- IV4887
- Brand
- Iveco
- Construction
- Fuel Tank Truck
- Construction brand
- Ravasini
- Production year
- 2023
- Model year
- 2023
- Vehicle status
- New / Unused
Engine
- Engine type
- F3HGE611V
- Emission code
- EURO-3
- Engine power
- 475hp/349kW

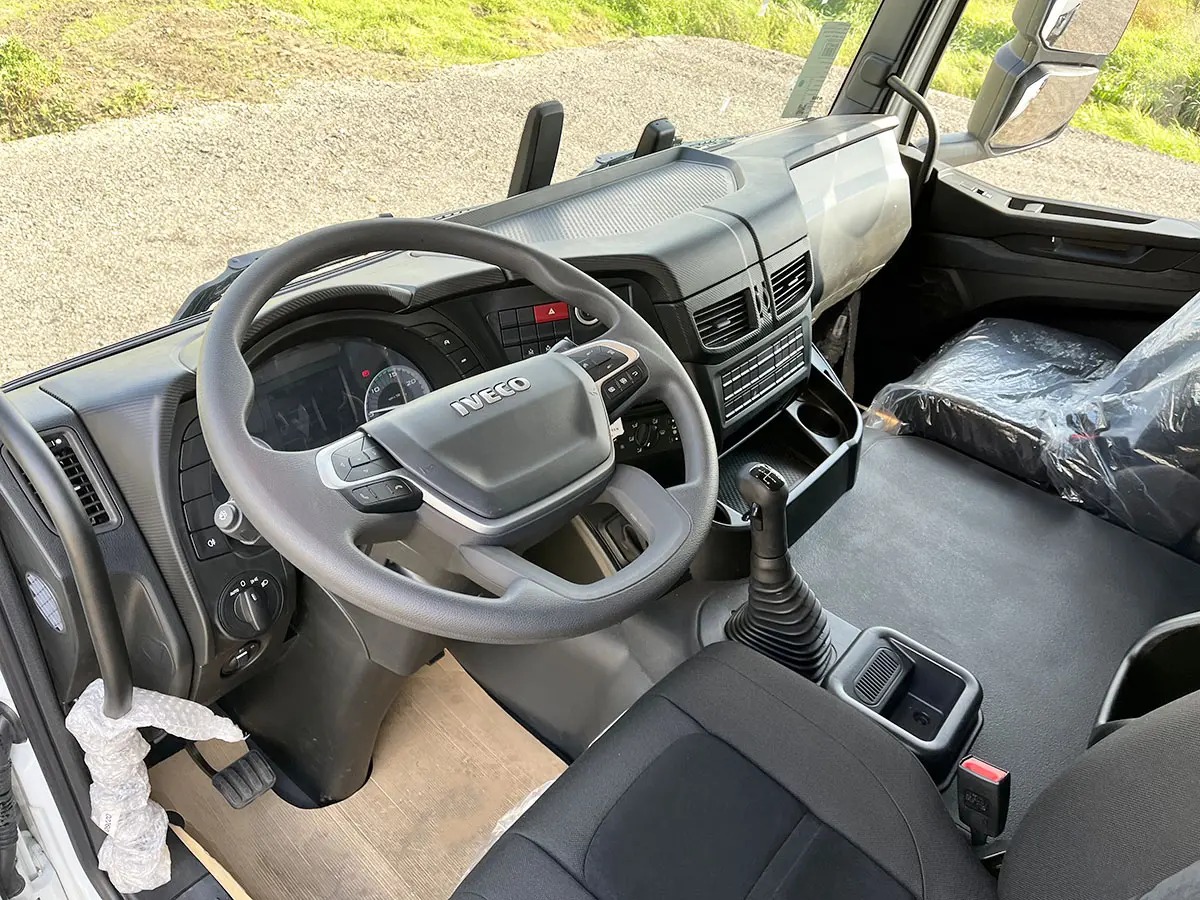

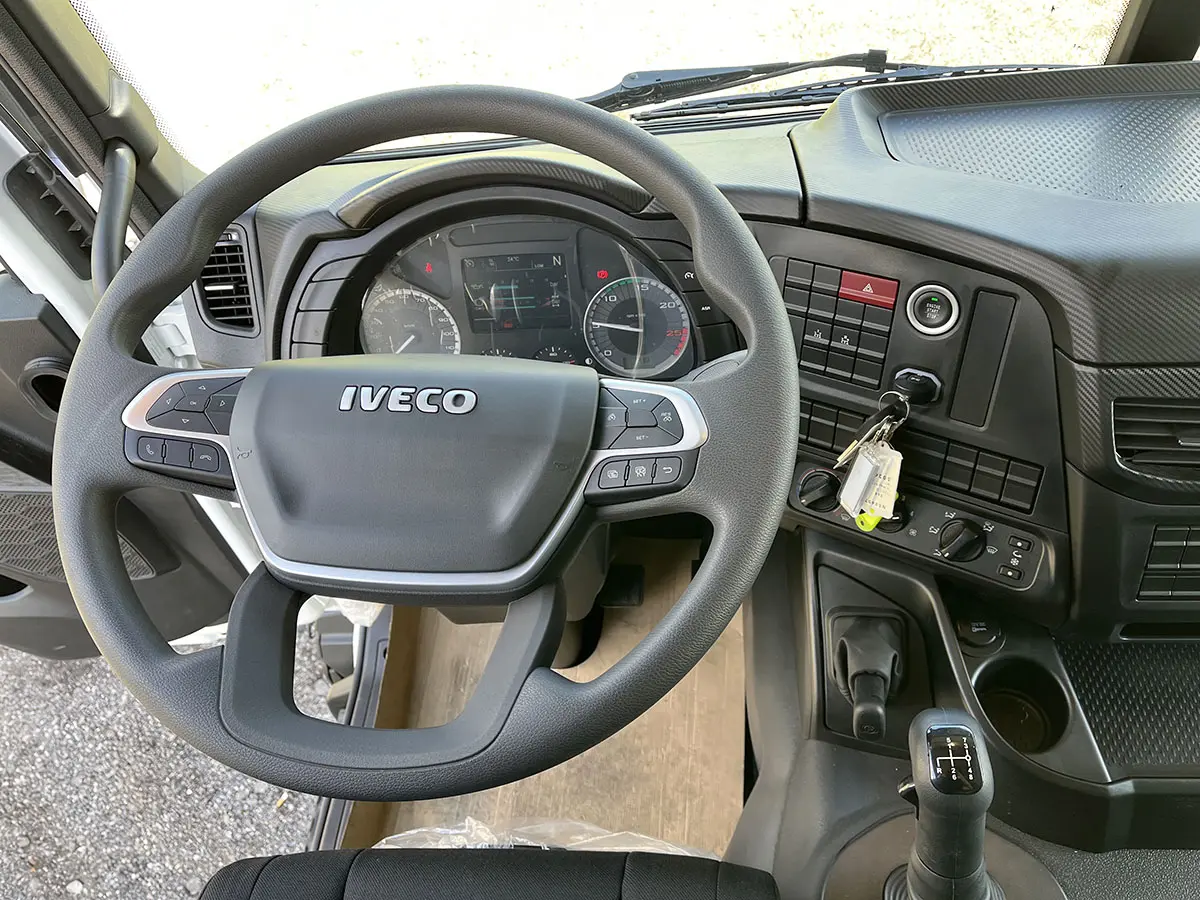

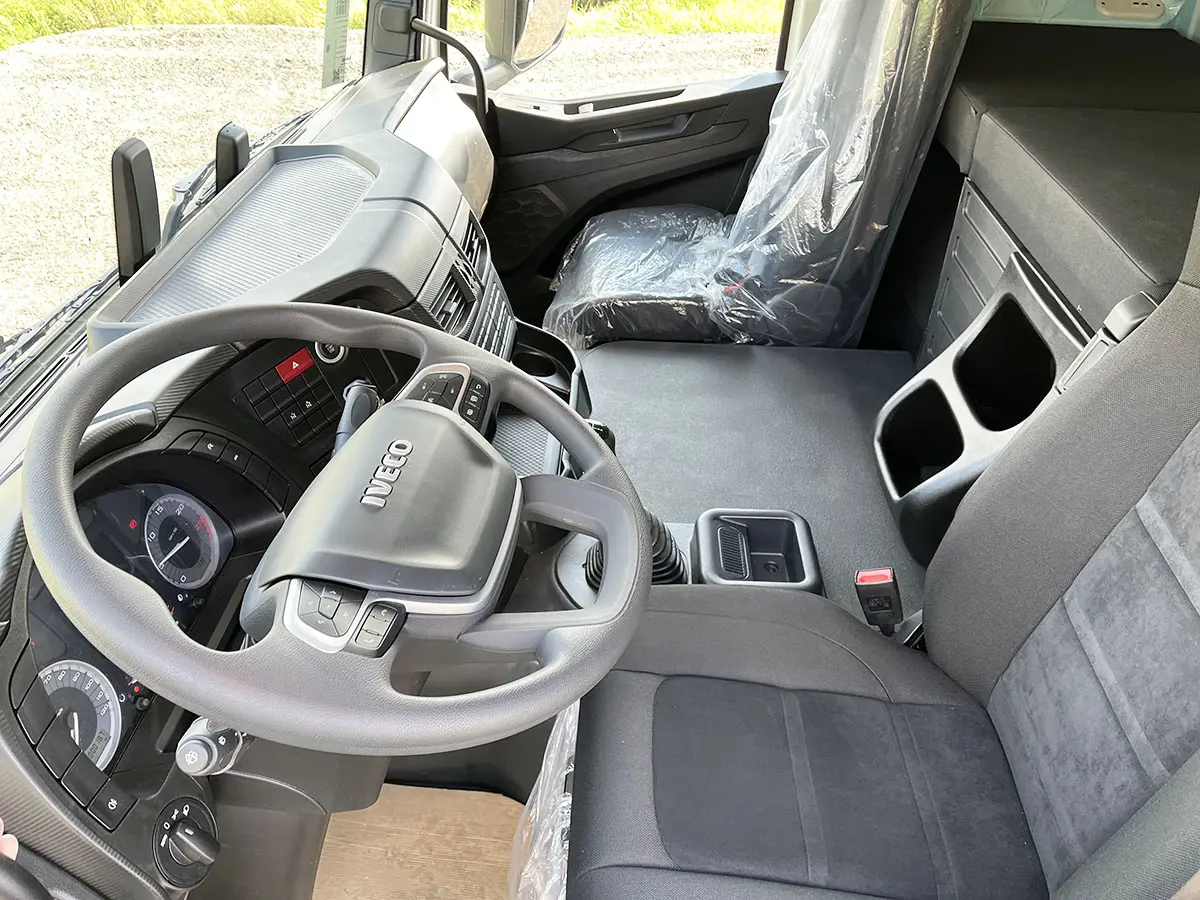

Cabin
- Cabin

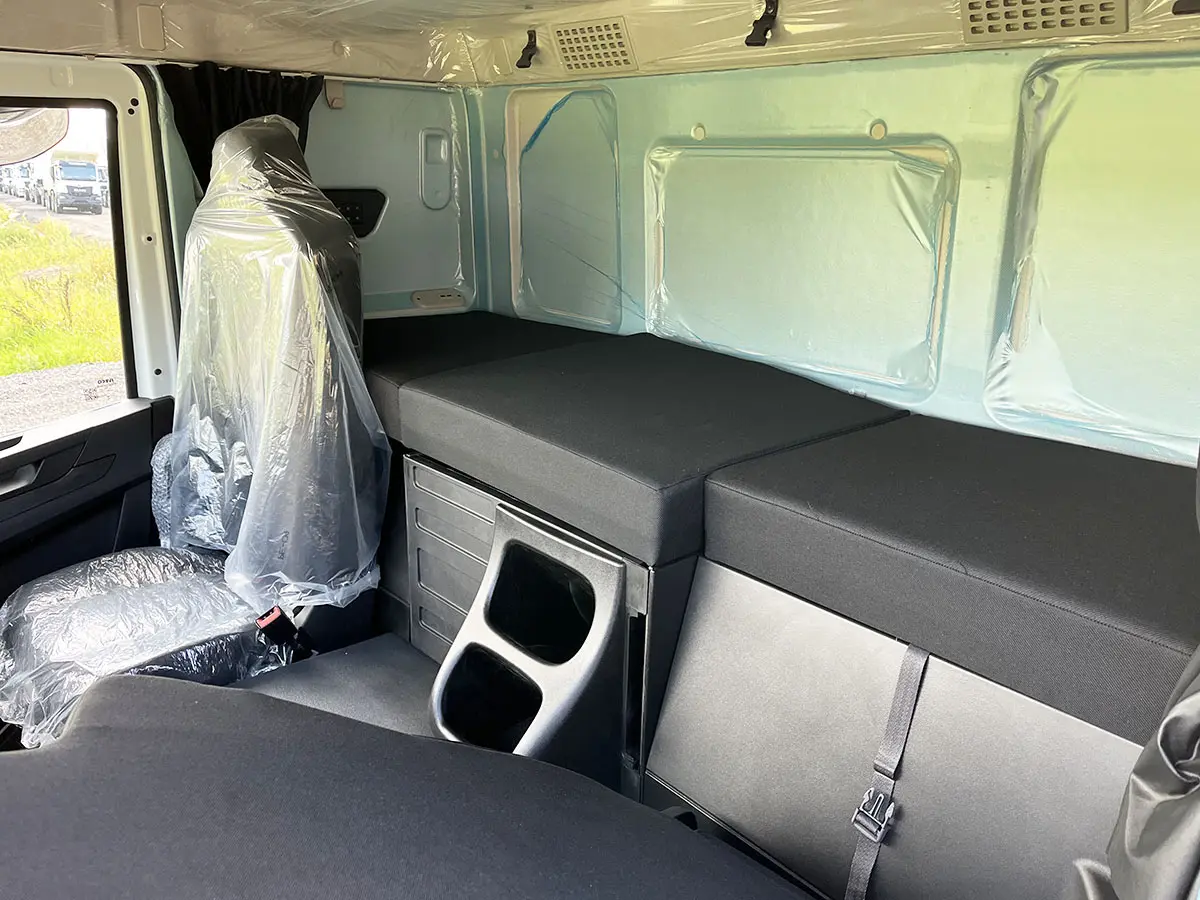

- Sleeper
- Steering
- Left hand drive
Gearbox
- Transmission
- Manual
- Gearbox
- ZF16S2520TO
- PTO
- NH/4C
Chassis
- Wheel base
- 4.200 mm
- GVW
- 33.500 kg
- Axle configuration
- 6x4
- Suspension
- Spring
Dimensions
- External dimension
- 9.600 x 2.500 x 3.600 mm
- Empty weight
- 13.800 kg
Axles
Axle 1
- Steering
- Yes
- Tires
- Single
- Brakes
- Drum
- Suspension
- Spring
- Driven
- No

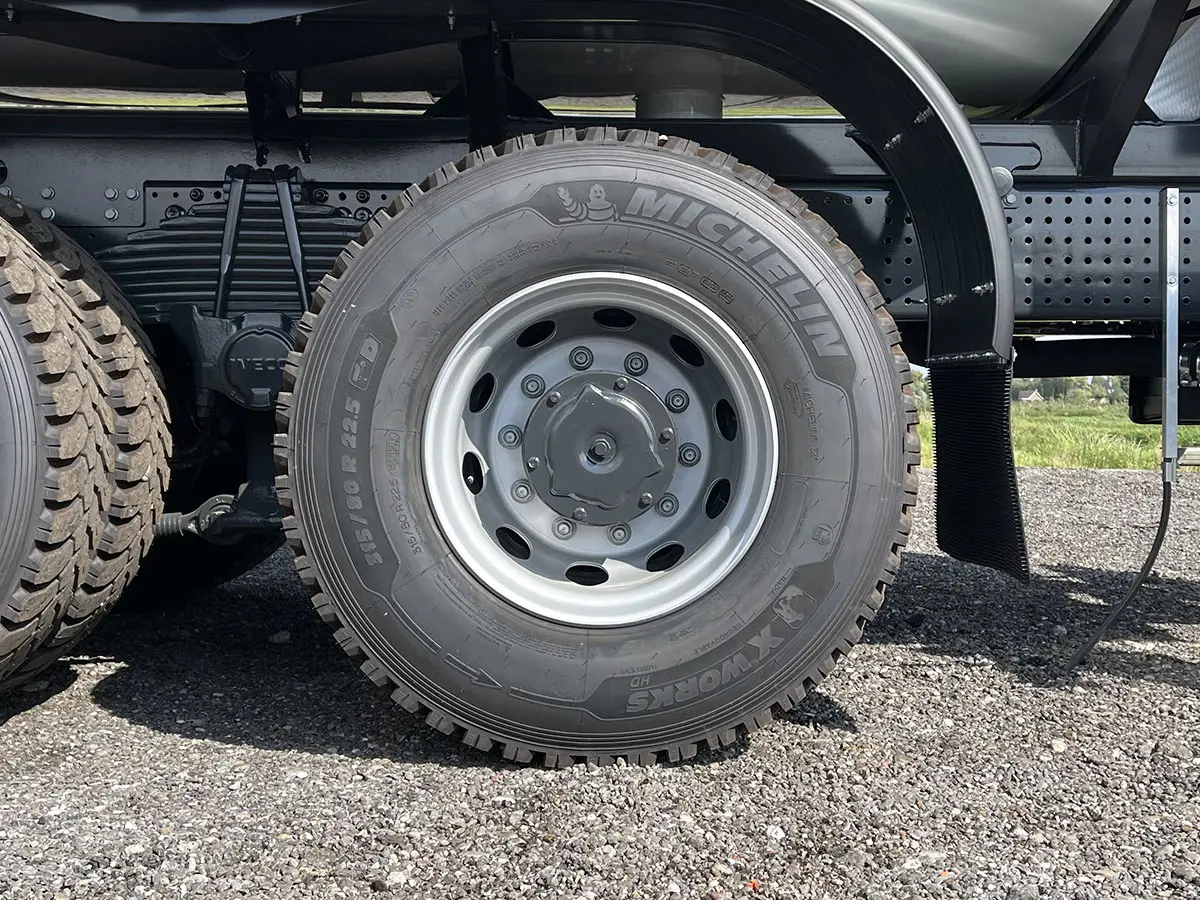

- Tire size
- 315/80R22.5
Axle 2
- Steering
- No
- Tires
- Double
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 315/80R22.5
Axle 3
- Steering
- No
- Tires
- Double
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 315/80R22.5
Remarks
Fuel tank: 290 ltr.Air conditioning

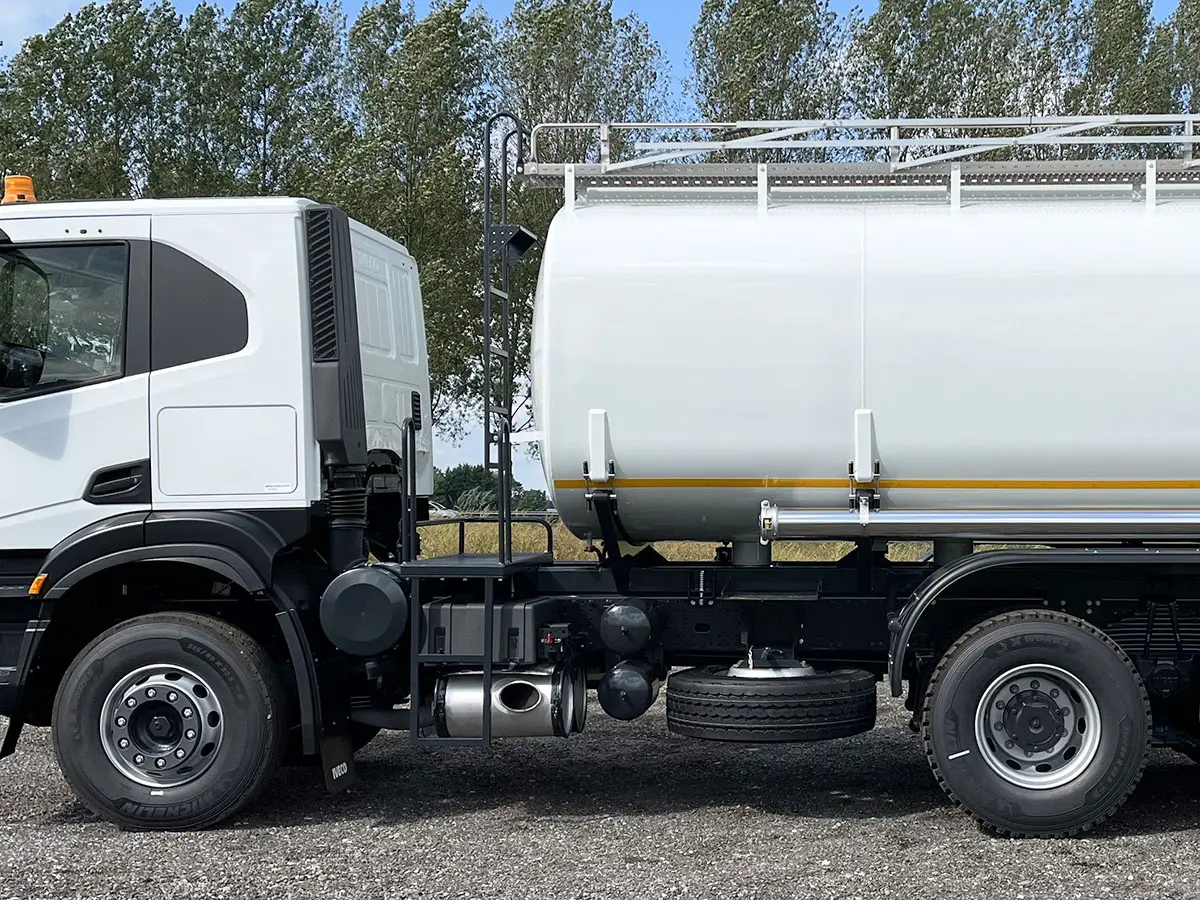

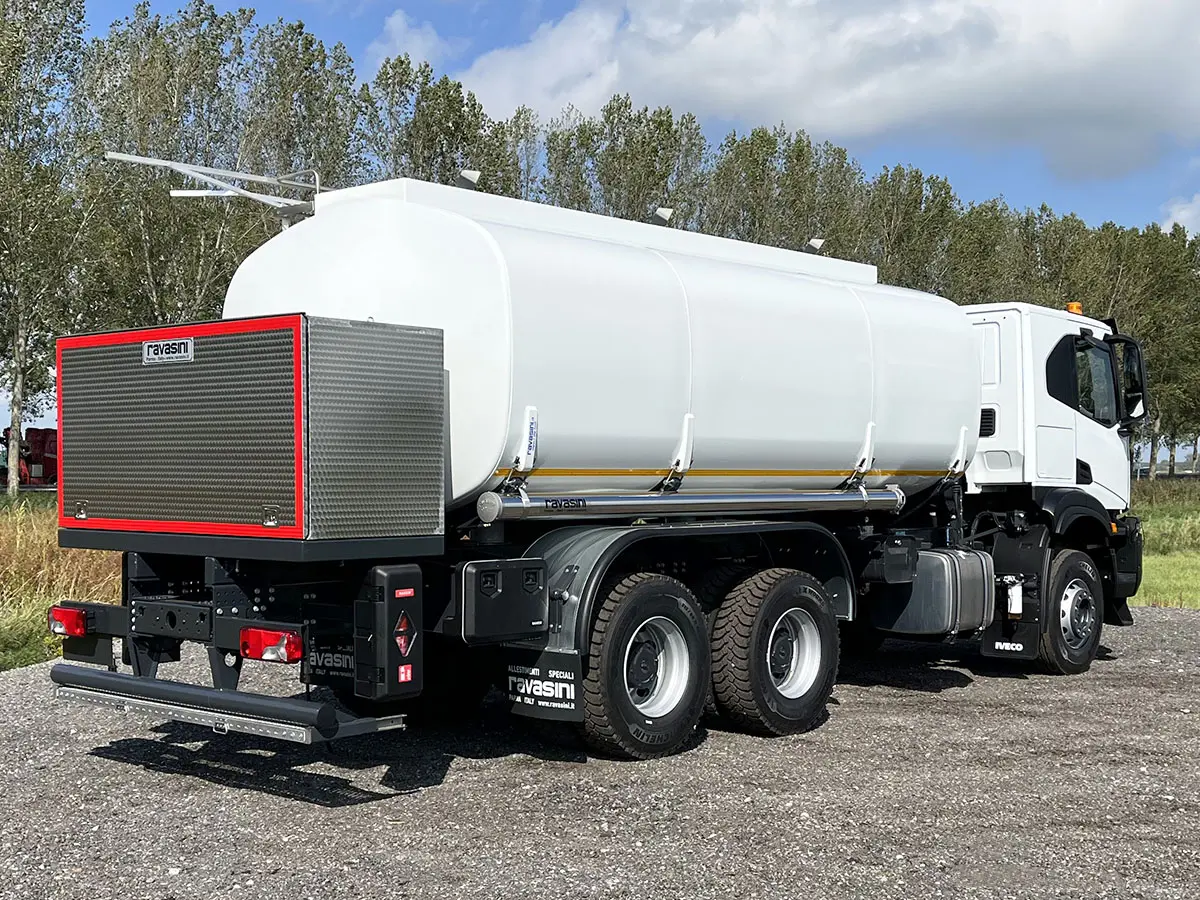

Equipped with Ravasini fueltank 20.000 ltr.
Three compartments (6.800l+6.500l+6.800l+expansion volume)

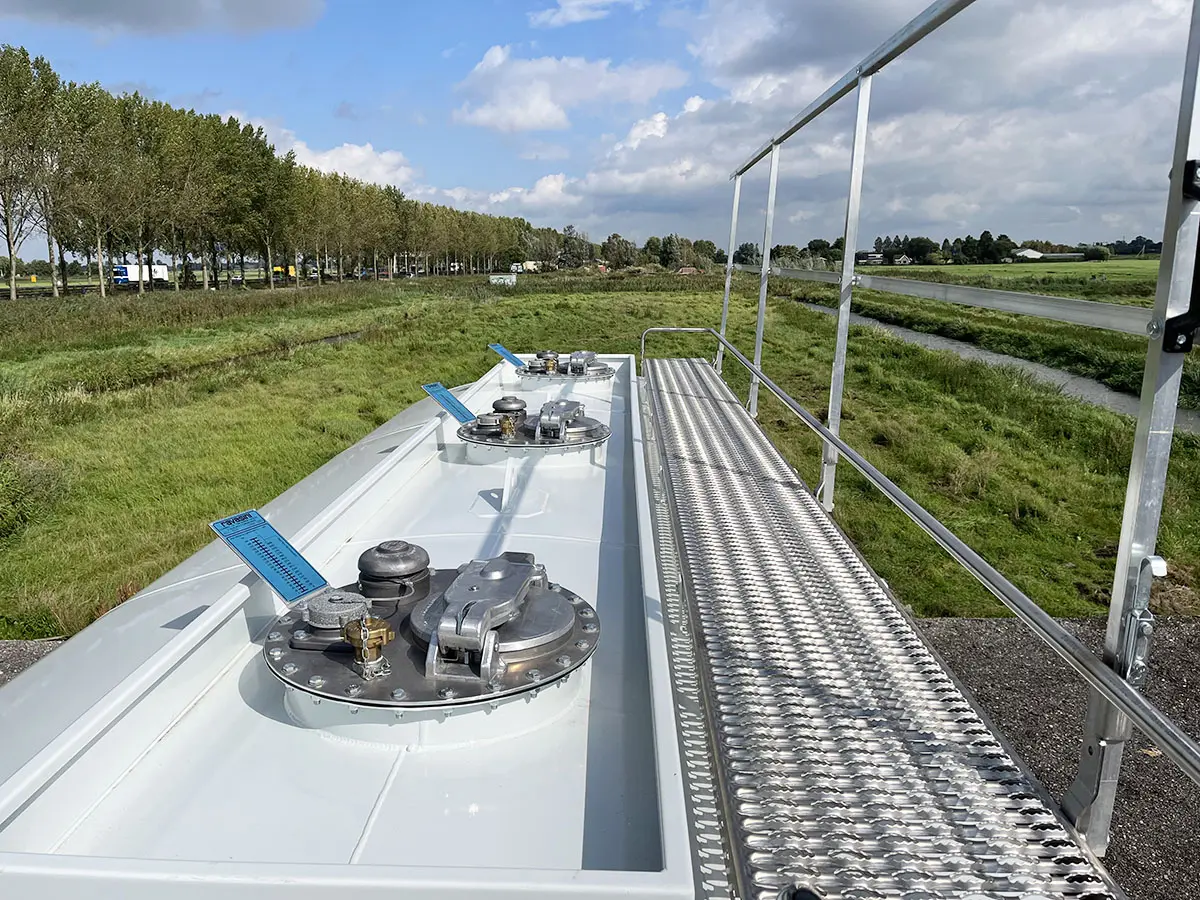

Manhole with cover diam. 500 complete with inlet and breathing valve and containing basin in case of liquid pouring out from the manhole.

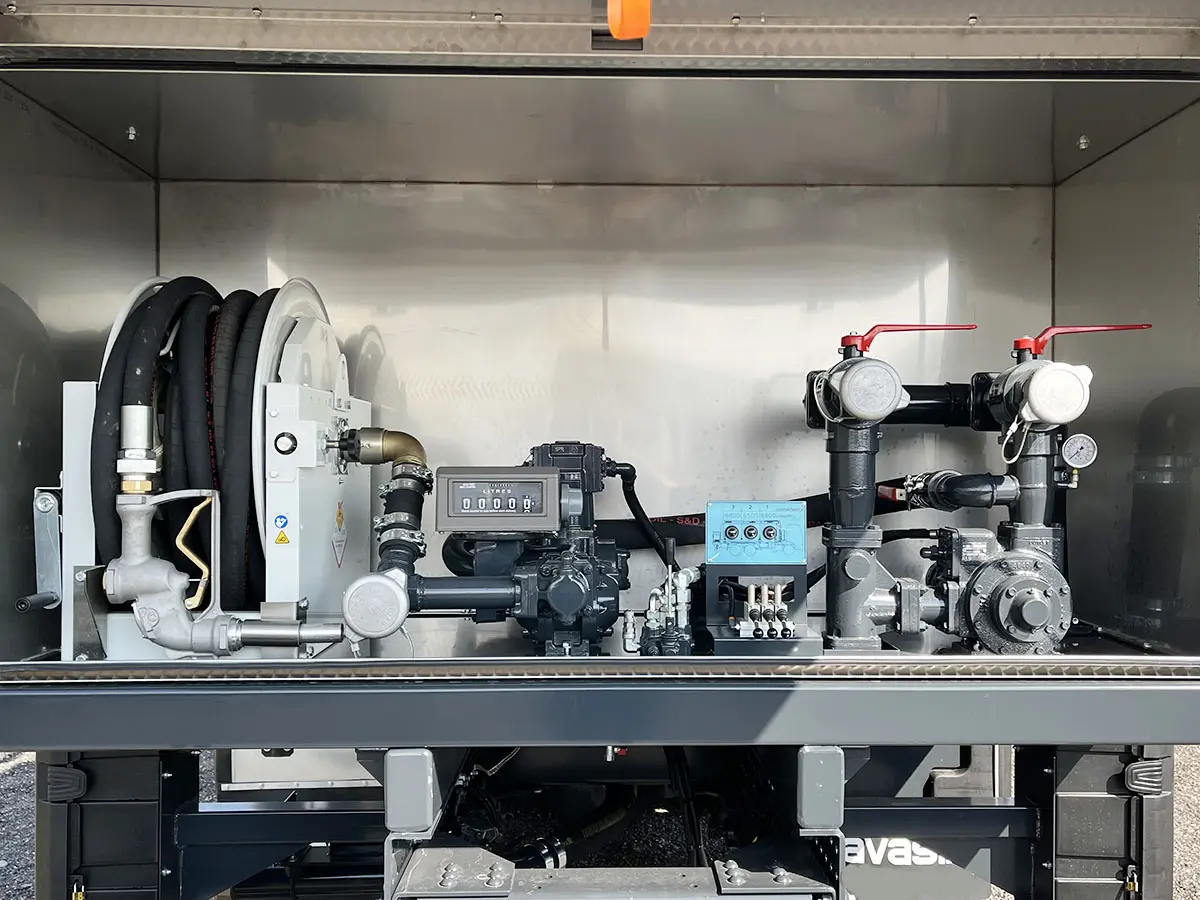

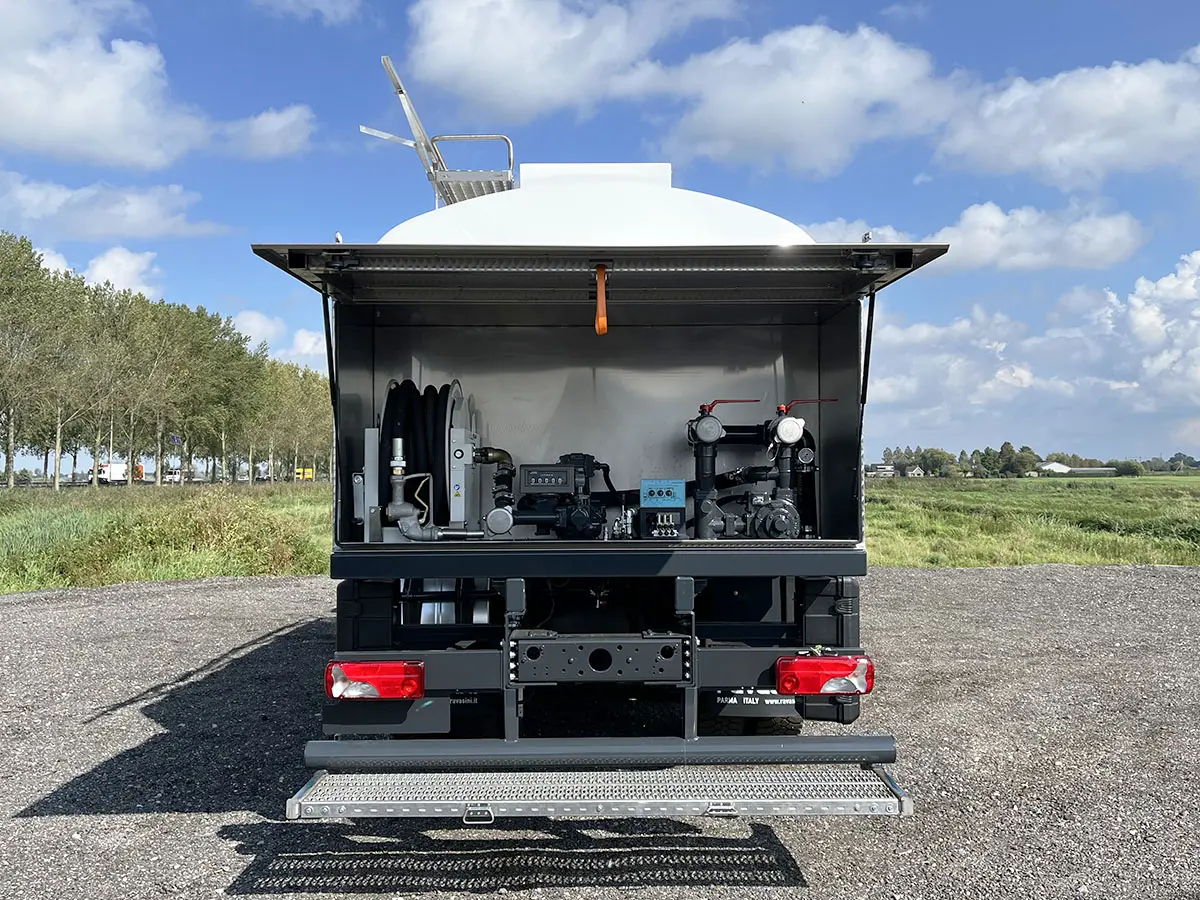

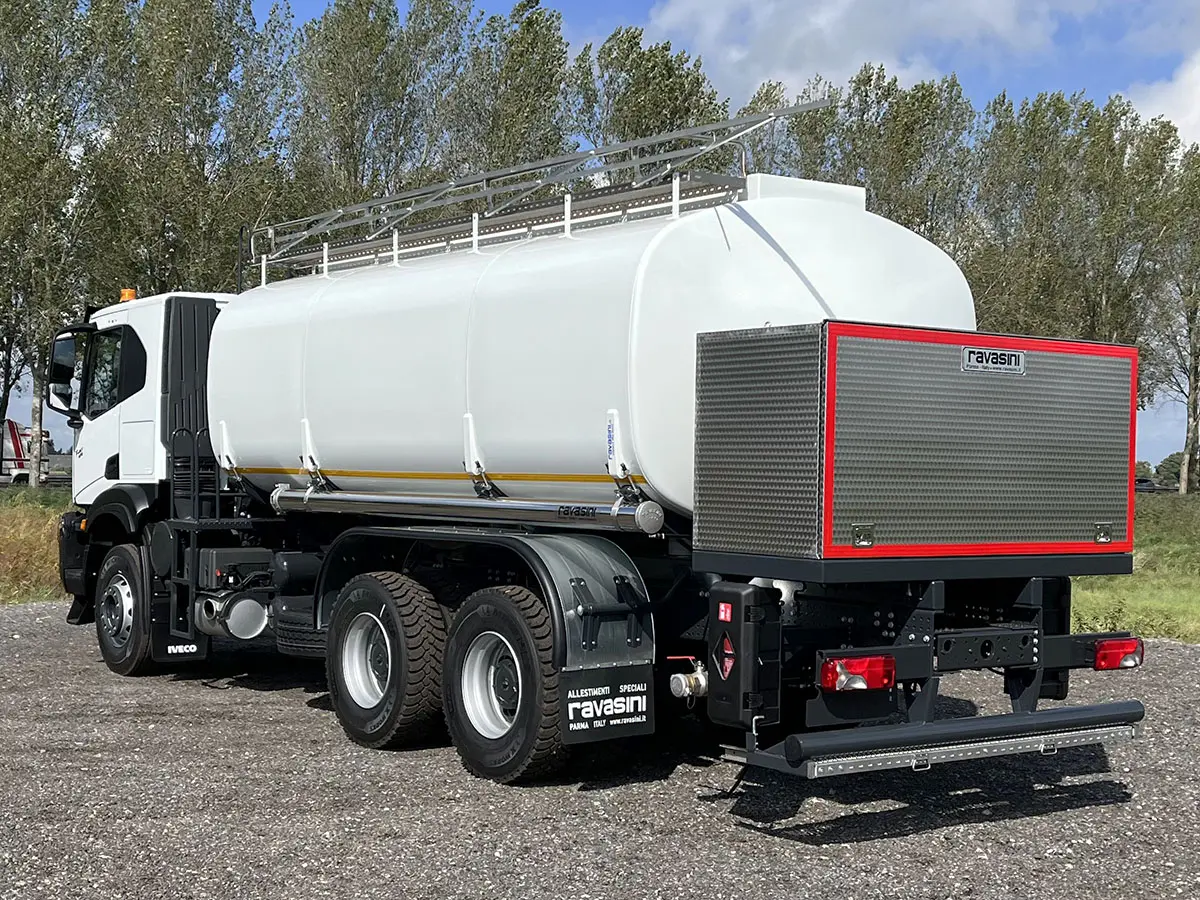

Pumping unit placed in a suitable stainless steel box, positioned on the rear side of the vehicle.
Positive displacement pump 500 l/1 min.
Liter counter with a flow rate of 550 l/1, complete with filter, degasser, aircheck valve, with positive displacement head having partial measuring at 5 resettable digits, and total measuring with 7 non resettable digits.
Manual winding hose reel with 20 m of 1½ hose and delivery gun.
Complete specification in PDF.
