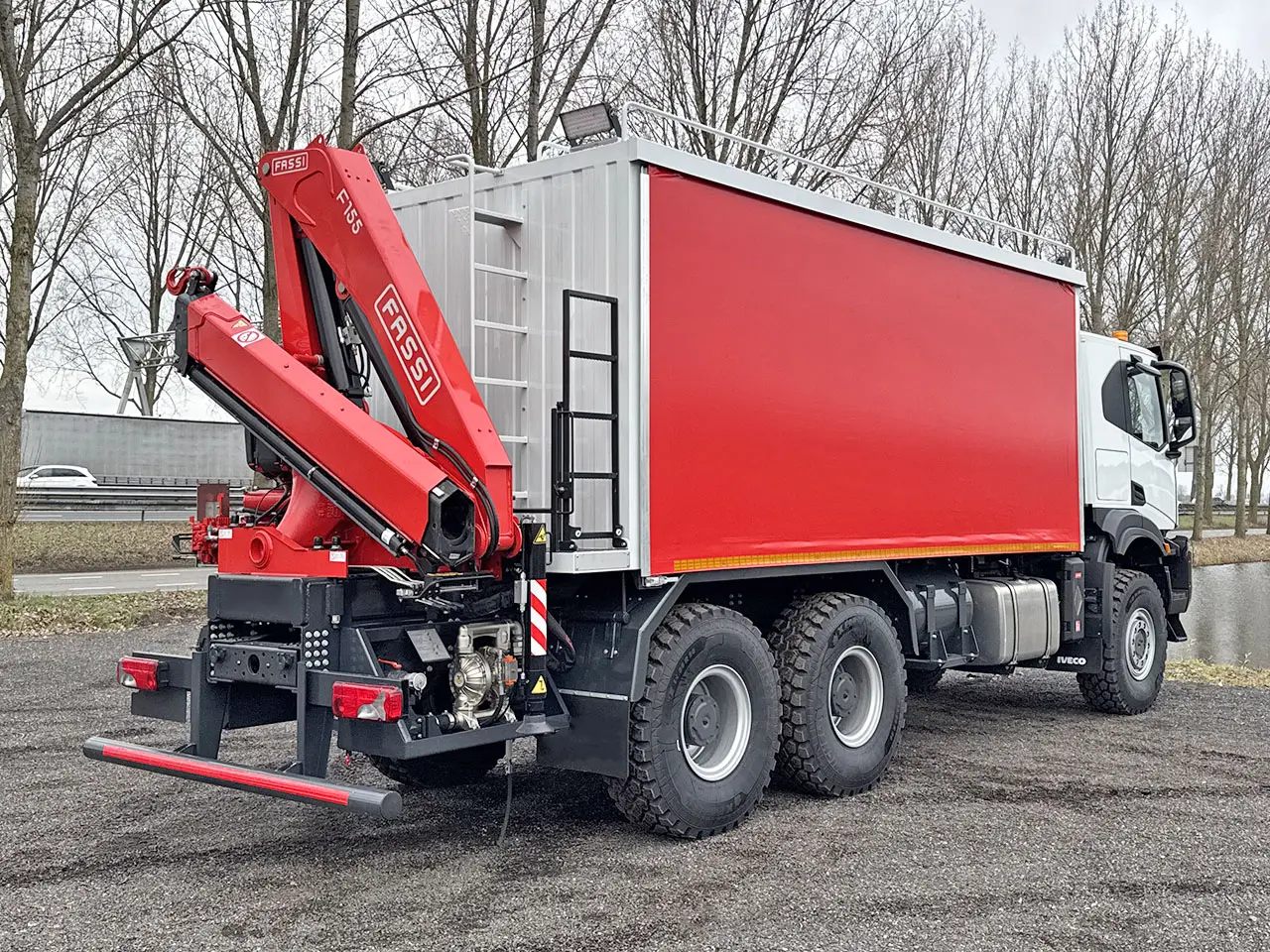

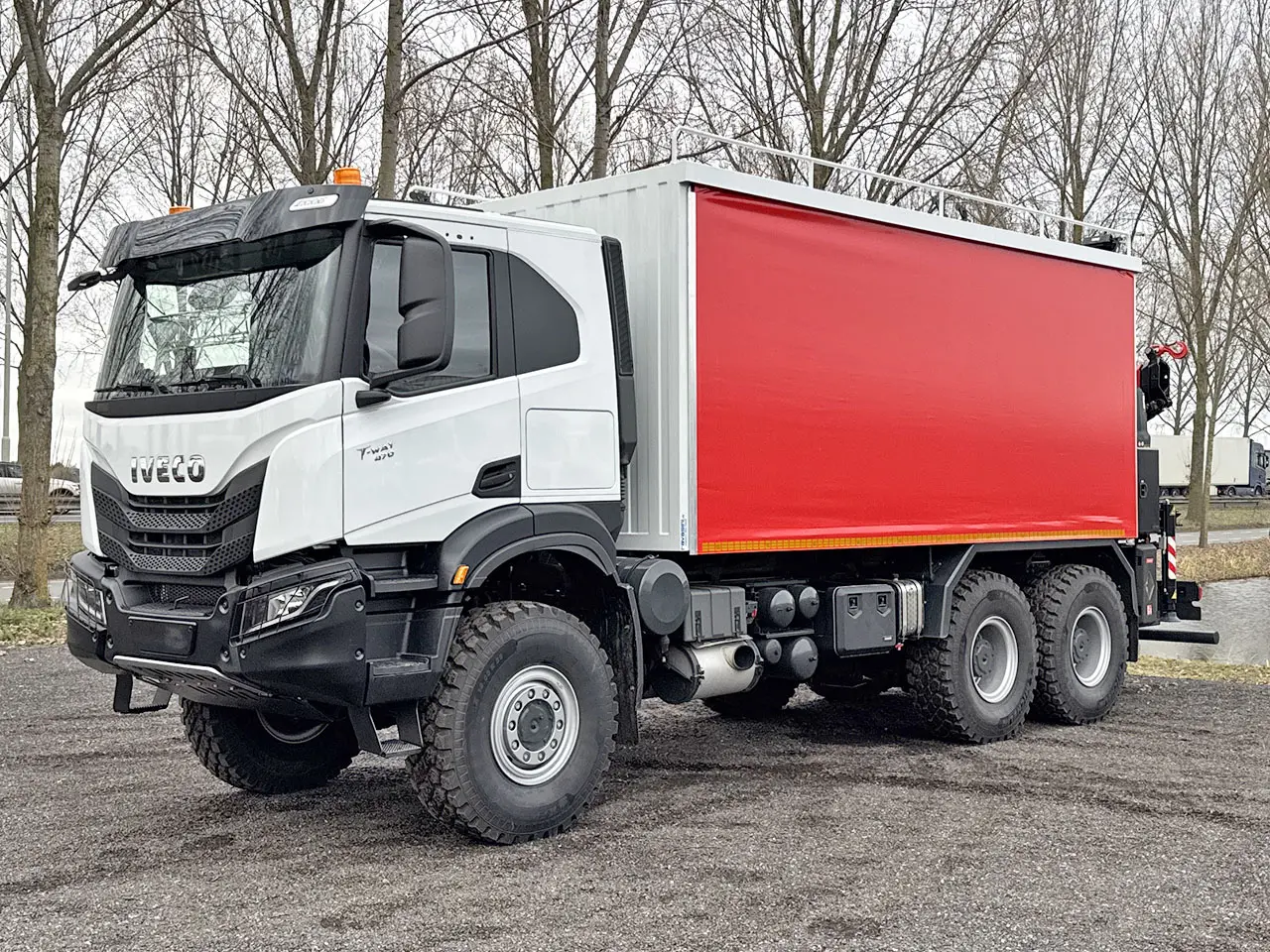

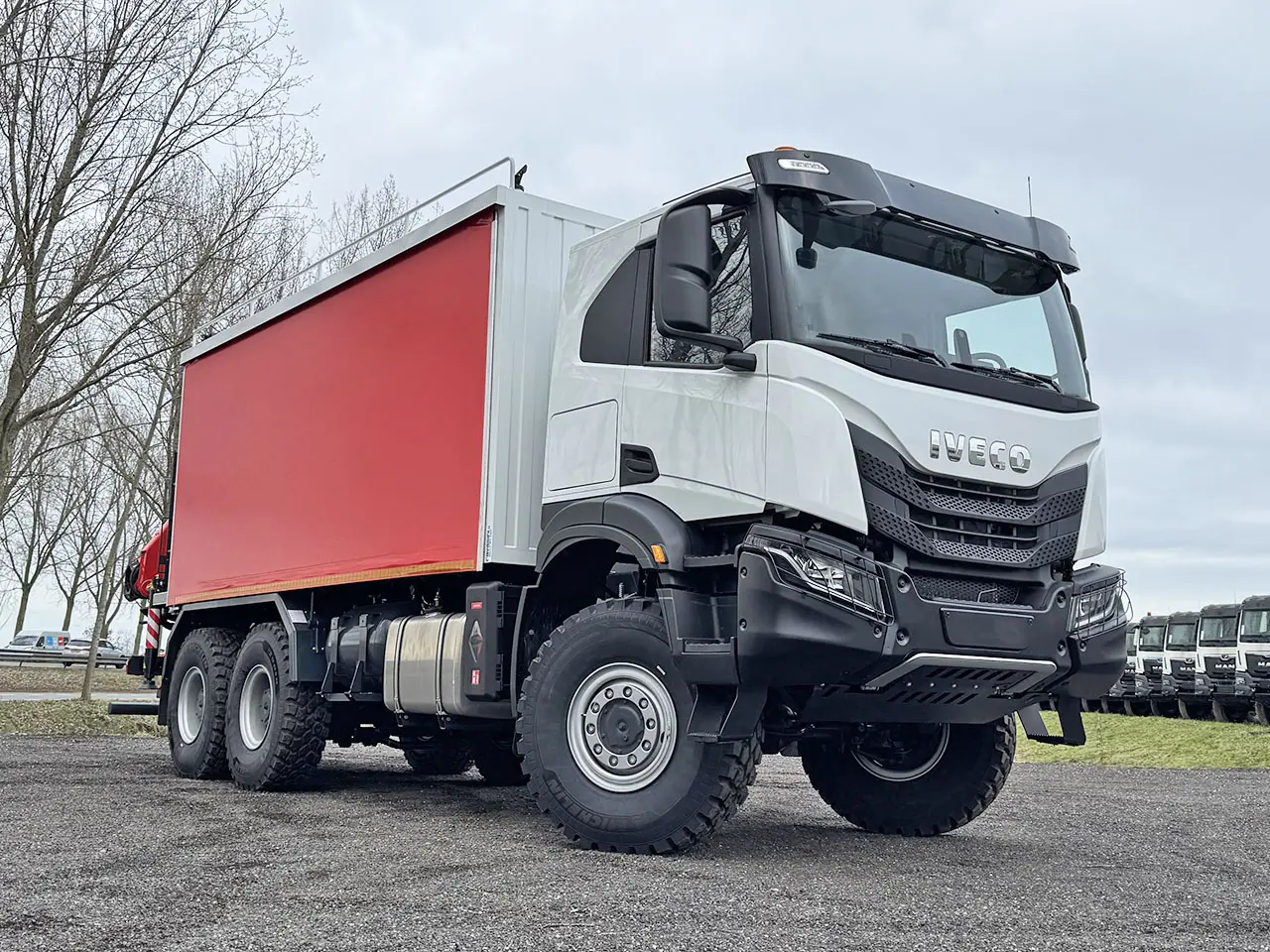

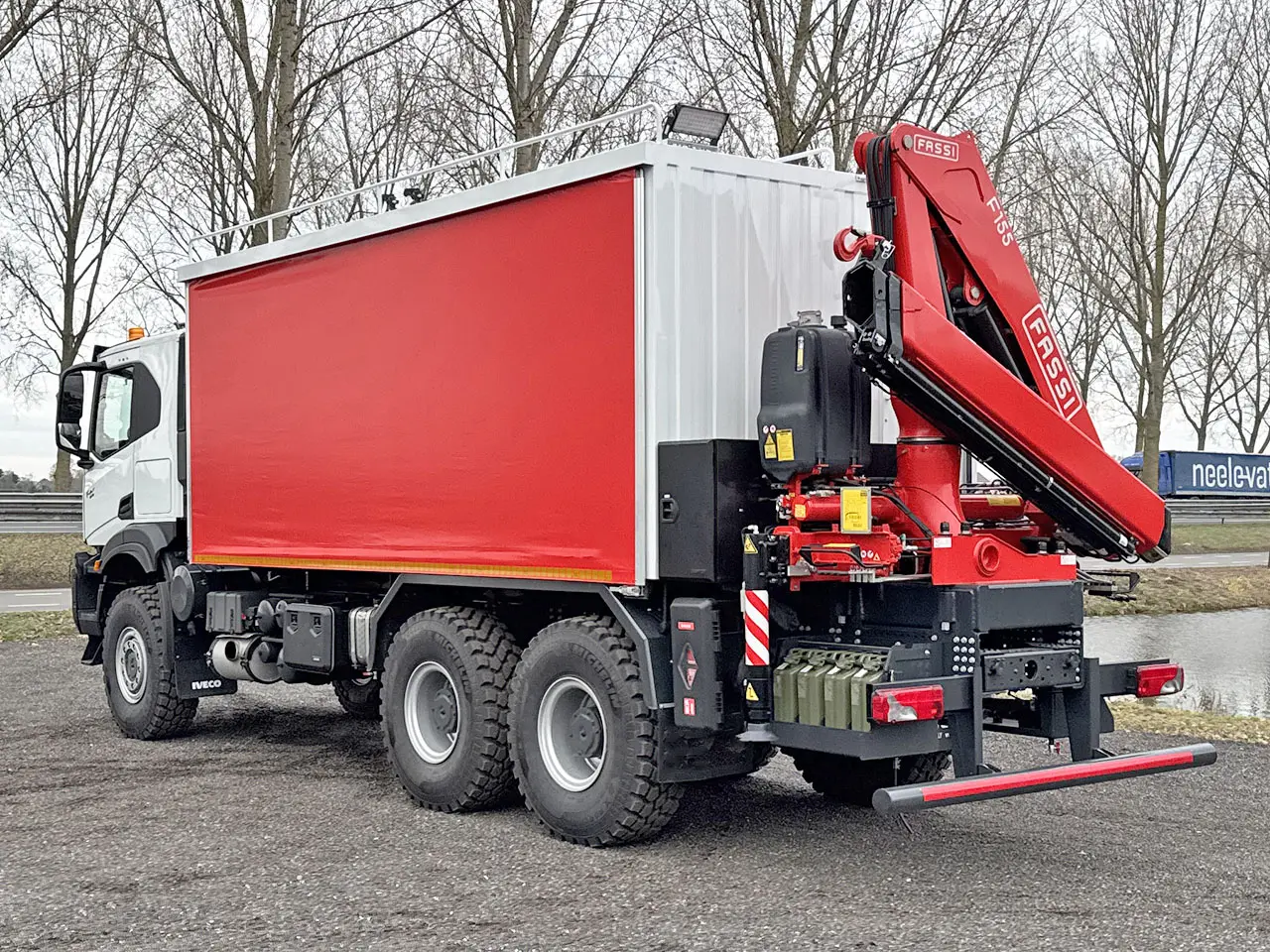

Iveco T-Way AT380T47WH Fassi F155A.0.22 6x6 Workshop Truck
6x6
Diesel
Left hand drive
€ 298.000
Net unit price EXW
Specifications
General
- ID
- IV5323
- Brand
- Iveco
- Construction
- Workshop Truck
- Construction brand
- Ravasini
- Model year
- 2025
- Vehicle status
- New / Unused
Engine
- Engine type
- Cursor 13
- Emission code
- EURO-3
- Engine power
- 470hp/349kW

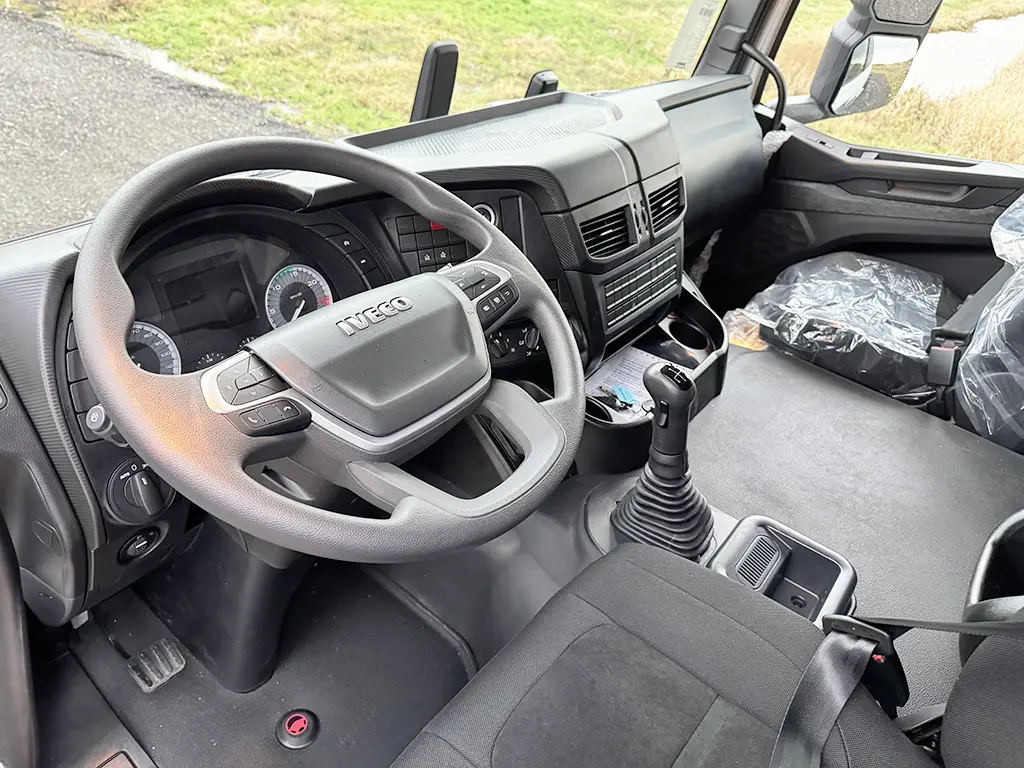

Cabin

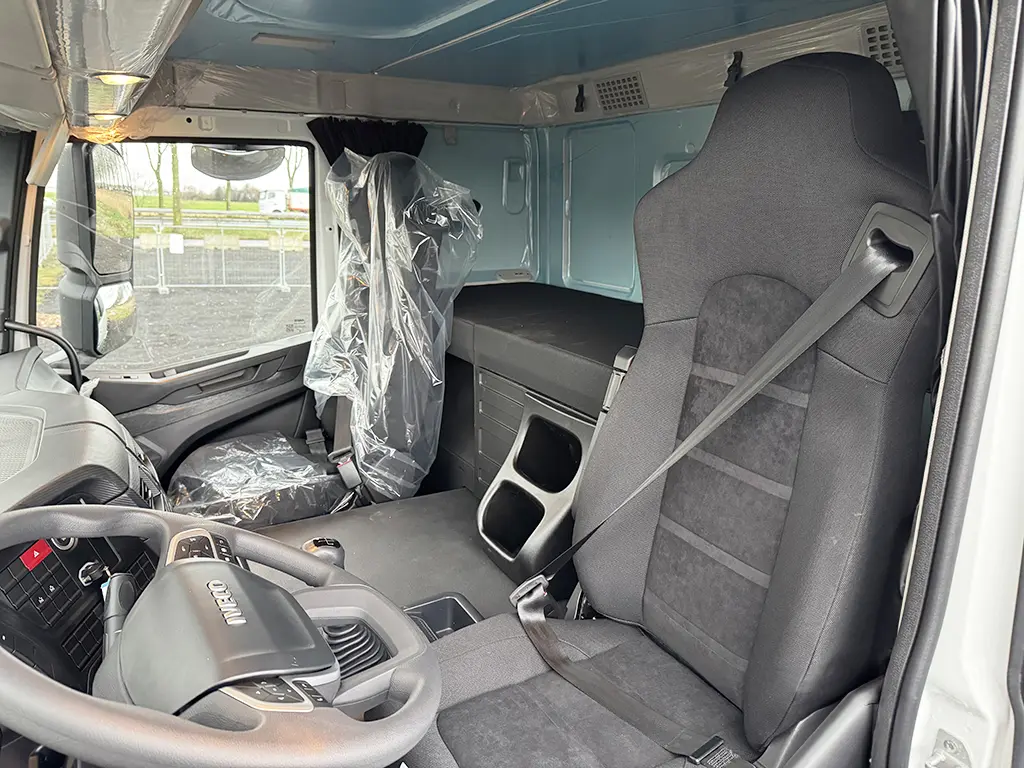

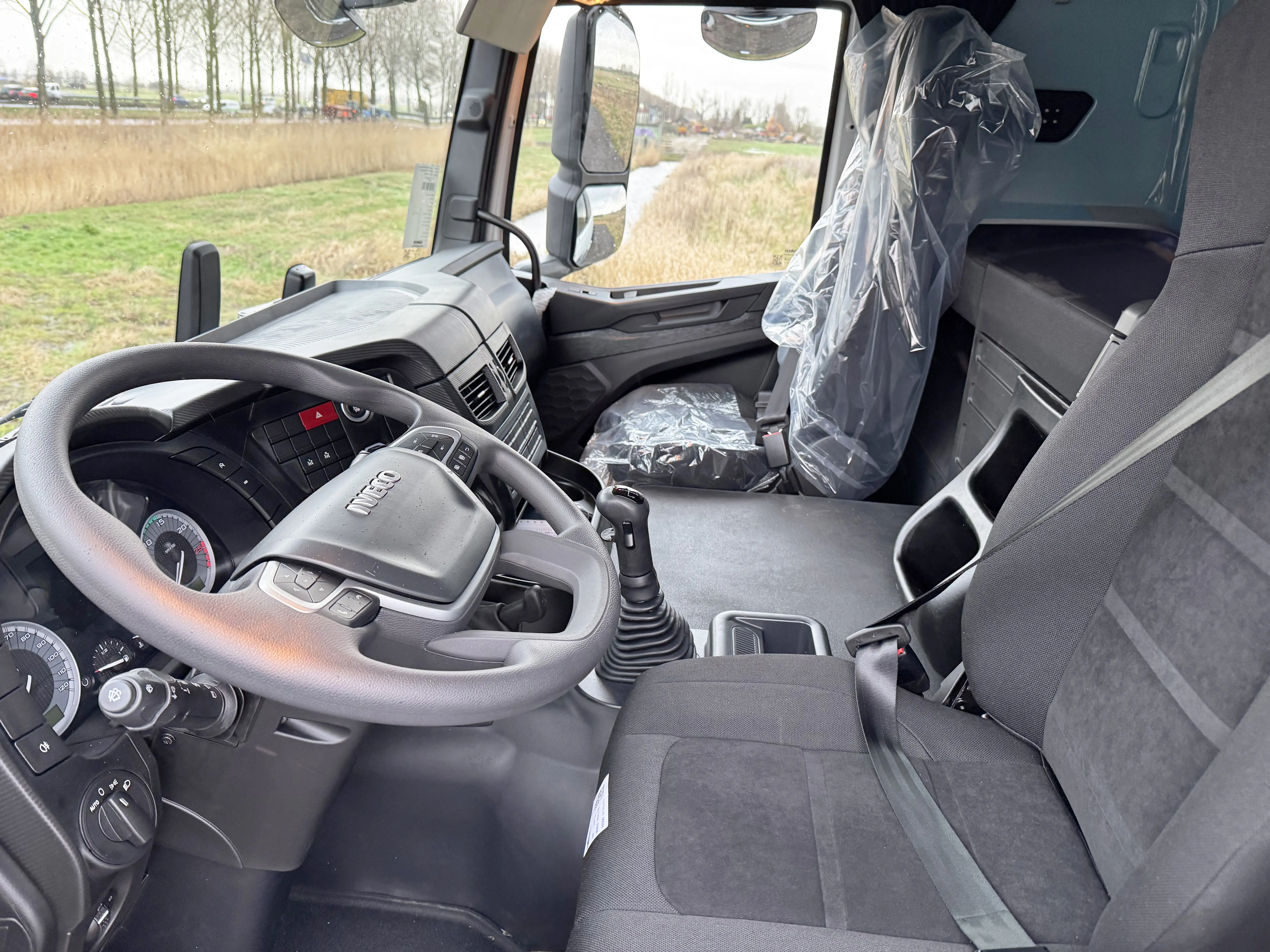

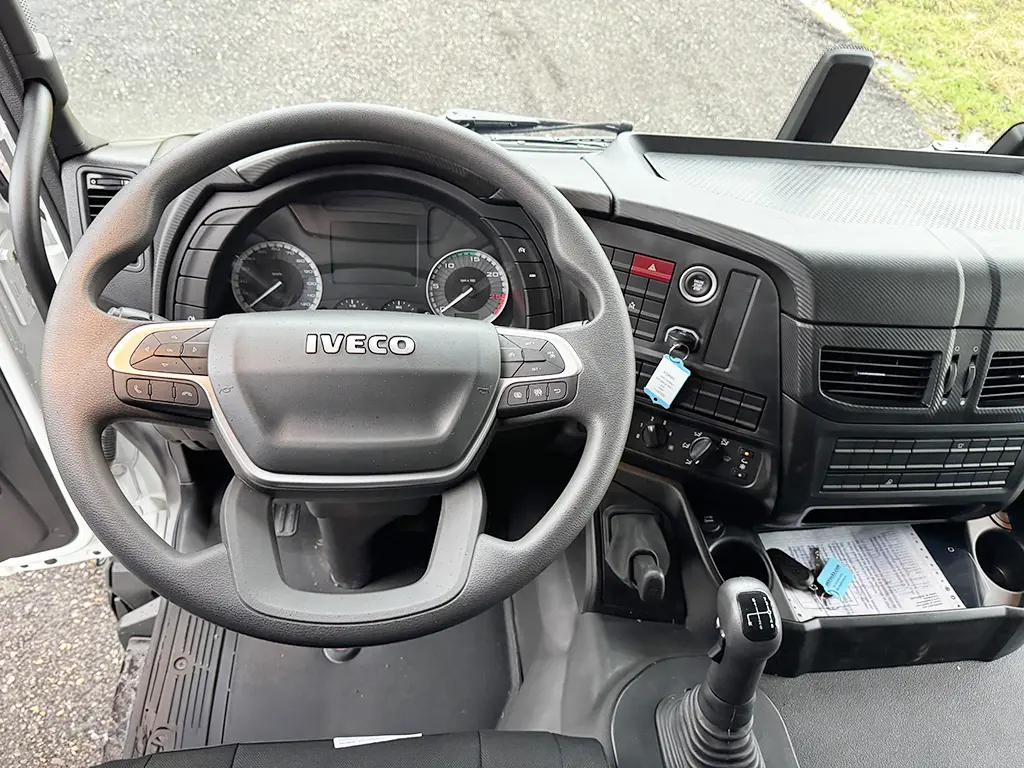

- Cabin
- Sleeper
- Steering
- Left hand drive
Gearbox
- Transmission
- Manual
- Gearbox
- ZF16S2520TO
- PTO
- NH/4C
Chassis
- Wheel base
- 4.500 mm
- GVW
- 33.500 kg
- Axle configuration
- 6x6
- Suspension
- Spring
Dimensions

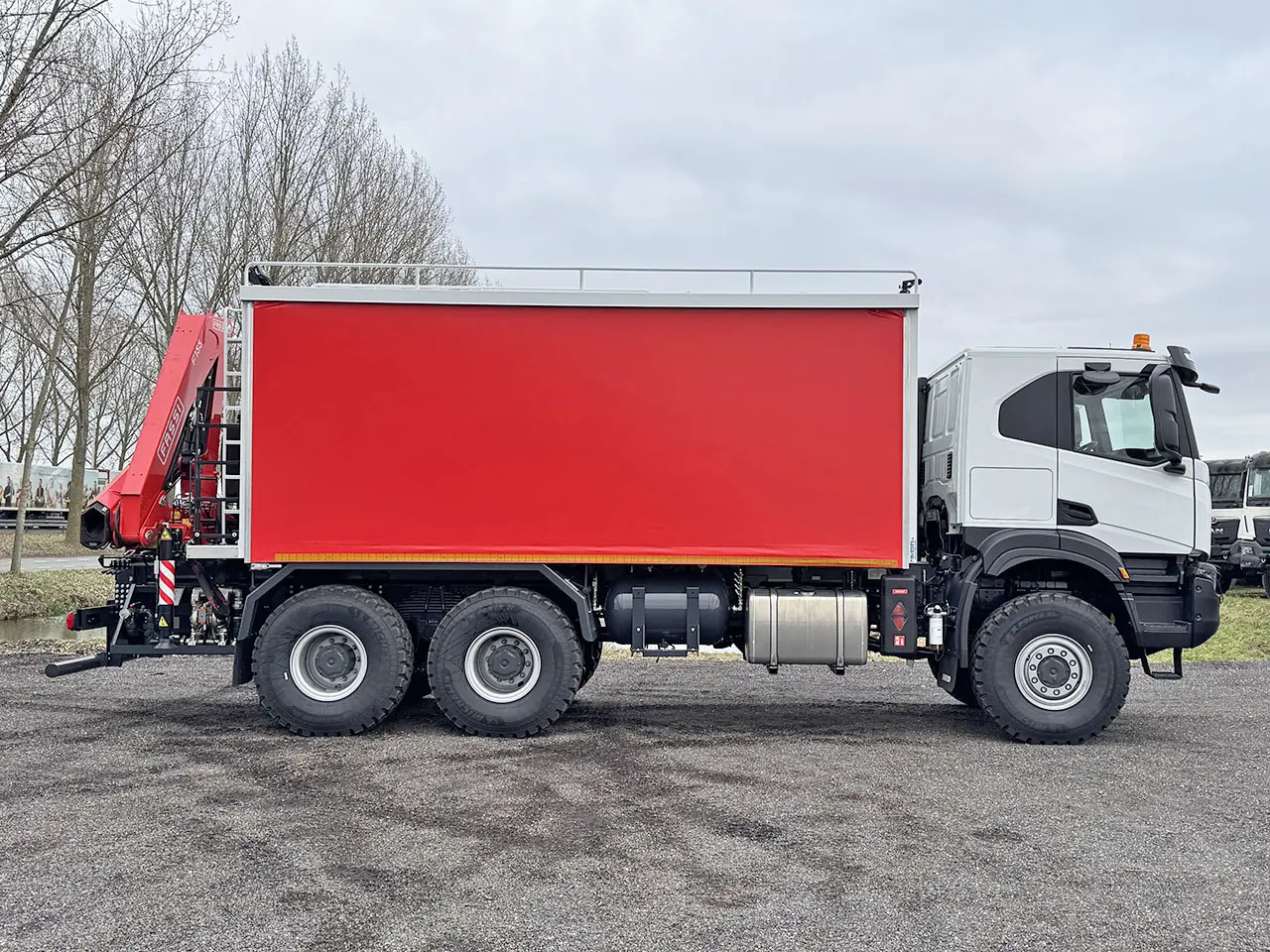

- External dimension
- 9.660 x 2.500 x 4.060 mm
- Empty weight
- 19.140 kg
Axles
Axle 1
- Steering
- Yes
- Tires
- Single
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes

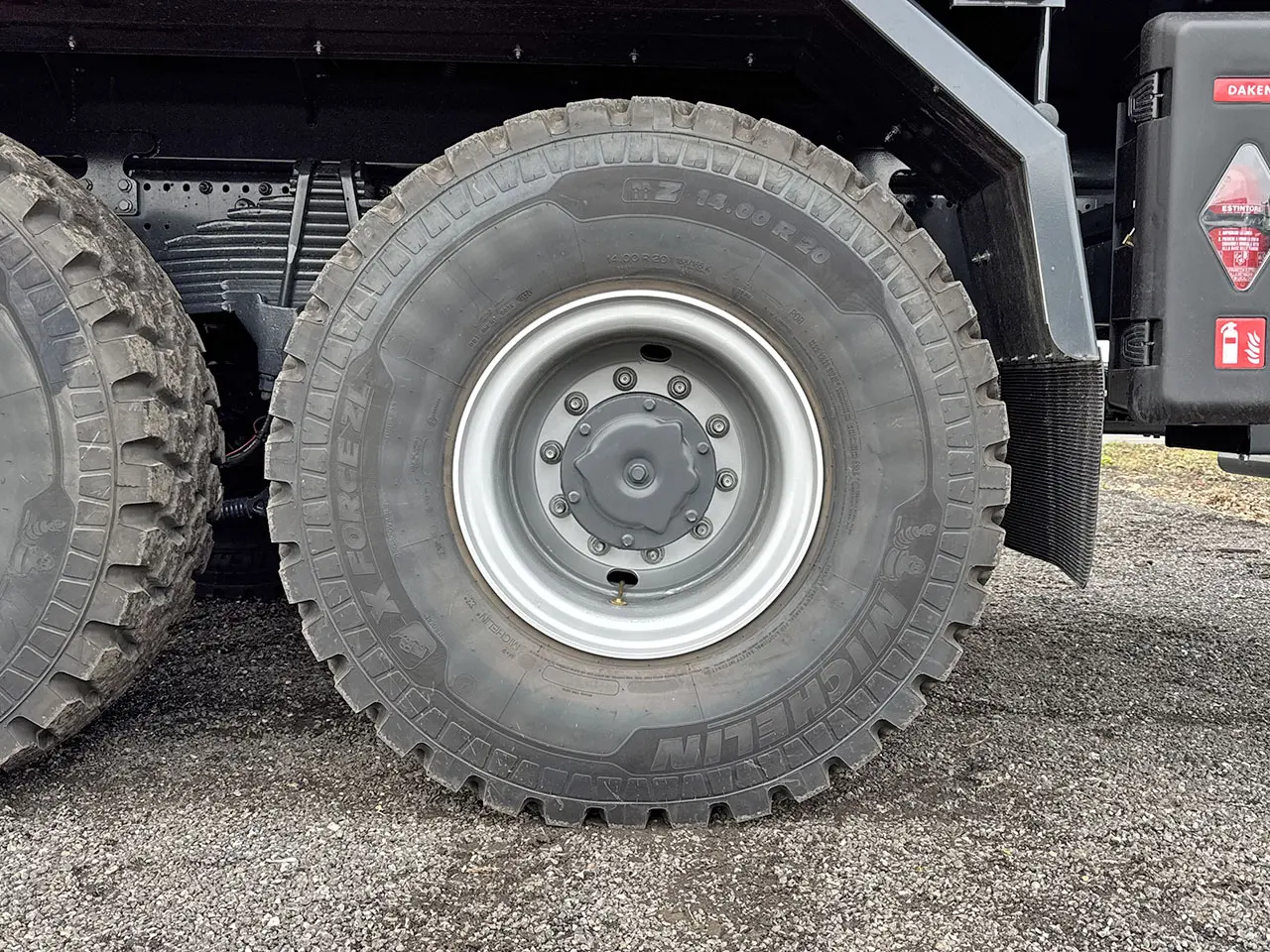

- Tire size
- 325/95R24
Axle 2
- Steering
- No
- Tires
- Single
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 325/95R24
Axle 3
- Steering
- No
- Tires
- Single
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 325/95R24
Remarks
Fuel tank: 390 ltr.Air conditioning

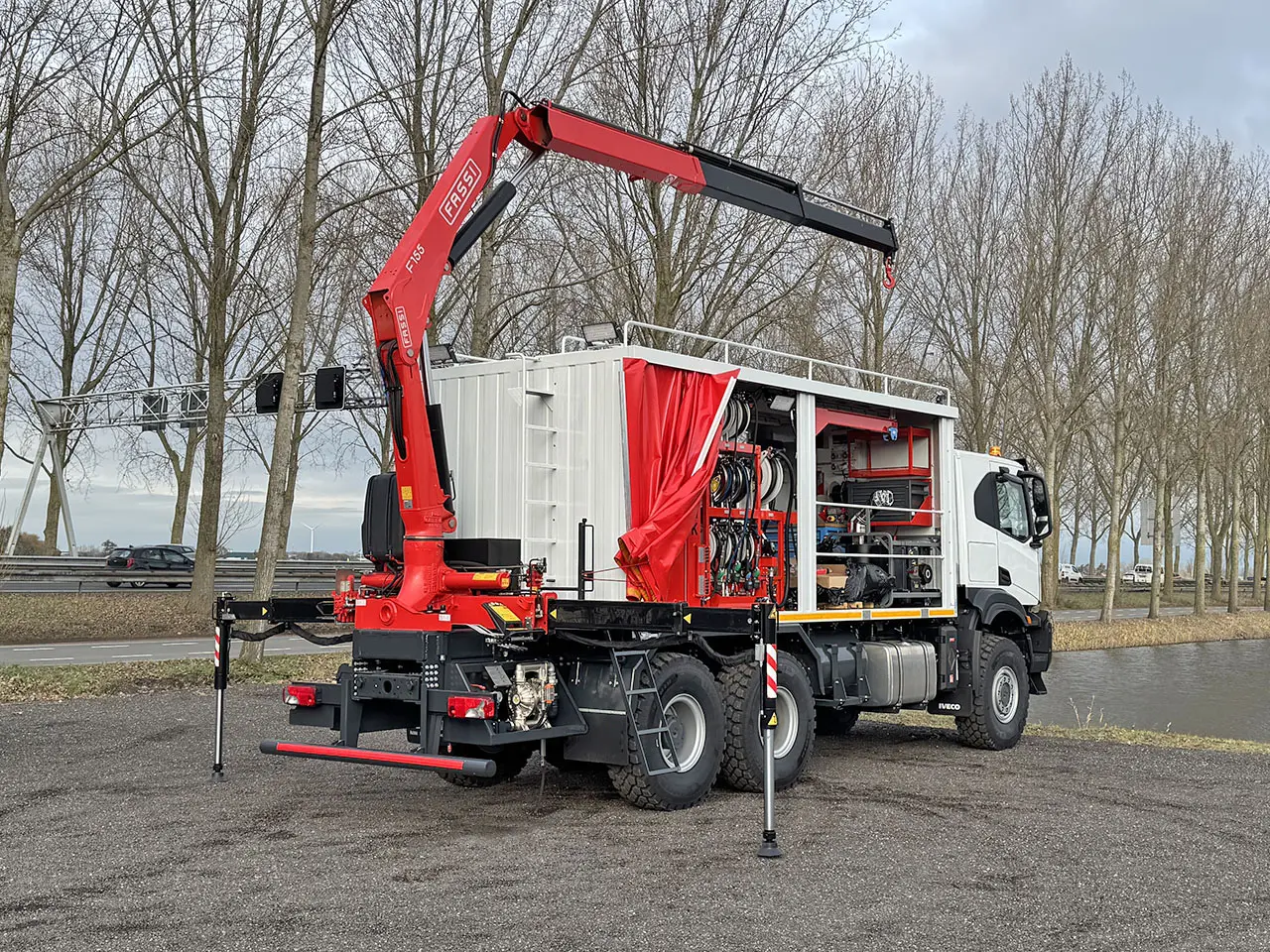

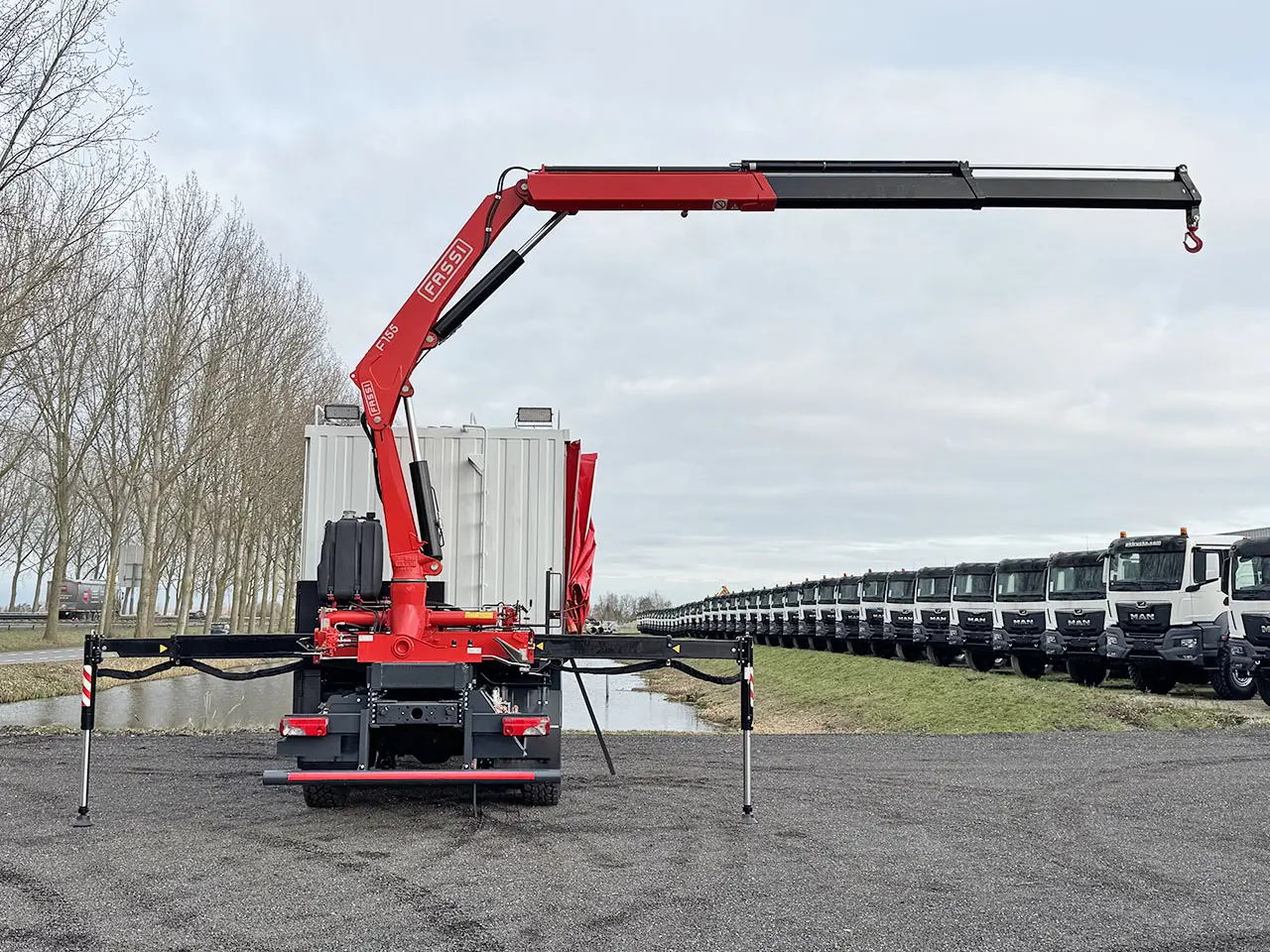

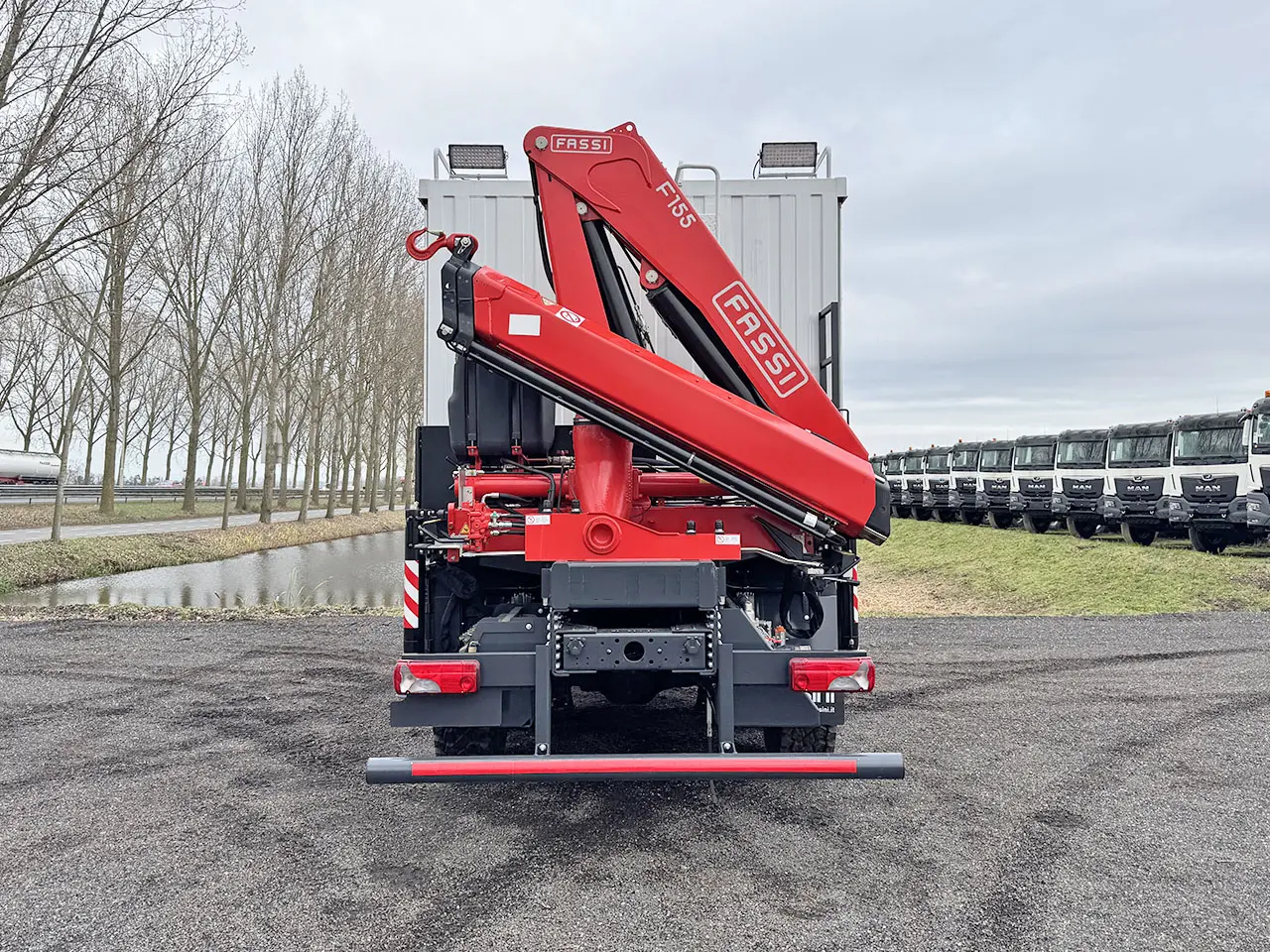

Equipped with Fassi crane and workshop unit:
Type: F155A.0.22
Max. lifting moment 13.56 tm / 133 kNm
Standard hydraulic reach: 8.30 mtr.
Load at the max horizontal outreach: 1.660 kg.

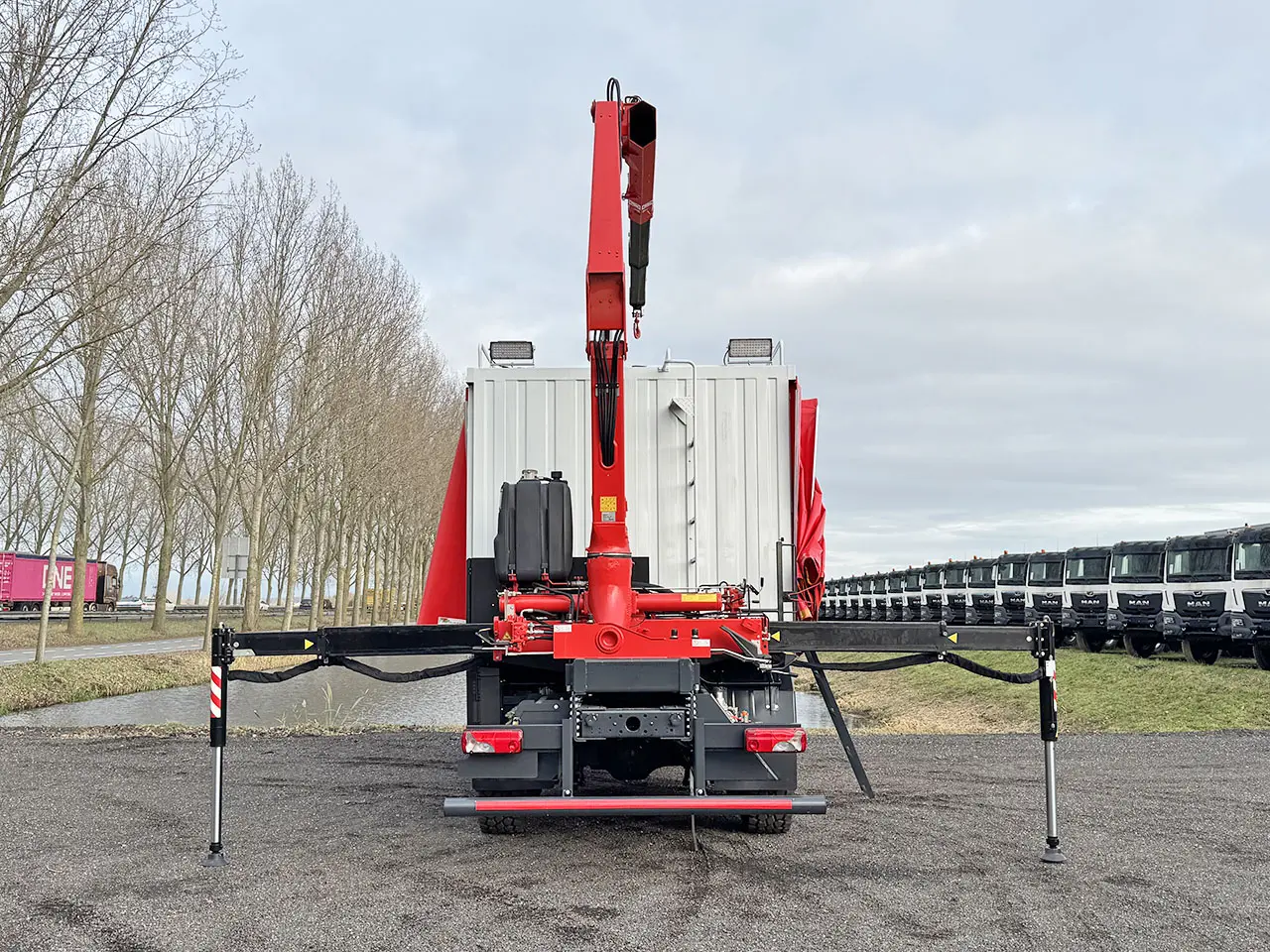

Manually extendable outriggers with max spread of 4375 mm. Outrigger rams have jointed plate in Monocast material.
Lifting capacity:
6.160 kg / 2.15 m
3.150 kg / 4.30 m
2.190 kg / 6.10 m
1.660 kg / 8.00 m

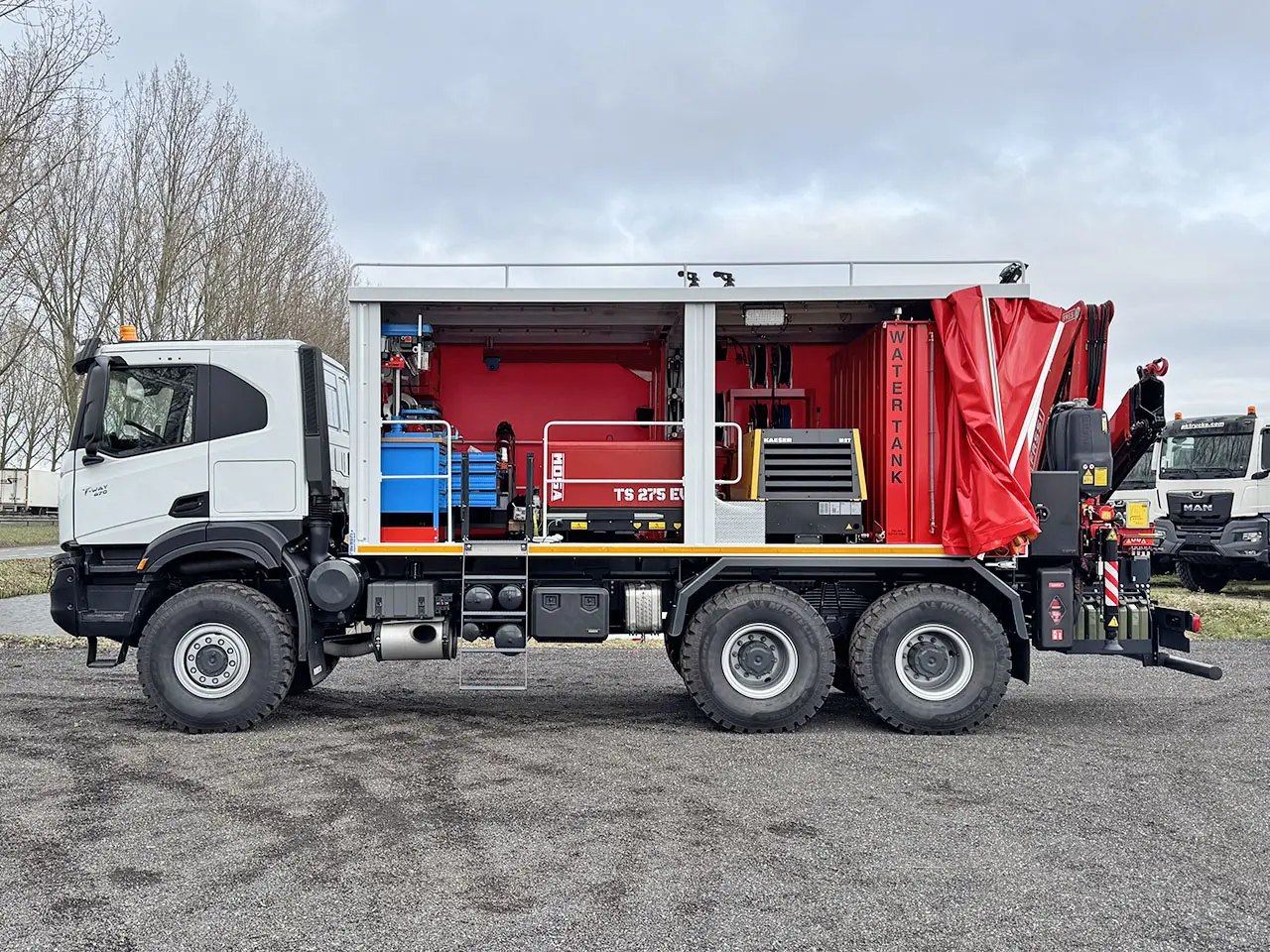

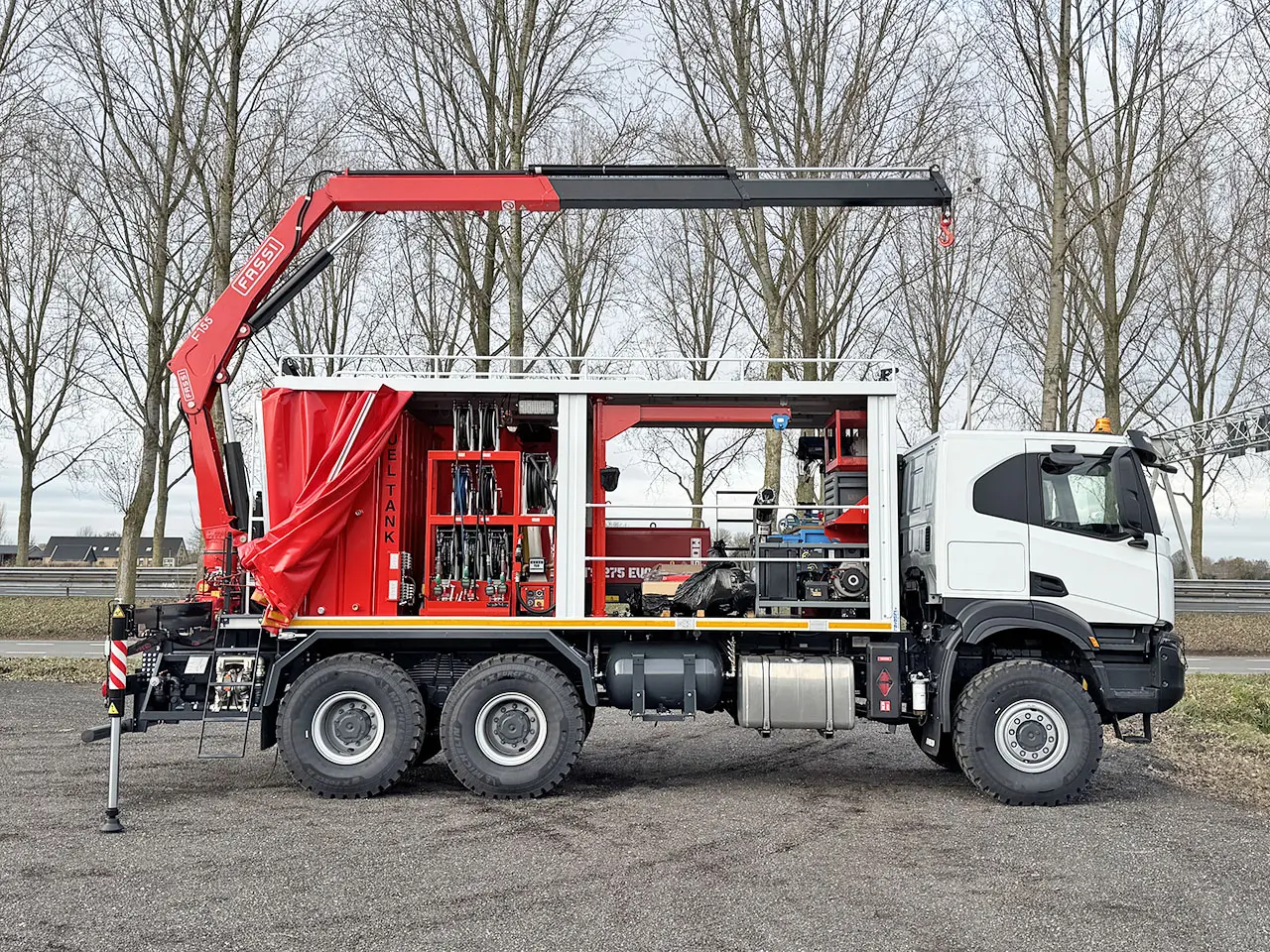

Platform and Equipment:
Compressor Kaeser M27
Oil Service
Grease service
Coolant Service
High pressure water unit
Fuel tank: 3.000 ltr.
Tools with a work bench
Generating set
Electric tools
Dimensions lenght: 5.500 mm - width: 2.500 mm
Complete specification in PDF.
