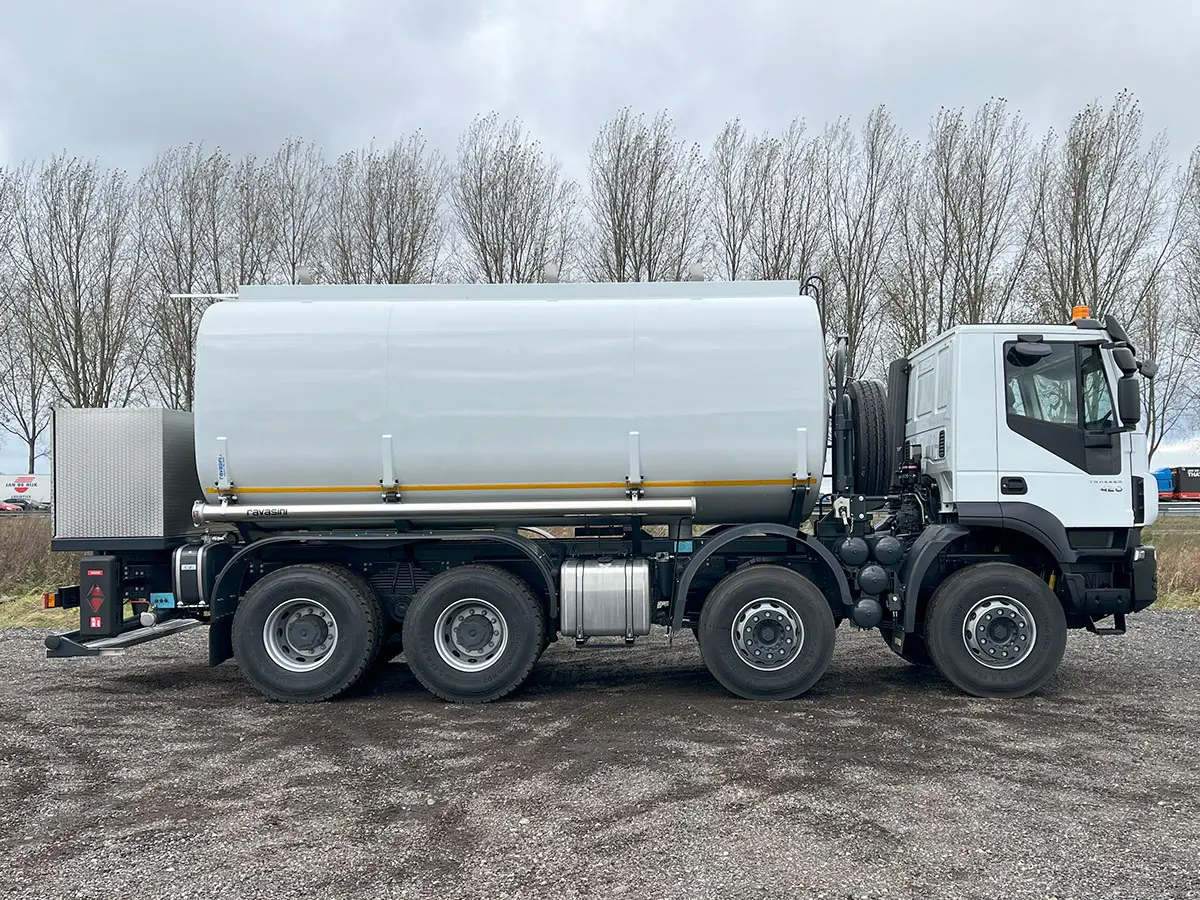

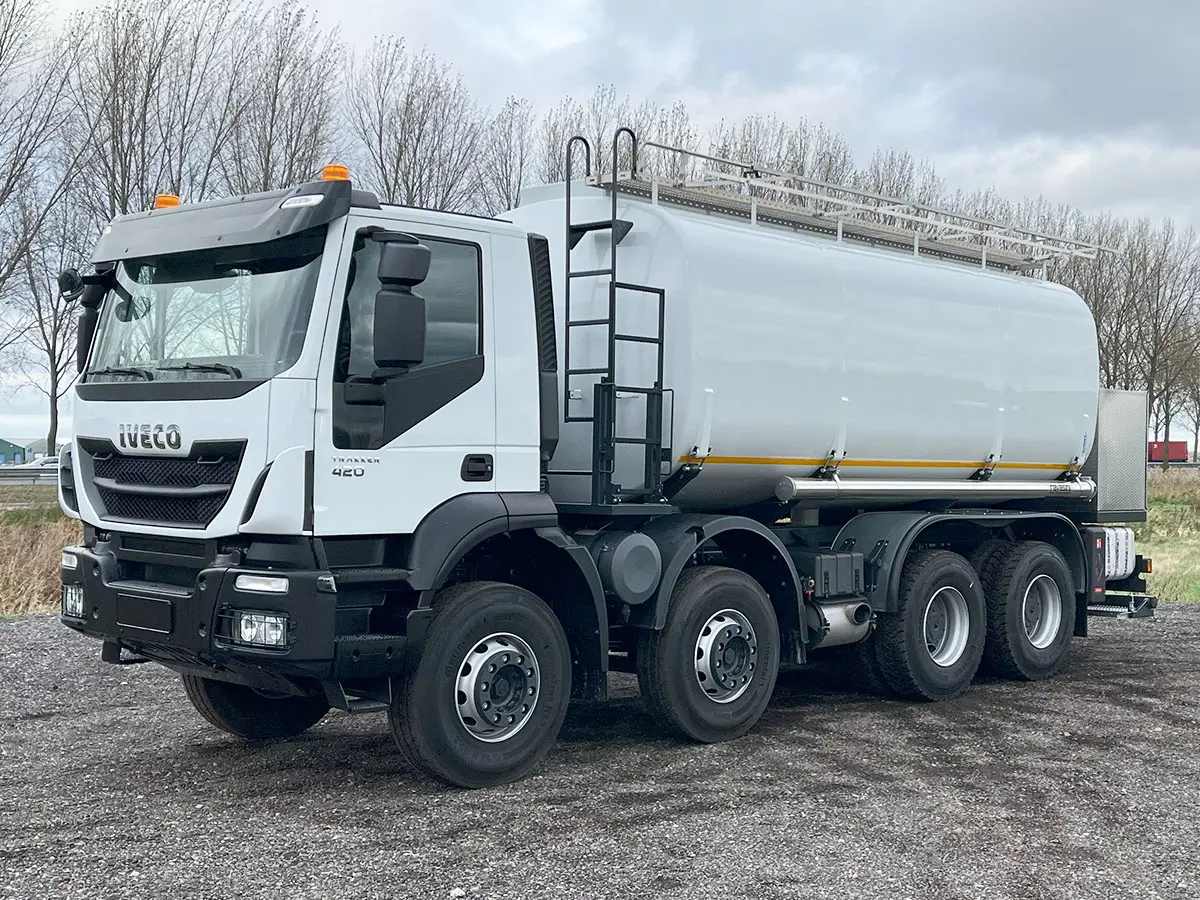

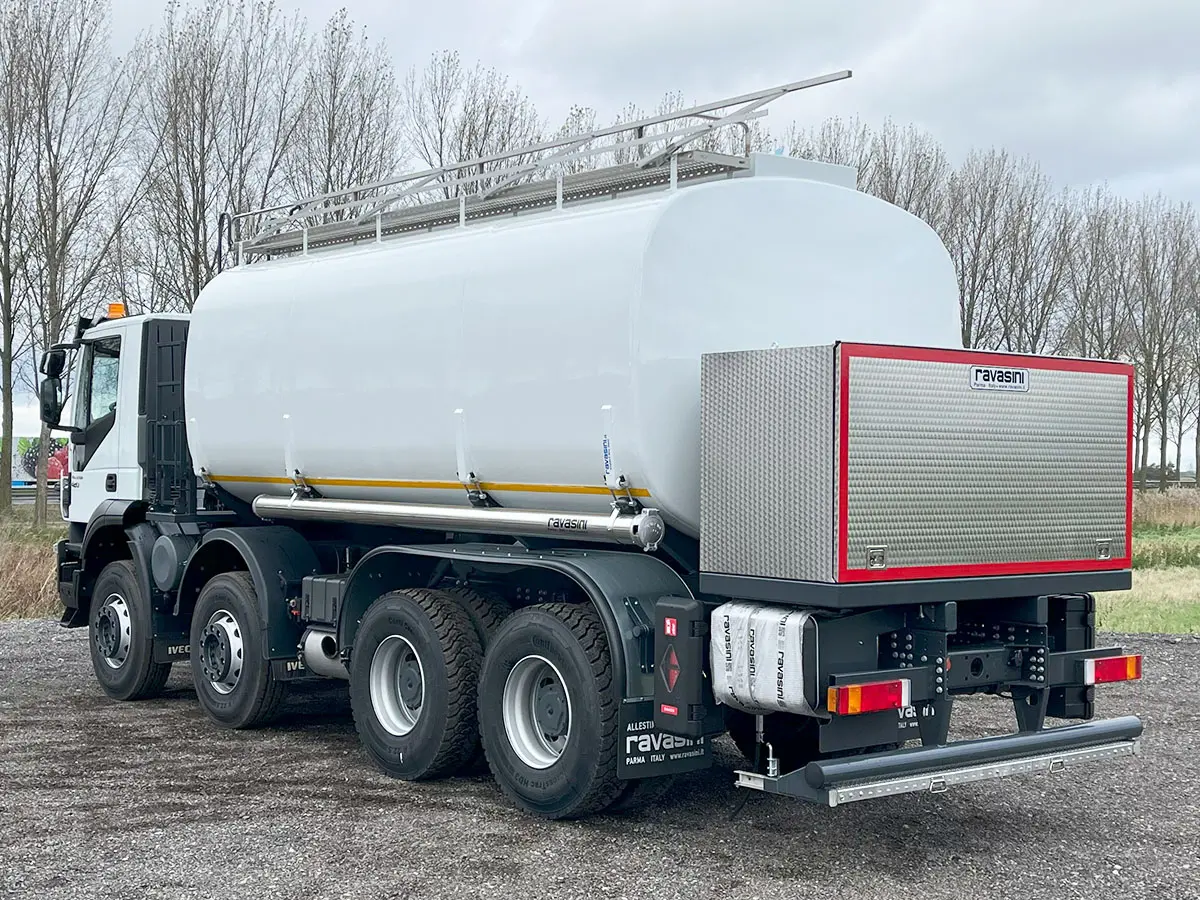

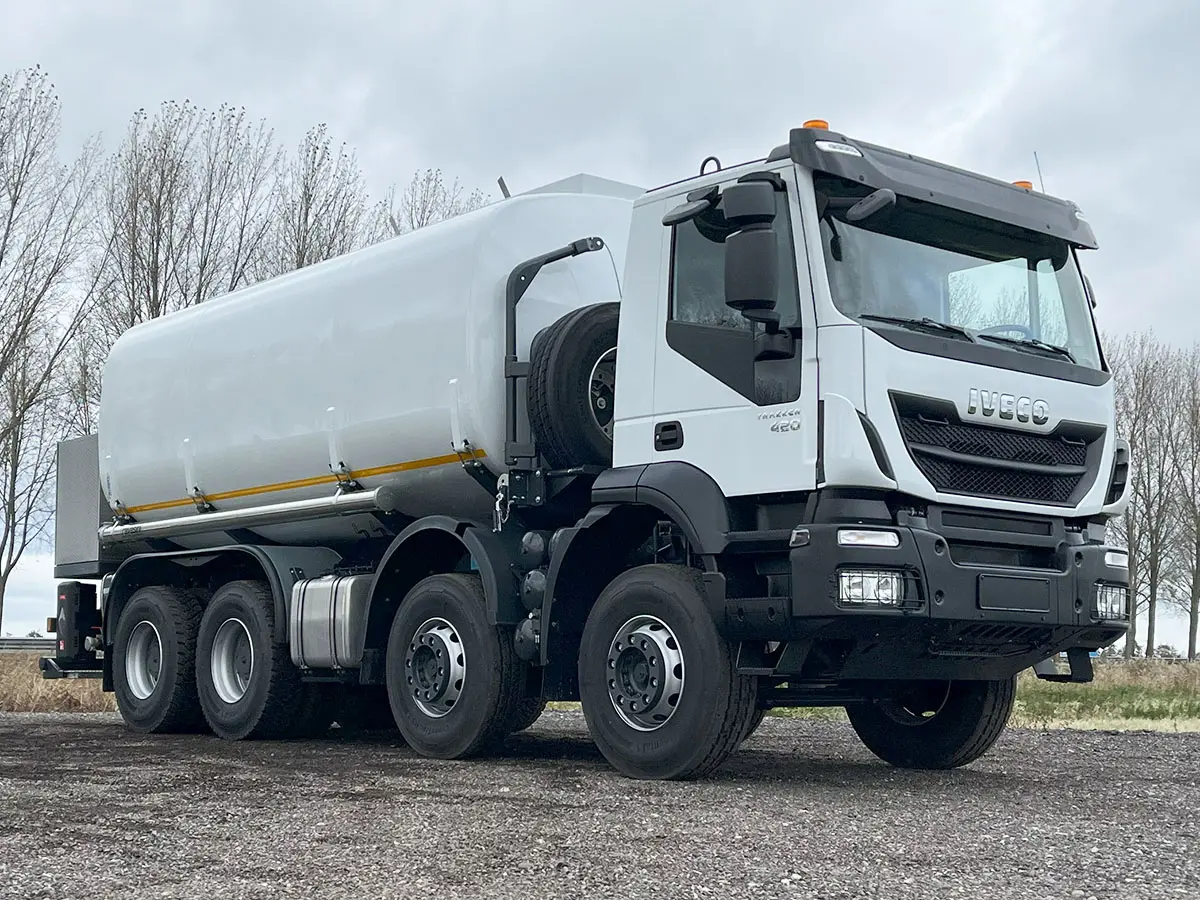

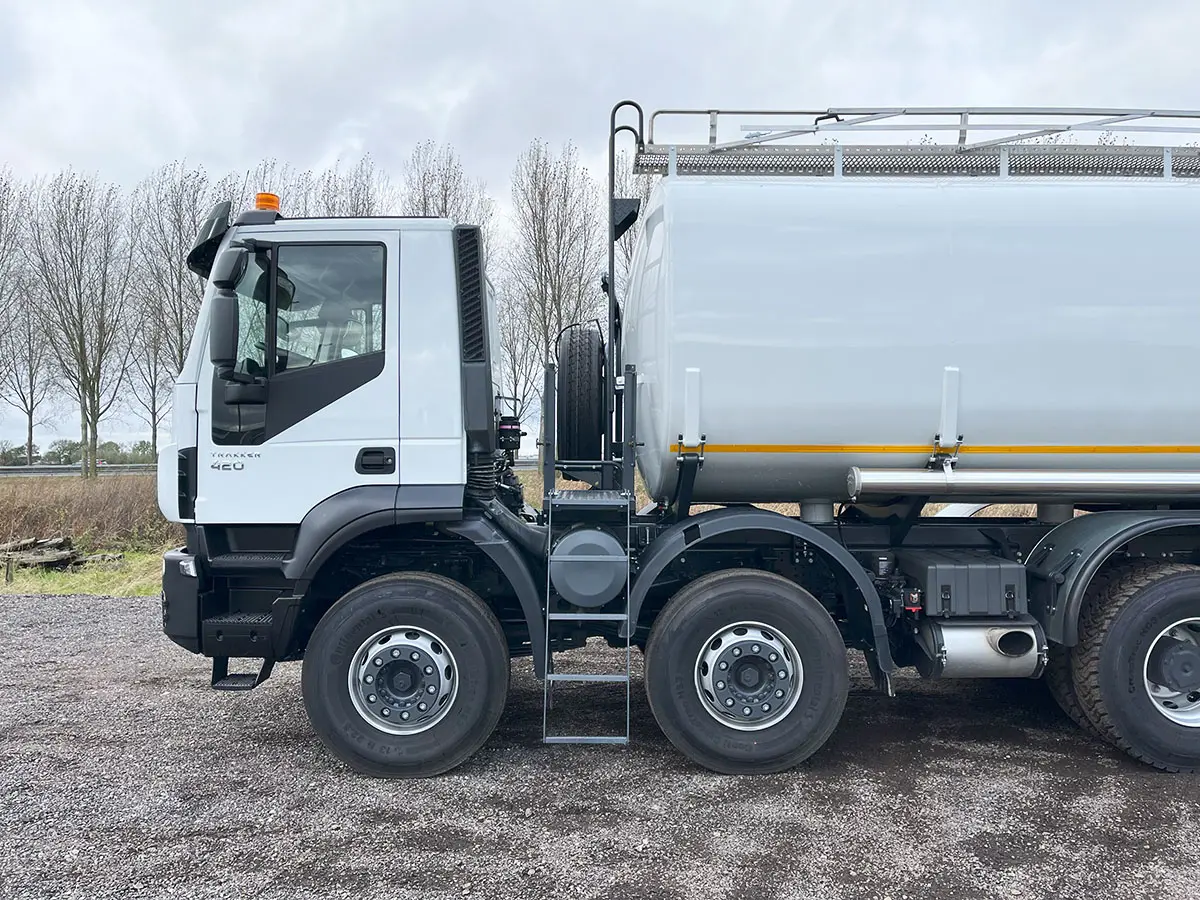

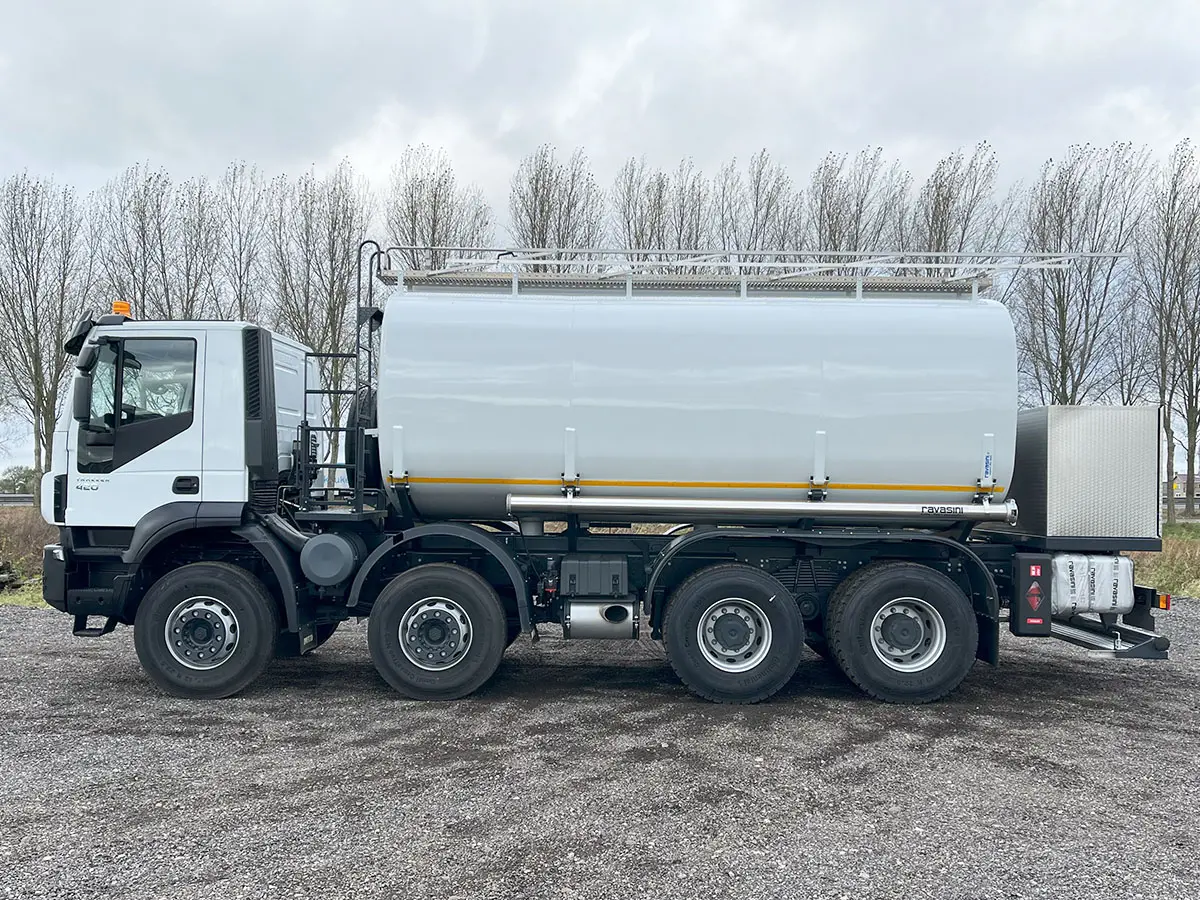

Iveco Trakker AD410T42H ADR 8x4 Fuel Tank Truck
8x4
Diesel
Left hand drive
€ 165.000
Net unit price EXW
Specifications
General
- ID
- IV4889
- Brand
- Iveco
- Construction
- Fuel Tank Truck
- Construction brand
- Ravasini
- Production year
- 2023
- Model year
- 2023
- Vehicle status
- New / Unused
Engine
- Engine type
- F3BEE681V
- Emission code
- EURO-3
- Engine power
- 420hp/309kW

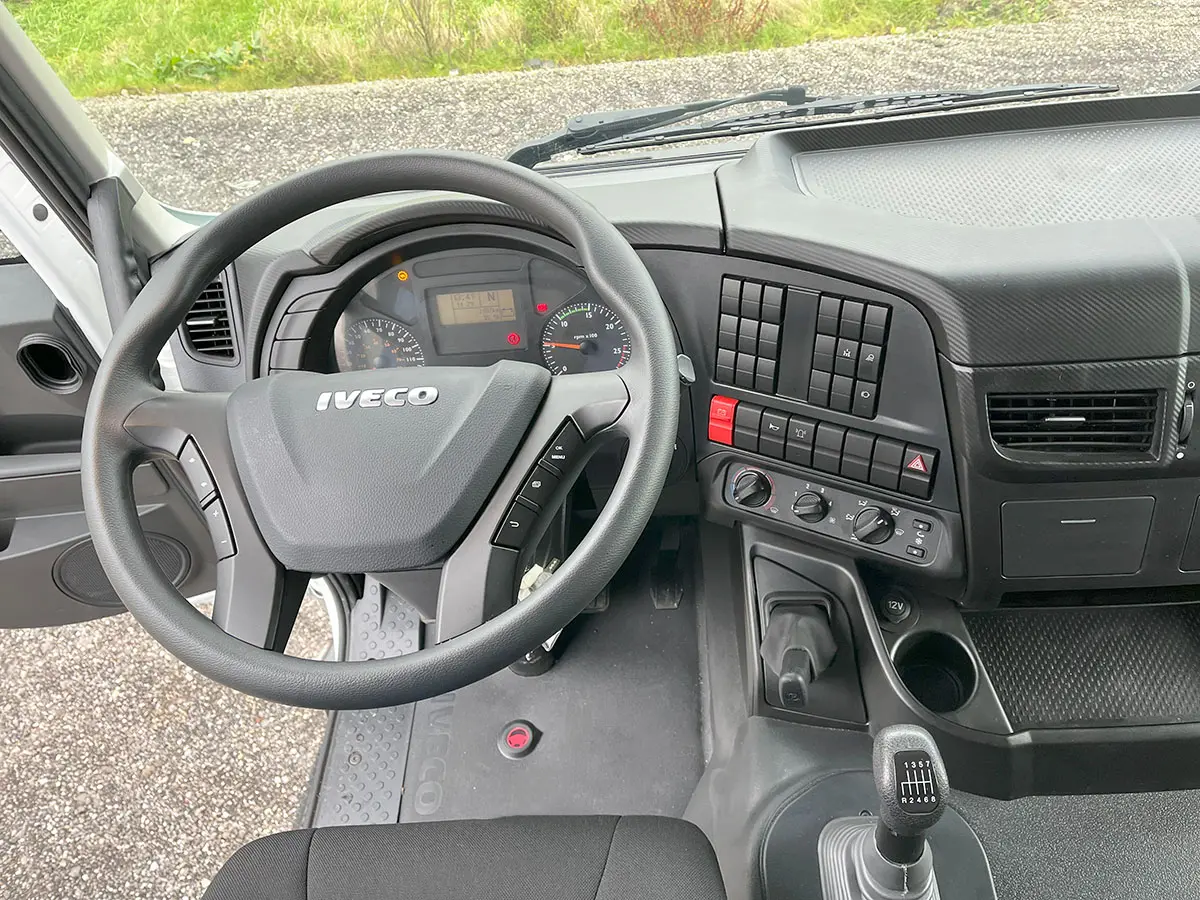

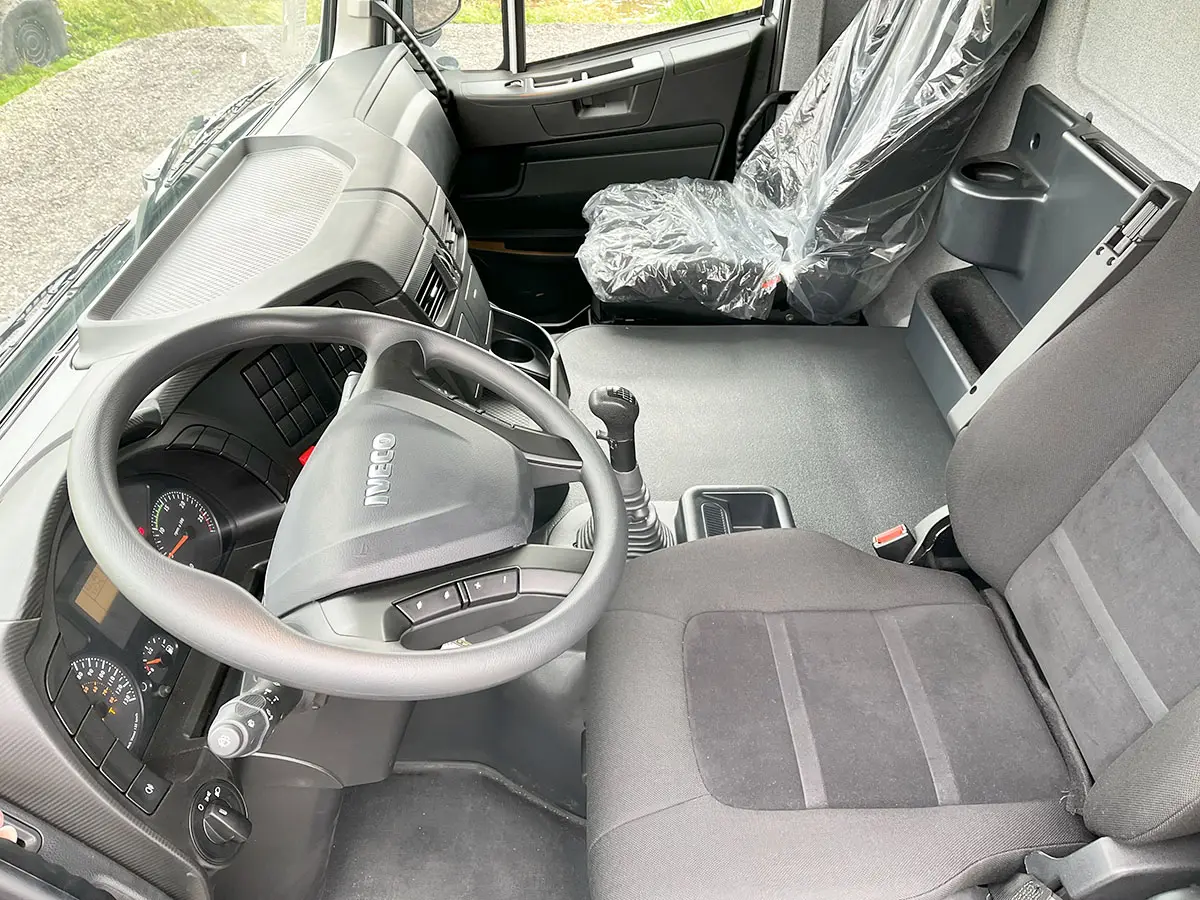

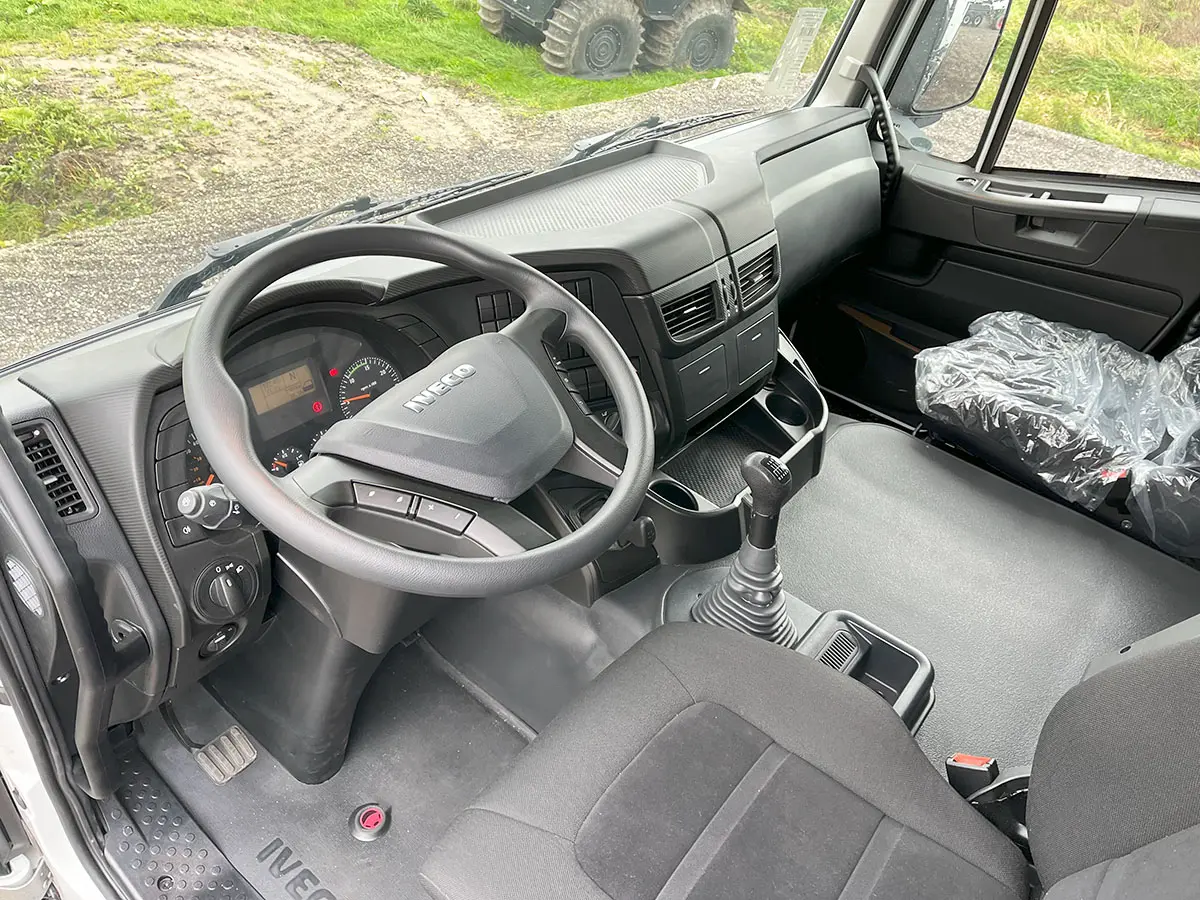

Cabin
- Cabin
- Day
- Steering
- Left hand drive
Gearbox
- Transmission
- Manual
- Gearbox
- ZF16S2220TO
- PTO
- NH/1C
Chassis
- Wheel base
- 4.250 mm
- GVW
- 41.000 kg
- Axle configuration
- 8x4
- Suspension
- Spring
Dimensions
- External dimension
- 9.260 x 2.500 x 3.800 mm
- Empty weight
- 15.000 kg
Axles
Axle 1
- Steering
- Yes
- Tires
- Single
- Brakes
- Disc
- Suspension
- Spring
- Driven
- No
- Tire size
- 13R22.5
Axle 2
- Steering
- Yes
- Tires
- Single
- Brakes
- Disc
- Suspension
- Spring
- Driven
- No
- Tire size
- 13R22.5
Axle 3
- Steering
- No
- Tires
- Double
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes

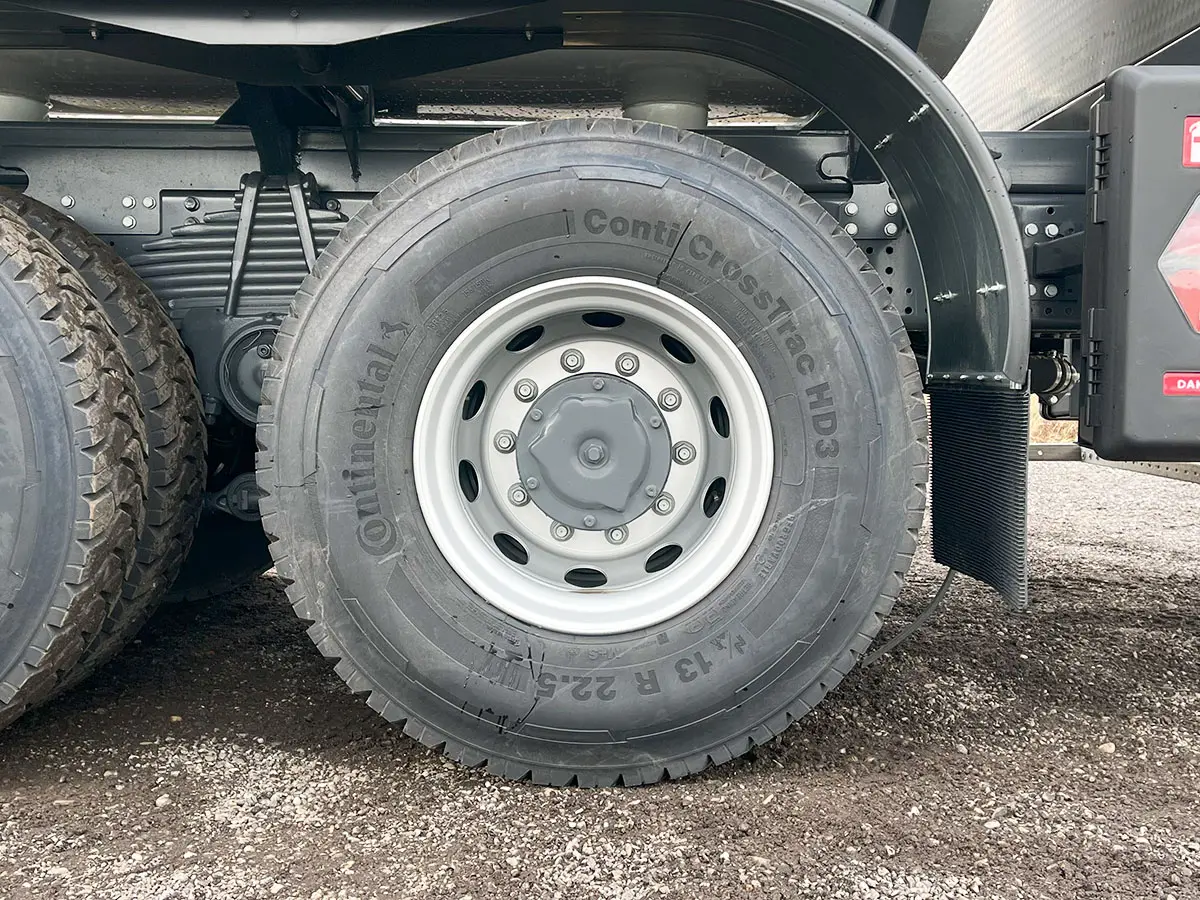

- Tire size
- 13R22.5
Axle 4
- Steering
- No
- Tires
- Double
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 13R22.5
Remarks
Fuel tank: 300 ltr.Air conditioning
ADR configuration, on/off switch in cabin and next to battery box.
Equipped with Ravasini fueltank 23.500 ltr.
Three compartments (7.500l+7.500l+7.500l+expansion volume)

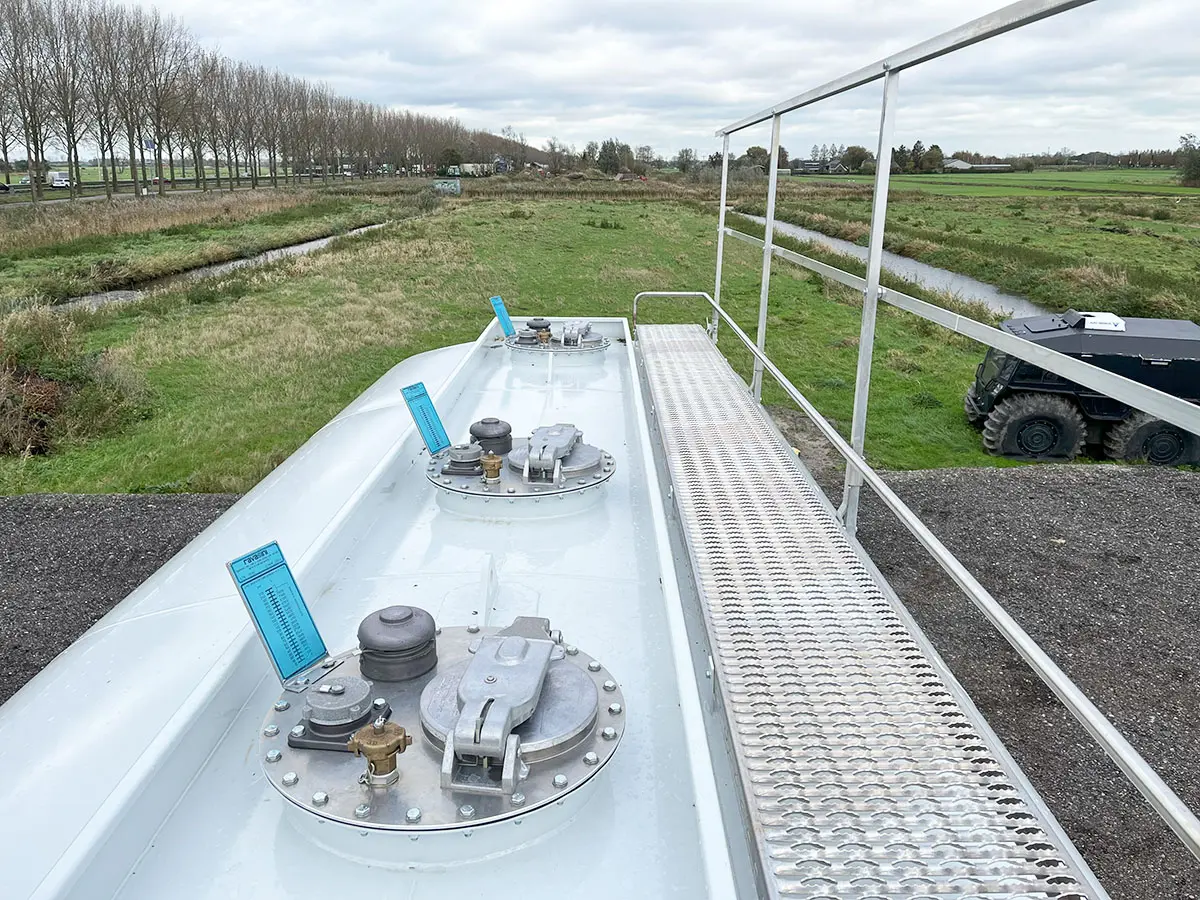

Manhole with cover diam. 500 complete with inlet and breathing valve and containing basin in case of liquid pouring out from the manhole.

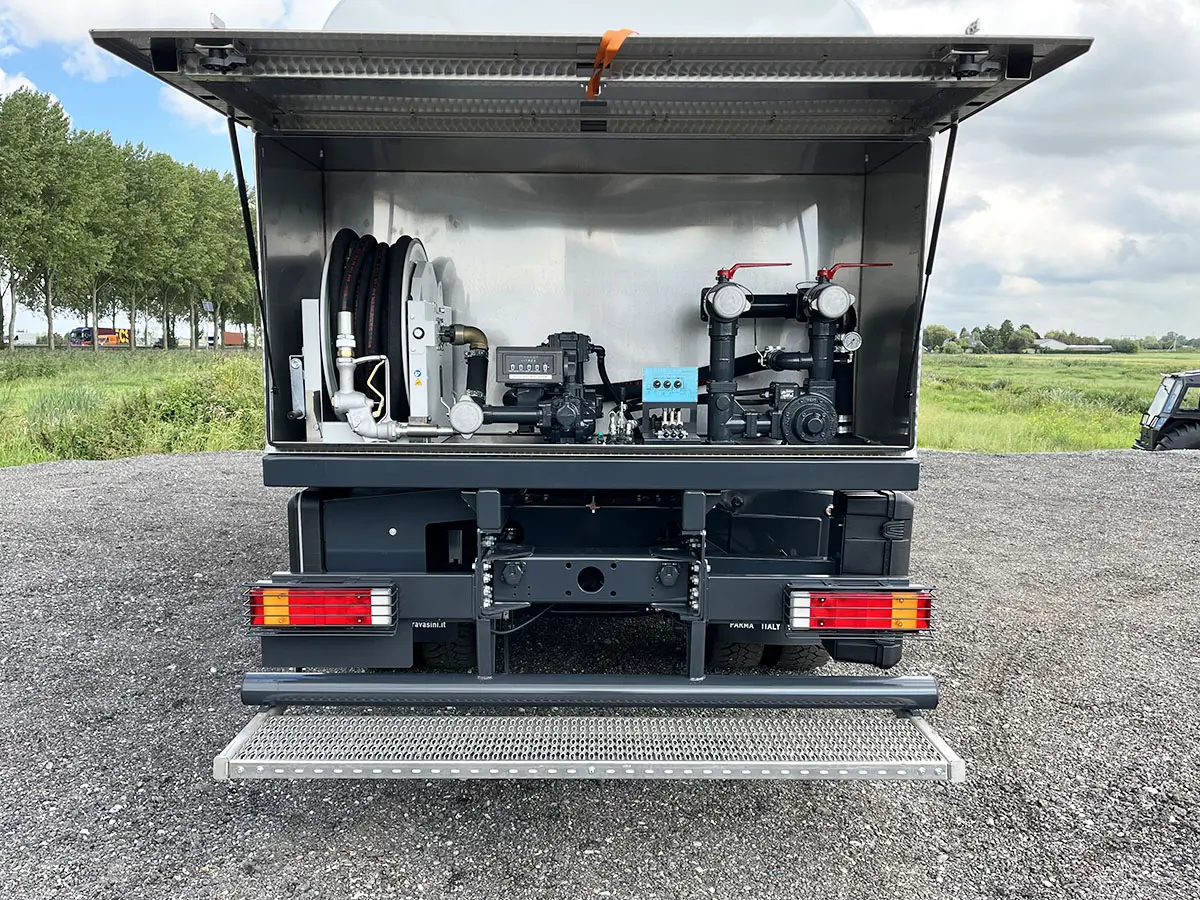

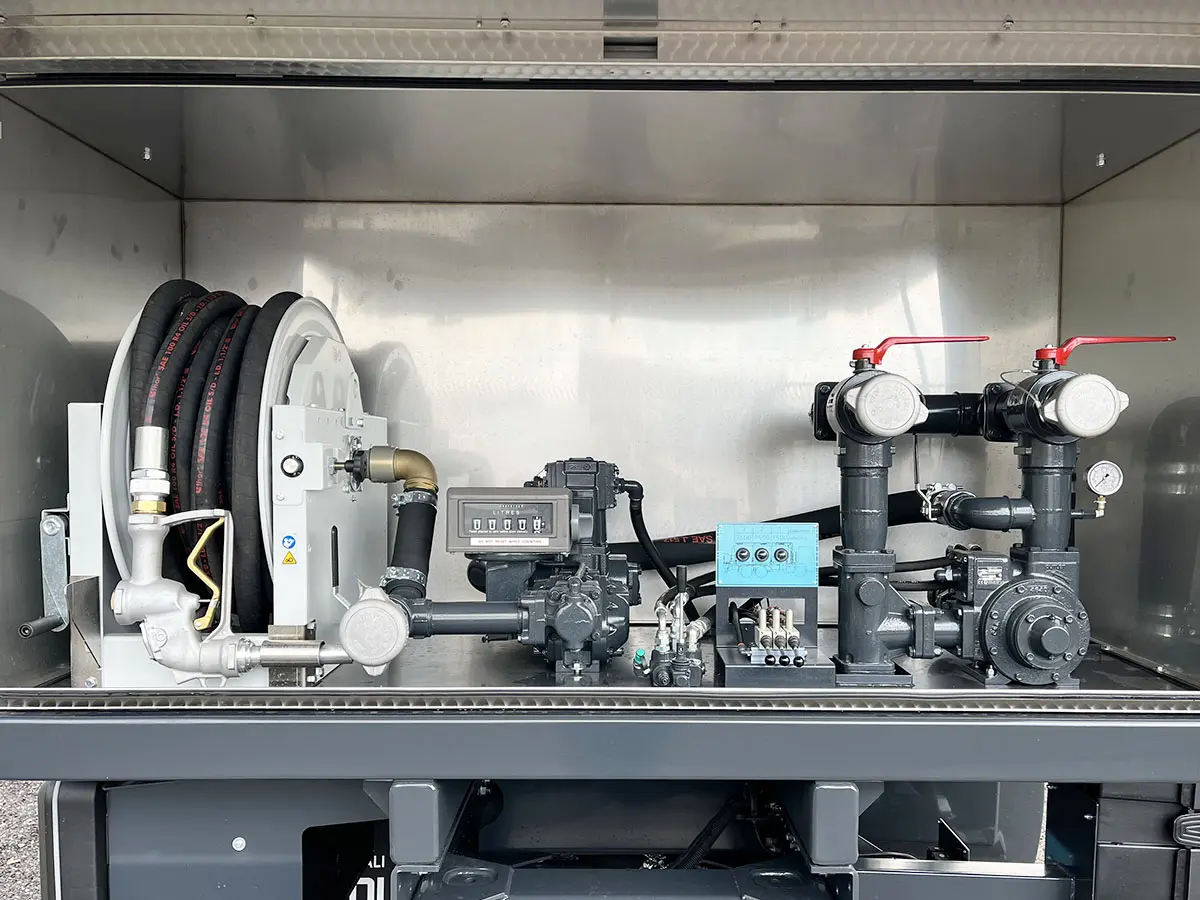

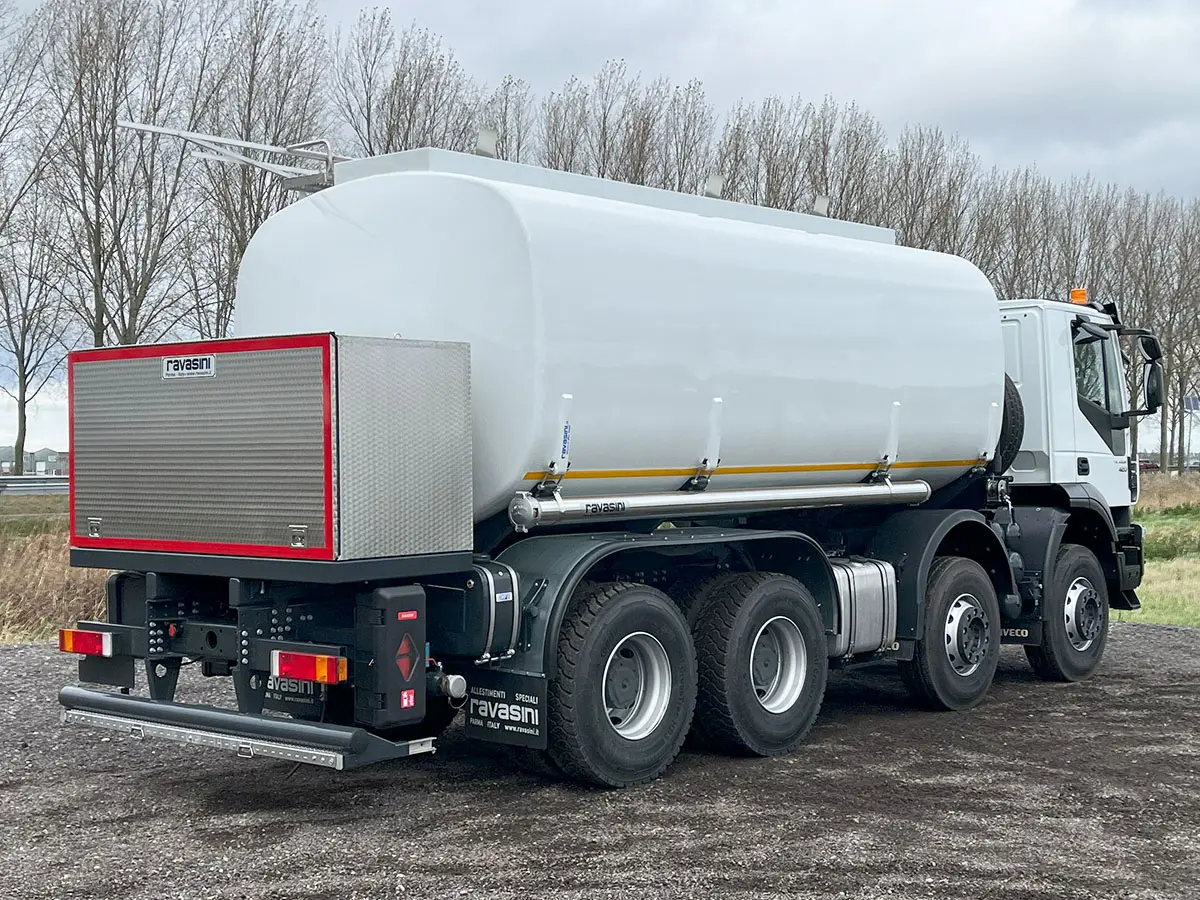

Pumping and metering units placed inside a lockable metallic case on the rear end of the vehicle.
Positive displacement pump 500 l/1 min.
Liter counter with a flow rate of 550 l/1, complete with filter, degasser, aircheck valve, with positive displacement head having partial measuring at 5 resettable digits, and total measuring with 7 non resettable digits.
Manual winding hose reel with 20 m of 1½ hose and delivery gun.
Complete specification in PDF.
