Sold out

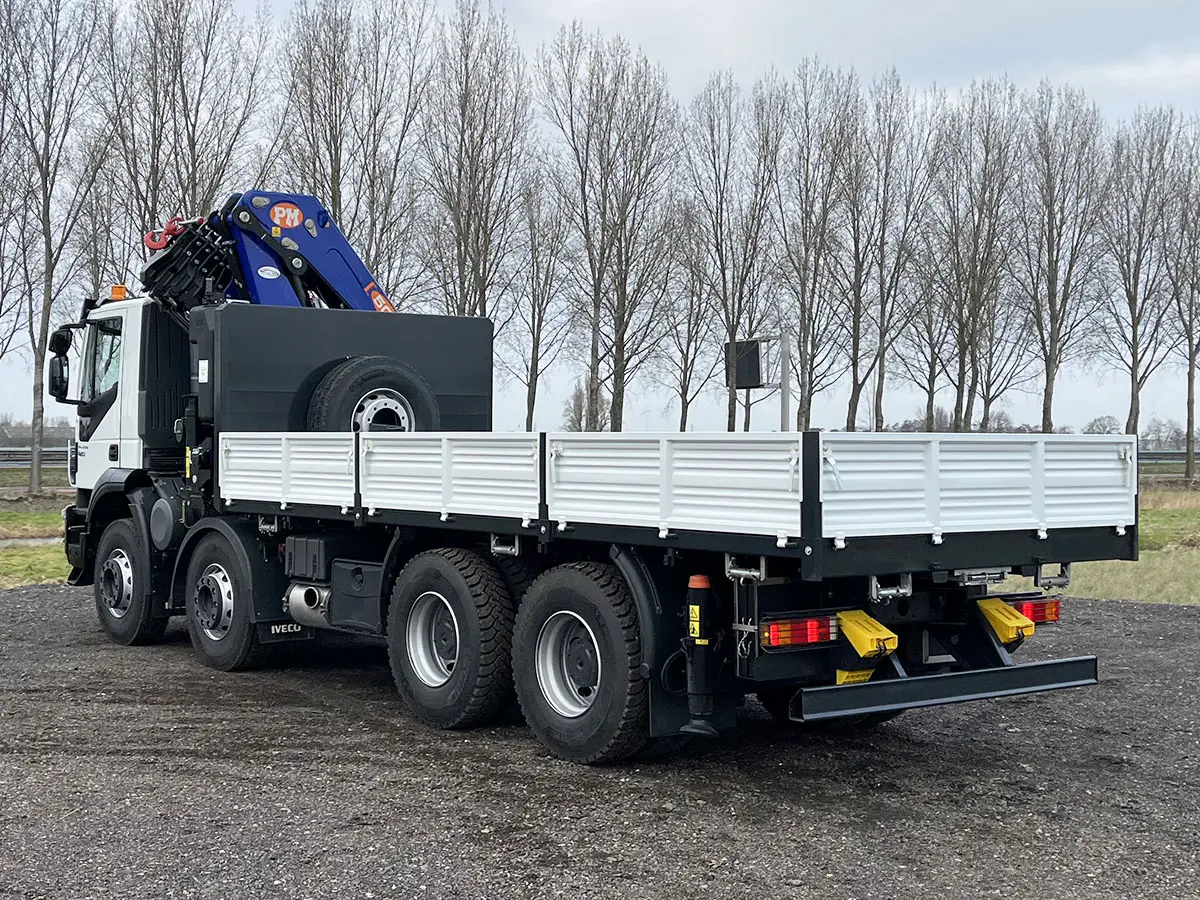

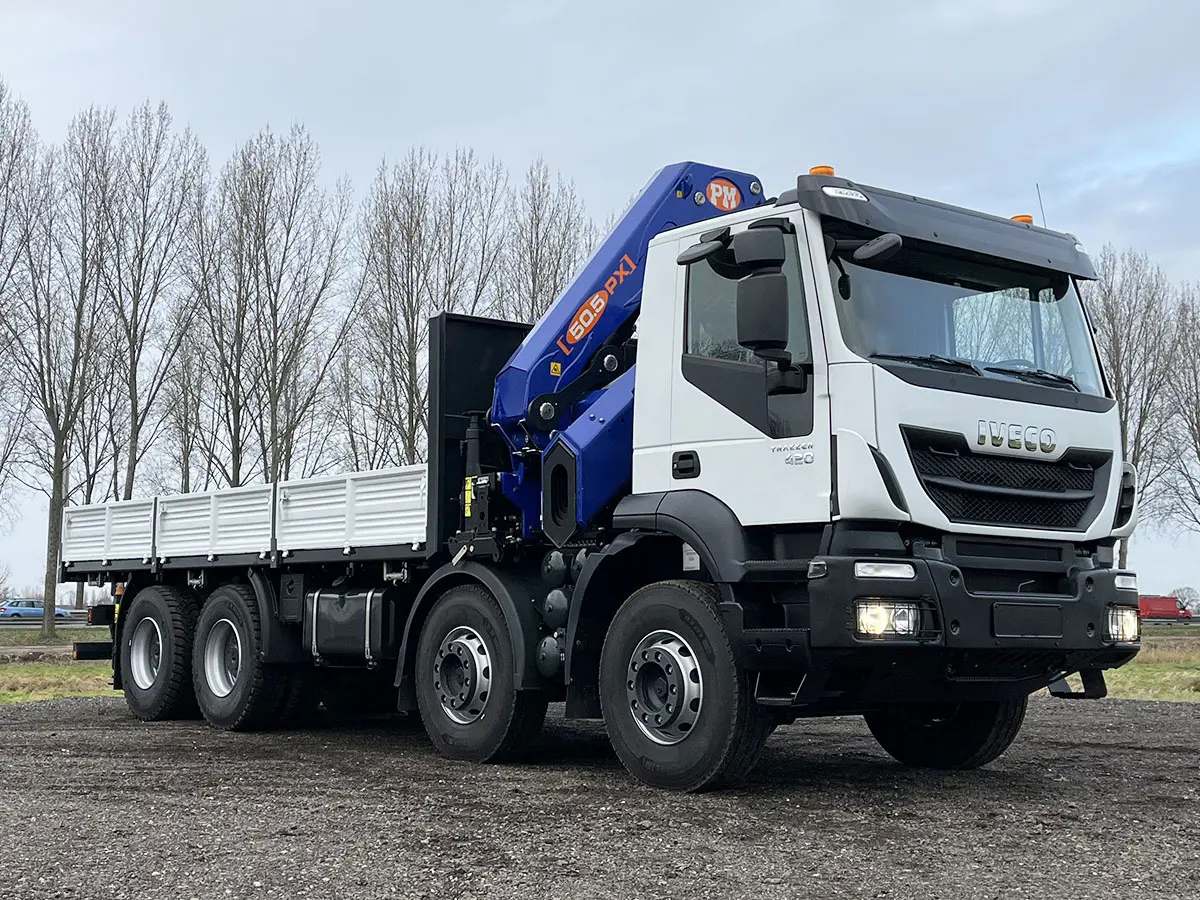

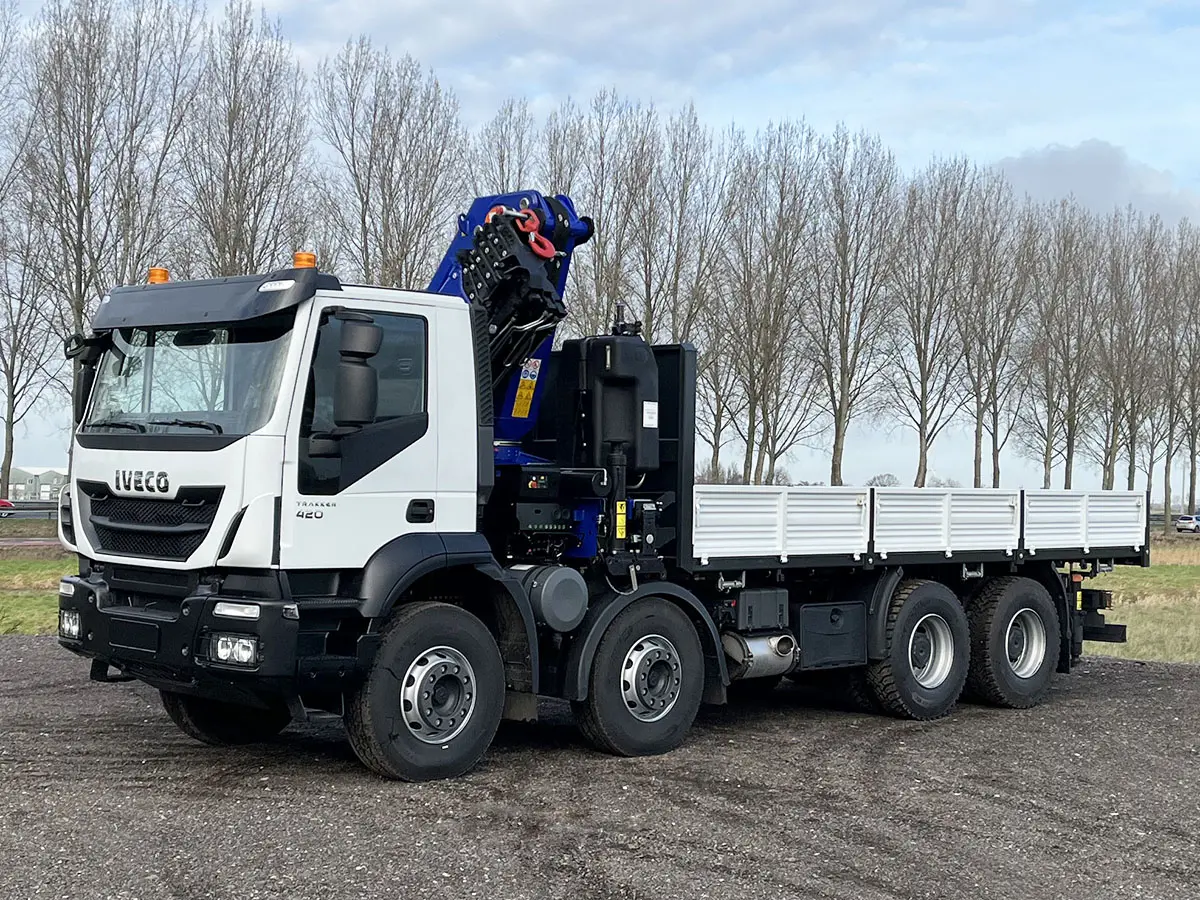

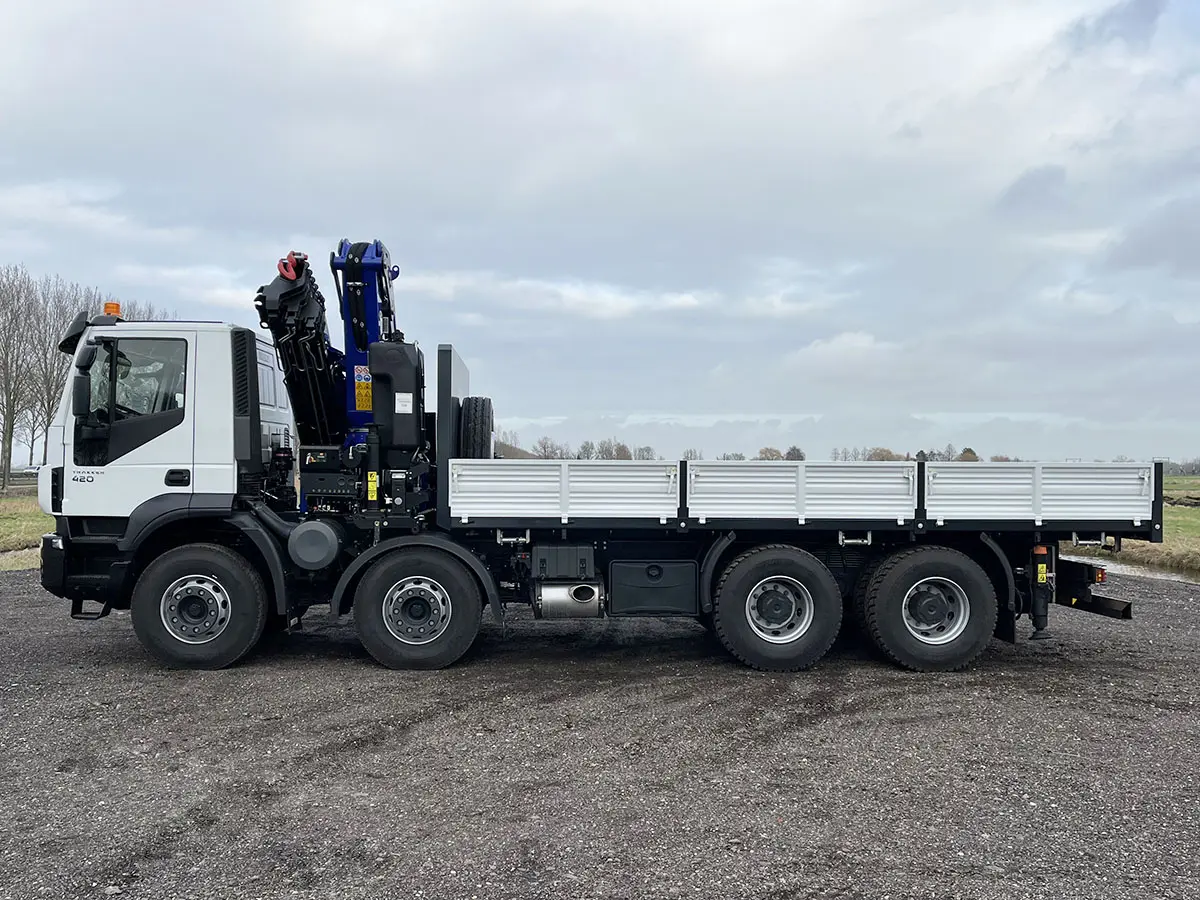

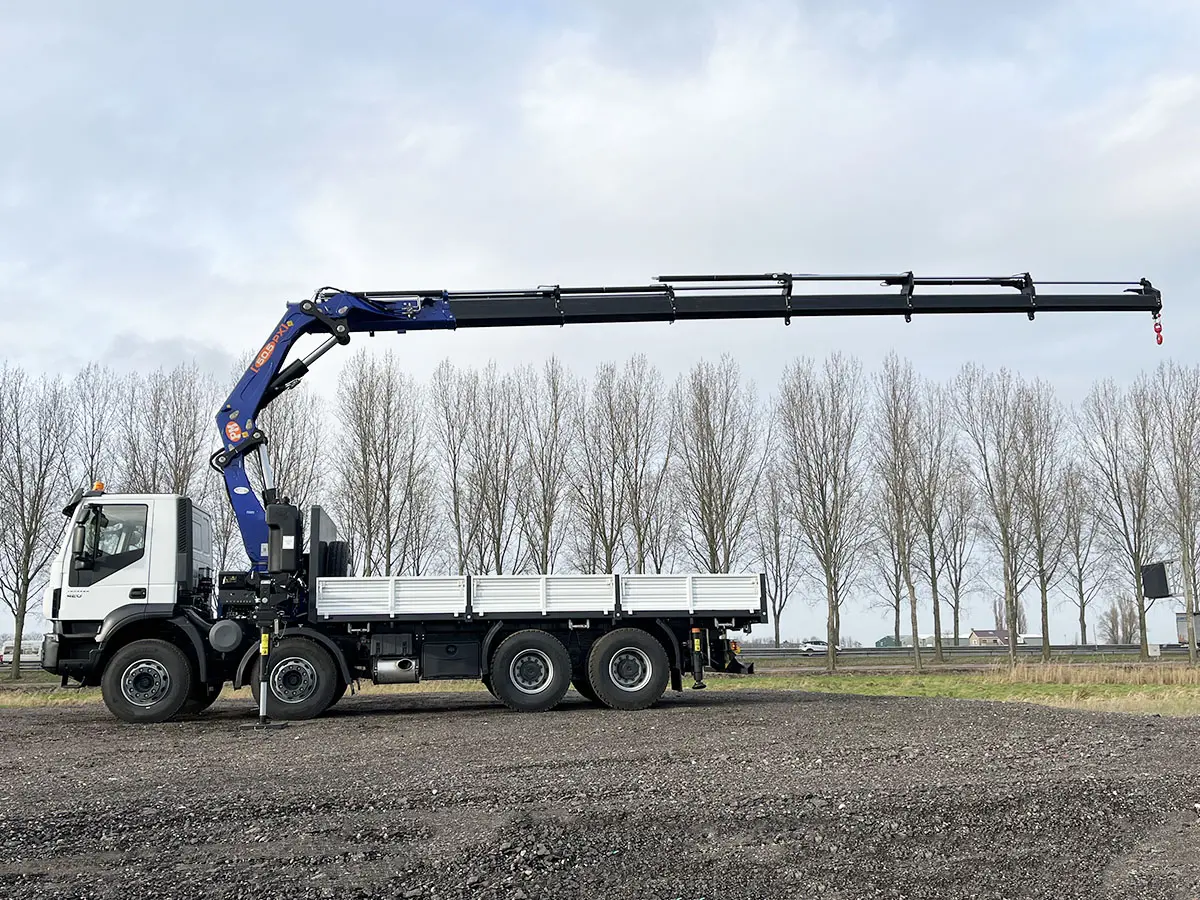

Iveco Trakker AD410T42H AT PM50526PX 8x4 Crane Truck
8x4
Diesel
Left hand drive
Specifications
General
- ID
- IV4799
- Brand
- Iveco
- Construction
- Crane Truck
- Construction brand
- PM
Engine
- Engine type
- F3BEE681V
- Engine power
- 420hp/309kW

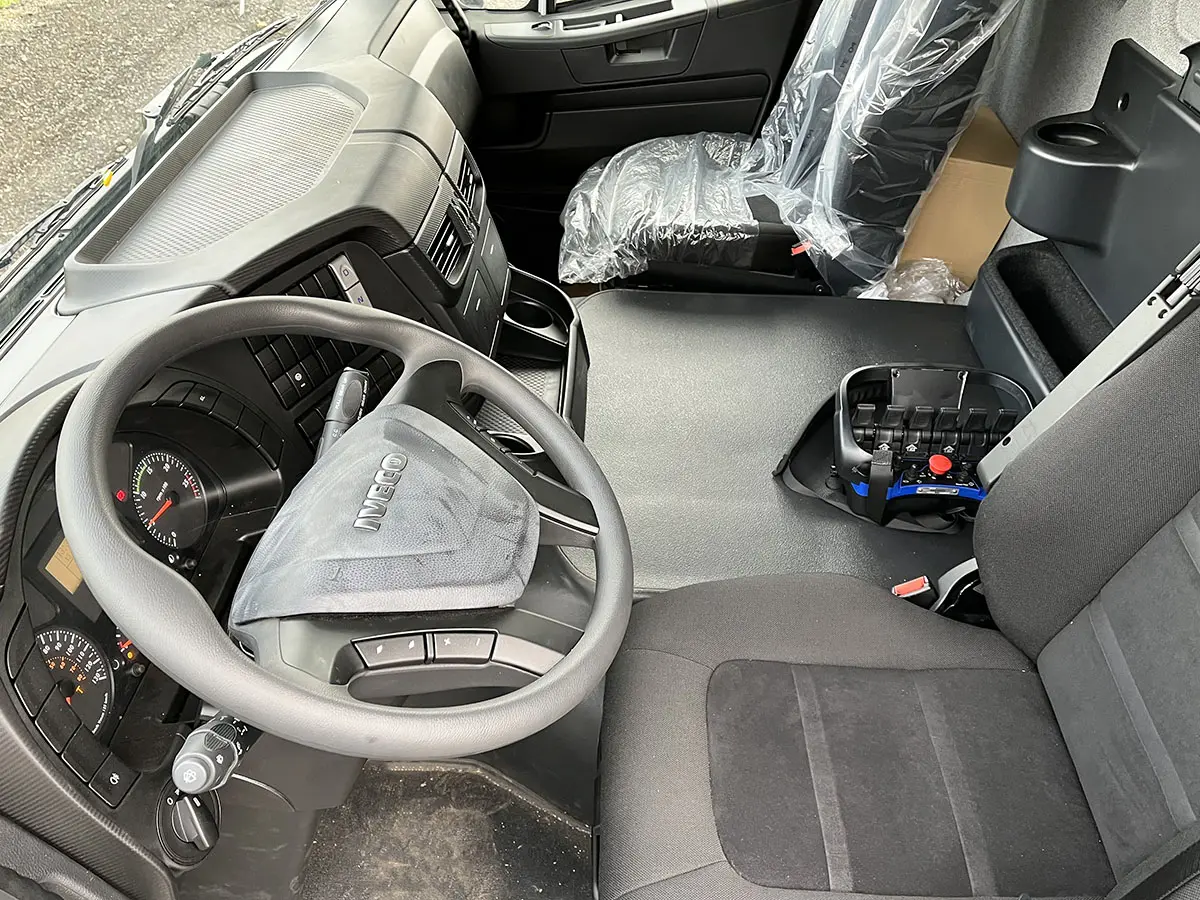

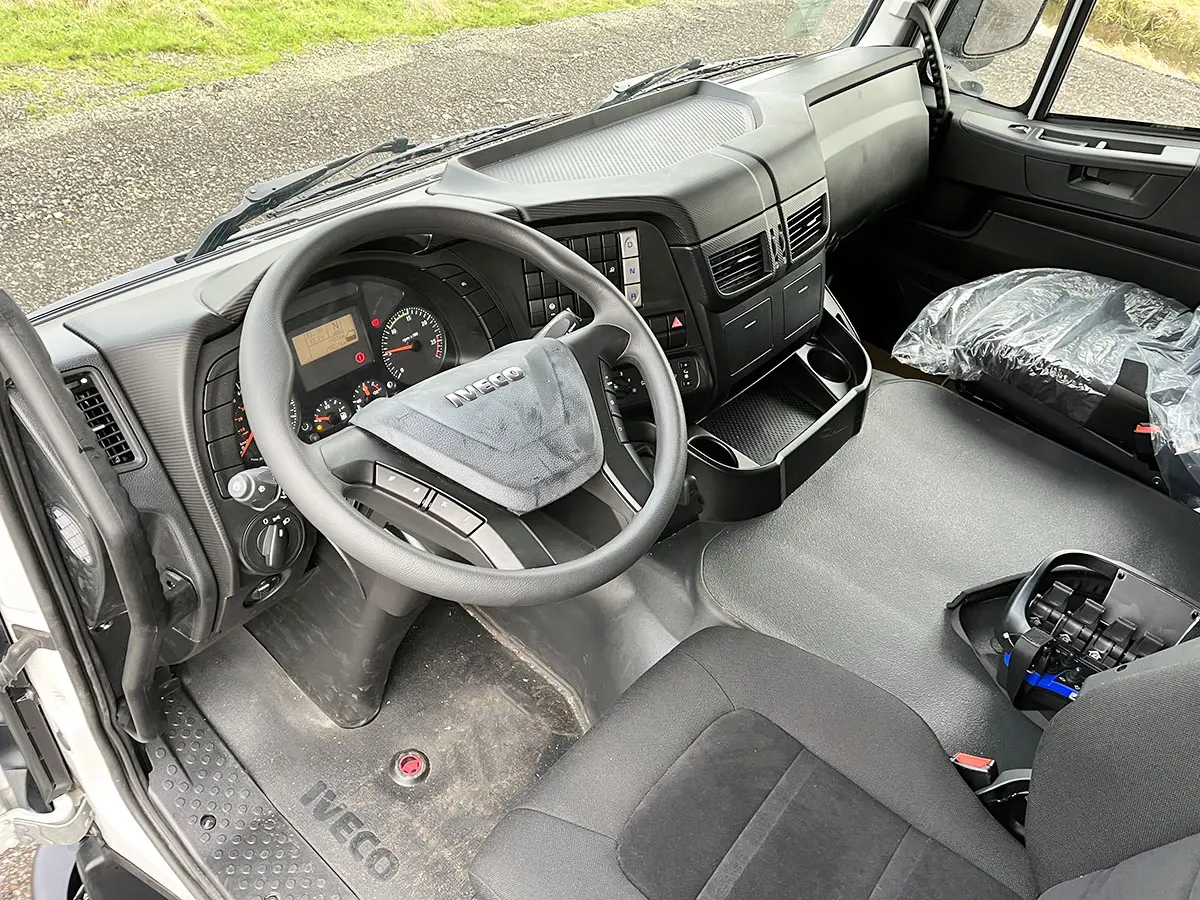

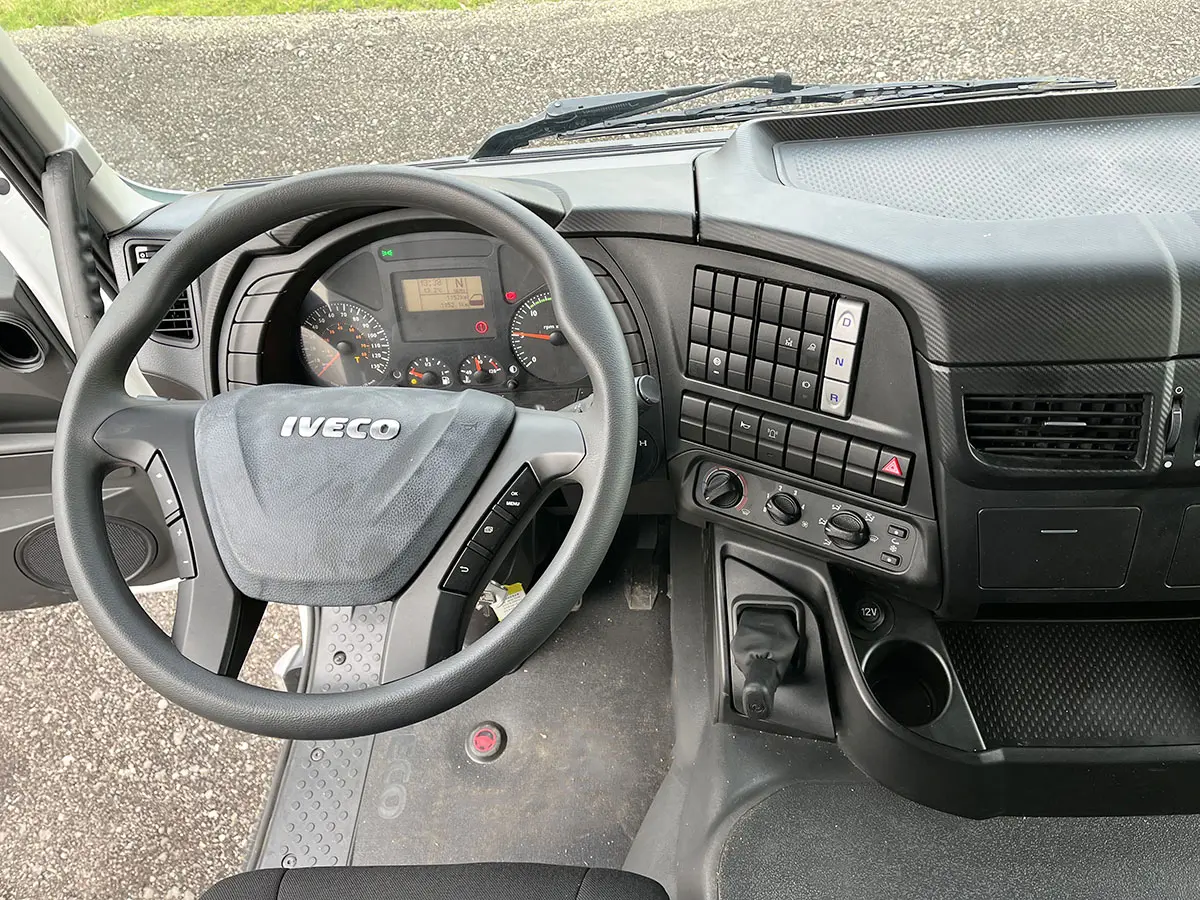

Cabin
- Cabin
- Day
- Steering
- Left hand drive
Gearbox
- Transmission
- Automatic
- Gearbox
- Eurotronic ZF16AS2630TO
Chassis
- Wheel base
- 5.020 mm
- Axle configuration
- 8x4
- Suspension
- Spring
Remarks
Fuel tank: 300 ltr.Air conditioning
Reverse buzzer
Headlamp protection front

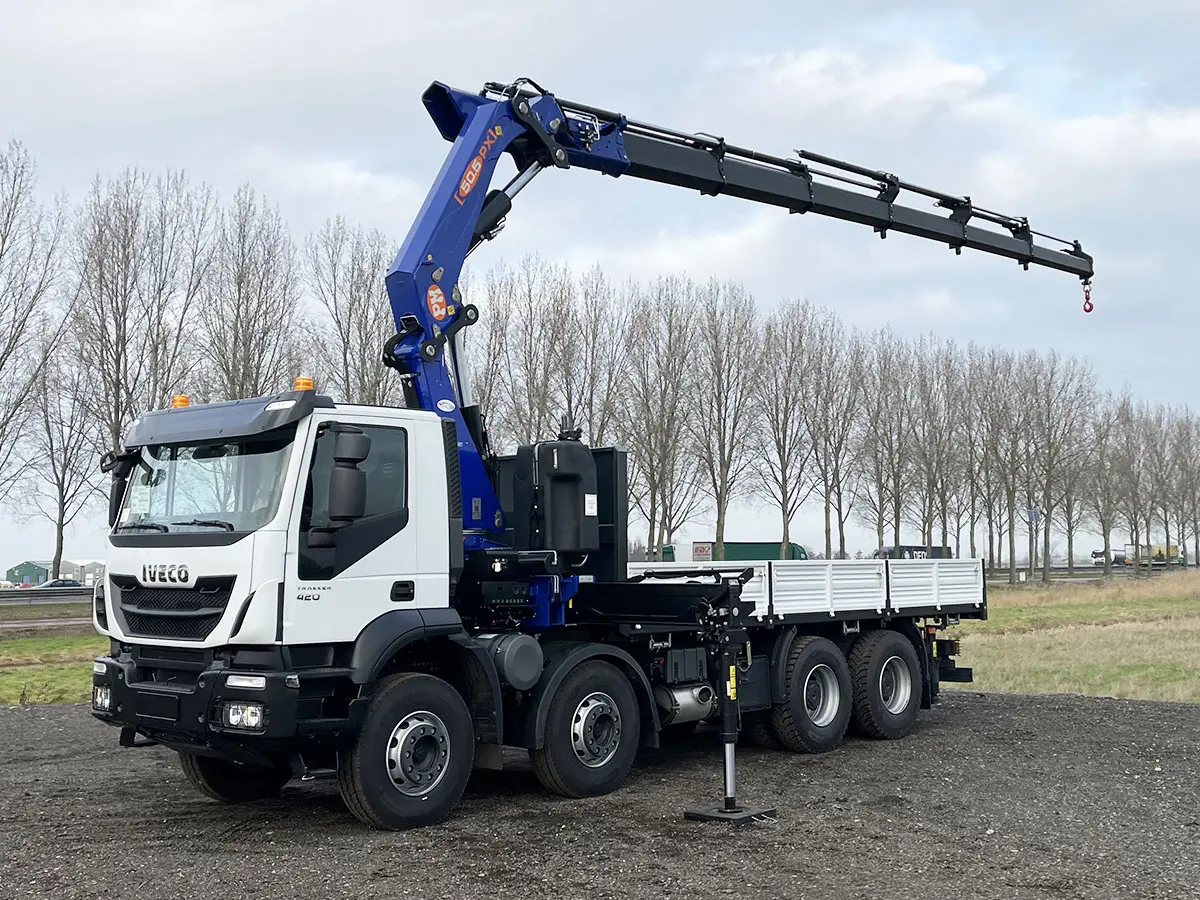

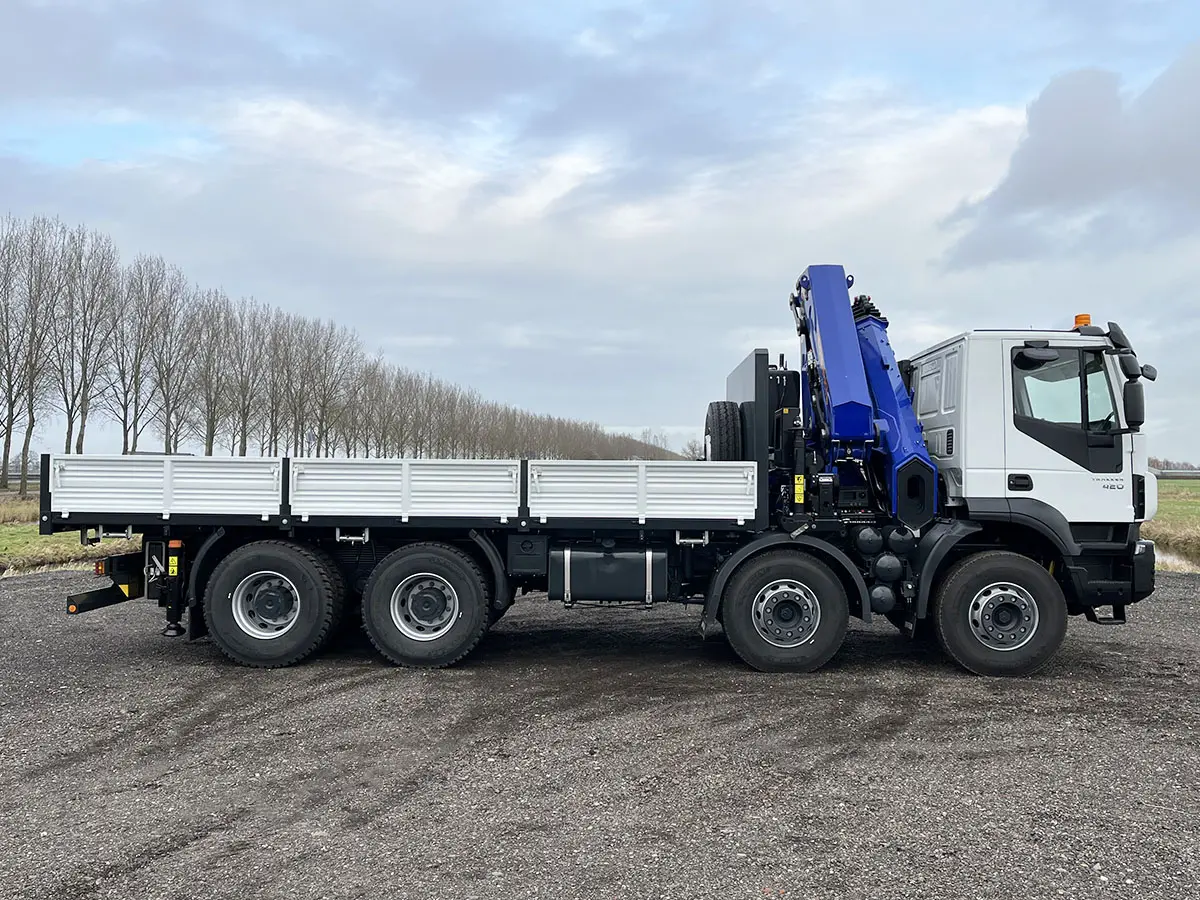

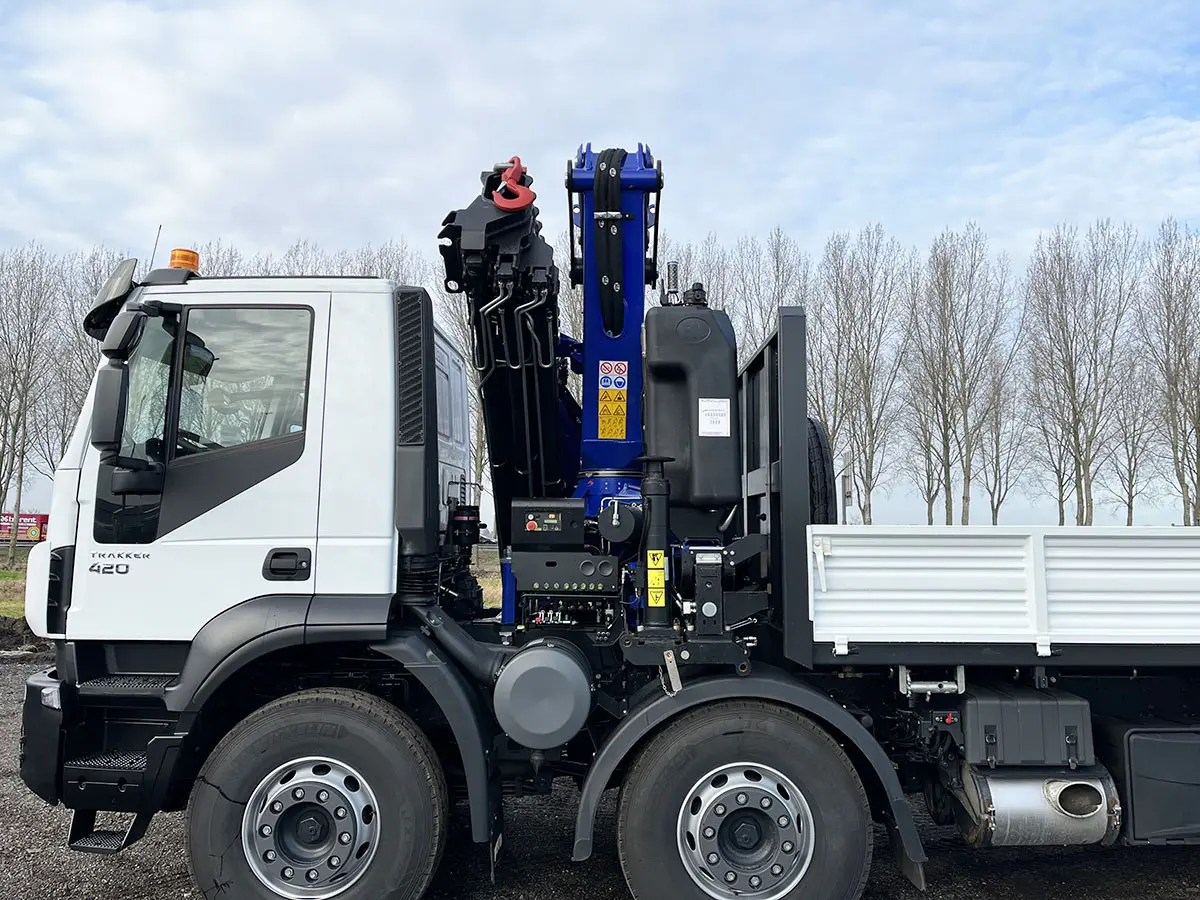

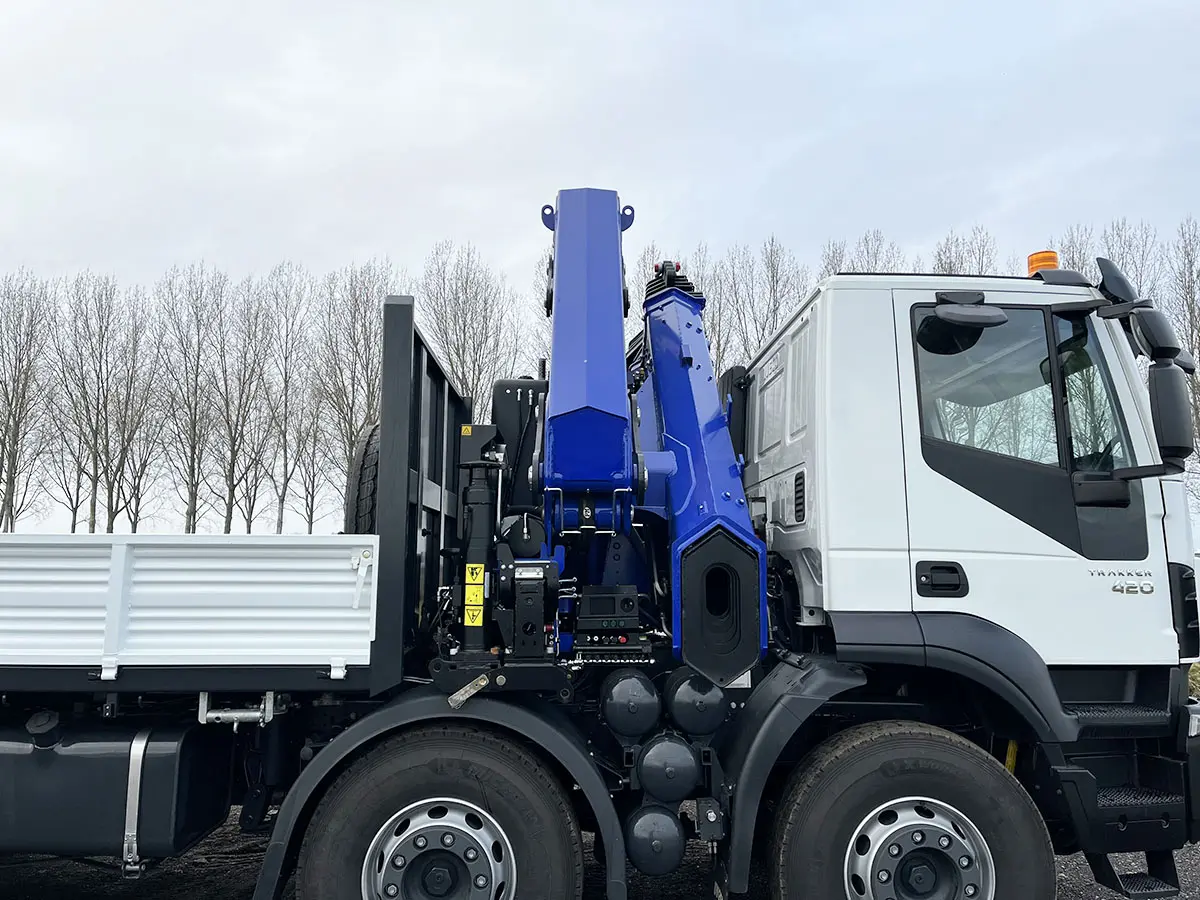

Equipped with PM crane and flatbed:
Type: PM 50526 PX
Max. outreach horizontal: 16.20 mtr.
Max. outreach vertical: 20.50 mtr.
Lifting hook

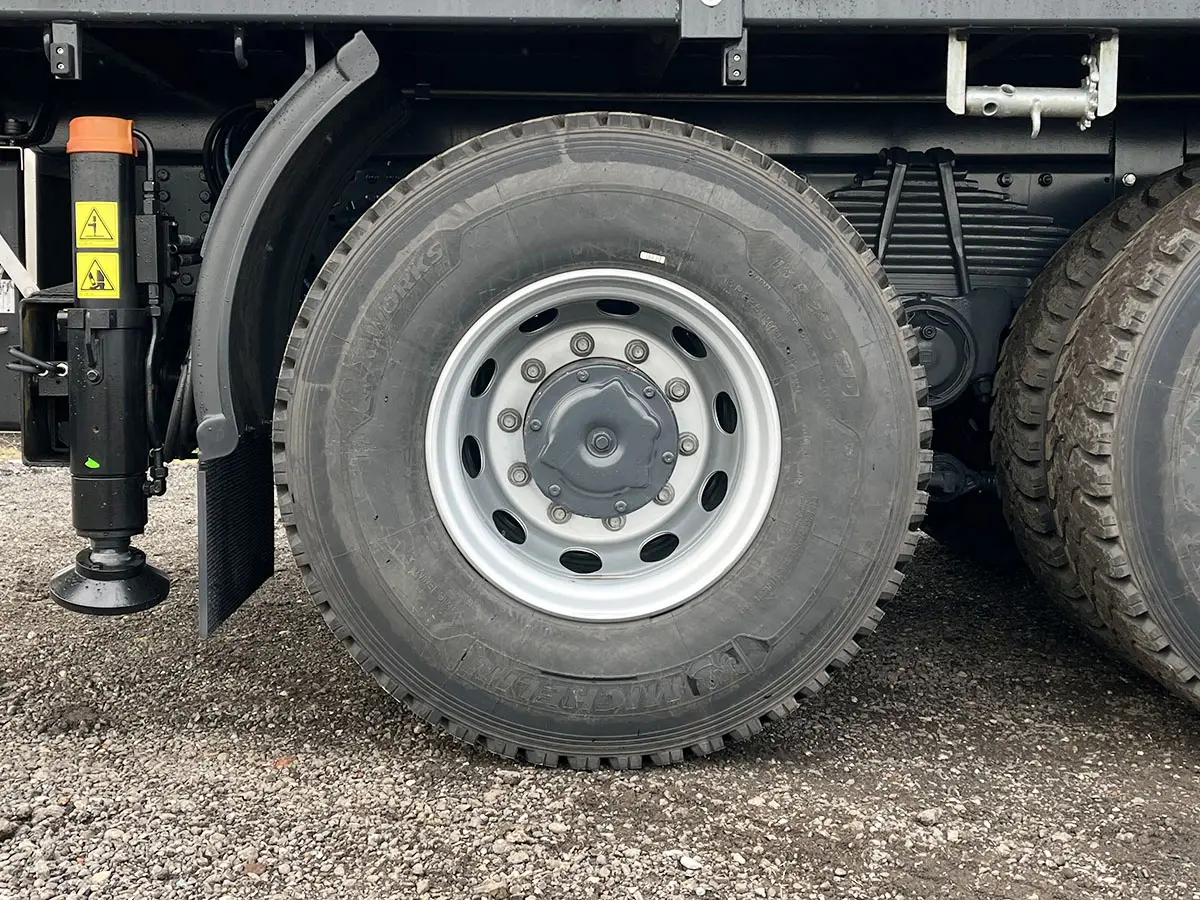

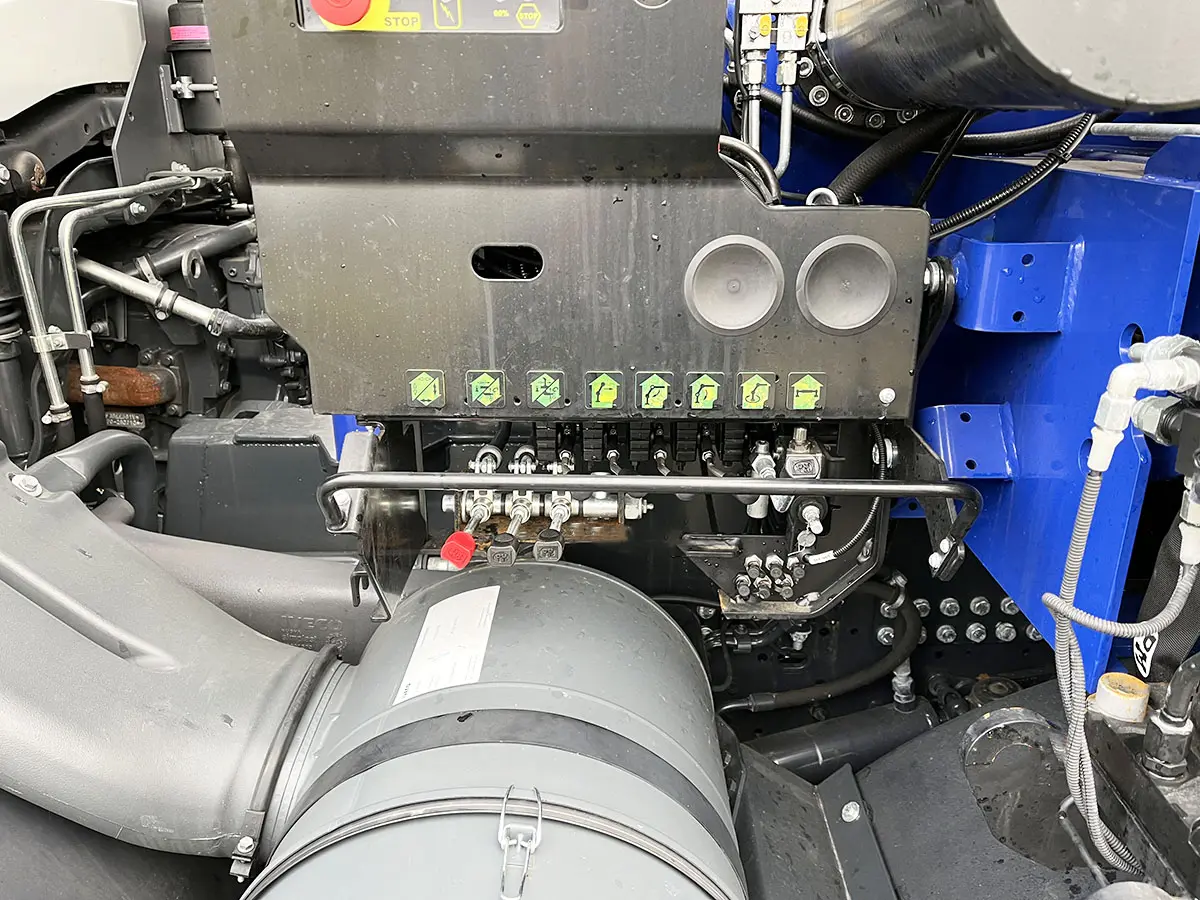

Hydraulic/tilting outriggers G139/142

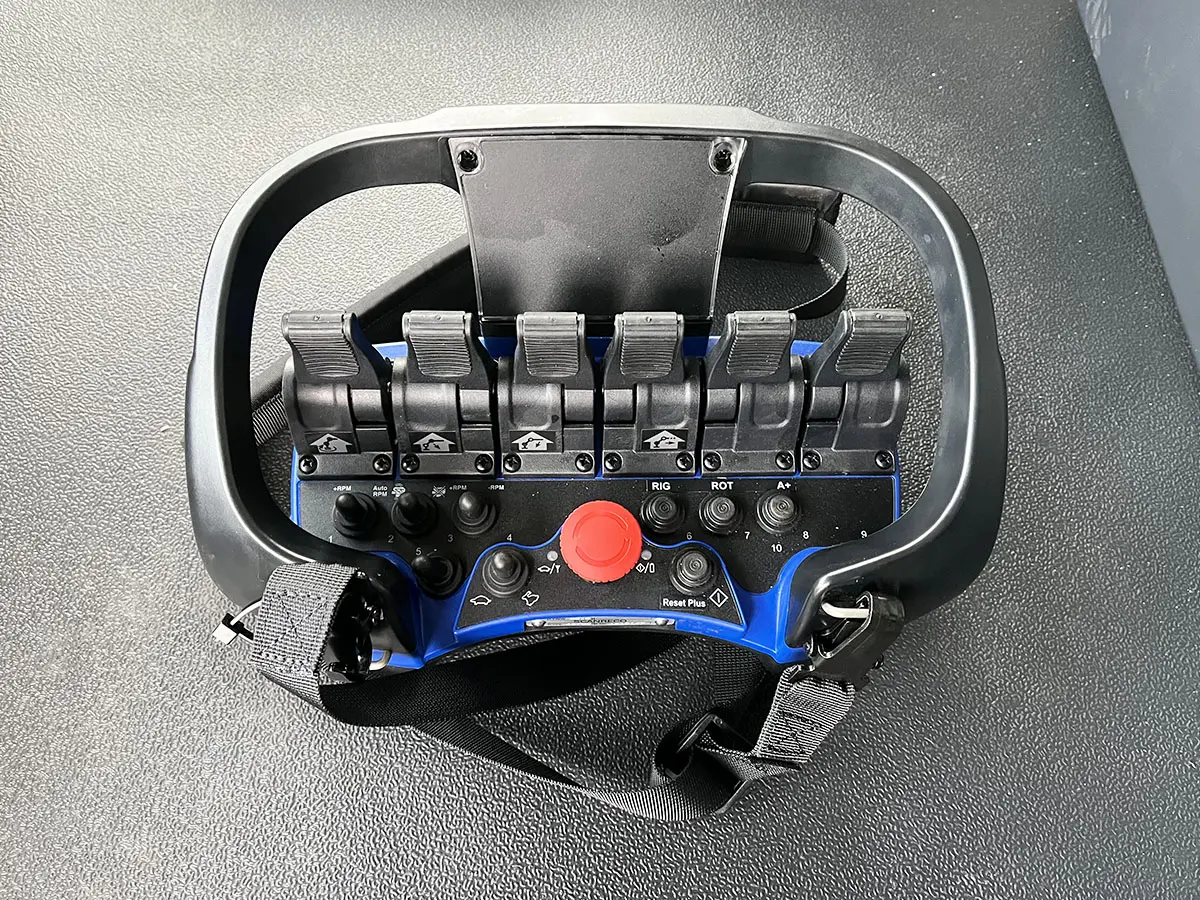

Compl.x radio scanreco G139/142
Dead point std on tilting support
Add stab hydr 5.0 mtr span 14T. HL

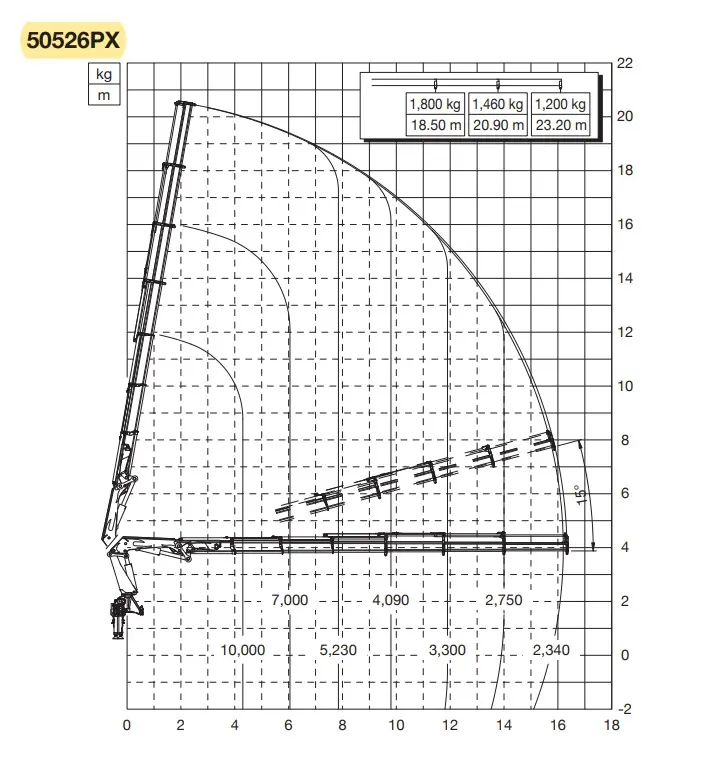

Lifting capacity:
10.000 kg / 4.30 m
7.000 kg / 6.05 m
5.230 kg / 7.85 m
4.090 kg / 9.80 m
3.300 kg / 11.90 m
2.750 kg / 14.00 m
2.340 kg / 16.20 m

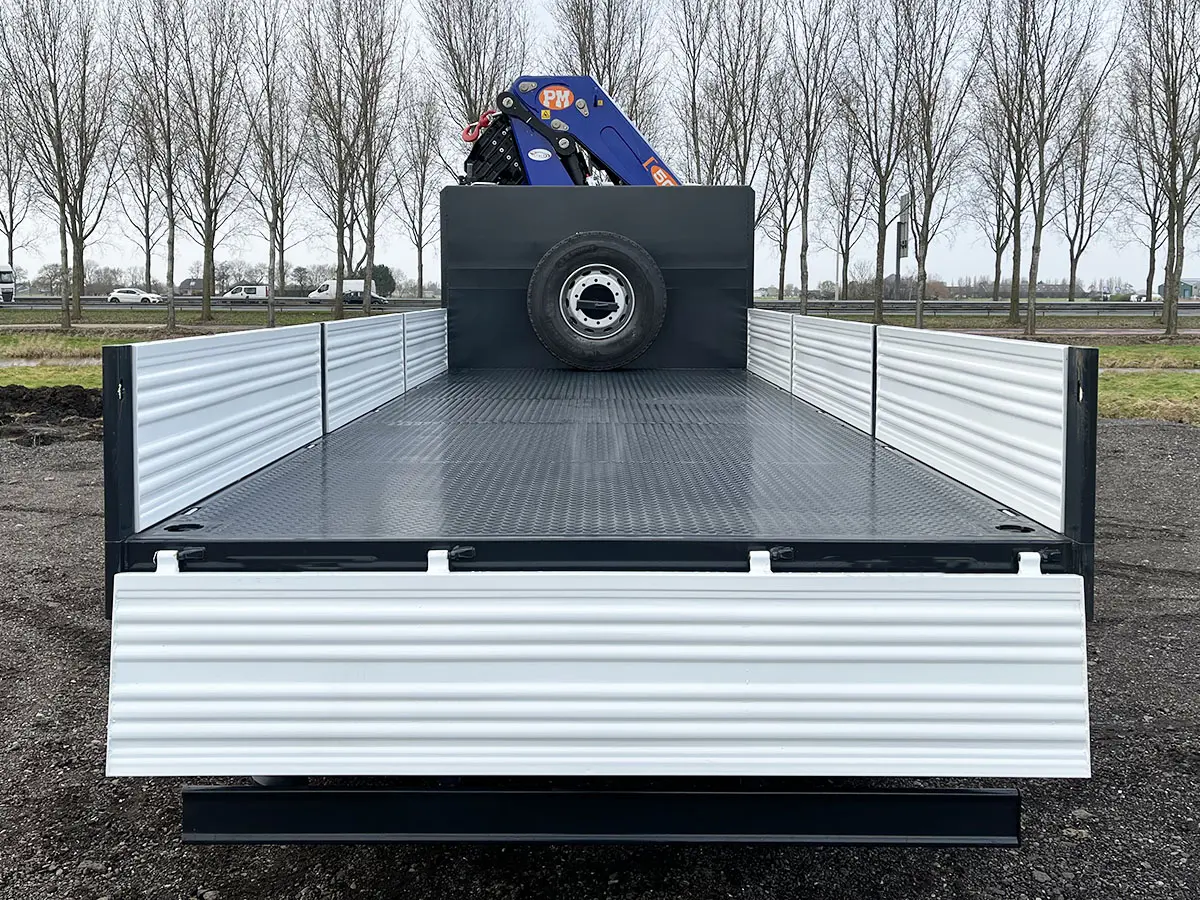

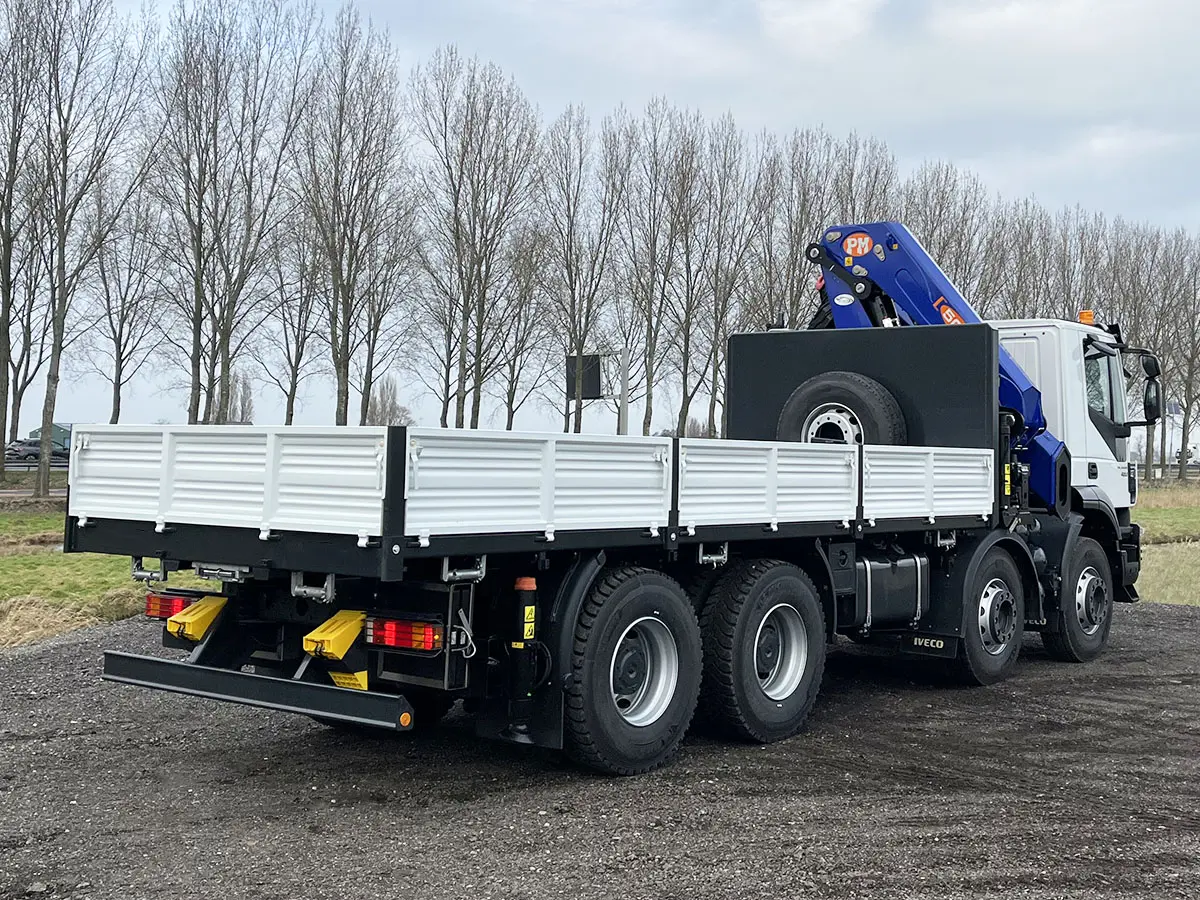

Flatbed:
Removable side-boards and tail-gate
Front/back Twist locks
Lashing rings
Complete specification in PDF.
