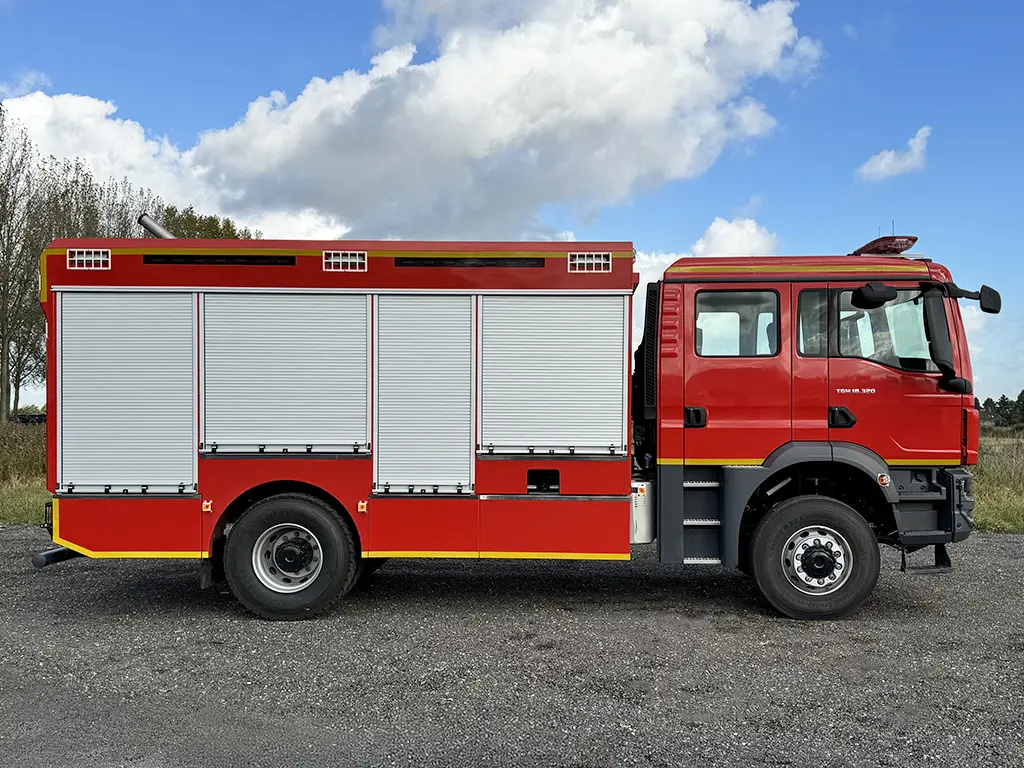

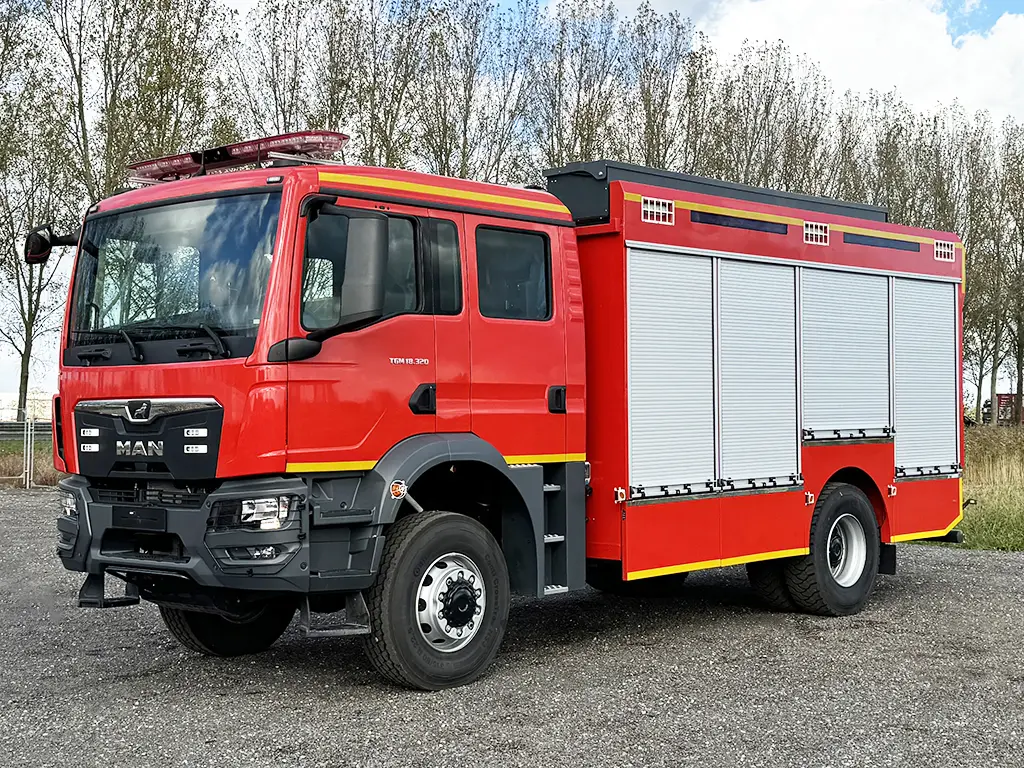

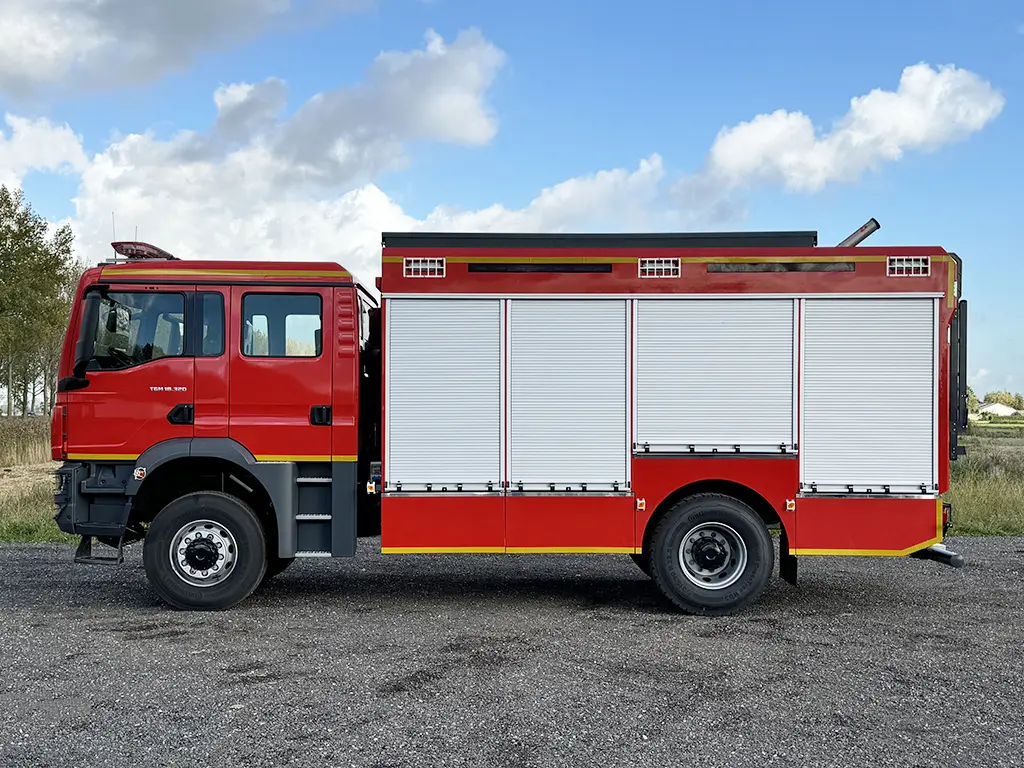

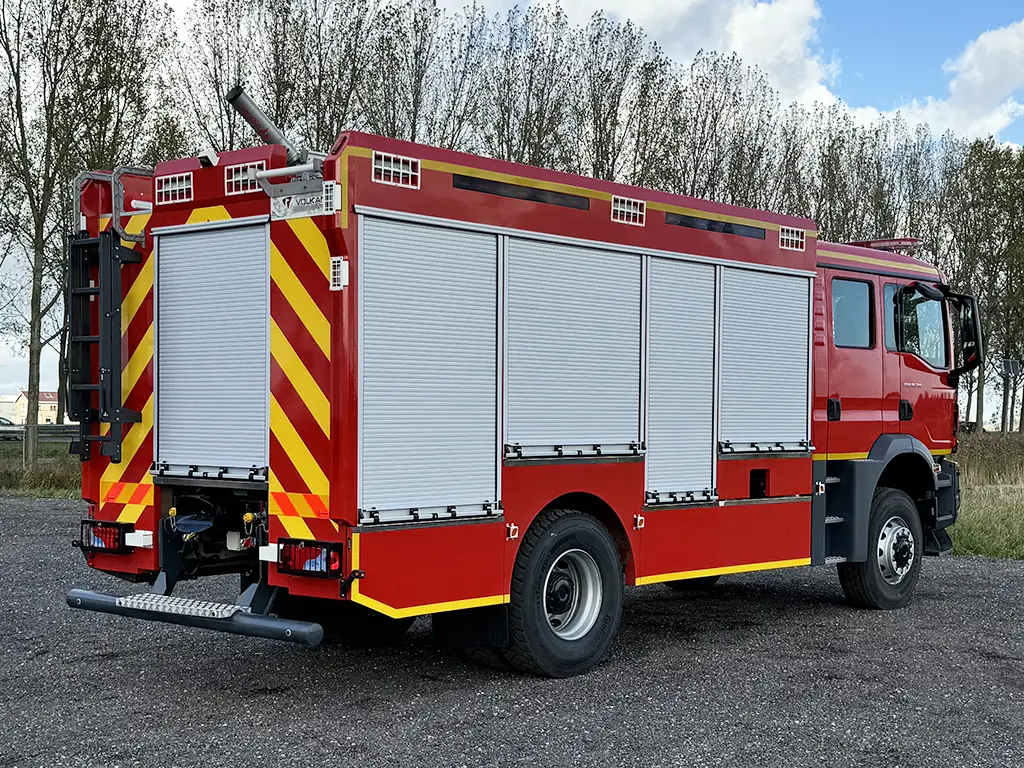

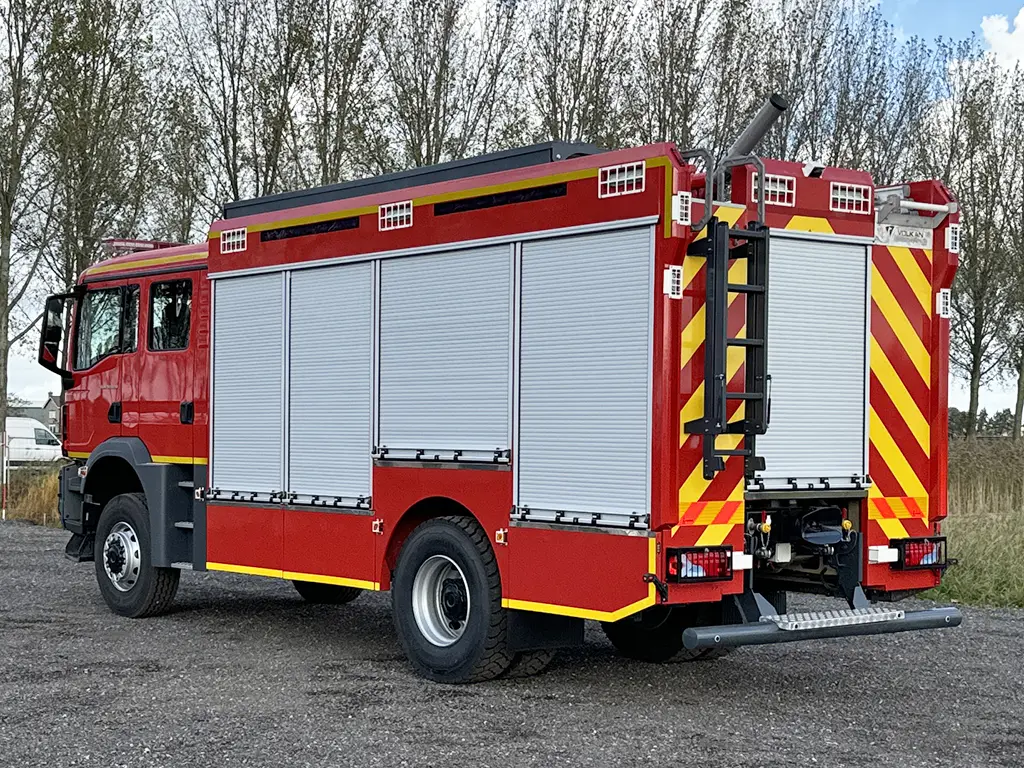

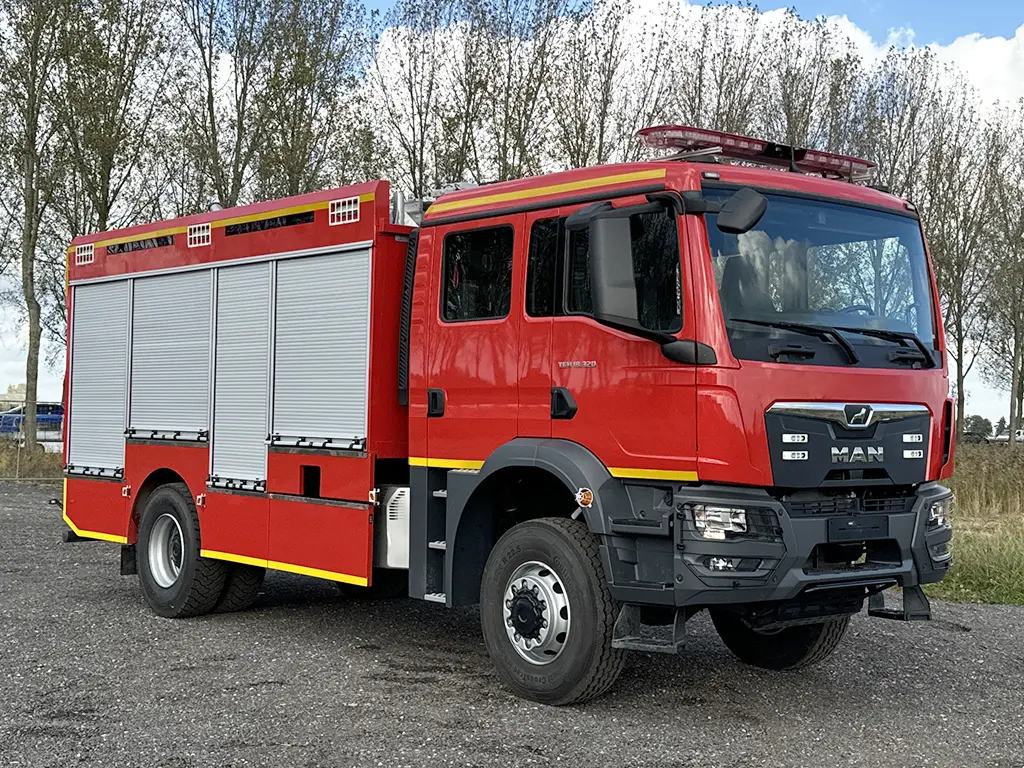

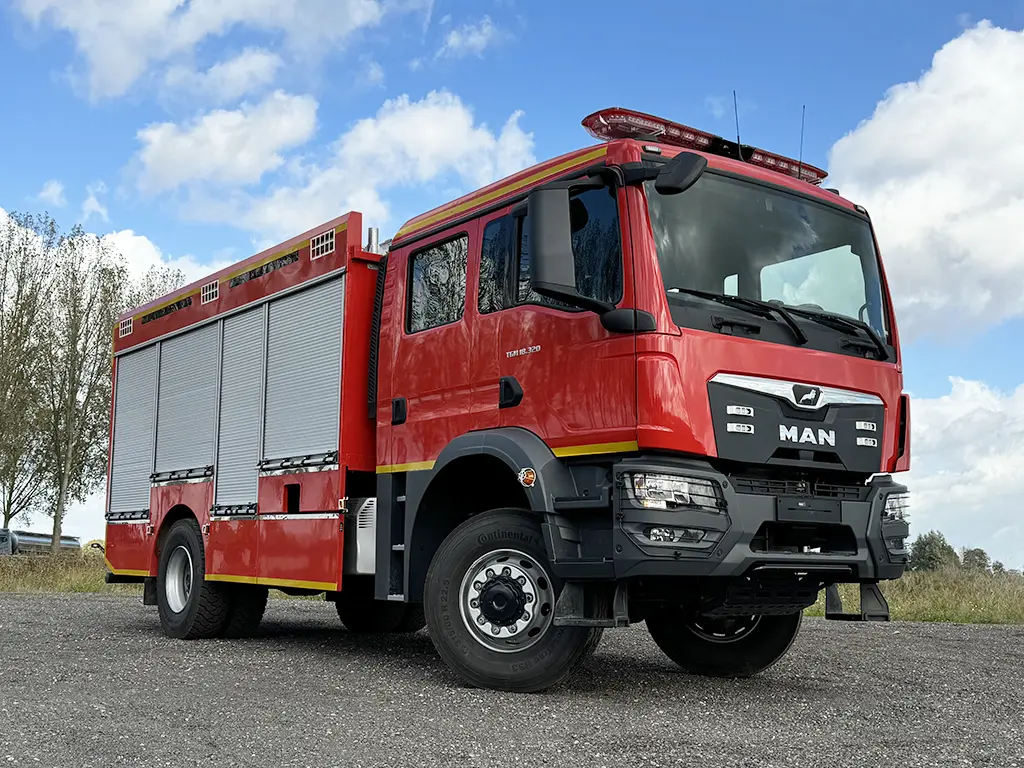

MAN TGM 18.320 BB CH 4x4 Fire Fighter Truck
4x4
Diesel
Left hand drive
€ 259.900
Net unit price EXW
Specifications
General
- ID
- VMA5244
- Brand
- MAN
- Construction
- Fire Fighter Truck
- Production year
- 2023
- Model year
- 2024
- Vehicle status
- New / Unused
Engine
- Engine type
- D0836LFLBI
- Emission code
- EURO-6
- Engine power
- 320hp/235kW

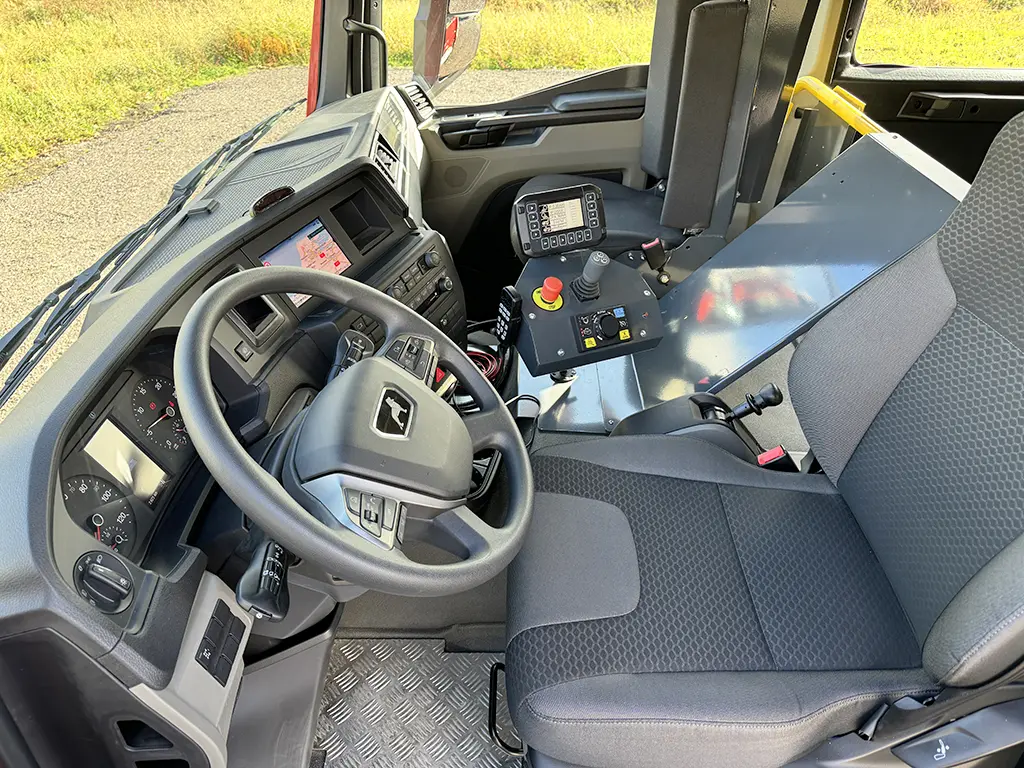

Cabin
- Cabin
- Crew
- Steering
- Left hand drive
Gearbox
- Transmission
- Automatic
- Gearbox
- TipMatic 12.12 OD
- PTO
- Gearbox dependant
Chassis
- Wheel base
- 4.500 mm
- GVW
- 18.000 kg
- Axle configuration
- 4x4
- Suspension
- Spring
Dimensions
- External dimension
- 8.300 x 2.500 x 3.700 mm
- Empty weight
- 11.600 kg
Axles
Axle 1
- Steering
- Yes
- Tires
- Single
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes

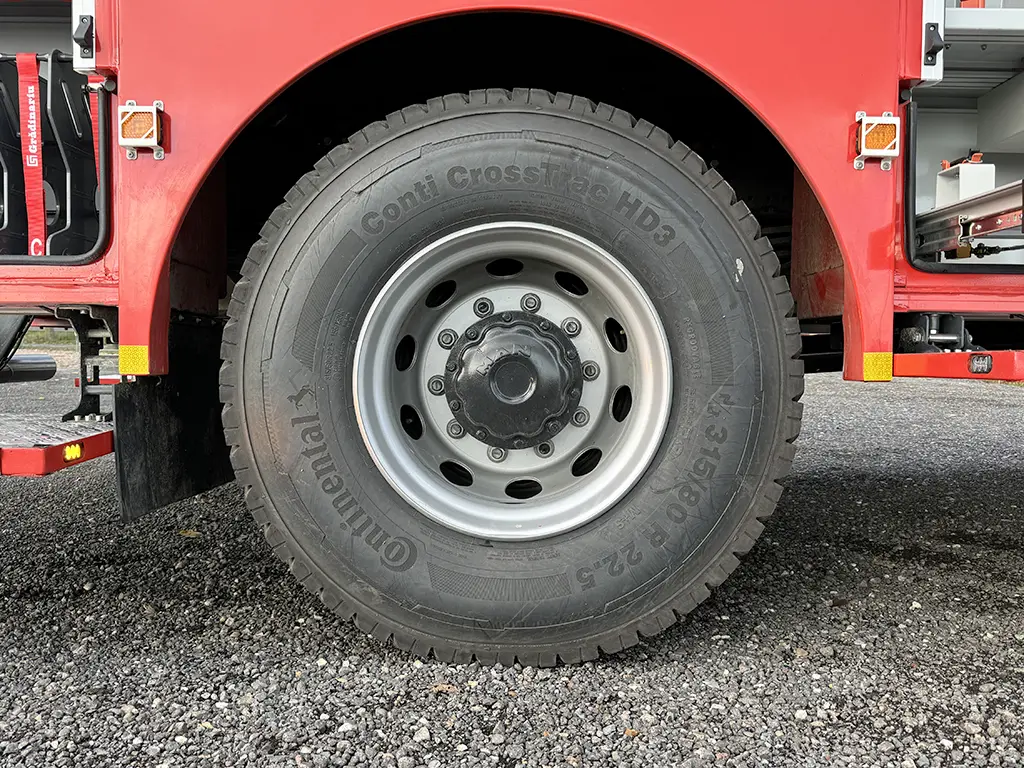

- Tire size
- 315/80R22.5
Axle 2
- Steering
- No
- Tires
- Double
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 315/80R22.5
Remarks
Fuel tank: 220 ltr.AdBlue tank: 27 ltr.
Air conditioning

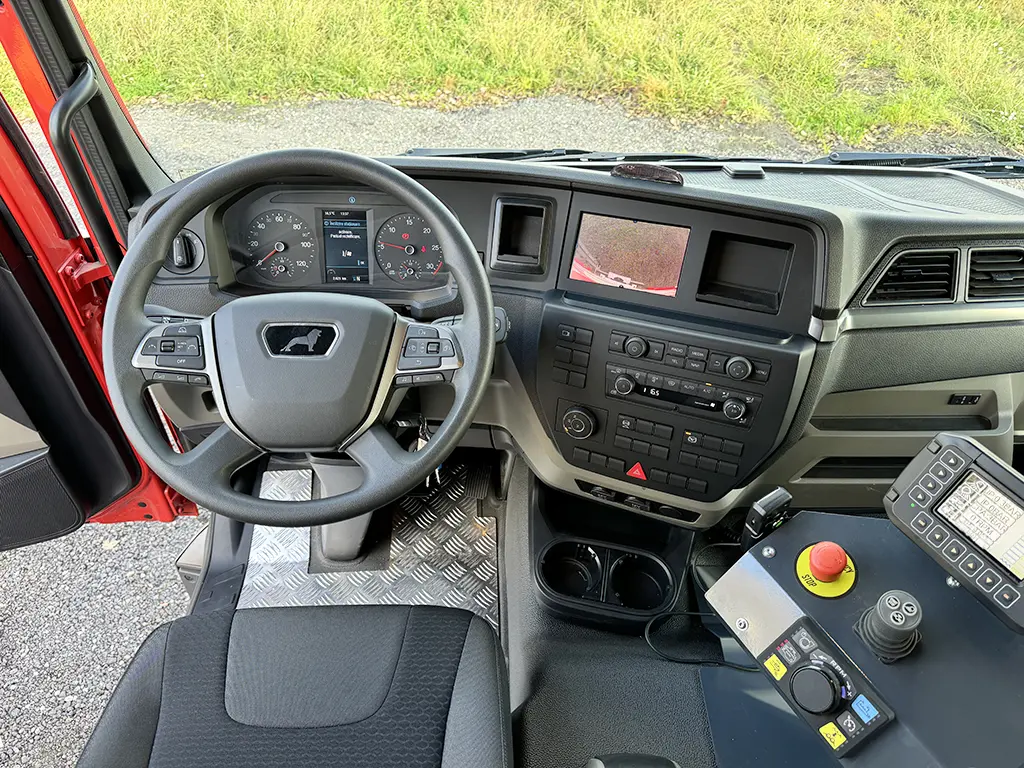

NMT infotainment system, radio, navigation
Reverse camera, intergrated in man display
Reverse parking distance with warning sound
Equipped with Volkan fire fighting engine:
Crew cab for 5+1 seats

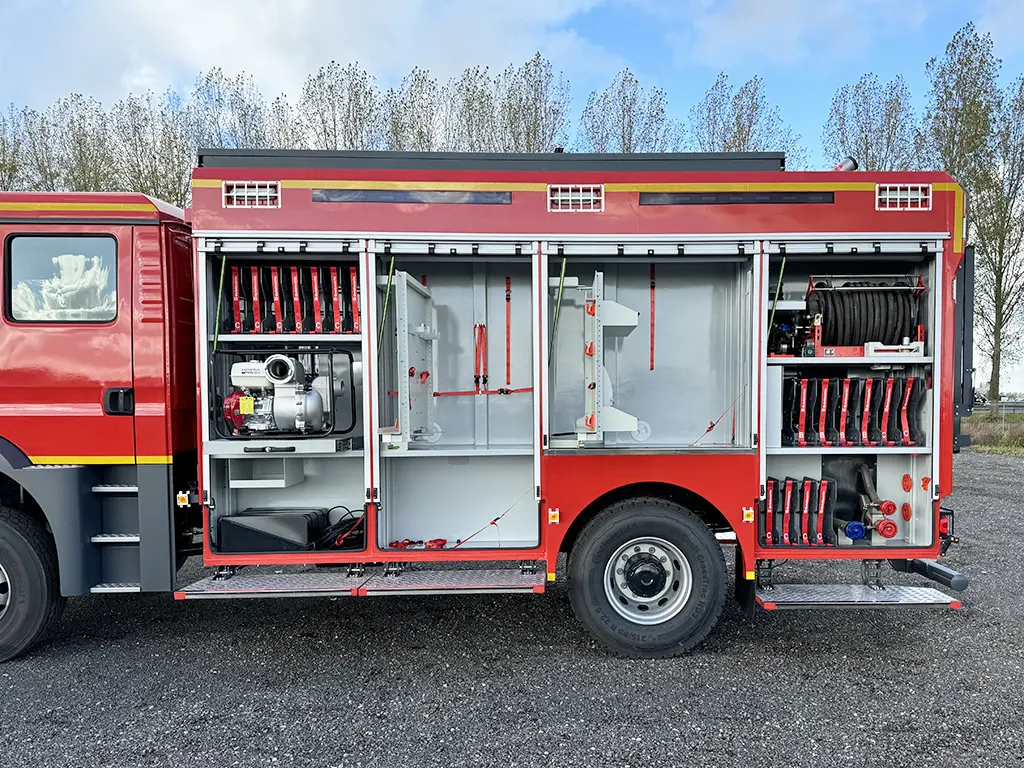

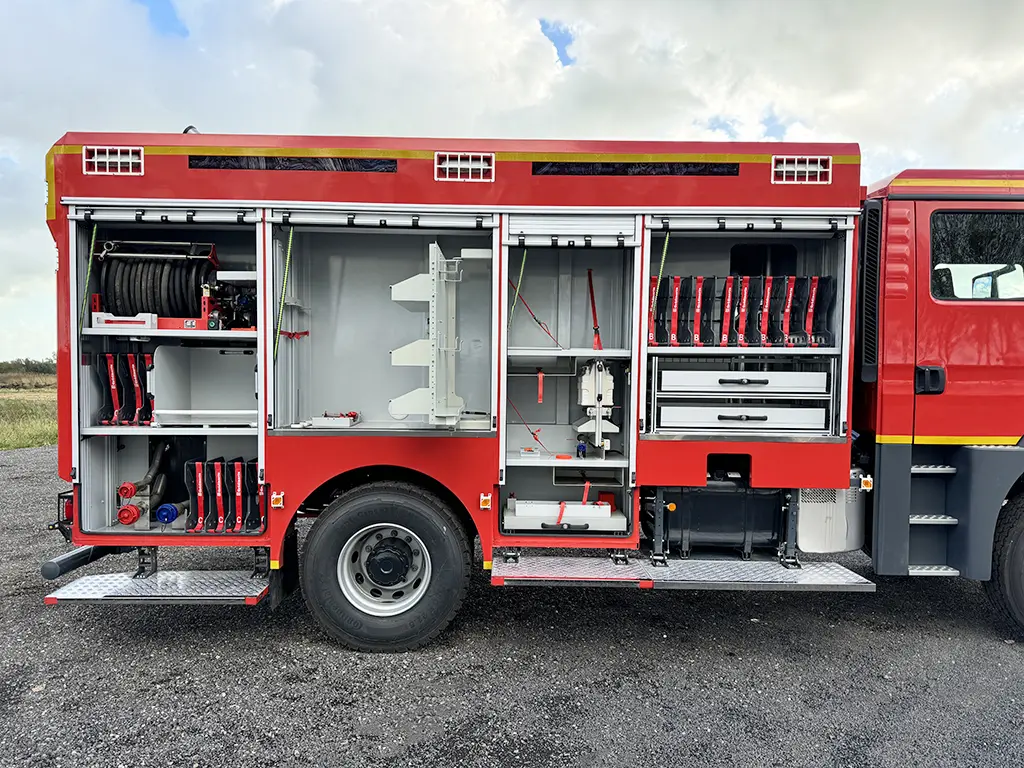

4+4+1 lockers layout
Telescopic lighting pole Fireco 5mtr. with two projectors 15.000 lumen lamp.
Tanks: water 4.000 ltr. + foam 200 ltr.

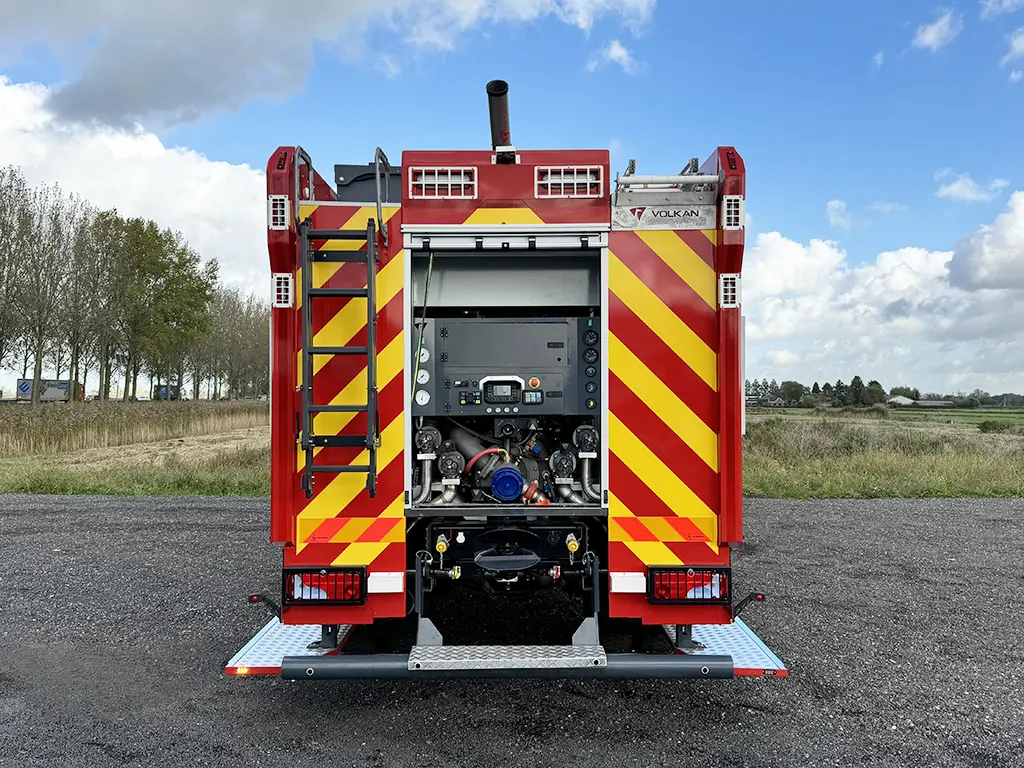

Pumping aggregate: Volkan located at the rear
Low pressure stage with the following nominal parameters: flow 3000 l/min at 8-10 bar.
High pressure stage with the following nominal parameters: min. flow 250 l/min at 35-40 bar.
Water and foam cannon with electric or manual actuation located on the superstructureroof.
Reels 2x located in the back of both sides of the compartments.
Acoustic and optical warning installation.

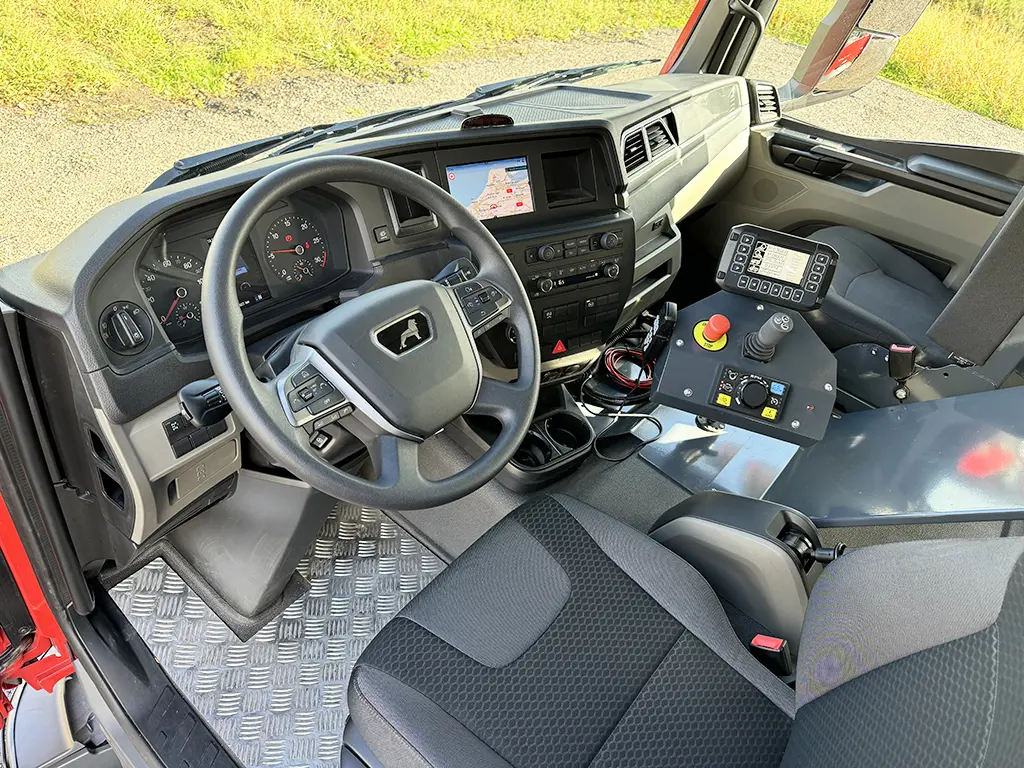

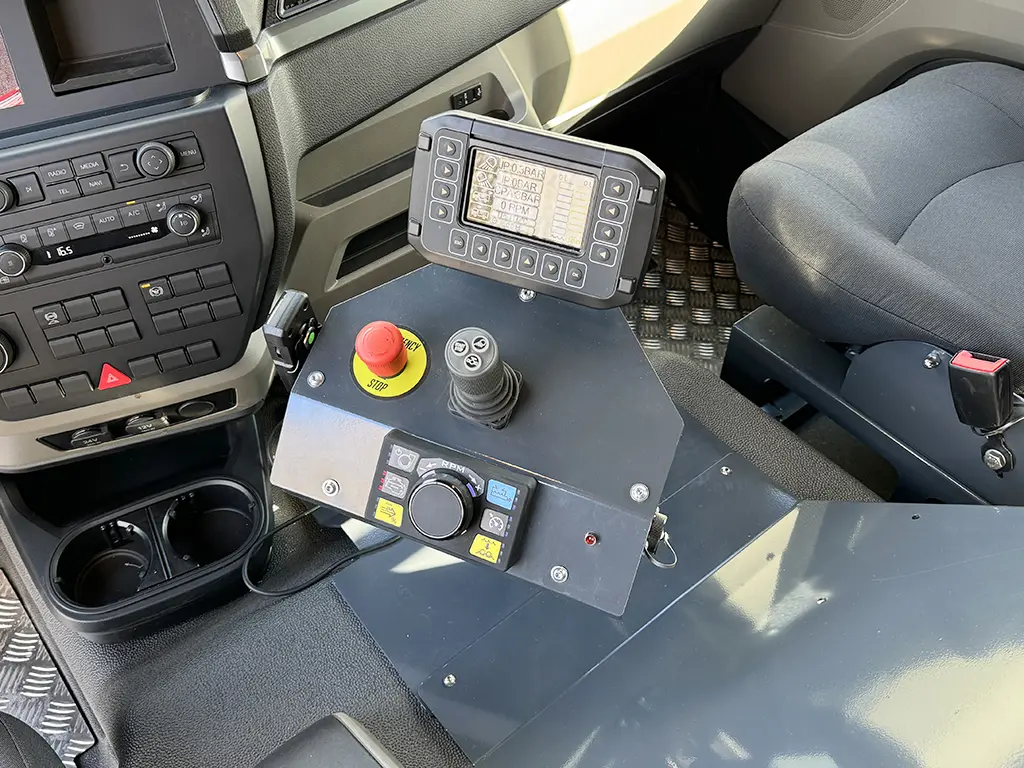

Control system in the cab to operate the water, foam cannon.
Complete specification in pdf.
