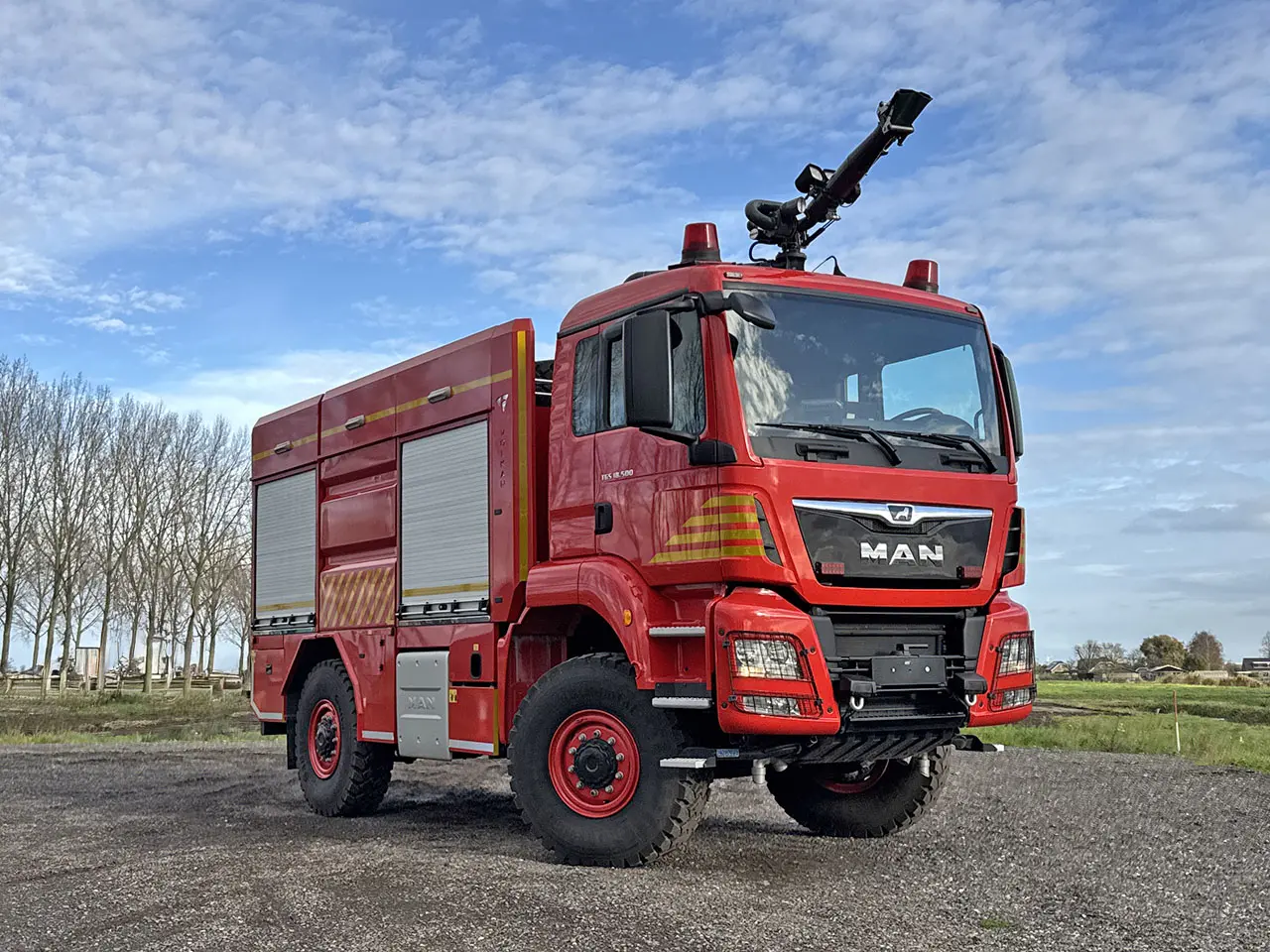

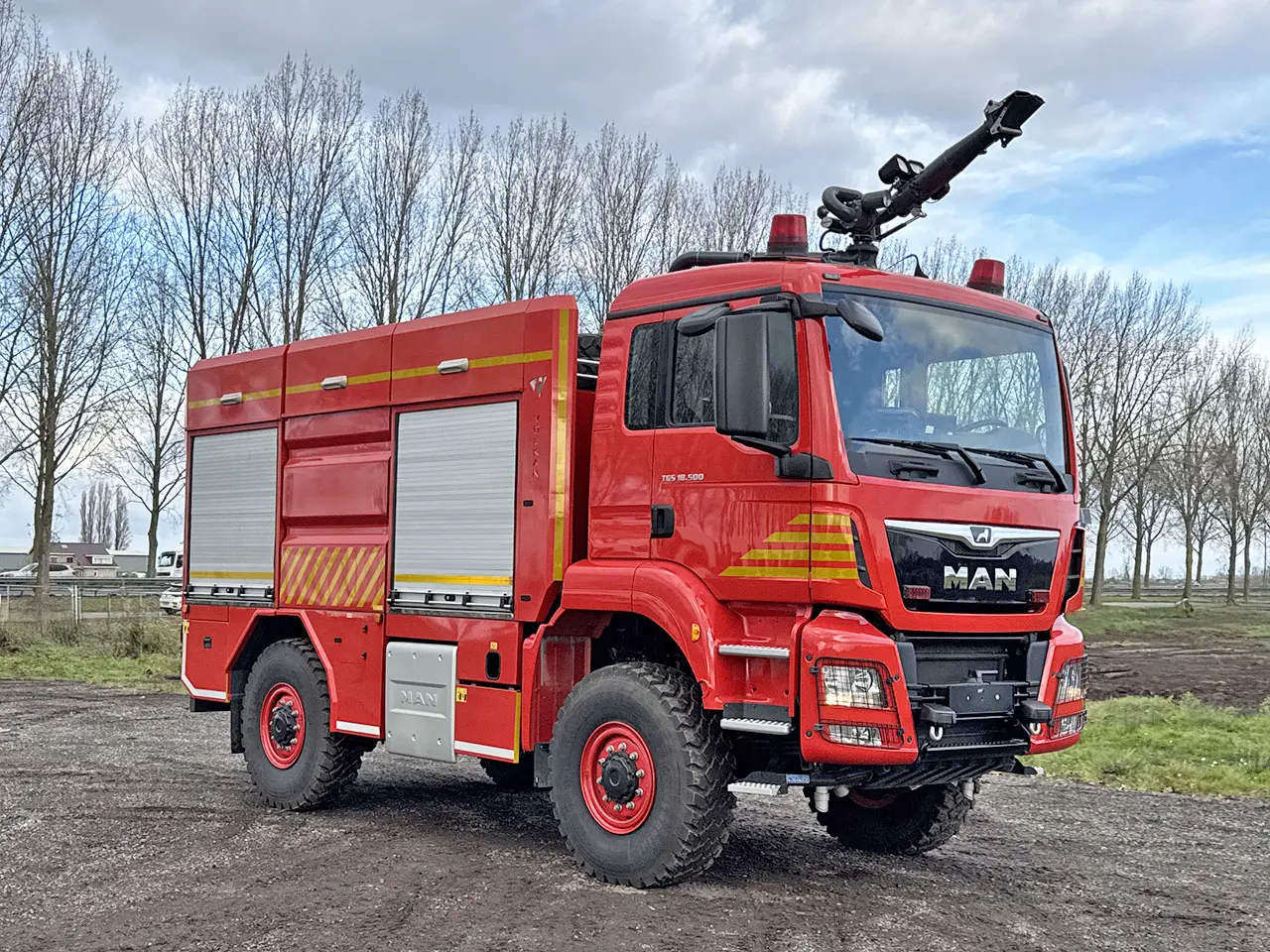

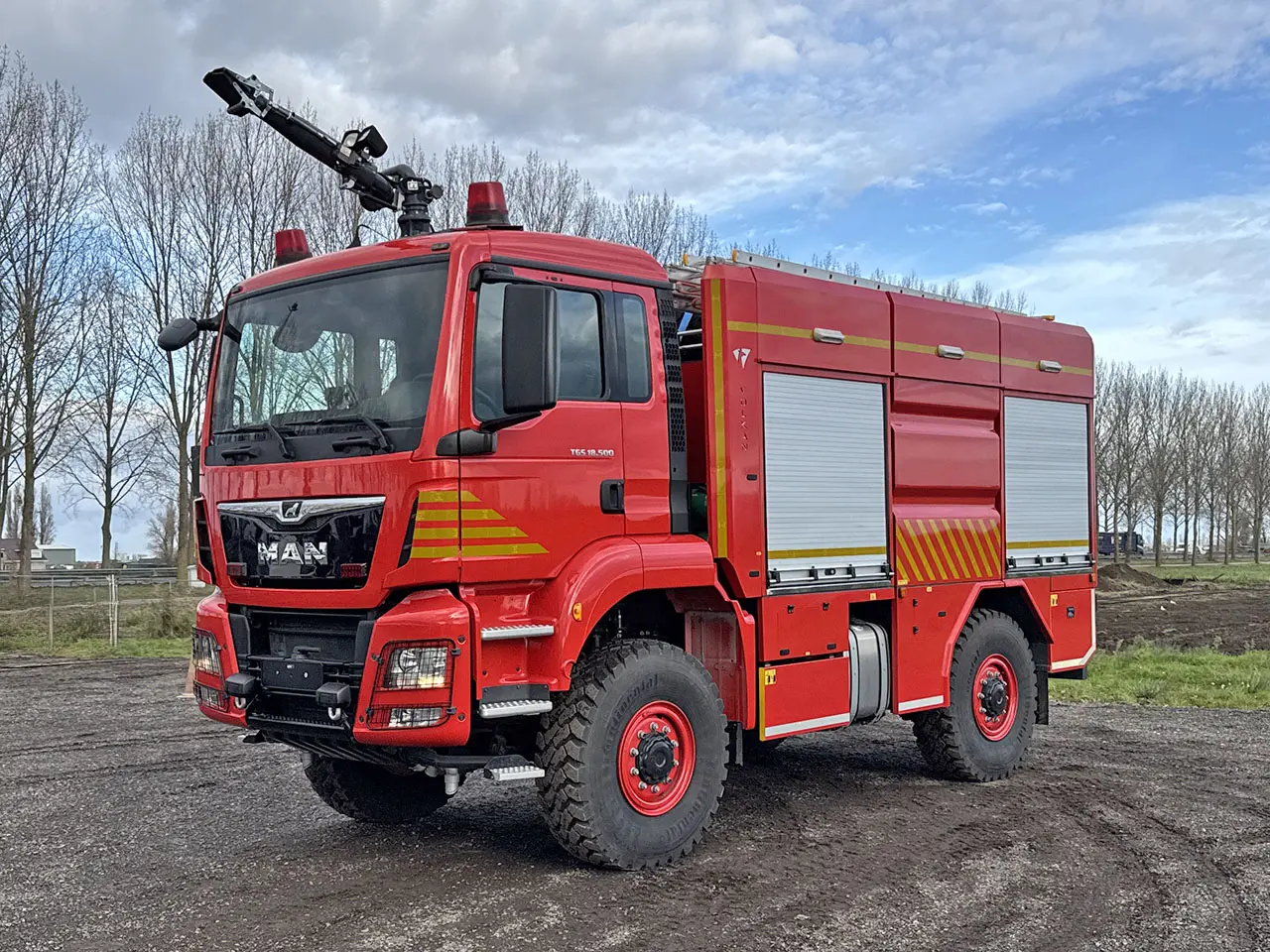

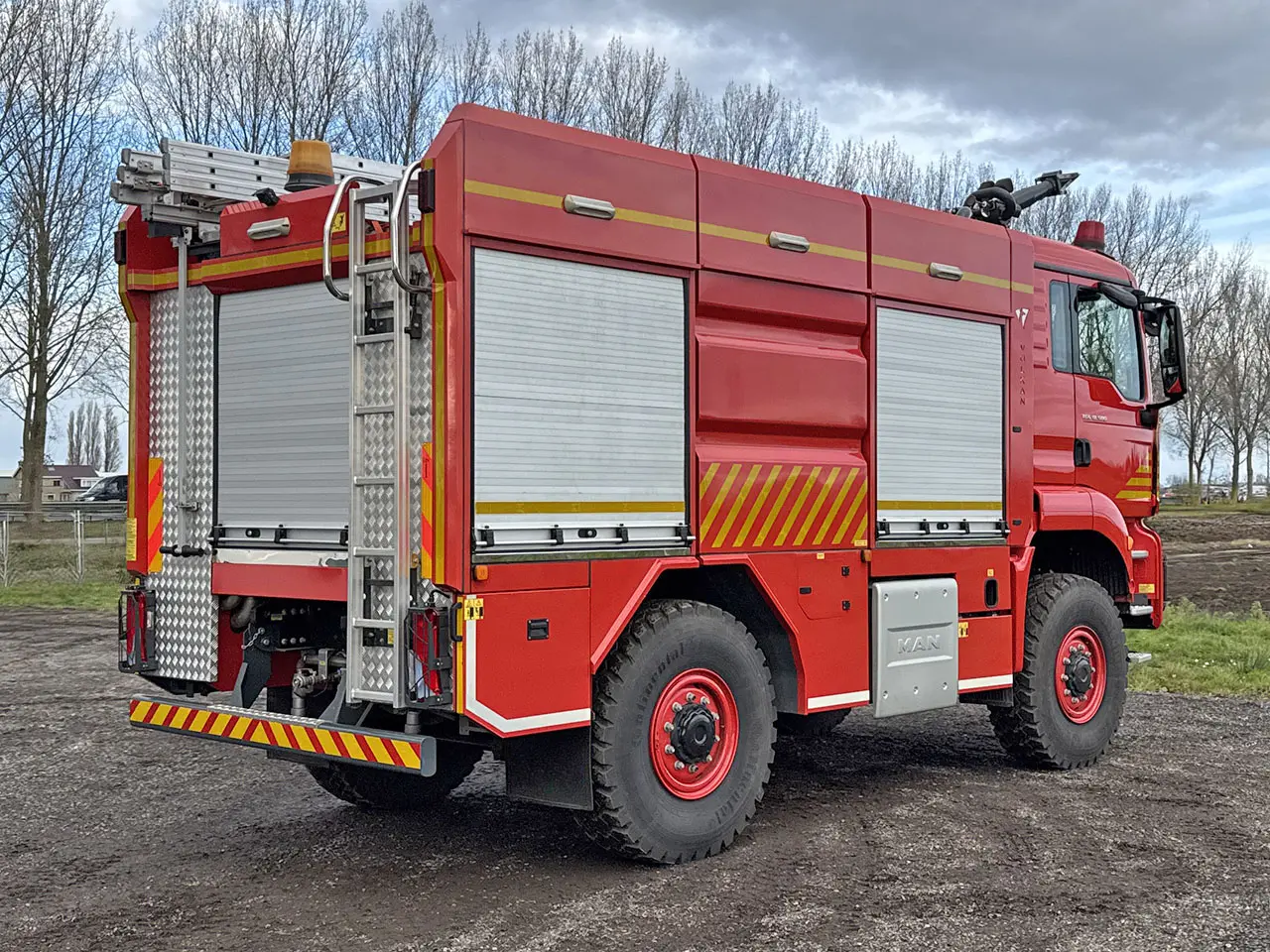

MAN TGS 18.500 BB 4x4 Fire Fighter Truck
4x4
Diesel
Left hand drive
€ 312.500
Net unit price EXW
Specifications
General
- ID
- VMA5349
- Brand
- MAN
- Construction
- Fire Fighter Truck
- Construction brand
- Volkan
- Production year
- 2019
- Model year
- 2019
- Vehicle status
- New / Unused
Engine
- Engine type
- D2676LF66
- Emission code
- EURO-6
- Engine power
- 500hp/368kW
Cabin
- Cabin
- Day
- Steering
- Left hand drive
Gearbox
- Transmission
- Automatic
- Gearbox
- TipMatic 12.28 OD
- PTO
- Flywheel
Chassis
- Wheel base
- 3.600 mm
- GVW
- 18.000 kg
- Axle configuration
- 4x4
- Suspension
- Spring
Dimensions
- External dimension
- 8.000 x 2.550 x 3.900 mm
Remarks
Fuel tank: 200 ltr.AdBlue tank: 35 ltr.
Air conditioning
MAN Media Truck radio
Reverse camera, with extra display
Demo units: 2.800 km +/-

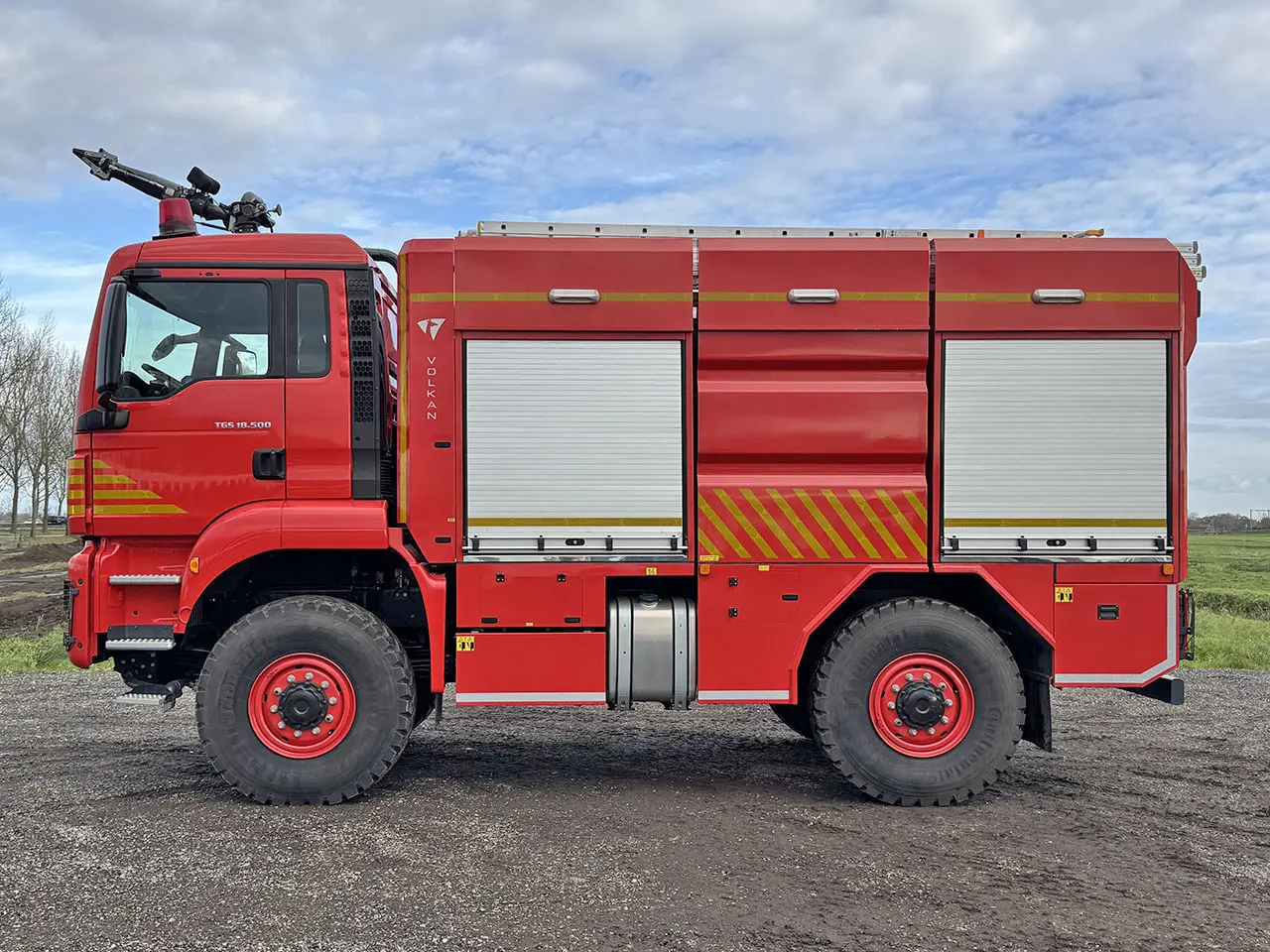

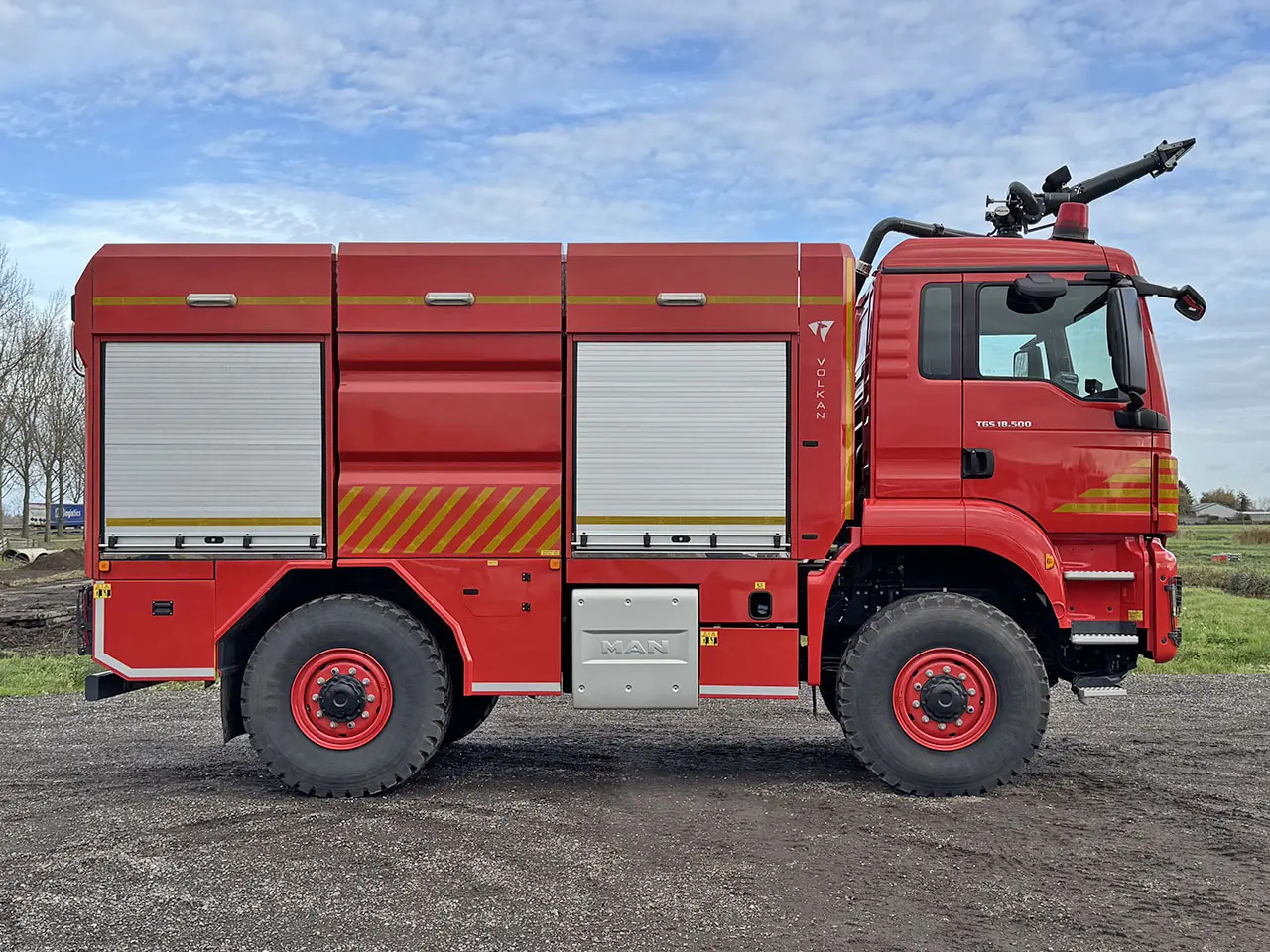

Equipped with Volkan fire fighting engine:

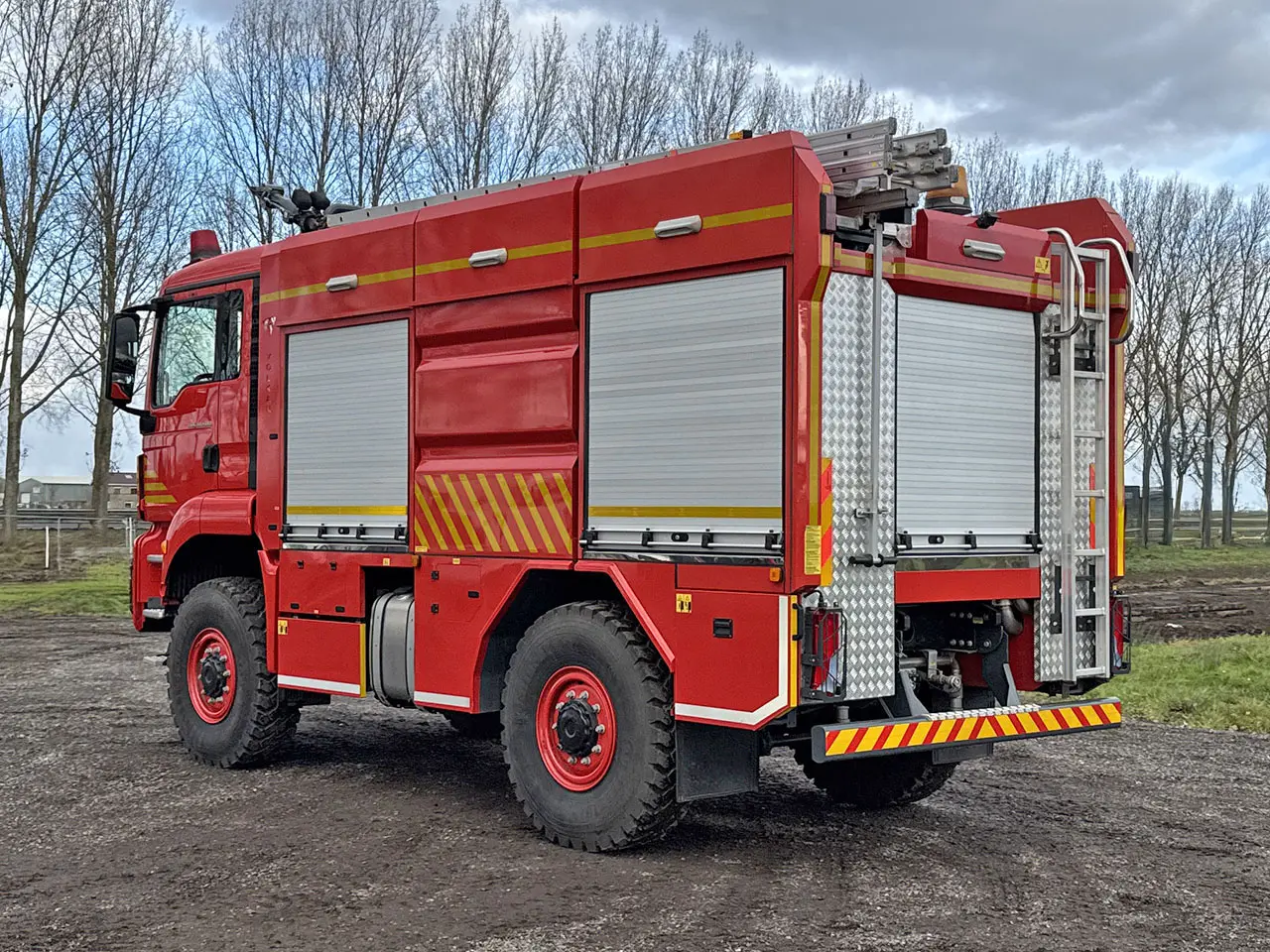

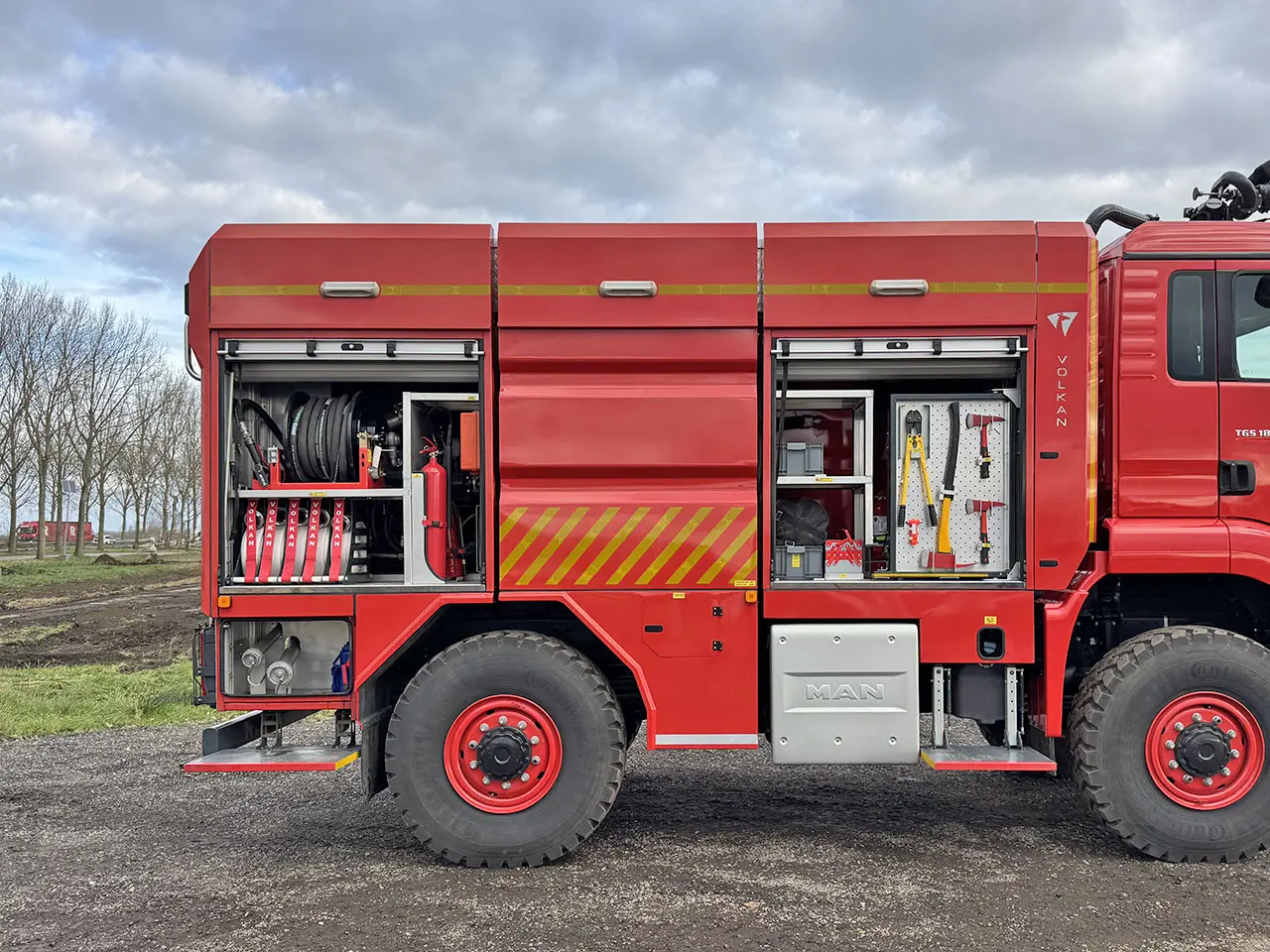

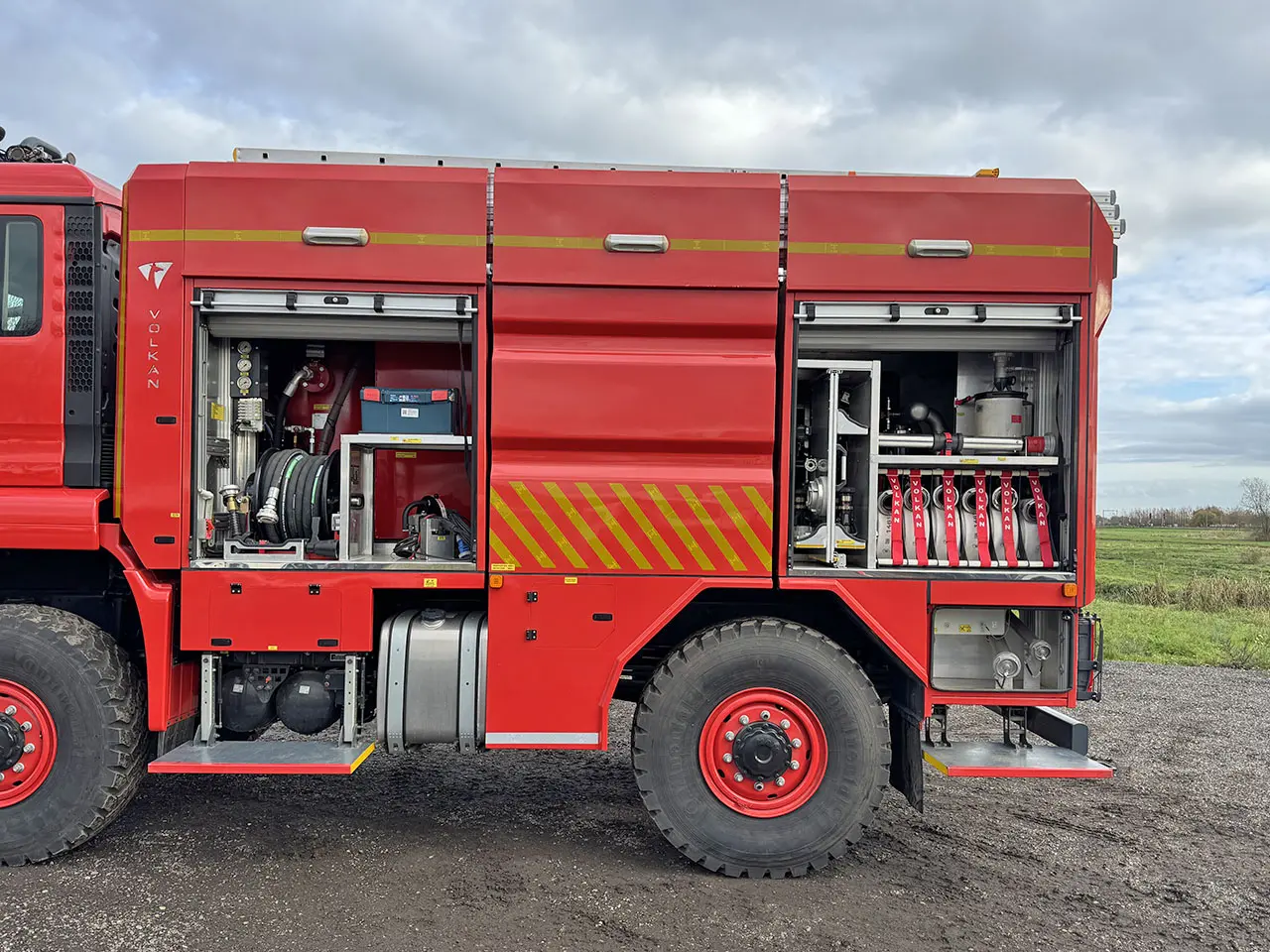

2+2+1 lockers layout
Tanks: water 4.000 ltr. + foam 550 ltr.

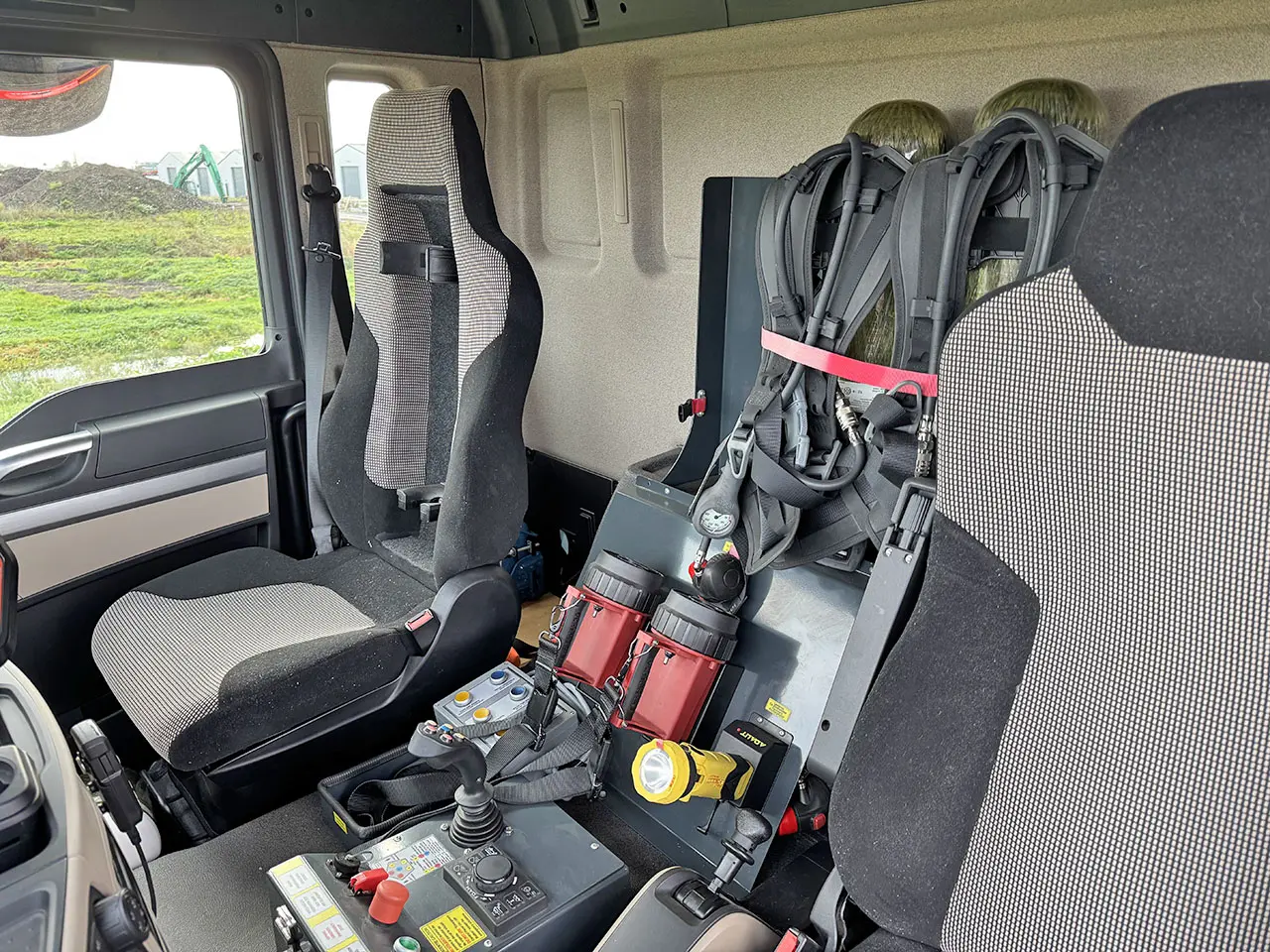

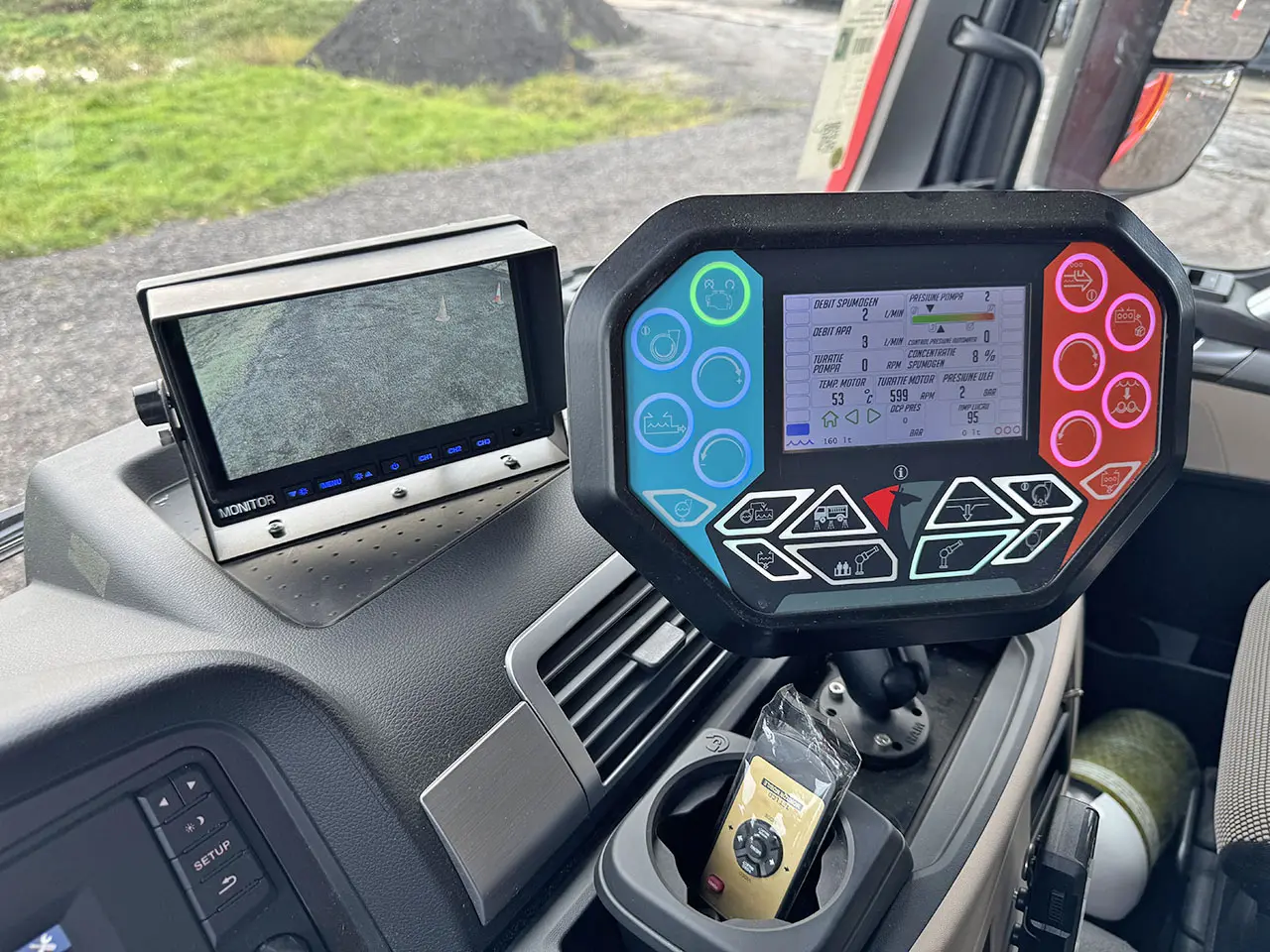

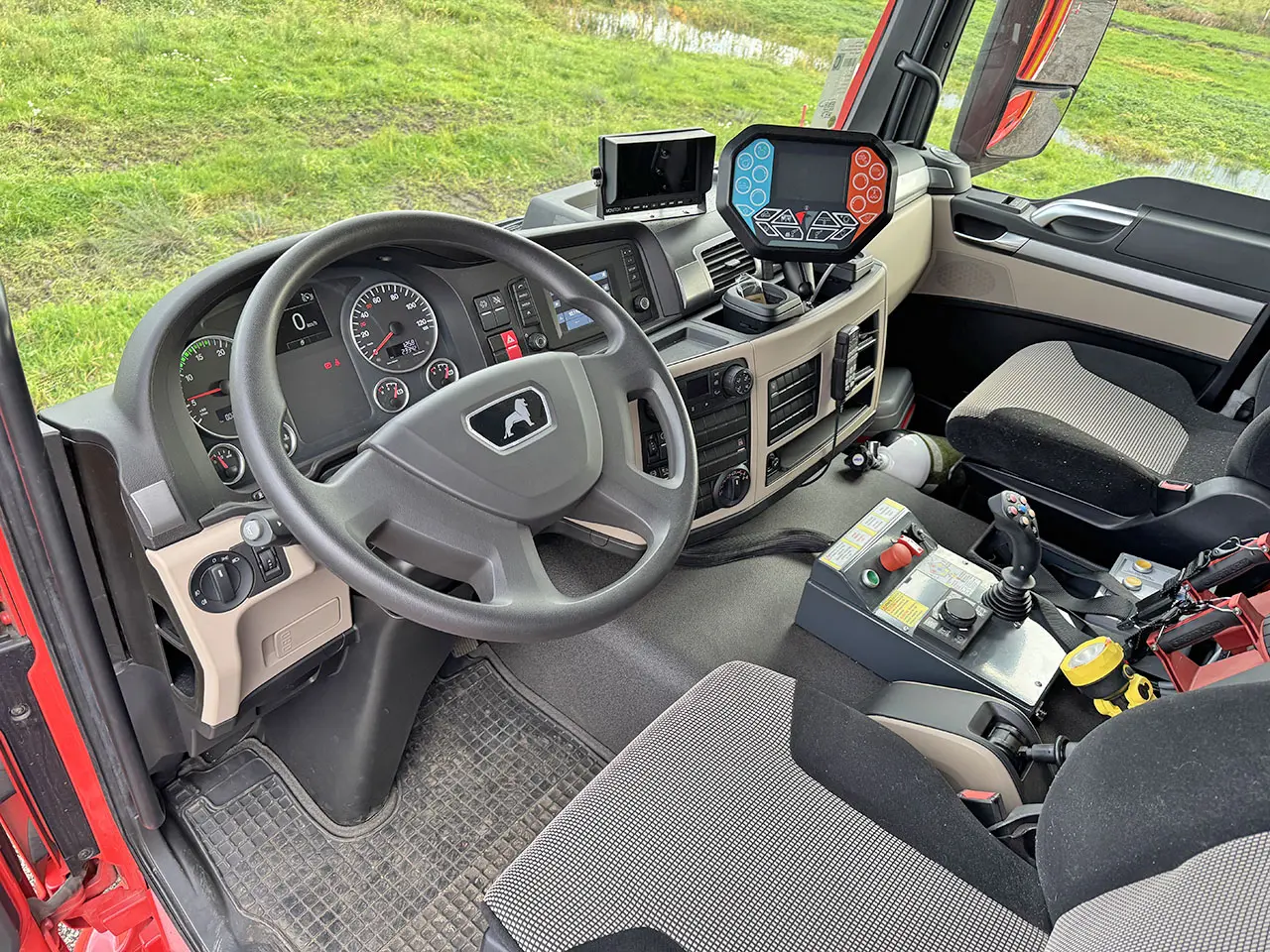

Control panel in the cabin and outdoors at the rear with a complete overview of information.
Central pumping unit VFPN-H 10-400/40-250
Centrifugal pump with 2 self-priming steps
Water and foam monitor: WG3000SE
Monitor flow rate of 3.000 ltr. / min.

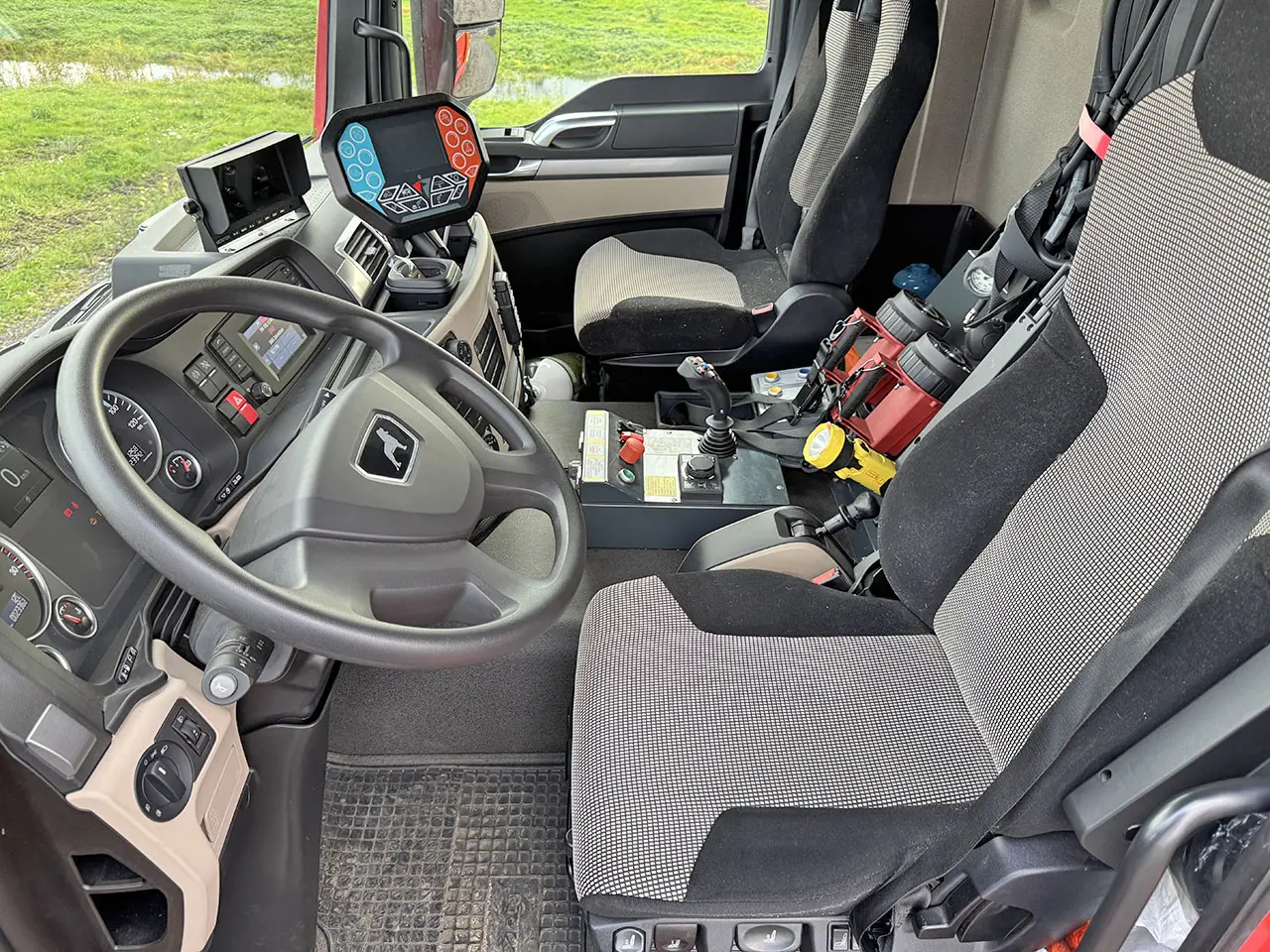

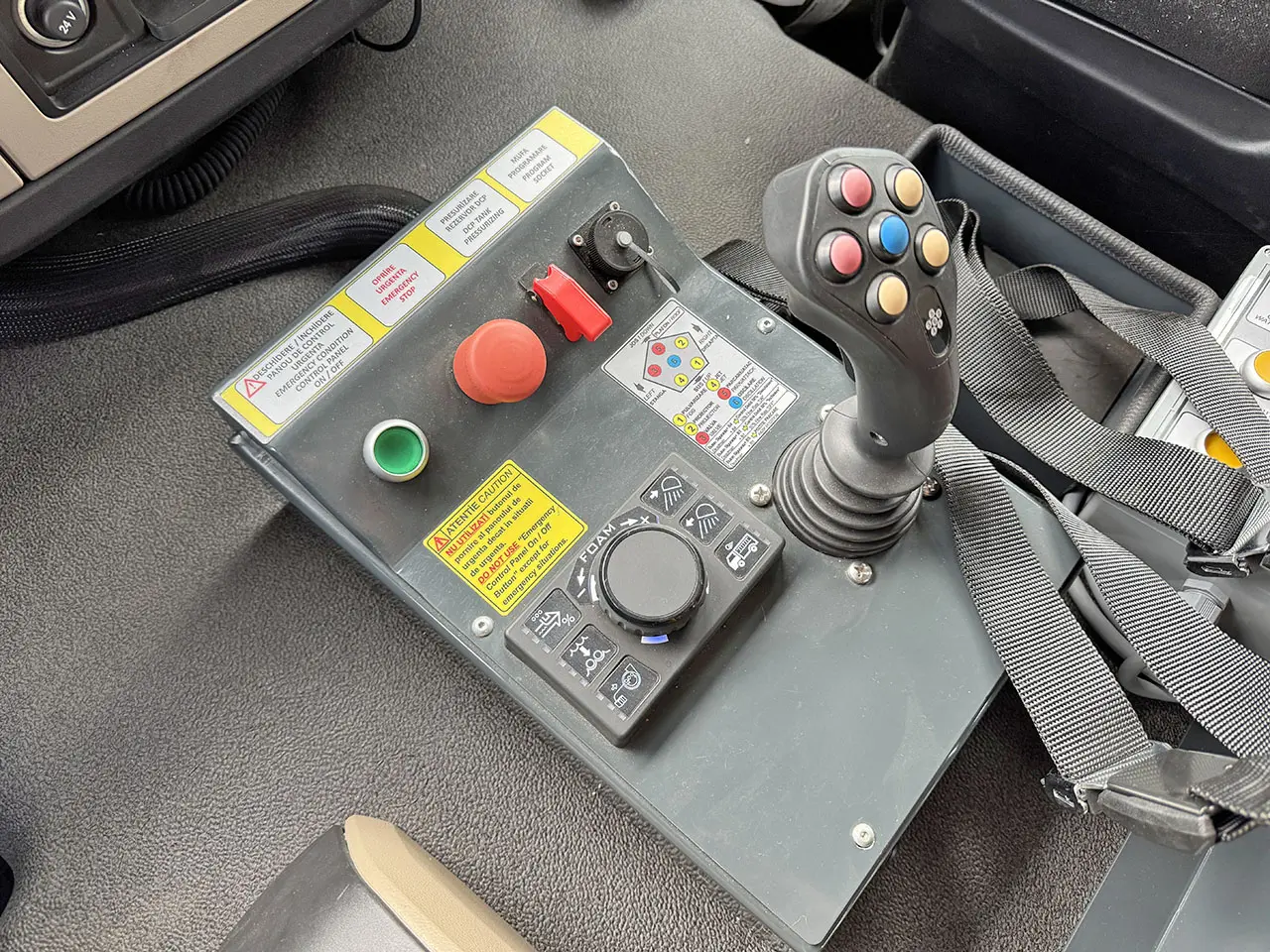

Command: joystick type, in the vehicle cabin.
Shape of the jet adjustable by the joystick
Range of the monitor at the maximum capacity: with a full jet of foam is 45 mtr. with a full jet of water is 60 mtr.
Lifting the monitor vertically from -50 to + 450, horizontal rotation of the monitor 2700, (1350 in each direction)
High-pressure hoses are winded on two reels, one on each side of the truck 30 mtr.
Tools for forcing entry
Rescue / cutting equipment including electrical equipment
Equipment for delivery of the fire extinguishing agent
Ladders, extensible rescue and general use.
Complete specification in pdf.
