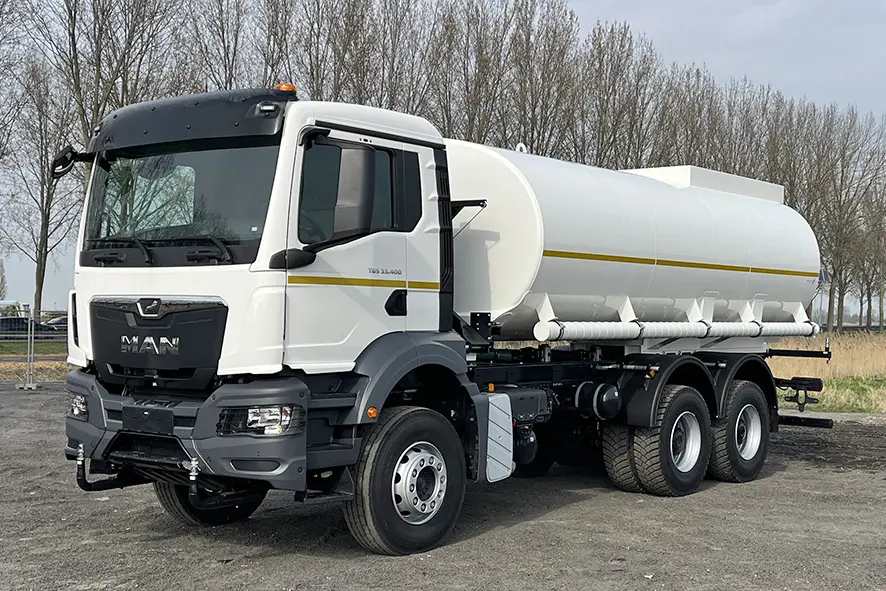

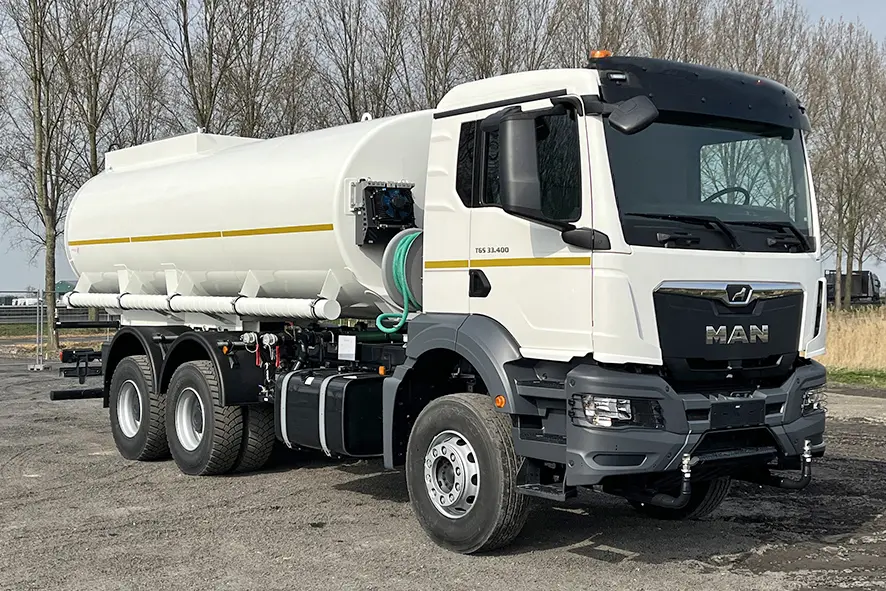

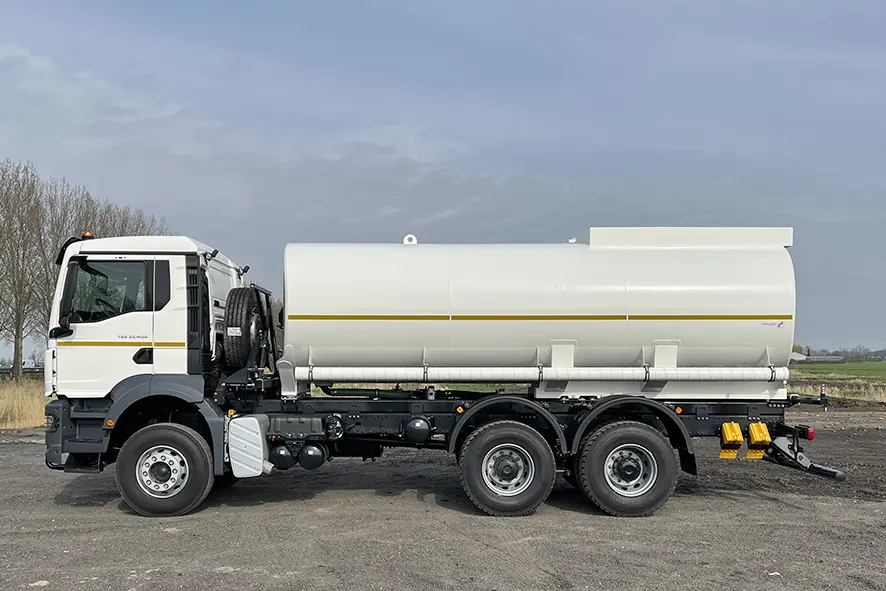

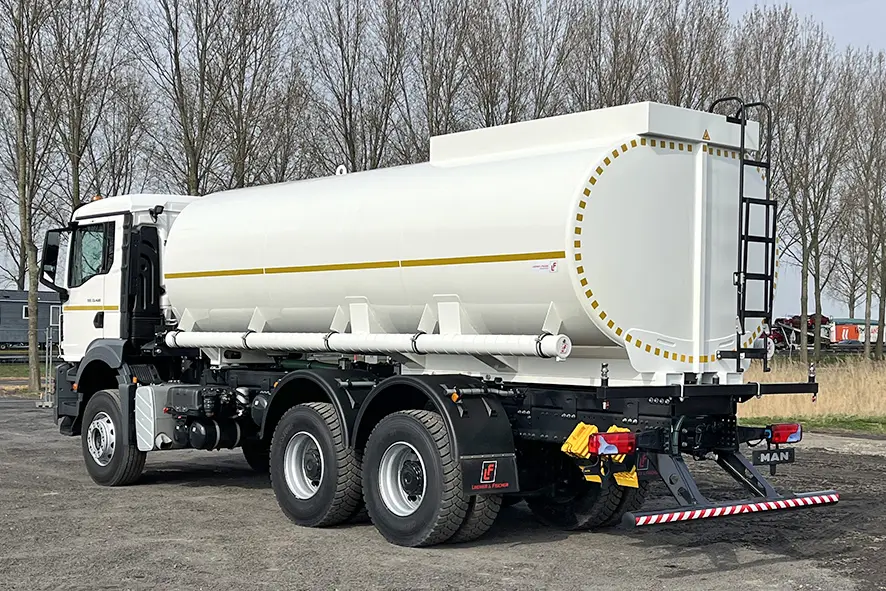

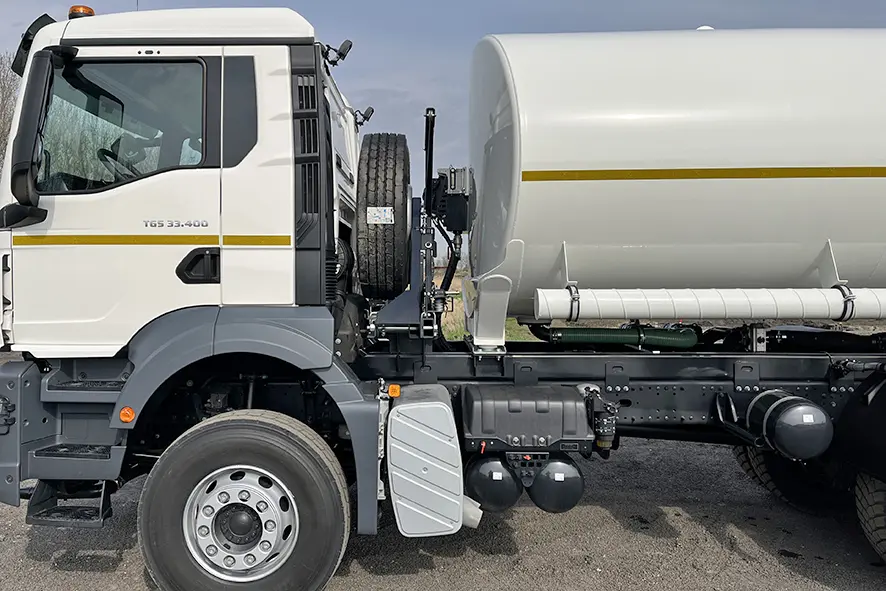

MAN TGS 33.400 BB CH 6x4 Water Tank Truck
6x4
Diesel
Left hand drive
€ 152.500
Net unit price EXW
Specifications
General
- ID
- VMA1548
- Brand
- MAN
- Construction
- Water Tank Truck
- Construction brand
- Lindner-Fischer
- Production year
- 2023
- Model year
- 2023
- Vehicle status
- New / Unused
Engine
- Engine type
- D2066LF06
- Emission code
- EURO-2
- Engine power
- 400hp/294kW

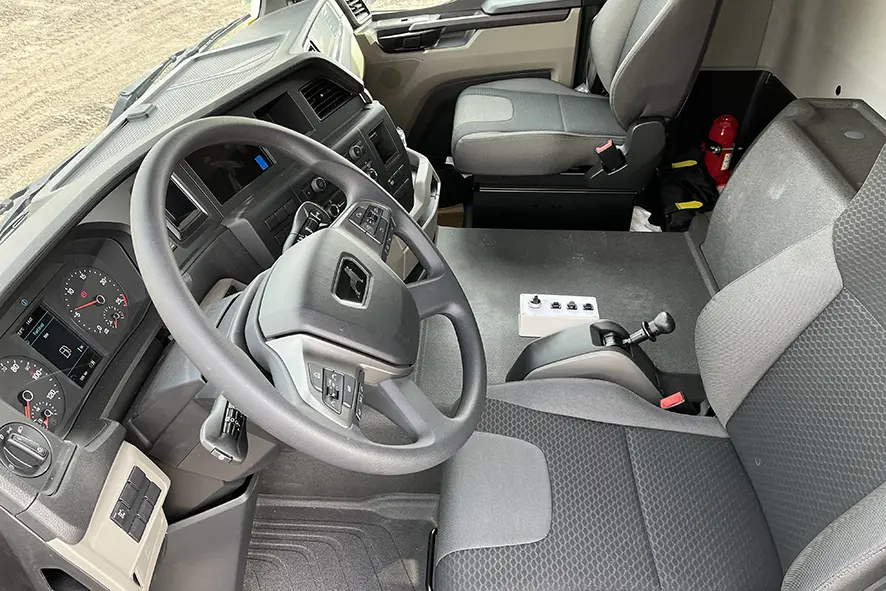

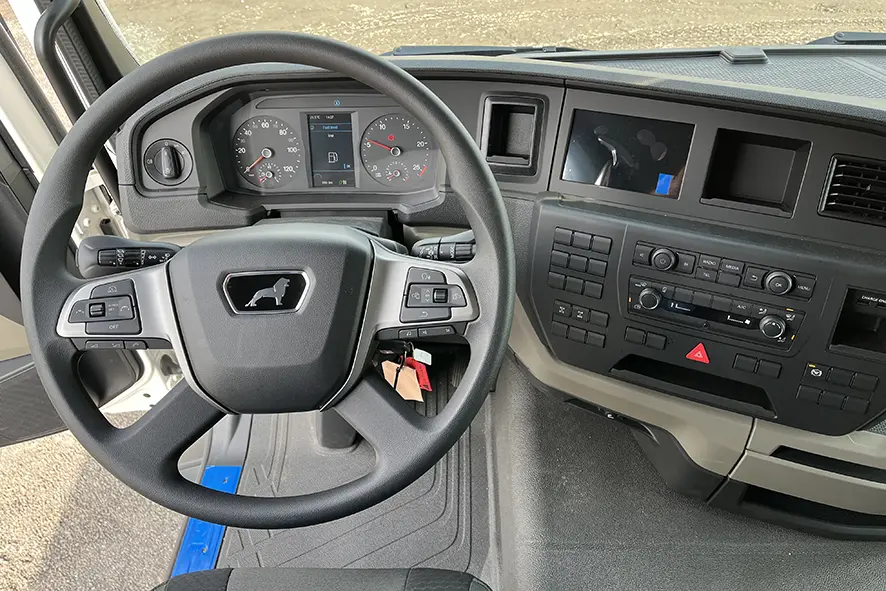

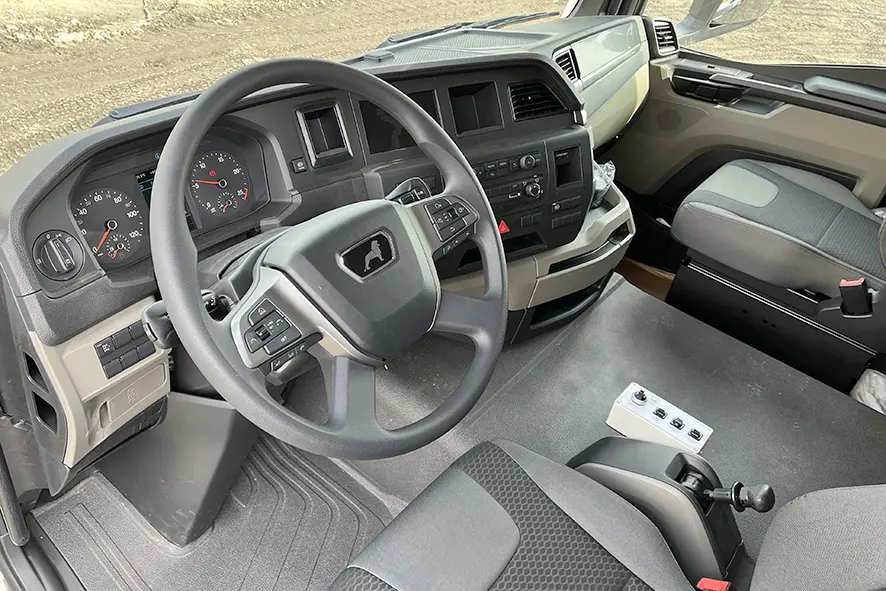

Cabin
- Cabin
- Day
- Steering
- Left hand drive
Gearbox
- Transmission

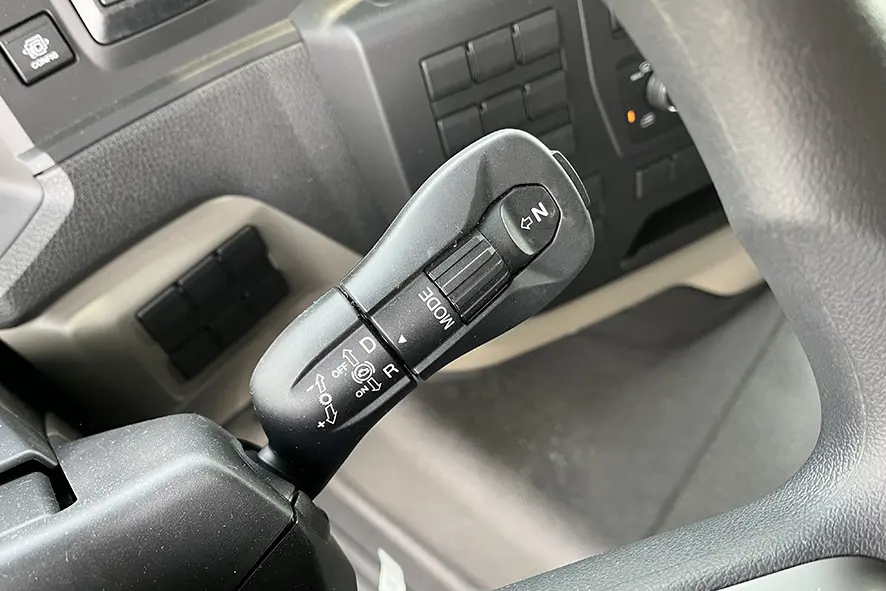

- Automatic
- Gearbox
- TipMatic 12.28 OD
- PTO
- NH/1C
Chassis
- Wheel base
- 3.900 mm
- GVW
- 33.000 kg
- Axle configuration
- 6x4
- Suspension
- Spring
Dimensions
- External dimension
- 9.400 x 2.500 x 3.400 mm
- Empty weight
- 13.000 kg
Axles
Axle 1
- Steering
- Yes
- Tires
- Single
- Brakes
- Drum
- Suspension
- Spring
- Driven
- No
- Tire size
- 315/80R22.5
Axle 2
- Steering
- No
- Tires
- Double
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 315/80R22.5
Axle 3
- Steering
- No
- Tires
- Double
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 315/80R22.5
Remarks
Fuel tank: 400 ltr.Air conditioning
Equipped with 20.000 ltr. Lindner & Fischer water tank:
Type: TA200SW
One compartments
Transport and distribution of drinking water

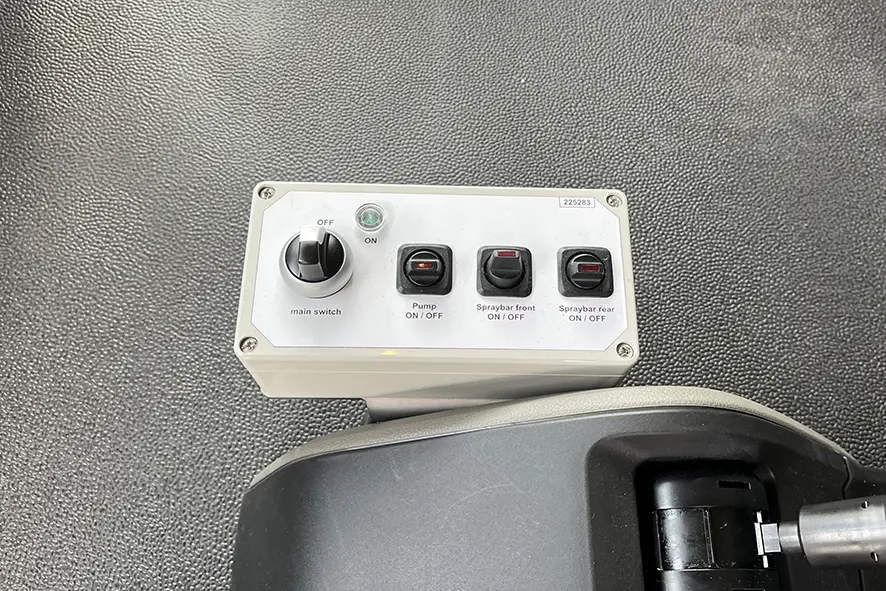

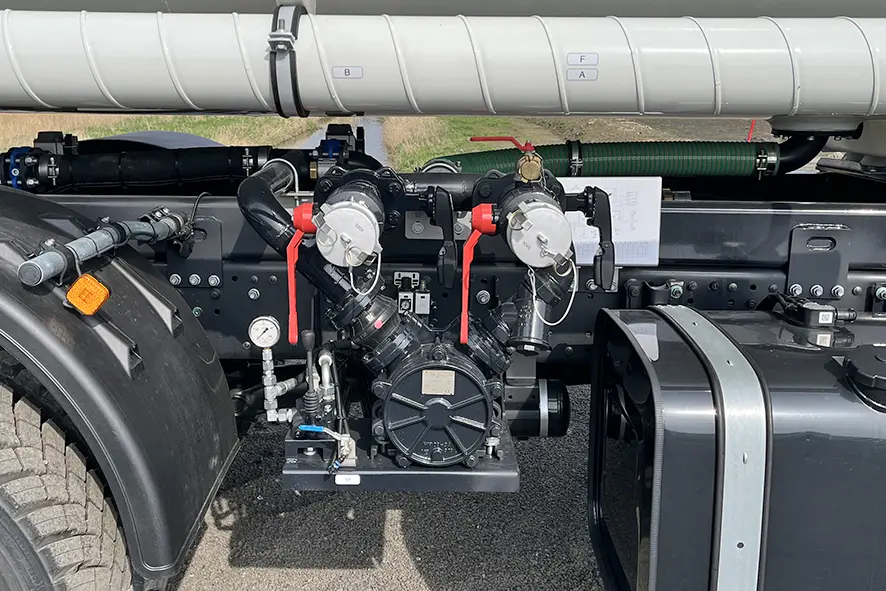

PTO driven water pump

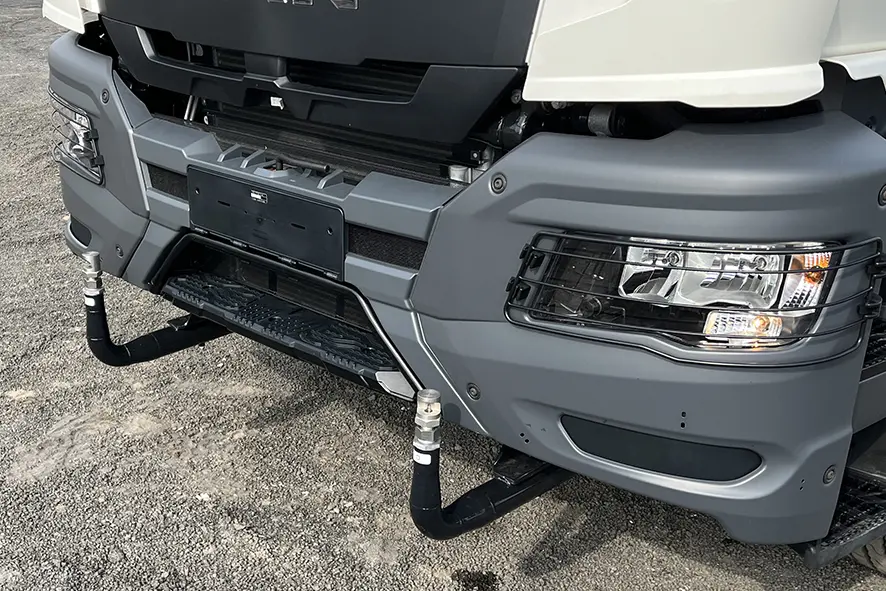

Front and rear mounted spray bar with two special fan-nozzles (frog-type) pressure working.
Adjustable spraying width with pump from approx. 10 mtr. to 12 mtr.

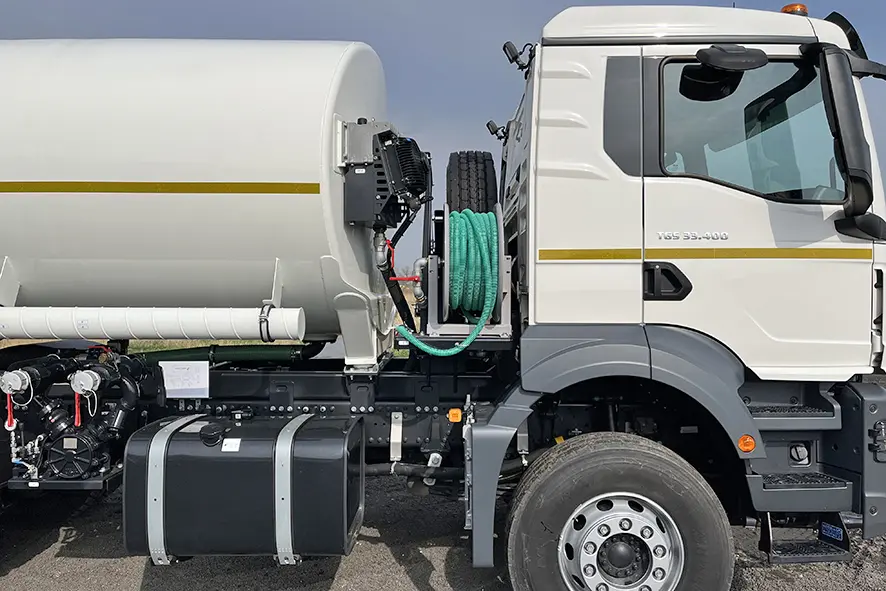

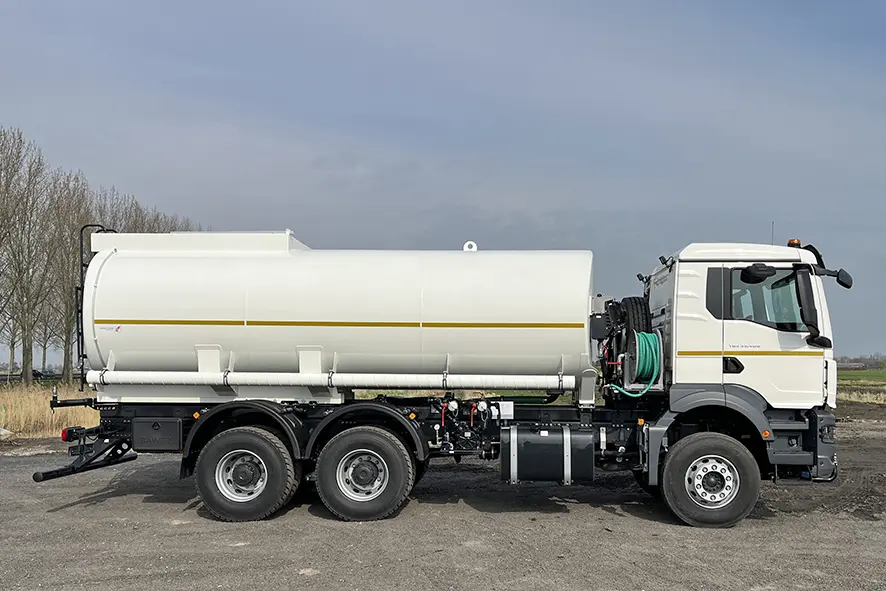

One hose reel, spring loaded, with 20 mtr. hose x 1 inch and manual discharge nozzle, mounted at appropriate position.

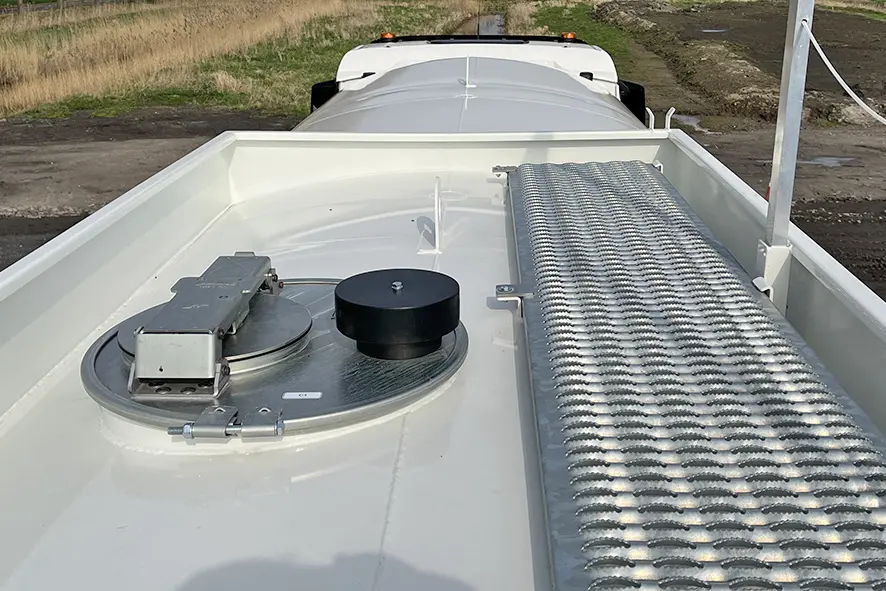

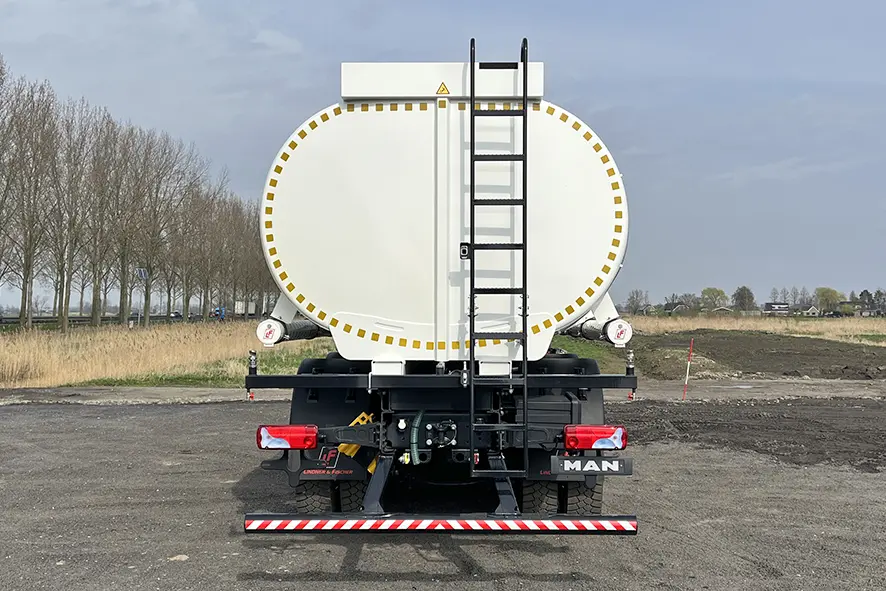

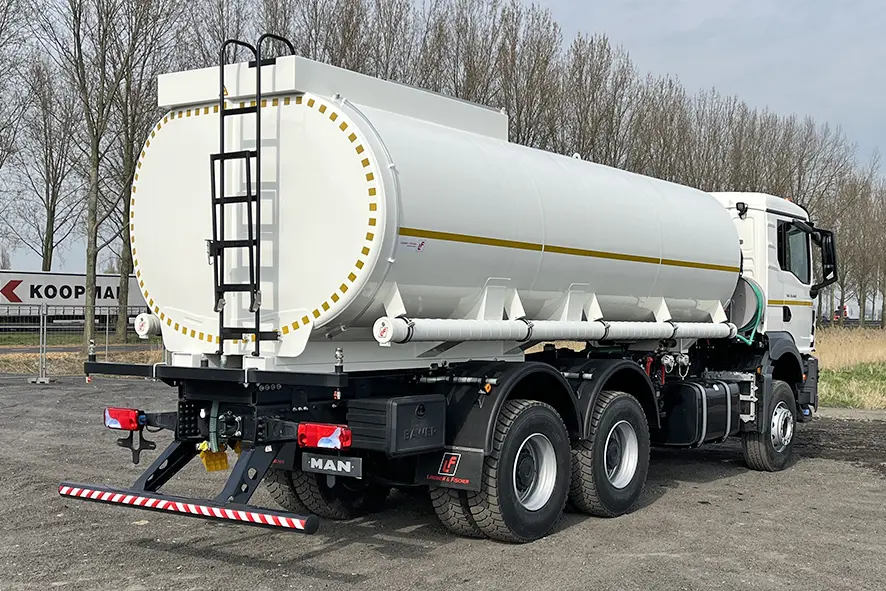

Open mesh walkway on the right-hand side of the manhole cover, with rear mounted foldable access ladder.
Complete specification in pdf.
