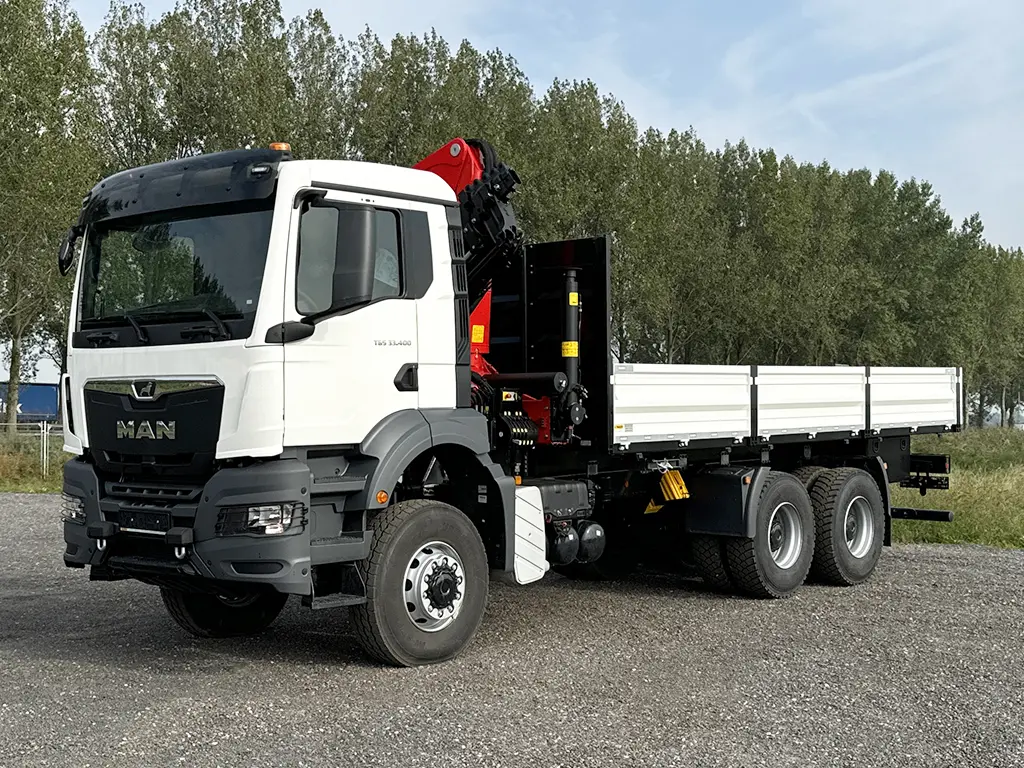

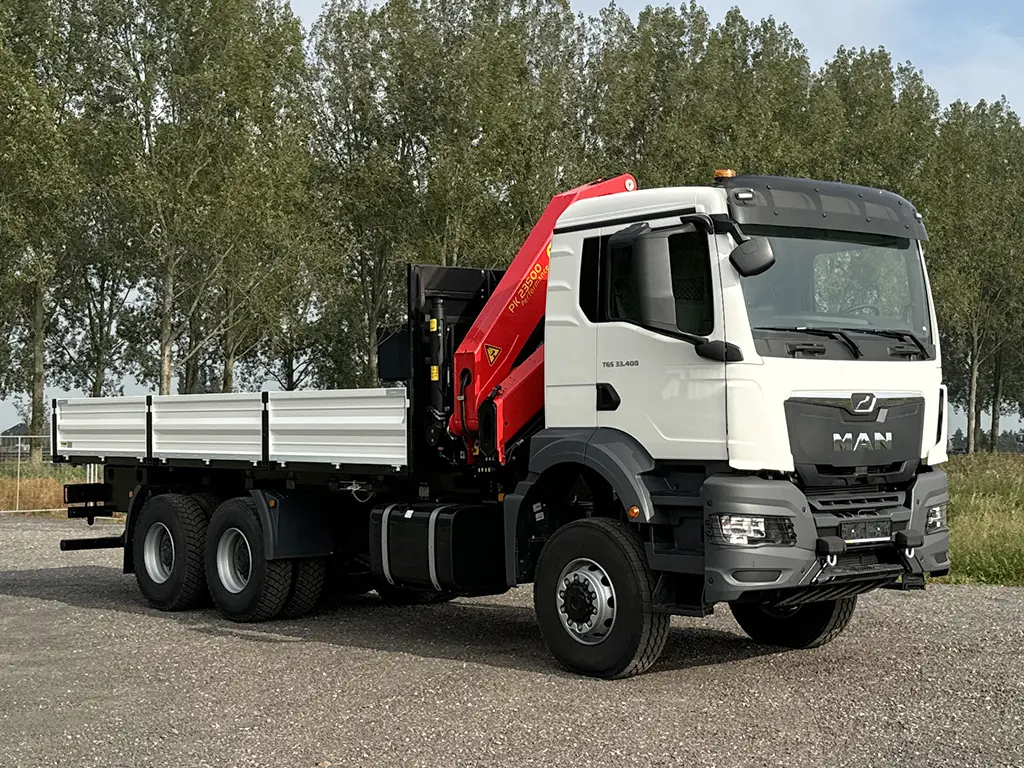

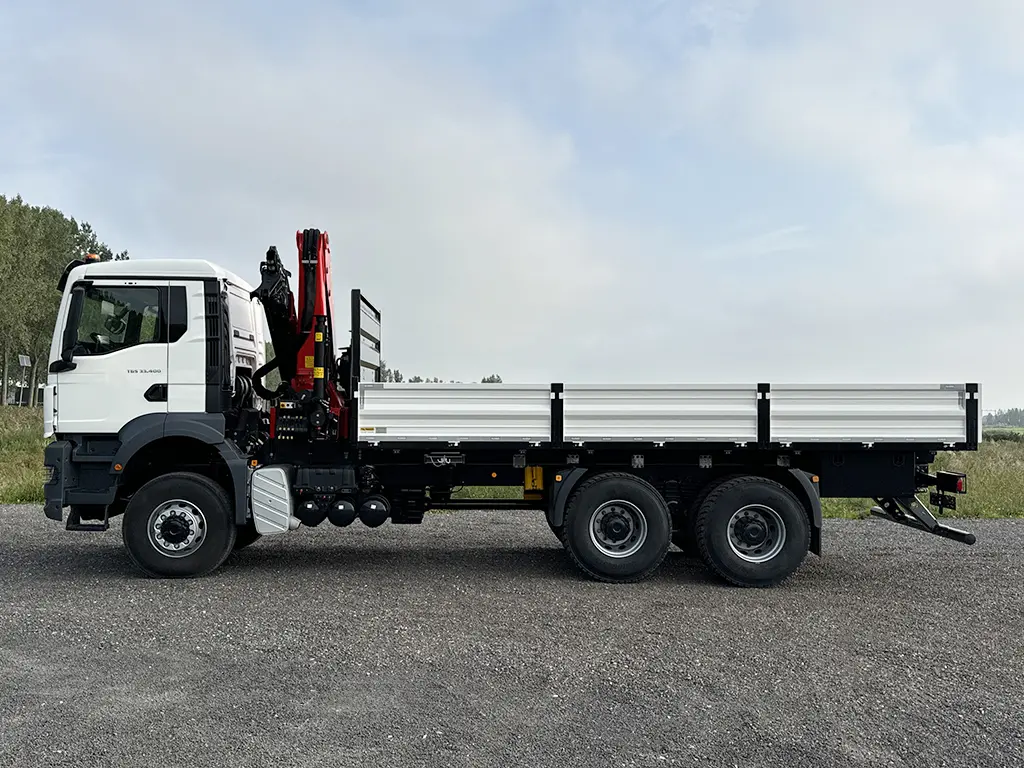

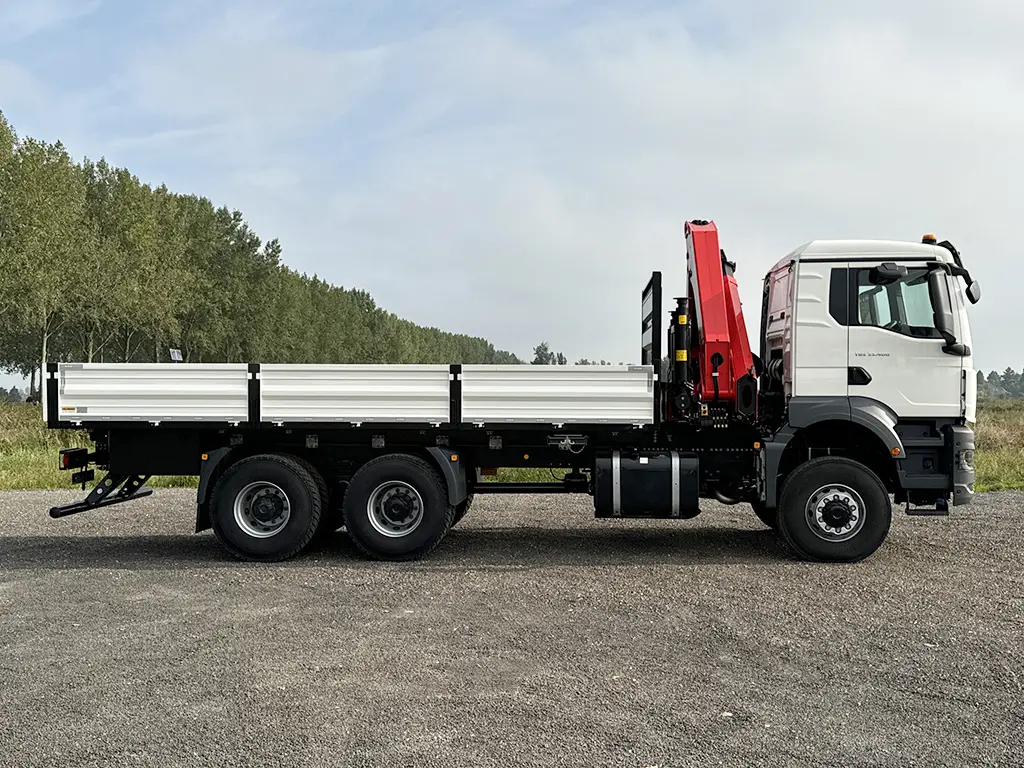

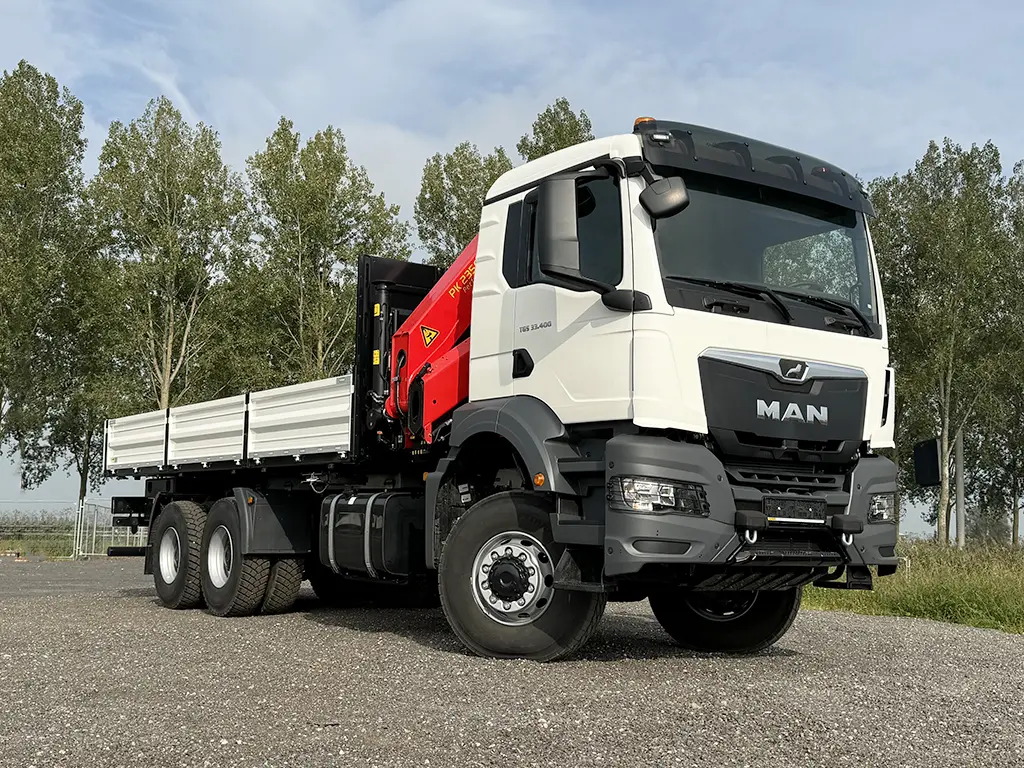

MAN TGS 33.400 BB CH 6x6 Crane Truck
6x6
Diesel
Left hand drive
€ 199.000
Net unit price EXW
Specifications
General
- ID
- VMA5059
- Brand
- MAN
- Construction
- Crane Truck
- Construction brand
- Palfinger
- Production year
- 2024
- Model year
- 2024
- Vehicle status
- New / Unused
Engine
- Engine type
- D2066LF06
- Emission code
- EURO-2
- Engine power
- 400hp/294kW

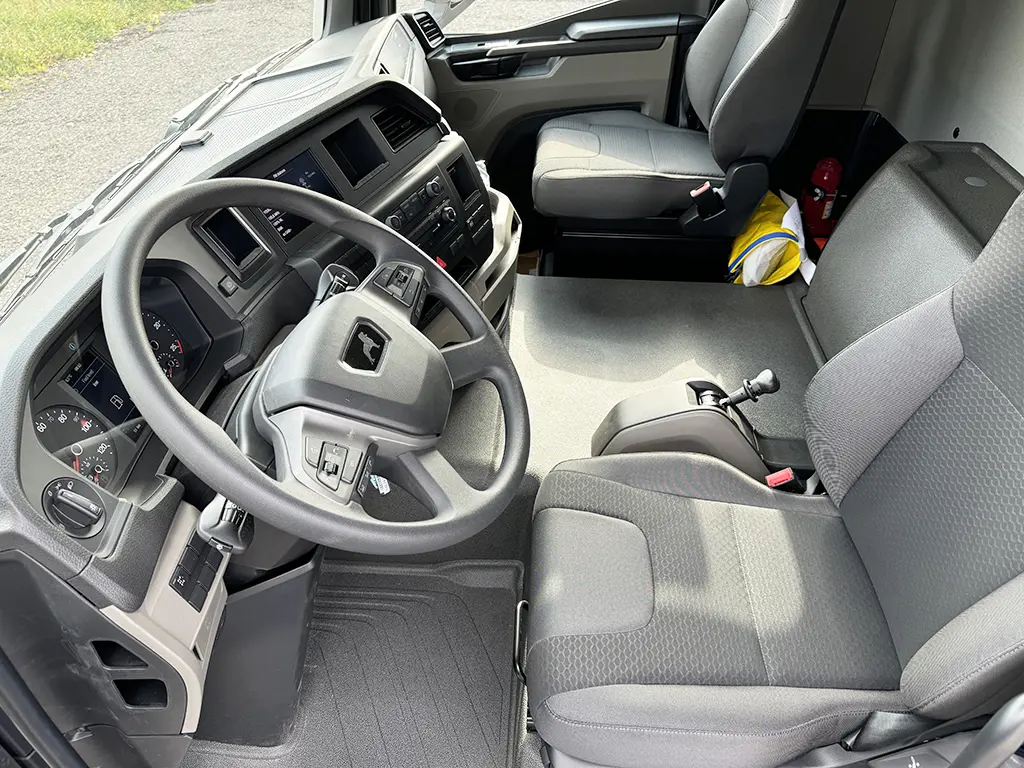

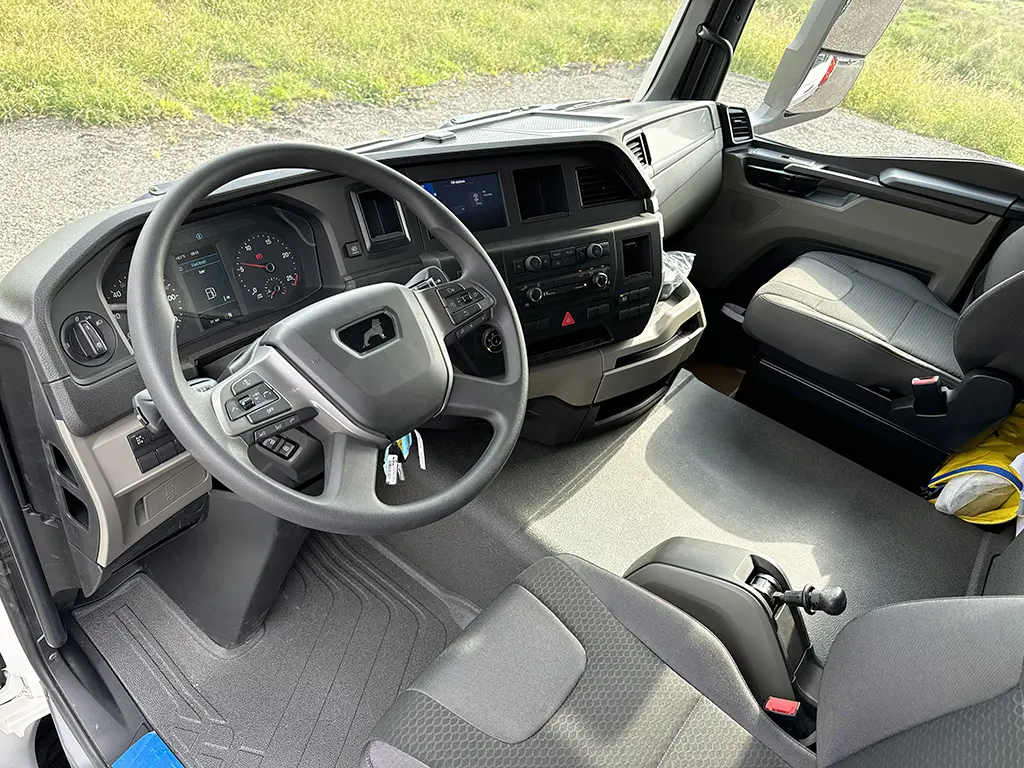

Cabin
- Cabin
- Day
- Steering
- Left hand drive
Gearbox
- Transmission
- Automatic
- Gearbox
- TipMatic 12.28 OD
- PTO
- NH/1C
Chassis
- Wheel base
- 4.500 mm
- GVW
- 33.000 kg
- Axle configuration
- 6x6
- Suspension
- Spring
Dimensions
- External dimension
- 9.700 x 2.500 x 3.650 mm
- Empty weight
- 15.200 kg
Axles
Axle 1
- Steering
- Yes
- Tires
- Single
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes

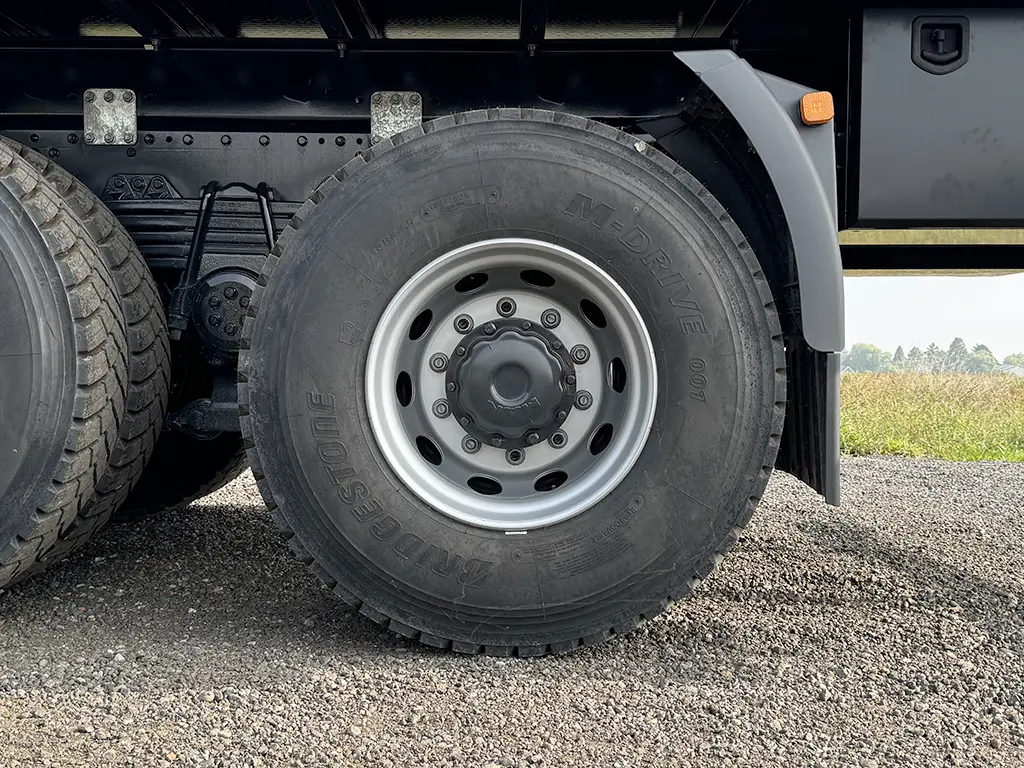

- Tire size
- 13R22.5
Axle 2
- Steering
- No
- Tires
- Double
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 13R22.5
Axle 3
- Steering
- No
- Tires
- Double
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 13R22.5
Remarks
Fuel tank: 400 ltr.Air conditioning

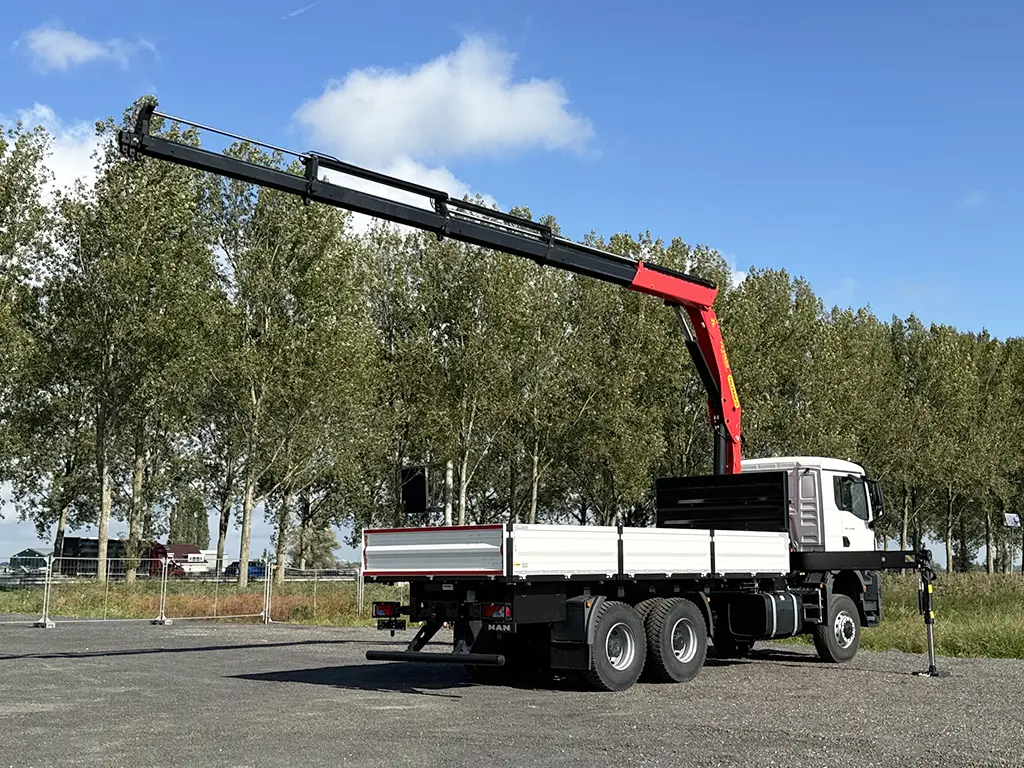

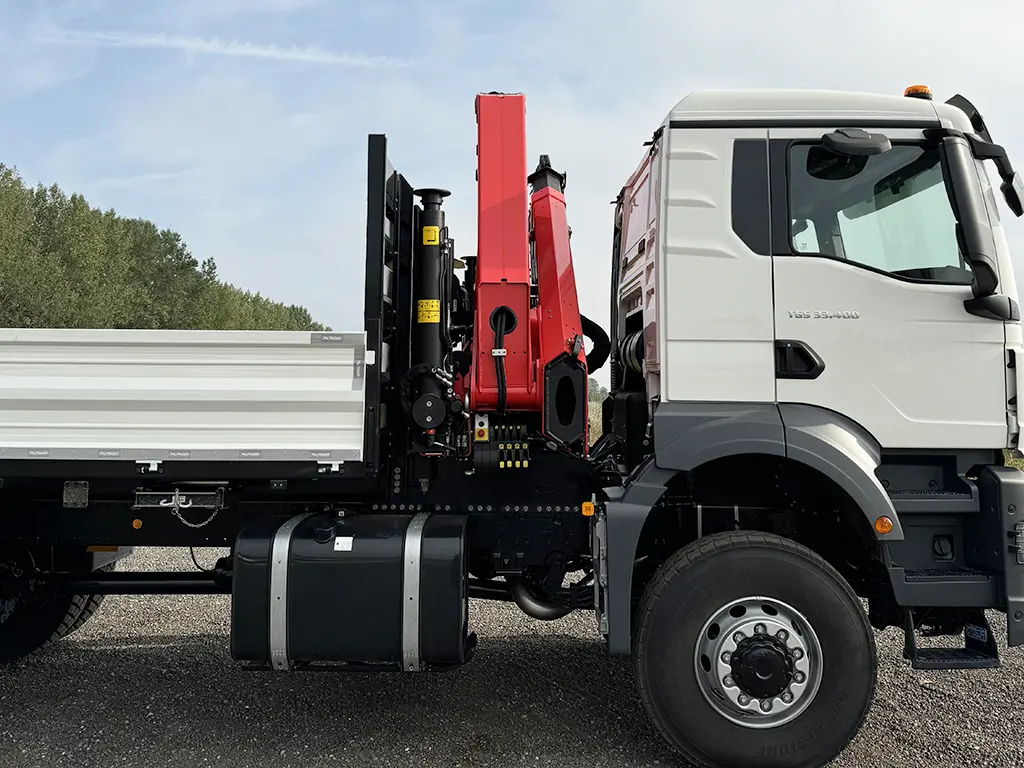

Equipped with crane and flatbed:

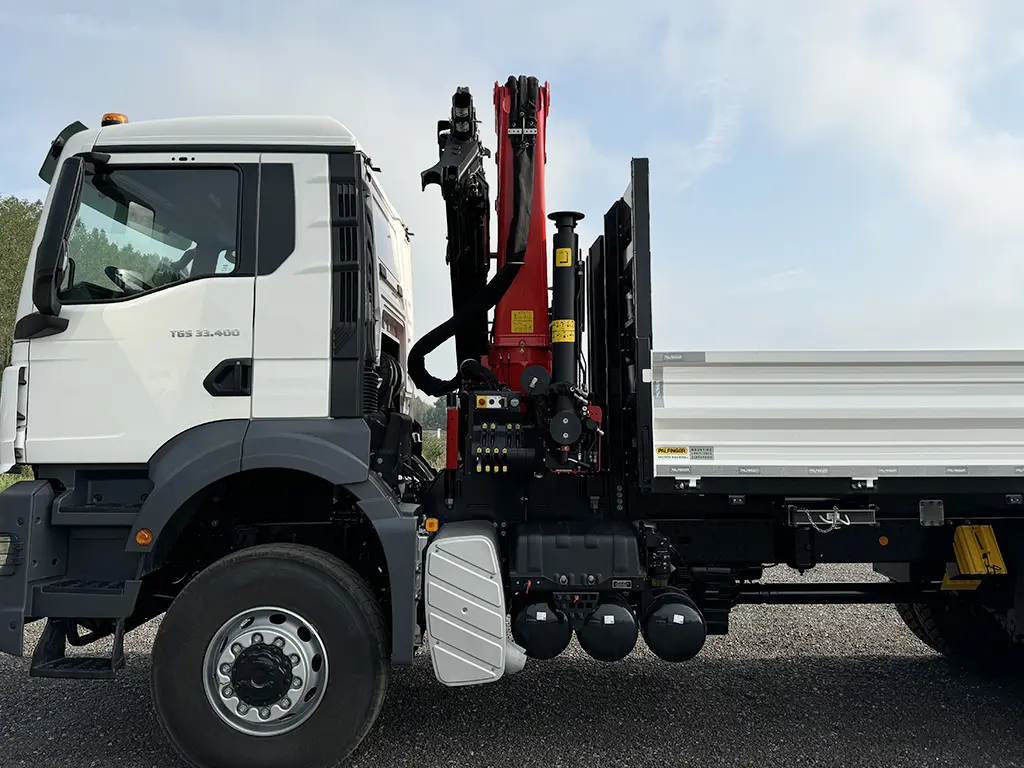

Type: Palfinger PK23500C
Lifting moment 226.0 kNm / 23.0 mt

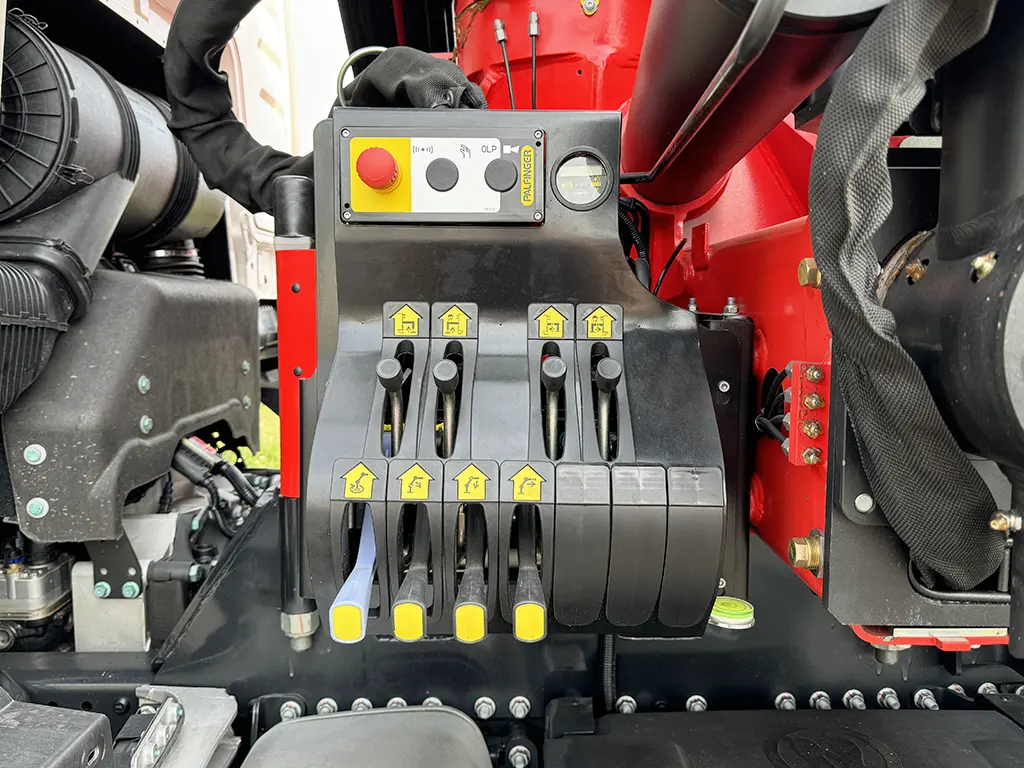

Emergency cut off
Digital hour counter
Oil cooler 10,5 kW
Hydraulic overload protection

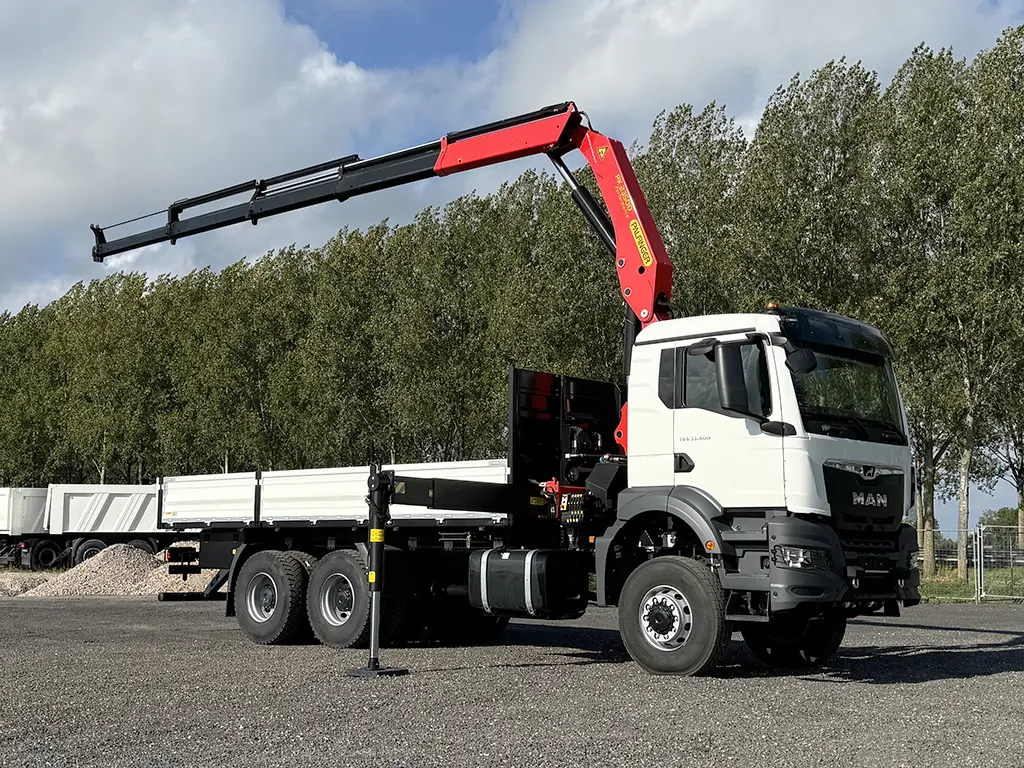

Outriggers hydraulic long

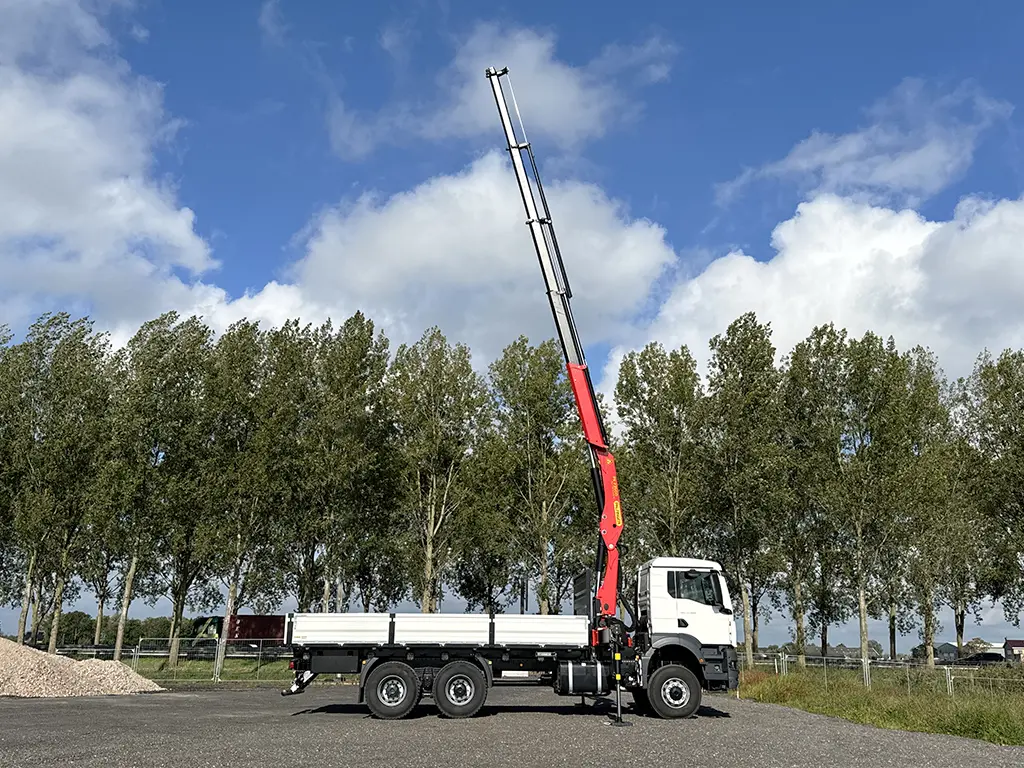

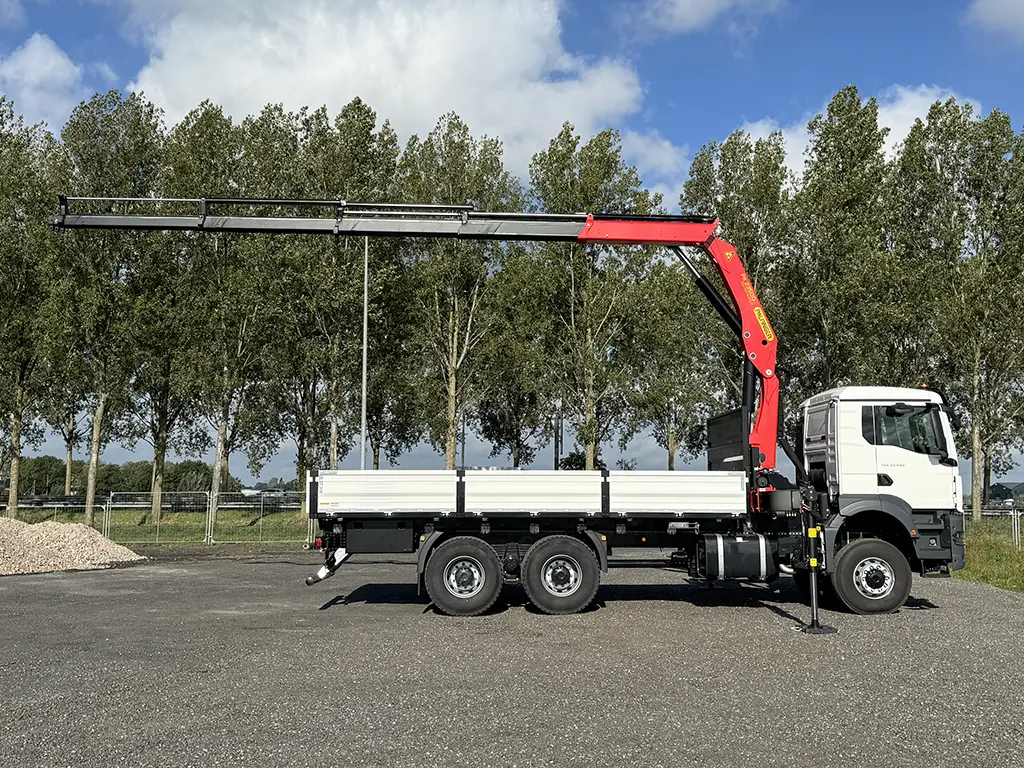

4 section hydraulic extension boom
+ 2 manual extensions
Stabilizer pads 400x400x50 mm.
2 tool boxes

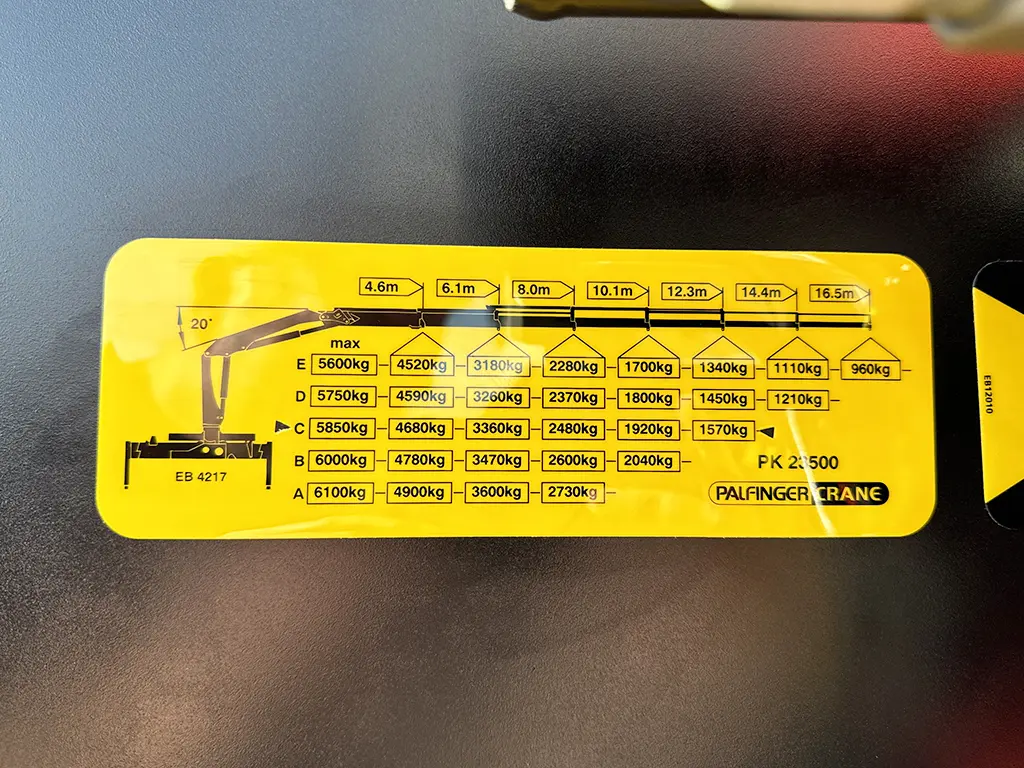

Lifting capacity:
5.850 kg / 3.80 m
4.680 kg / 4.60 m
3.360 kg / 6.10 m
2.480 kg / 8.00 m
1.920 kg / 10.10 m
1.570 kg / 12.30 m

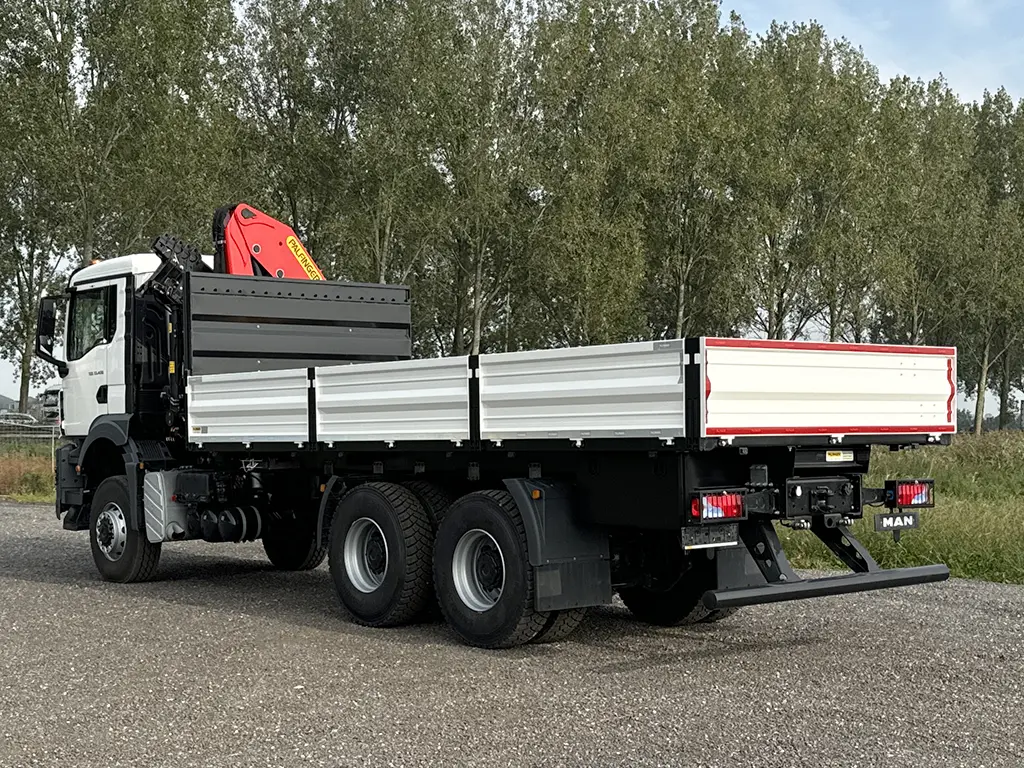

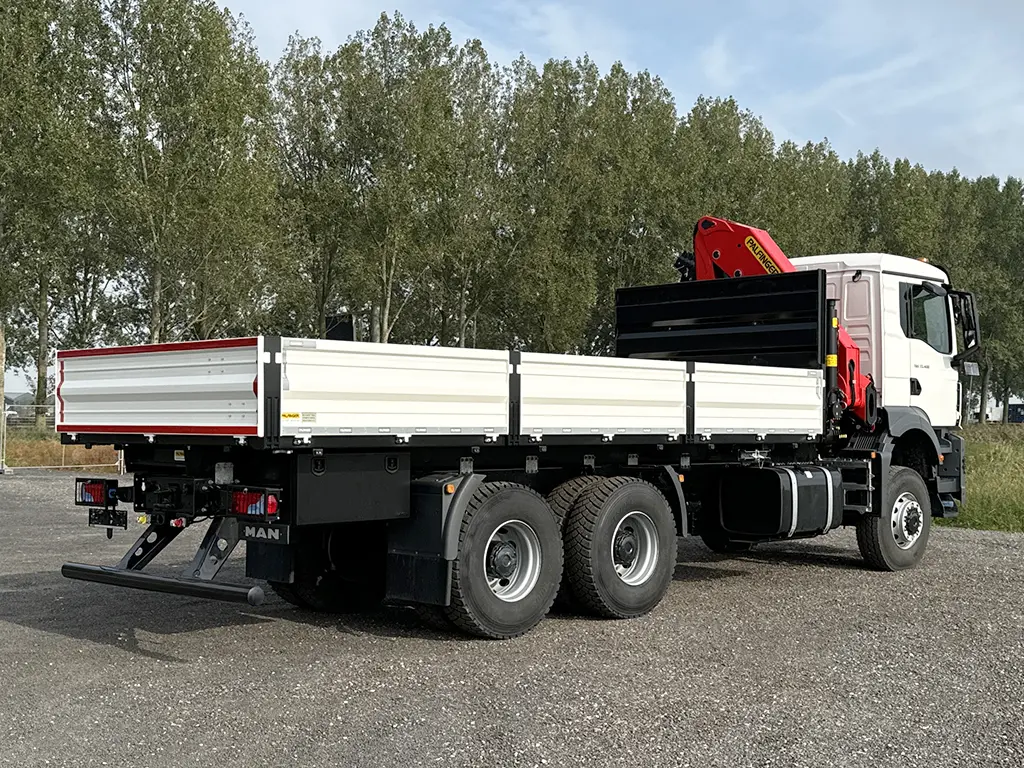

Open flatbed body with foldable sideboards
Twistlocks for 20 ft container
Flatbed body dimensions (LxWxH): 6.300 x 2.480 x 600 mm.
Complete specification in PDF.
