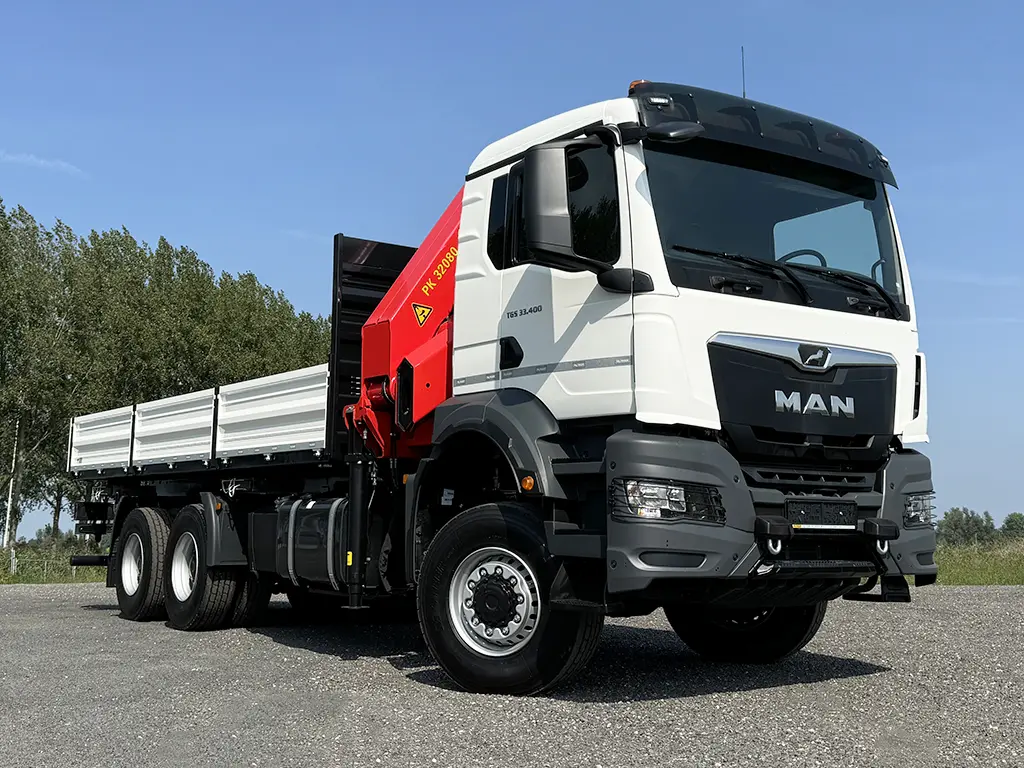

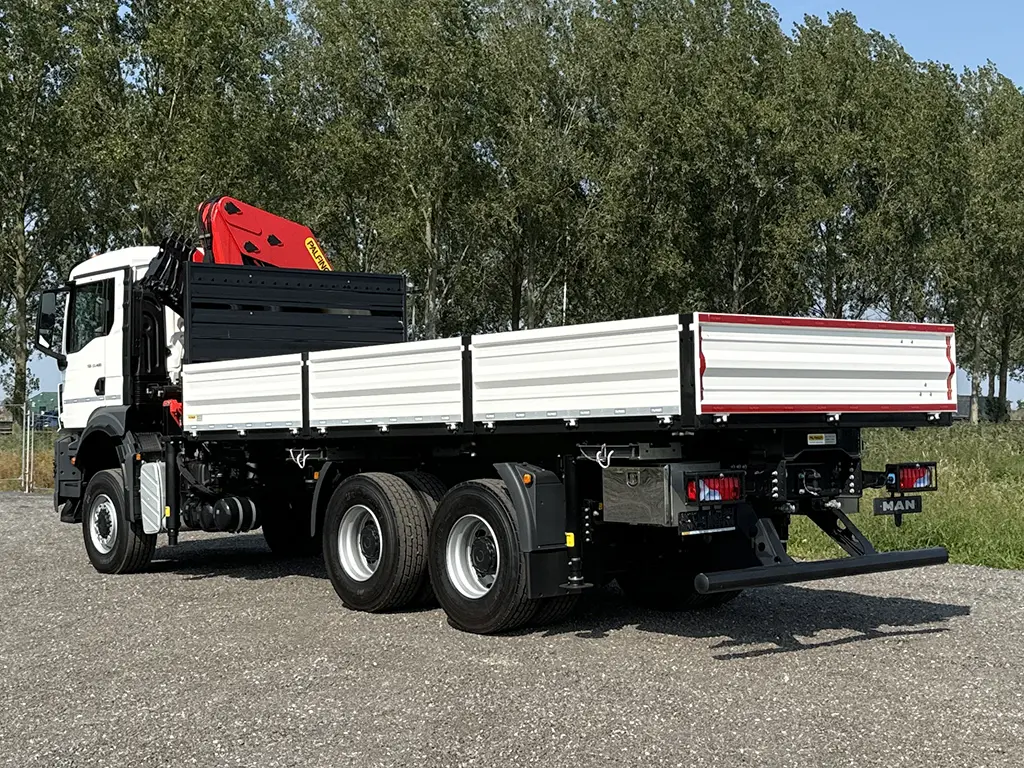

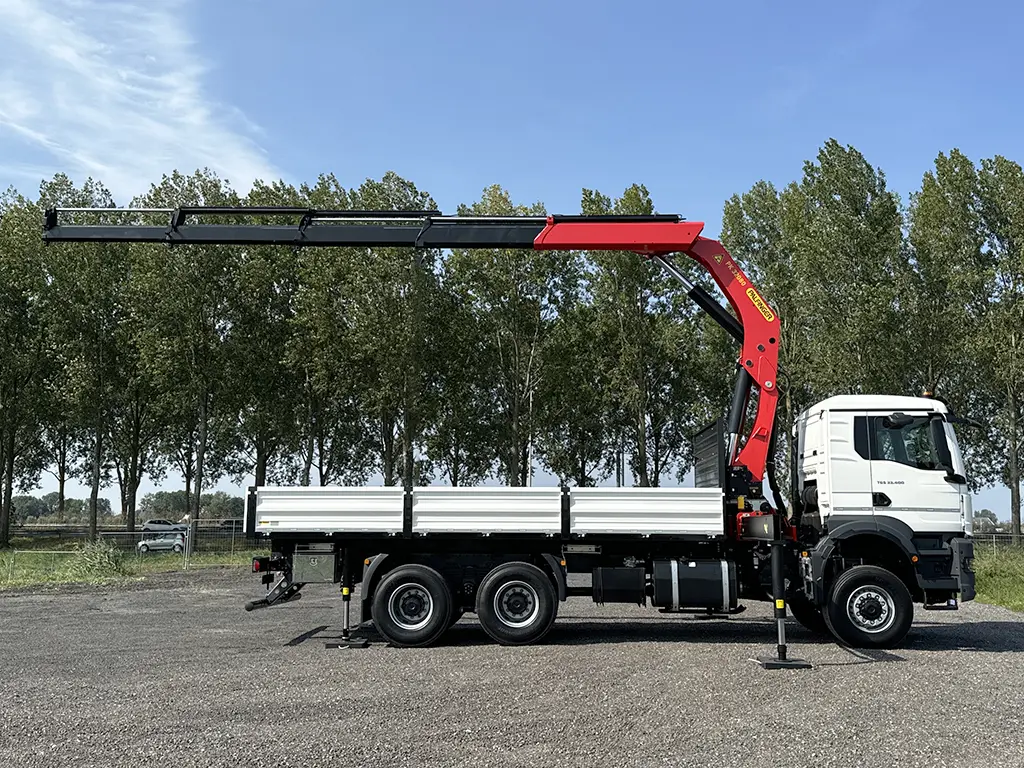

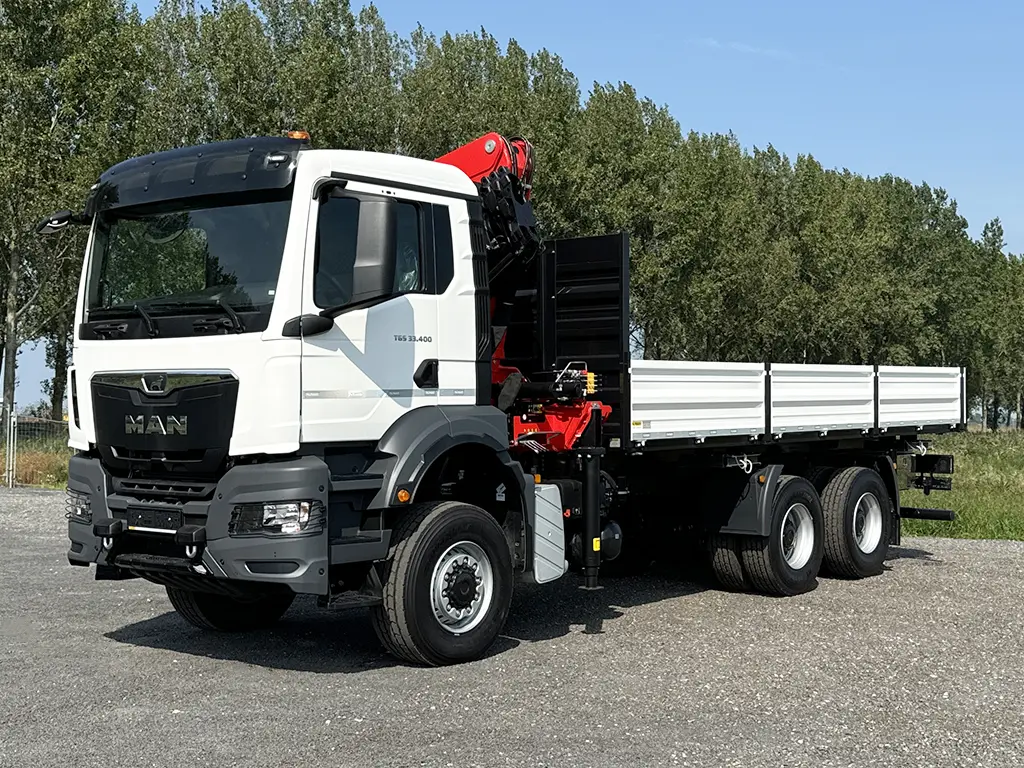

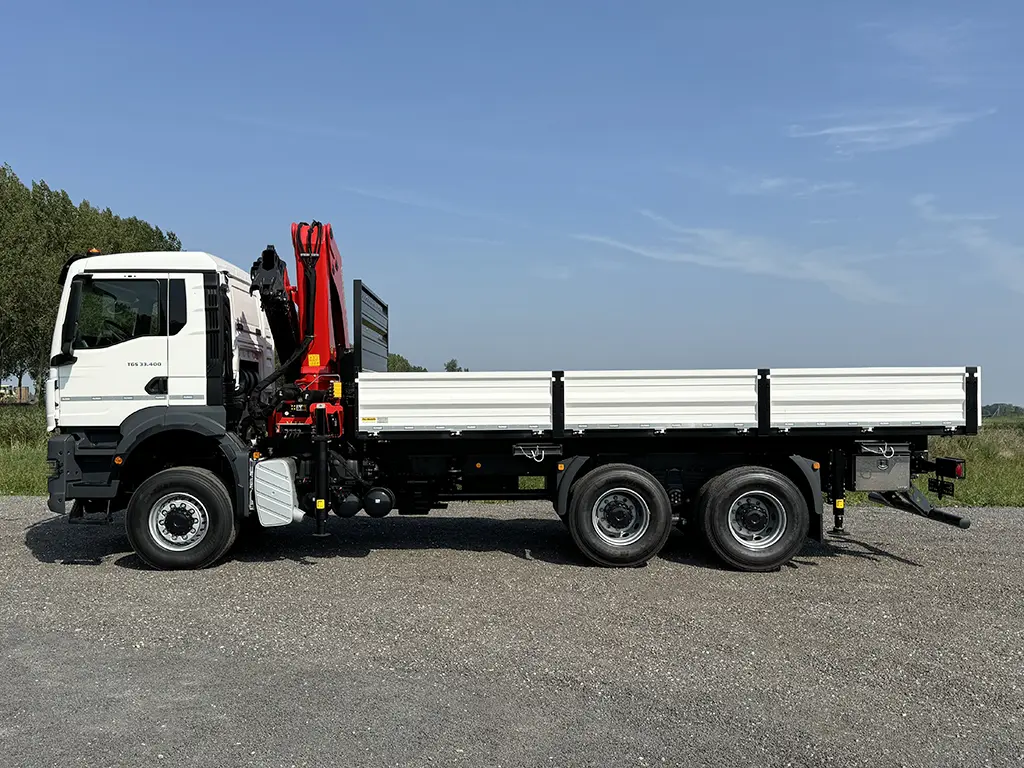

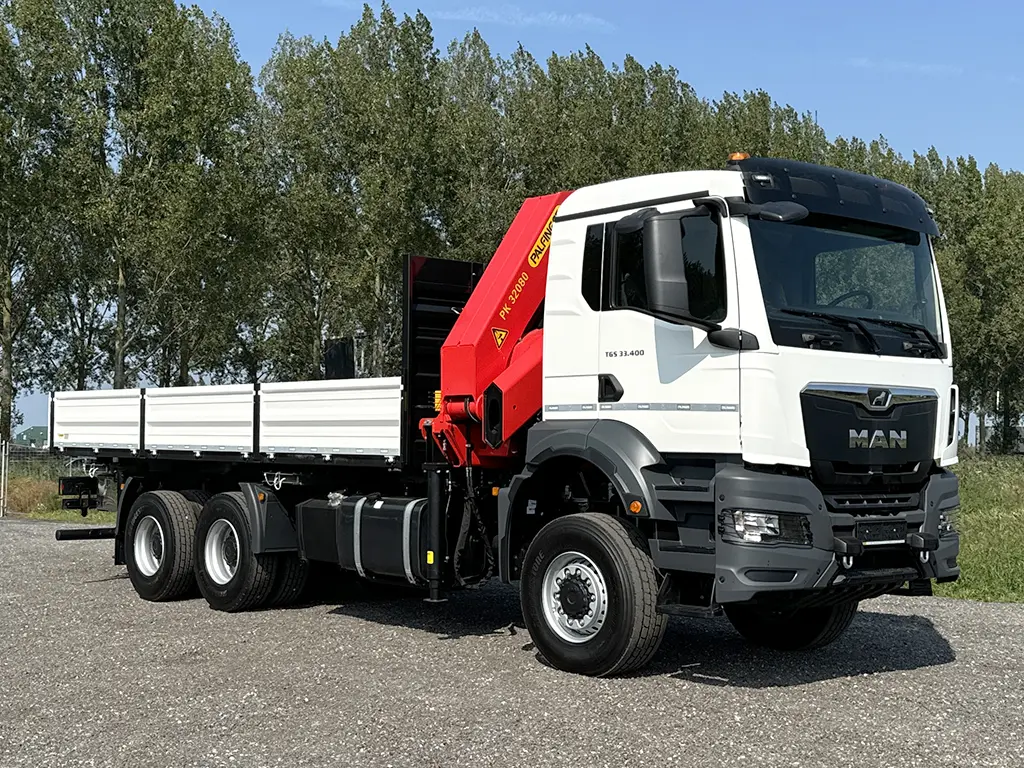

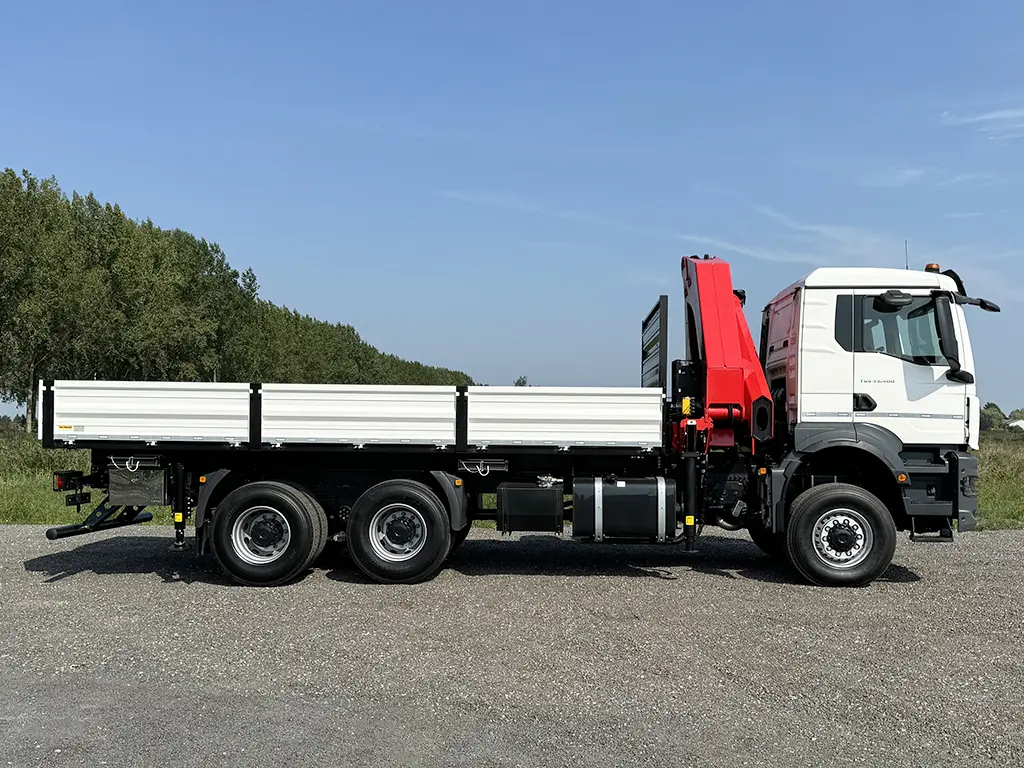

MAN TGS 33.400 BB CH 6x6 Crane Truck
6x6
Diesel
Left hand drive
€ 223.500
Net unit price EXW
Specifications
General
- ID
- VMA5061
- Brand
- MAN
- Construction
- Crane Truck
- Construction brand
- Palfinger
- Production year
- 2024
- Model year
- 2024
- Vehicle status
- New / Unused
Engine
- Engine type
- D2066LF06
- Emission code
- EURO-2
- Engine power
- 400hp/294kW

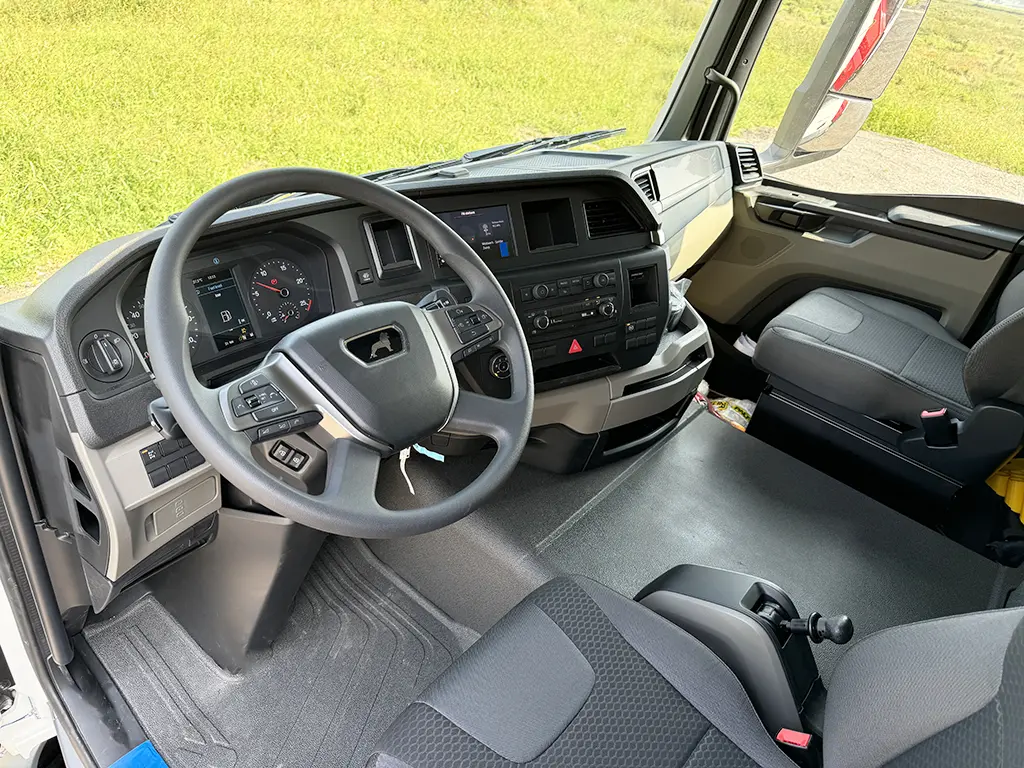

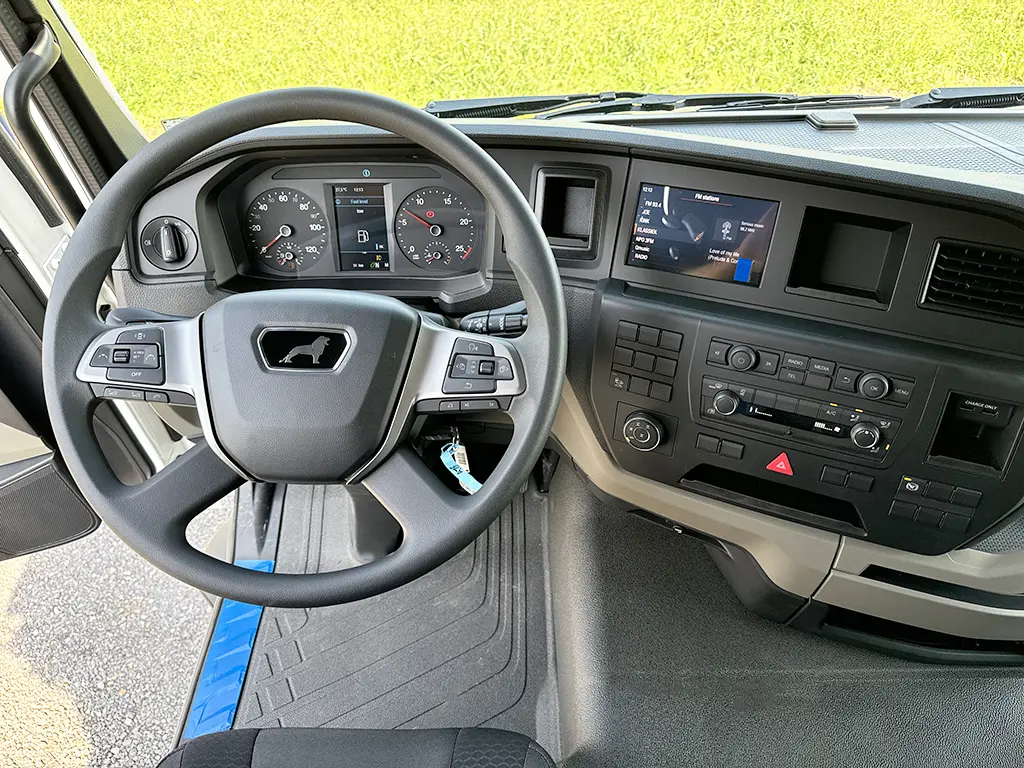

Cabin

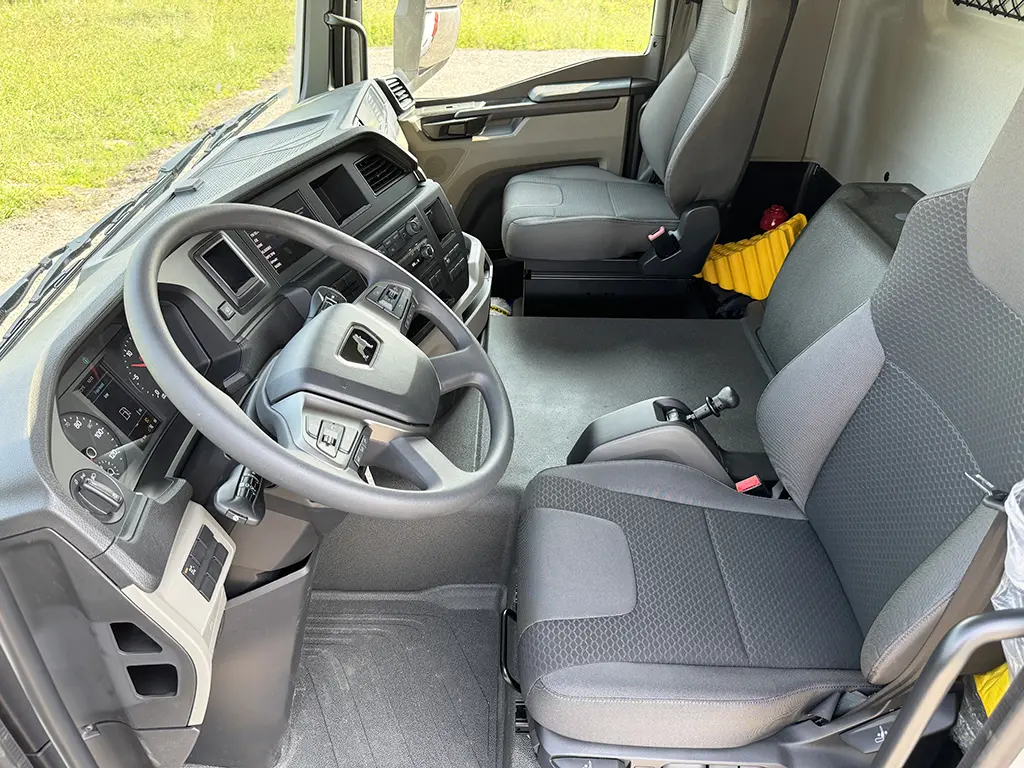

- Cabin
- Day
- Steering
- Left hand drive
Gearbox
- Transmission
- Automatic
- Gearbox
- TipMatic 12.28 OD
- PTO
- NH/4C
Chassis
- Wheel base
- 4.500 mm
- GVW
- 33.000 kg
- Axle configuration
- 6x6
- Suspension
- Spring
Dimensions
- External dimension
- 9.800 x 2.500 x 3.700 mm
- Empty weight
- 16.660 kg

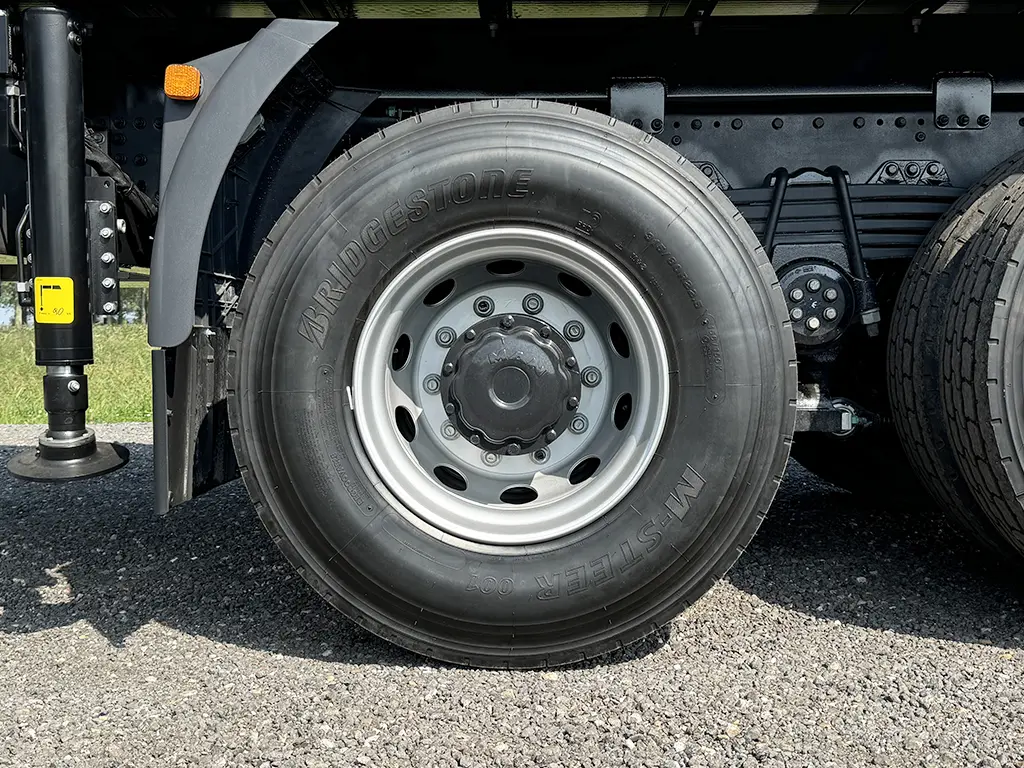

Axles
Axle 1
- Steering
- Yes
- Tires
- Single
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 385/65R22.5
Axle 2
- Steering
- No
- Tires
- Double
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 315/80R22.5
Axle 3
- Steering
- No
- Tires
- Double
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 315/80R22.5
Remarks

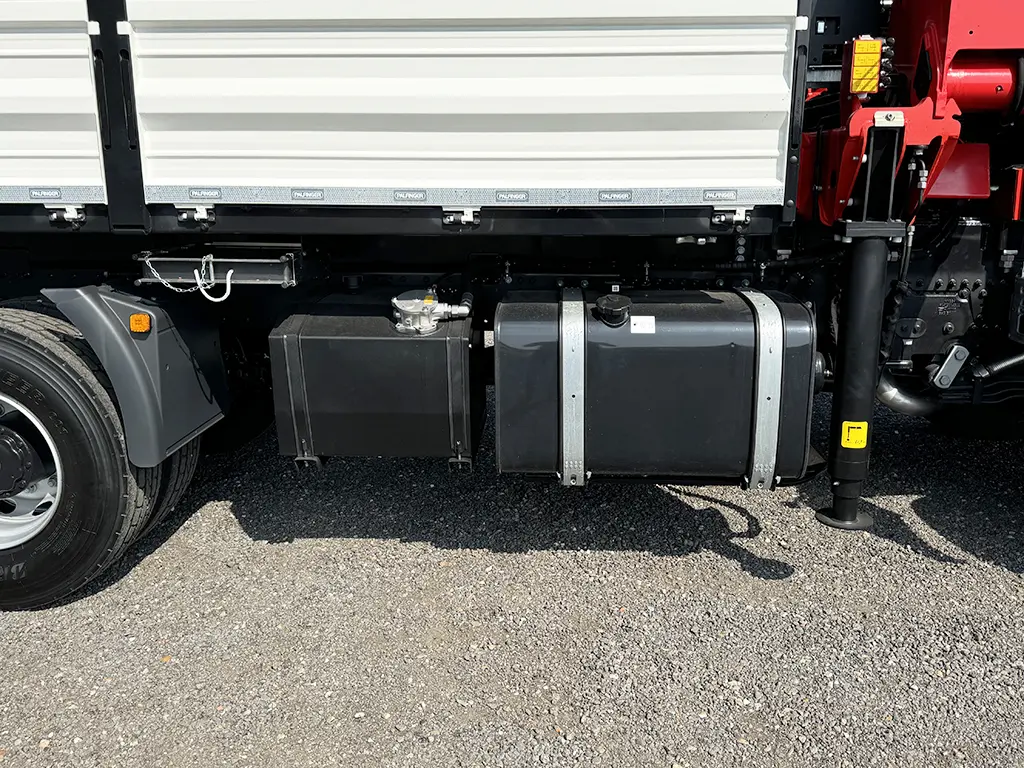

Fuel tank: 400 ltr.Air conditioning

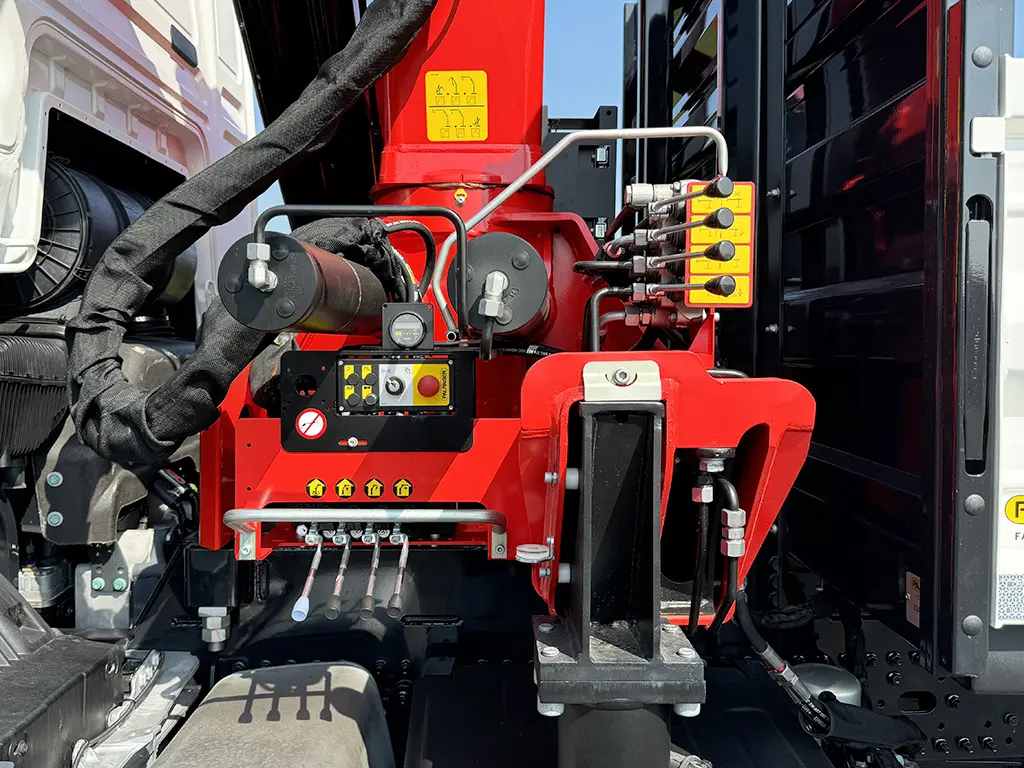

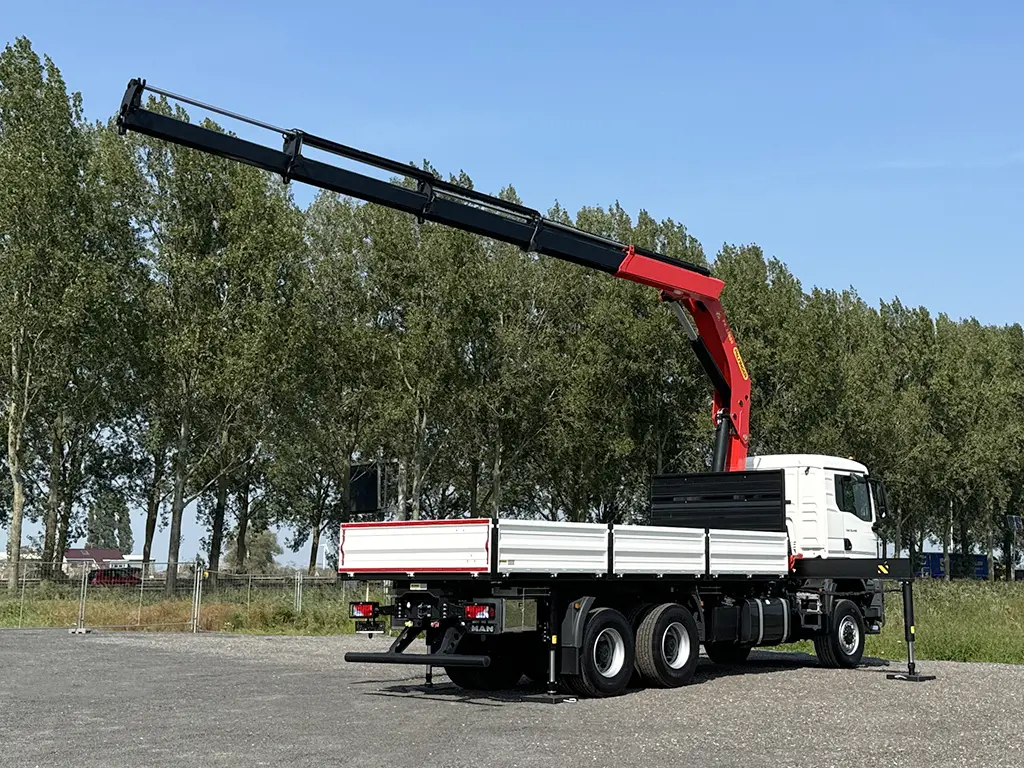

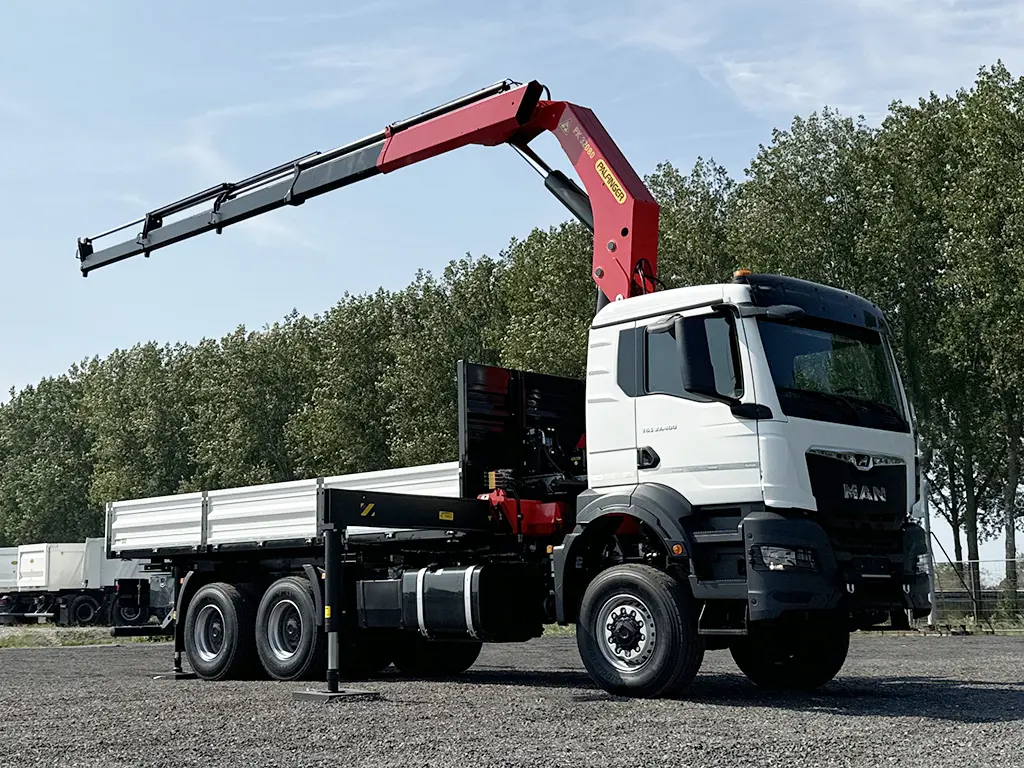

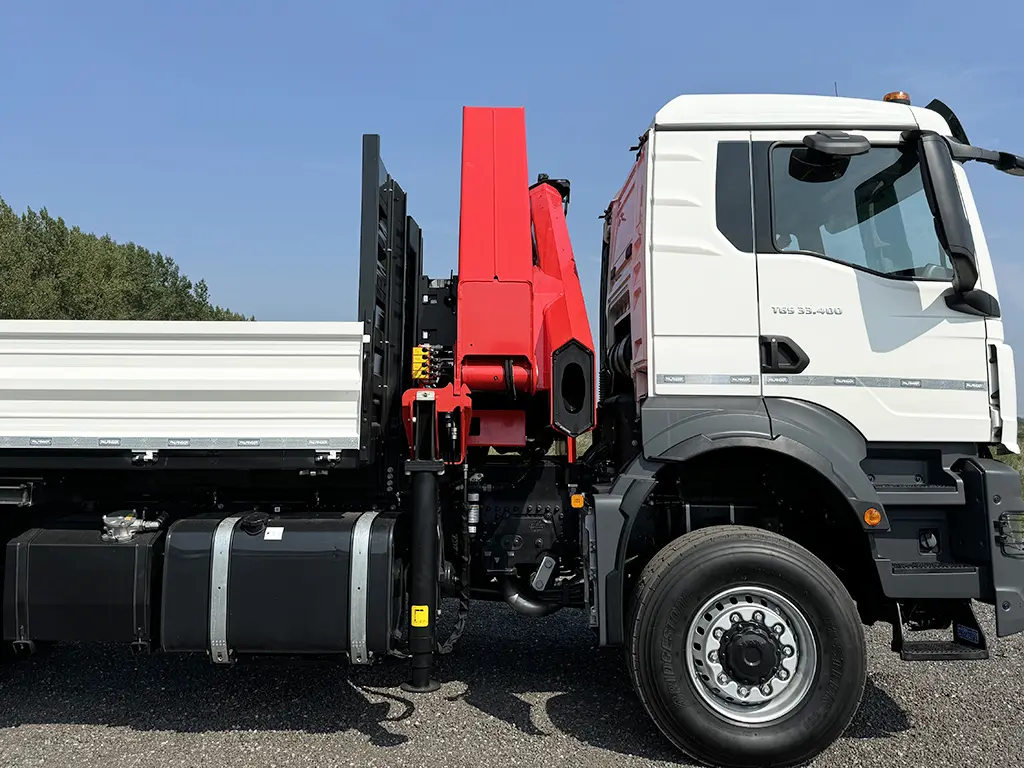

Equipped with crane and flatbed:

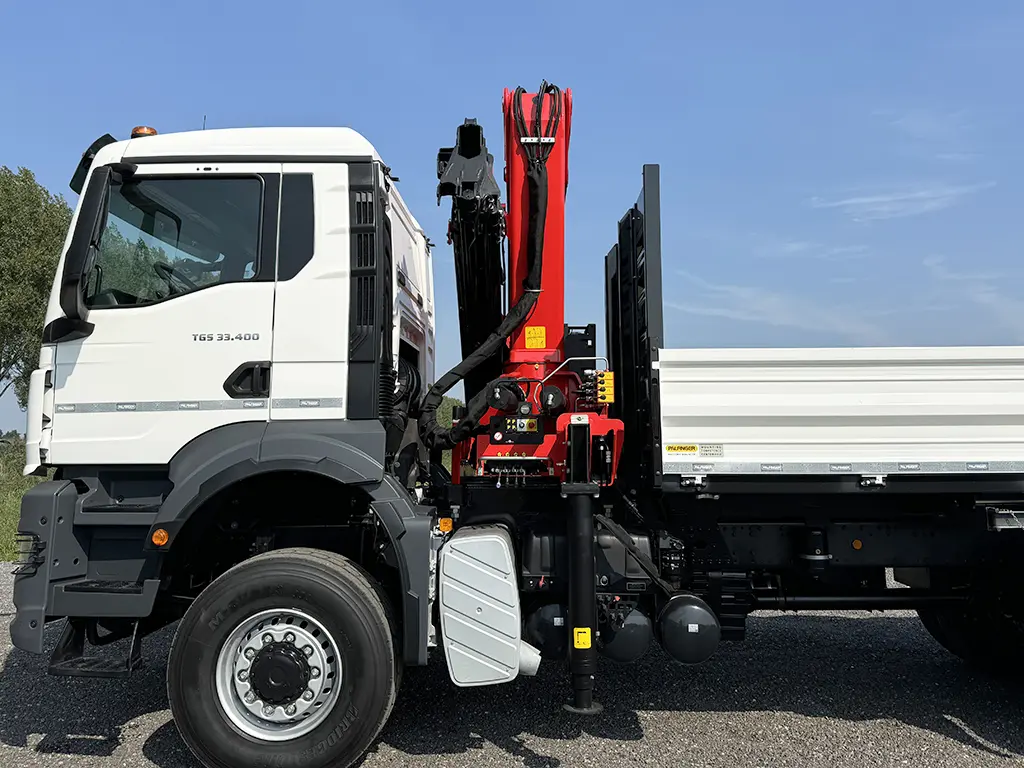

Type: Palfinger PK32080C
Lifting moment 298.2 kNm / 30.4 mt
Emergency cut off
Digital hour counter
Oil cooler 10,5 kW
Hydraulic overload protection
Outriggers hydraulic long

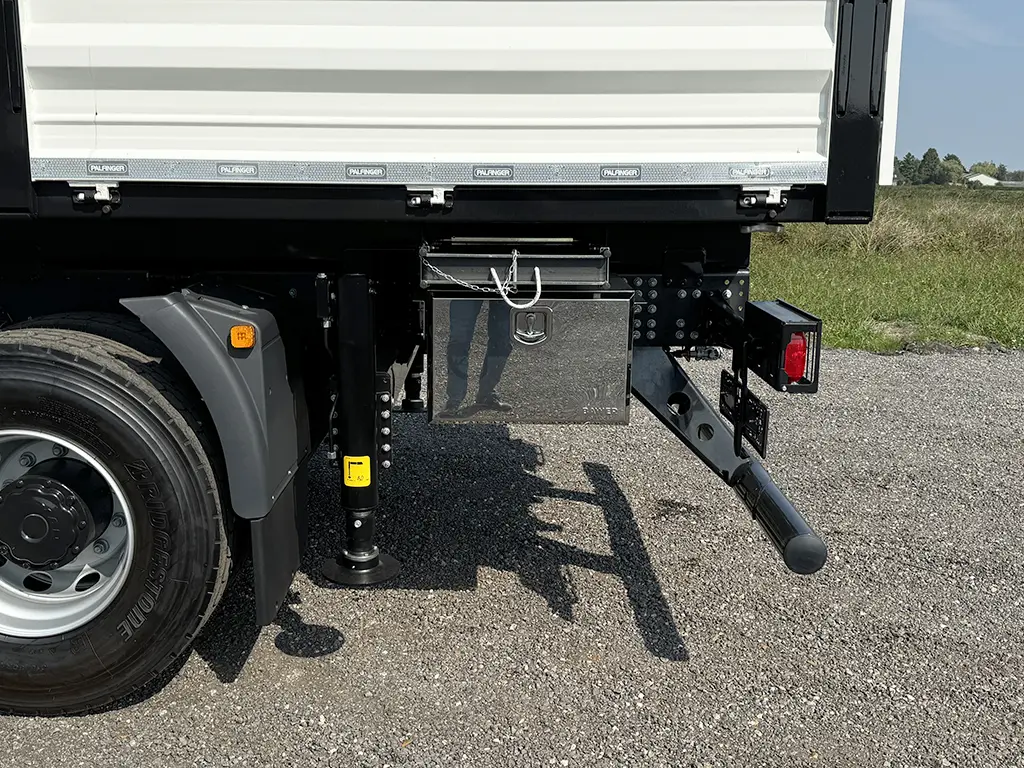

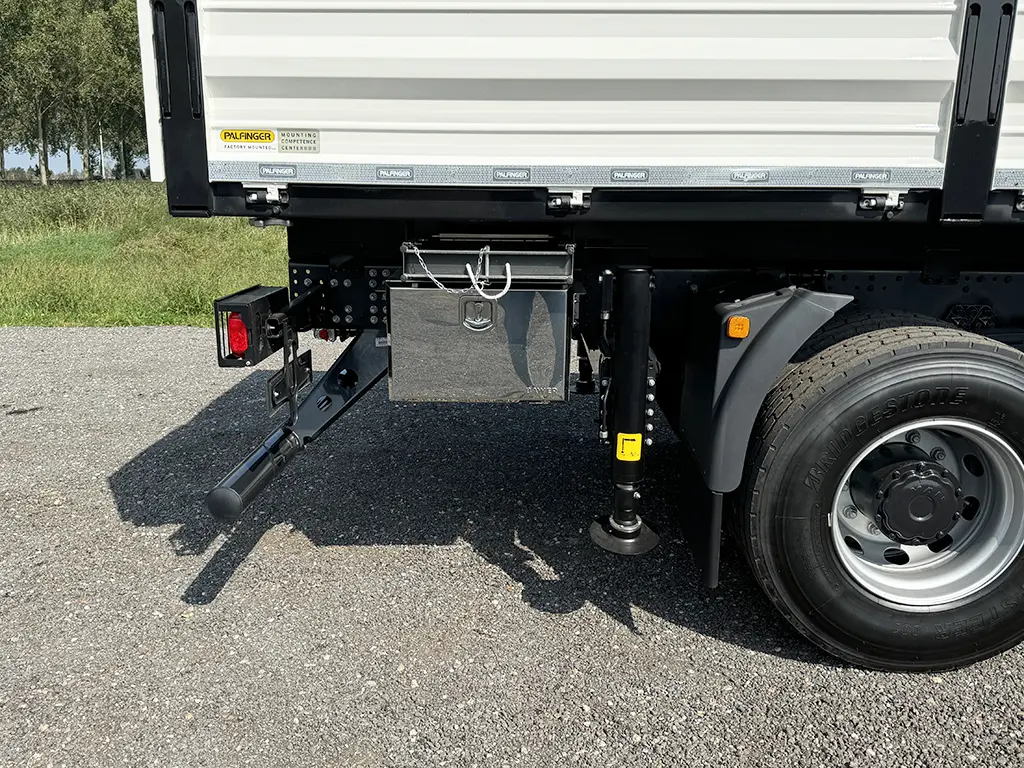

Rear stabilizers

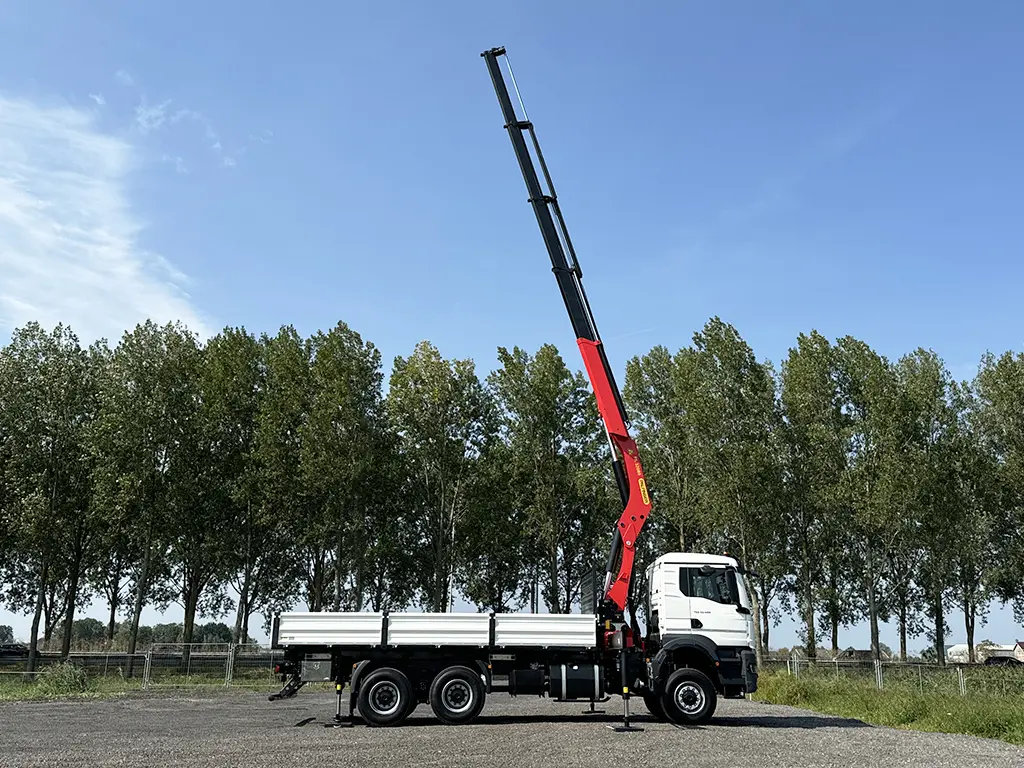

4 section hydraulic extension boom
Stabilizer pads 400x400x50 mm.
2 tool boxes
Lifting capacity:
8.100 kg / 3.60 m
6.600 kg / 4.40 m
4.570 kg / 6.20 m
3.430 kg / 8.00 m
2.710 kg / 10.00 m
2.260 kg / 11.90 m

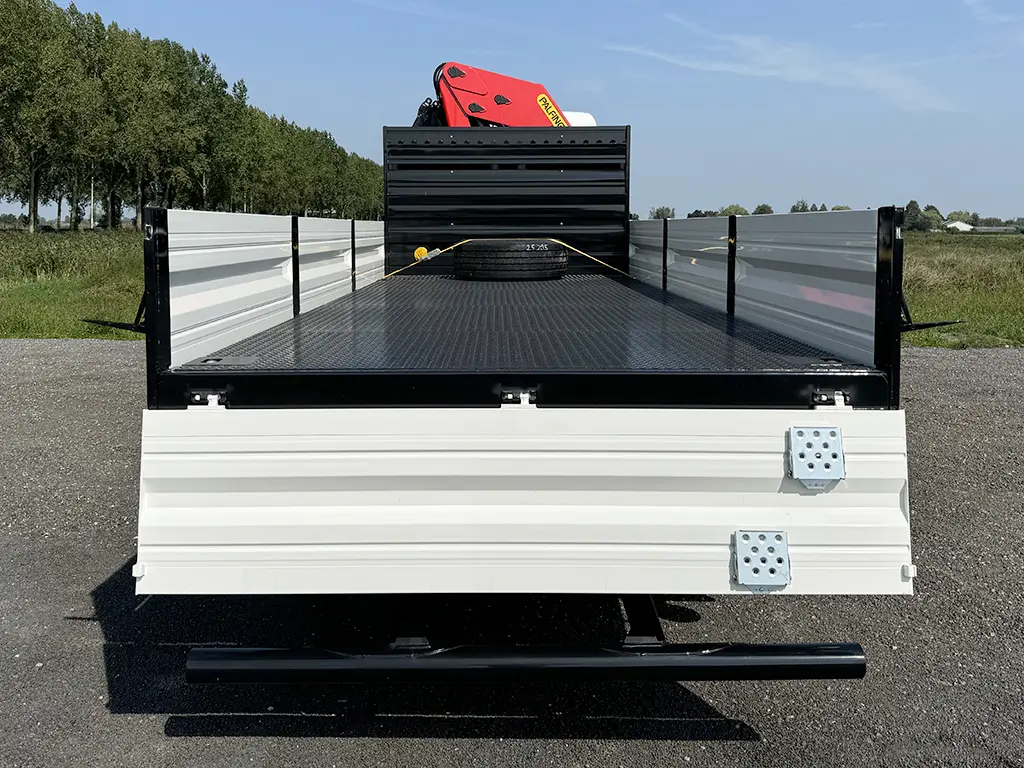

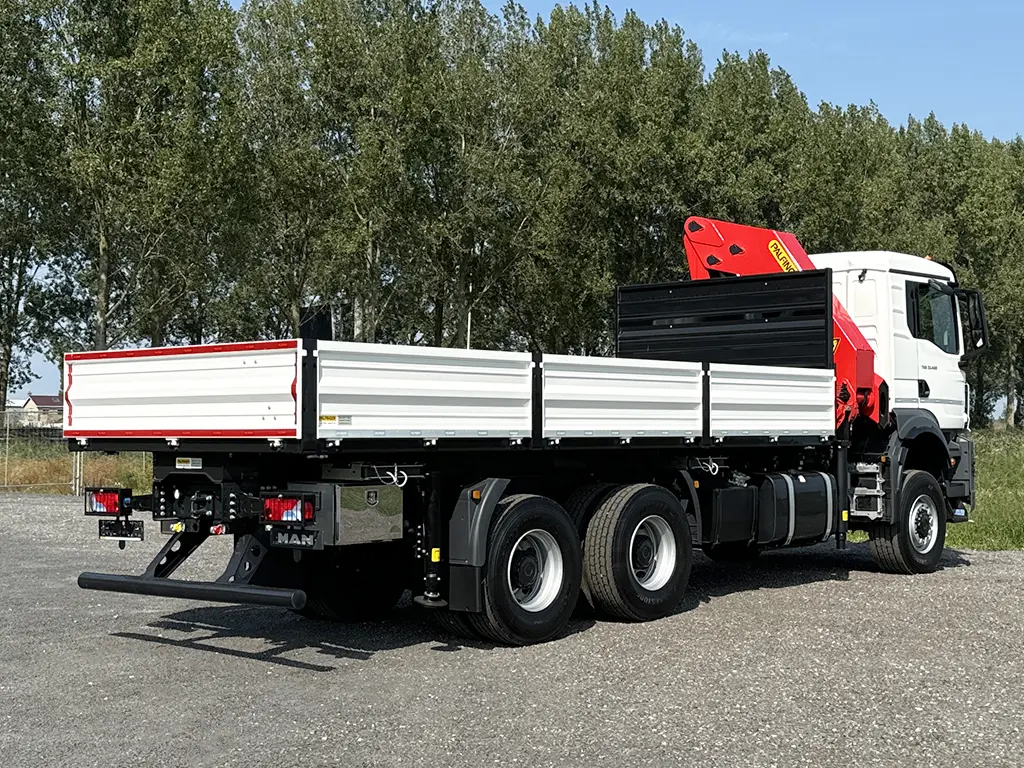

Open flatbed body with foldable sideboards
Twistlocks for 20 ft container
Flatbed body dimensions (LxWxH): 6.300 x 2.480 x 600 mm.
Complete specification in PDF.
Downloads
Images of this MAN

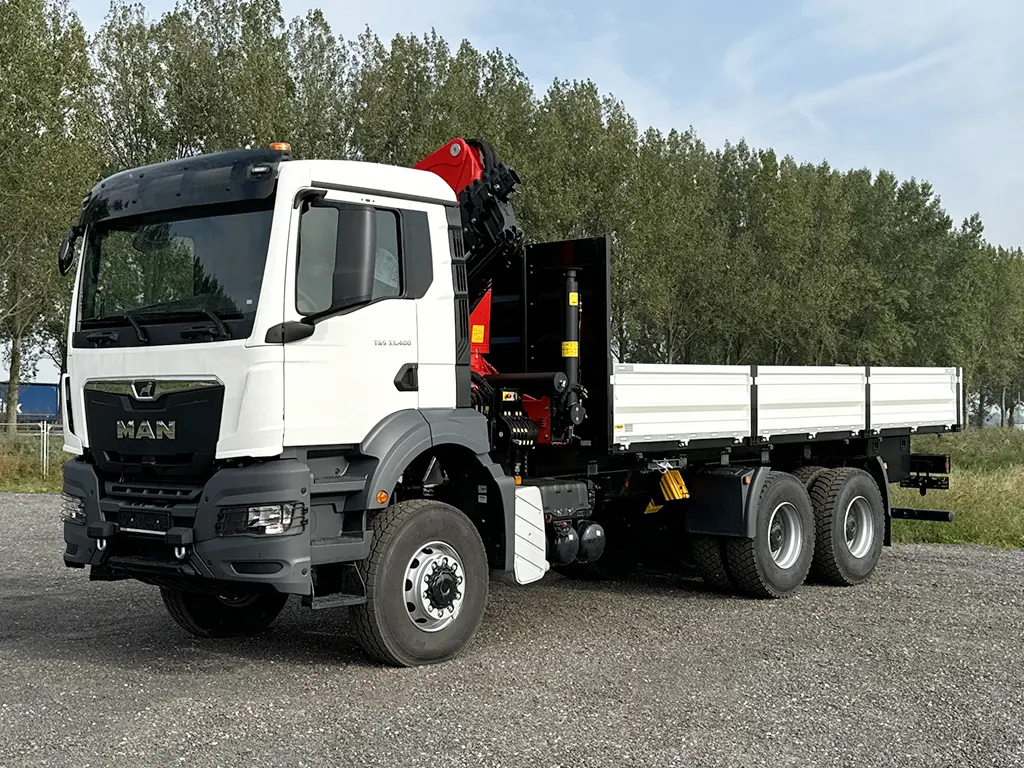

Similar stock
